IE-3300-8T2X-E Description
The IE-3300-8T2X-E is the Network Essentials member of Cisco's 10G-uplink Catalyst IE3300 line, a fanless modular DIN rail switch built around 8 Gigabit copper downlinks and 2x 1G/10G SFP+ uplinks for industrial sites that need backbone-speed backhaul under a Layer 2 operating model. Its perpetual Essentials license covers the working set of an OT access node - REP and Fast REP rings, MRP, PROFINET and EtherNet/IP (CIP), L2NAT for machine-IP reuse (on downlink ports; the 10G uplinks are excluded), MACsec-128, QoS, IGMP snooping, and IOx edge compute for Cyber Vision - while IEEE 1588 PTPv2 runs in Default Profile on this 10G base. A single IEM-3300 bay expands the system to 24 GE ports beneath the same 10G uplinks, dual 9.6-60VDC feeds and a -40°C to +70°C vented envelope handle cabinet reality, and the perpetual IE3300-NW-A= license can raise an installed unit to the full Network Advantage feature set without touching the hardware.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3300-8T2X-E |
|
Downlink ports |
8x 10/100/1000M RJ45 copper |
|
Uplink ports |
2x 1G/10G SFP+ |
|
Network license |
Network Essentials (perpetual) |
|
Expansion |
1x IEM-3300 bay, up to 24 GE + 2x10G system ports |
|
Forwarding |
Line rate on all ports and packet sizes |
|
Unicast MAC addresses |
16K |
|
Input power |
Dual DC inputs, 9.6-60VDC |
|
Power consumption |
28W |
|
Operating temperature |
-40°C to +70°C (40 LFM vented enclosure) |
|
Alarm and console |
2 alarm in / 1 alarm out; RJ-45 + USB Mini-B console |
|
Mounting |
DIN rail |
Product Performance
Key Features
The Essentials license keeps a 10G-uplinked cabinet on ring-and-VLAN operations at the lower license cost, which fits sites where routing terminates upstream and the cabinet’s job is fast, resilient transport.
REP, Fast REP with zero-touch provisioning, and PROFINET-MRP ship in the base license, so resilient ring topologies between cabinets need no license step-up on this PID.
1:1 Layer 2 NAT lets serially built machines keep duplicate internal addressing behind each switch; on this 10G base the translation applies to downlink ports, with the SFP+ uplinks excluded.
The perpetual IE3300-NW-A= upgrade license converts an installed IE-3300-8T2X-E to the full Advantage feature set – routing protocols, VRF-lite, MACsec-256, multicast routing – without hardware replacement or downtime for a swap.
IEEE 1588 PTPv2 runs in Default Profile on 10G-uplink IE3300 bases; manufacturing synchronization is covered, while C37.238 Power Profile designs belong on the GE-uplink models.
Fanless -40°C to +70°C vented operation, dual 9.6-60VDC feeds, IEC 62443, substation, rail, and Class I Div 2 approvals carry the unit across plants, corridors, and yards.
Application Scenarios
Placed as a node in a REP or MRP ring spanning several cabinets, forwarding ring traffic at 10G between neighbors while its eight copper ports serve the local machine group.
Deployed inside PROFINET-based production cells whose controllers and I/O stay in Layer 2 domains, with the 10G uplinks carrying cell traffic to a routed distribution layer elsewhere.
Installed with serially built OEM machines that ship identical internal IP plans, using L2NAT on the downlinks so each copy joins the plant network without re-addressing.
Product Comparison
|
Parameter |
IE-3300-8T2X-E | ||
|---|---|---|---|
|
Downlink ports |
8x GE copper |
8x GE copper |
8x GE copper, 4PPoE (802.3bt Type 3) |
|
Uplink ports |
2x 1G/10G SFP+ |
2x 1G/10G SFP+ |
2x 1G/10G SFP+ |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
|
PoE power budget |
Not a PoE switch (data only) |
Not a PoE switch (data only) |
Up to 480W including module |
|
Routing and segmentation |
Static and inter-VLAN routing |
OSPF/BGP/EIGRP, VRF-lite, PIM multicast |
Static and inter-VLAN routing |
|
MACsec |
MACsec-128 |
MACsec-256 |
MACsec-128 |
|
Power consumption |
28W |
28W |
42W |
|
MTBF |
463,629 hours (predicted) |
463,629 hours (predicted) |
436,034 hours (predicted) |
- Between IE-3300-8T2X-E and IE-3300-8T2X-A nothing changes physically – the split is what the license unlocks: dynamic routing, VRF-lite, PIM multicast, and MACsec-256 exist only on the -A side, so a cabinet that must originate routed segments or encrypt at 256-bit needs the -A PID or an upgraded -E.
- The upgrade direction is the buyer’s safety valve: IE3300-NW-A= is a perpetual in-place license, so starting on IE-3300-8T2X-E does not strand the hardware when routing arrives later – the cost decision is timing, not capability lock-in.
- IE-3300-8U2X-E keeps this PID’s license tier and 10G uplinks but adds 802.3bt Type 3 power with a 480W ceiling at 42W draw, so the only reason to move from IE-3300-8T2X-E to the 8U2X-E is powered endpoints hanging off the same cabinet.
Selection Guide
1. Where Essentials Carries The Design
Cabinets that transport Layer 2 traffic over rings and trunks – with routing, segmentation, and multicast handled upstream – run their whole role inside this license tier, and the 10G uplinks remove the bandwidth argument for paying more.
2. Upgrade Triggers To Watch
The moment a design asks this node to run OSPF or BGP, terminate VRF-lite segments, route multicast, or encrypt uplinks at MACsec-256, order IE3300-NW-A= for the installed base or specify IE-3300-8T2X-A for new sites – the features are license-gated, not hardware-gated.
3. Timing Designs Check The Base
PTP on this 10G base is Default Profile only; when a project standardizes on IEEE C37.238 Power Profile, no license change helps – the GE-uplink IE3300 models are the correct hardware.
4. Powered Endpoints Change The PID
This SKU has no PoE circuitry; a cabinet that must also power bt-class devices moves to IE-3300-8U2X-E at the same license tier rather than pairing this unit with external injectors.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
External supply pairing |
Order a 50W-class DIN supply (PWR-IE50W-AC=) for this 28W non-PoE base plus any module. |
The switch ships without a supply; commissioning stalls without one on the same order. |
|
10G optic plan |
Select SFP+ optics per run (SR/LR/ER/ZR, BX, twinax) and prefer -I industrial grades in harsh cabinets. |
COM/EXT optics derate the operating range, and SFP-10G-ZR-I= derates the switch by 6°C. |
|
Corrosion-test status |
Note pending salt-fog and mixed-gas approvals on 10G variants for corrosive-site specifications. |
Specs requiring those certificates today may need the GE-uplink bases instead. |
|
License PID on upgrades |
Use IE3300-NW-A= when raising an installed unit to Network Advantage. |
Ordering a new -A switch instead of the license doubles hardware spend for a feature change. |
|
Module width |
Allow 2-3 inches of extra DIN width for the chosen IEM-3300 module. |
An unplanned width increase can miss the enclosure cutout. |
|
SD card for SwapDrive |
Add SD-IE-16GB= when zero-touch field replacement is planned. |
The card is optional and not shipped by default. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
IE3300-NW-A= |
Network Advantage upgrade license for IE3300, perpetual (in-place upgrade from Network Essentials) |
|
8x GE copper expansion module | |
|
8x GE SFP fiber expansion module | |
|
16x GE copper expansion module | |
|
50W DIN rail power supply, AC/DC input, hazardous-location certified | |
|
10GBASE-SR SFP+, multimode, 400 m | |
|
10GBASE-LR SFP+, single-mode, 10 km | |
|
SD-IE-16GB= |
16GB SD card for configuration and SwapDrive replacement |
|
STK-RACK-DINRAIL= |
19-inch rack mount kit for DIN rail switches |

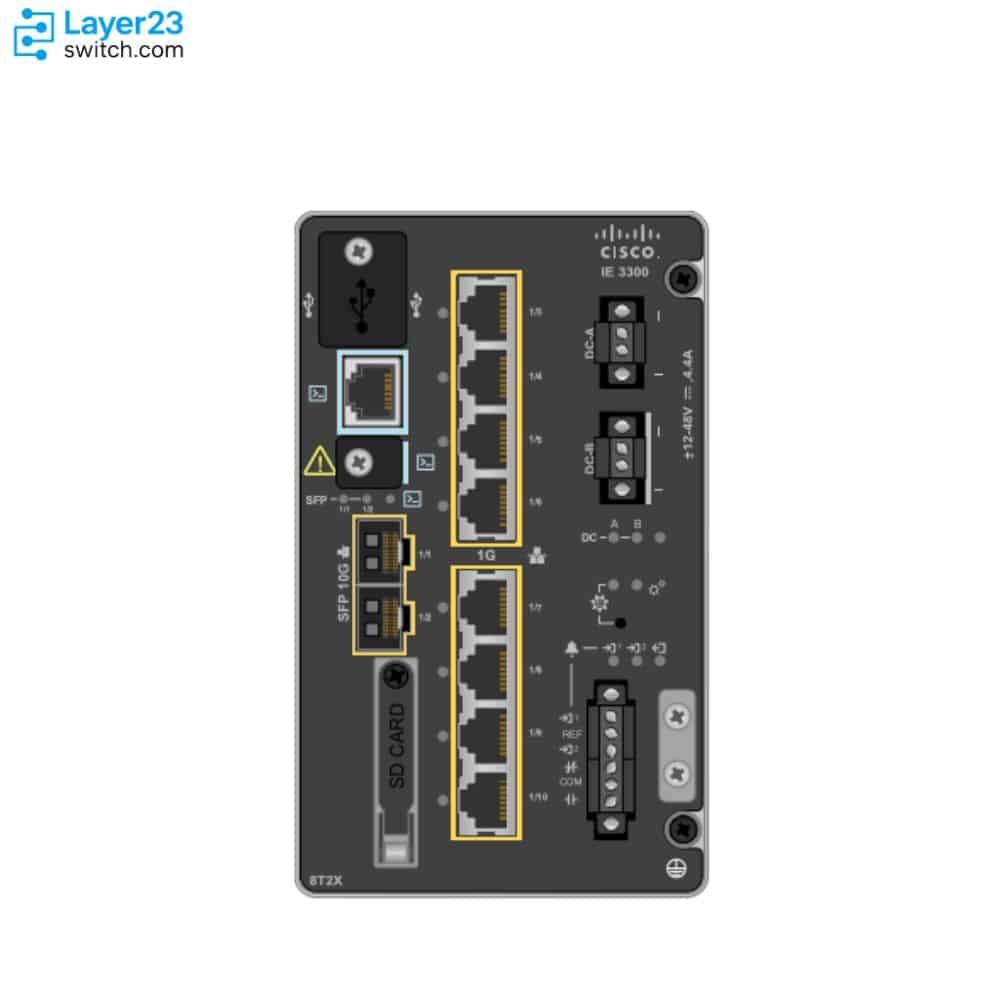

IE-3300-8T2X-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
10/100/1000 Copper Ethernet ports (downlink ports) |
7 |
Flash memory card slot |
|---|---|---|---|
|
2 |
Power connector DC-B |
8 |
SFP module slots (uplink ports) |
|
3 |
Power connector DC-A |
9 |
USB mini-Type B (console) port |
|
4 |
Protective ground connection |
10 |
RJ-45 console port |
|
5 |
Alarm connector |
11 |
USB mini-Type A port |
|
6 |
10/100/1000 Copper Ethernet ports (downlink ports) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3300-8T2X-E | Network license | Network Essentials, perpetual; in-place upgrade via IE3300-NW-A= |
| Downlink ports | 8x 10/100/1000M RJ45 | Uplink ports | 2x 1G/10G SFP+ |
| Expansion | 1x IEM-3300 bay; up to 24 GE + 2x10G system ports | Forwarding | Line rate, all ports and packet sizes; 8 egress queues |
| MAC / routes | 16K MAC; 3000 IPv4 + 512 IPv6 indirect routes (route scale requires Network Advantage) | VLANs / ACL | 256 VLANs; 128 STP instances; 3K ACL entries |
| Memory | 4 GB DRAM; 1.5 GB user flash; optional 4/16 GB SD | Jumbo frames | 8996 bytes |
| Essentials features | L2 switching, REP/Fast REP/REP ZTP, MRP, PROFINET, CIP, IGMP snooping, QoS, static and inter-VLAN routing, L2NAT (not on 10G uplink ports), MACsec-128, FIPS 140-2, IOx (Cyber Vision, Secure Equipment Access) | Advantage adds (via upgrade) | OSPF/BGP/RIP/ISIS/EIGRP, PBR, VRRP/HSRP, BFD, VRF-lite, MACsec-256, PIM multicast routing |
| PTP timing | IEEE 1588 PTPv2, Default Profile only on this 10G base | Management | WebUI, Cisco Catalyst Center, SNMP/NETCONF/RESTCONF/YANG, Full Flexible NetFlow |
| Input power | Dual redundant DC, 9.6-60VDC; 4.5A max | Power consumption | 28W |
| Compatible DIN rail supplies | External units ordered separately: PWR-IE50W-AC=, PWR-IE50W-AC-IEC= (non-PoE class) | Alarms / console | 2 alarm in, 1 alarm out; RS-232 RJ-45 + USB Mini-B console; optional USB storage |
| Operating temperature | -40°C to +70°C vented; +60°C sealed; +75°C at 200 LFM; +85°C type-tested 16 h | Altitude / humidity | To 15,000 ft; 5-95% non-condensing; storage -40°C to +85°C |
| Dimensions (H x W x D) | 6 x 3.8 x 5.3 in (15.2 x 9.7 x 13.5 cm) | Weight / MTBF | 3.6 lbs (1.6 kg); 463,629 hours (predicted) |
| Supported uplink optics | 1G SFP plus 10G SFP+ (SR/LR/ER/ZR, -X and -I grades, BX bidirectional, twinax, CWDM/DWDM); COM/EXT grades derate temperature; SFP-10G-ZR-I= derates the switch 6°C | Industrial compliance | IEC 62443-4-1/-4-2, IEEE 1613, EN/IEC 61850-3, ODVA CIP, NEMA TS 2-2016, AREMA C&S 11/19, DNV Marine, EN50121/EN50155, IP30; corrosion approvals pending on 10G variants |
| Safety / hazloc | UL/CSA 60950-1, 62368-1, 61010-2-201; UL121201/CSA 213 Class I Div 2 A-D; Class I Zone 2 ATEX/IECEx (cabinet required) | Warranty | 5-year limited hardware warranty (all IE3300 PIDs and IE power supplies) |
