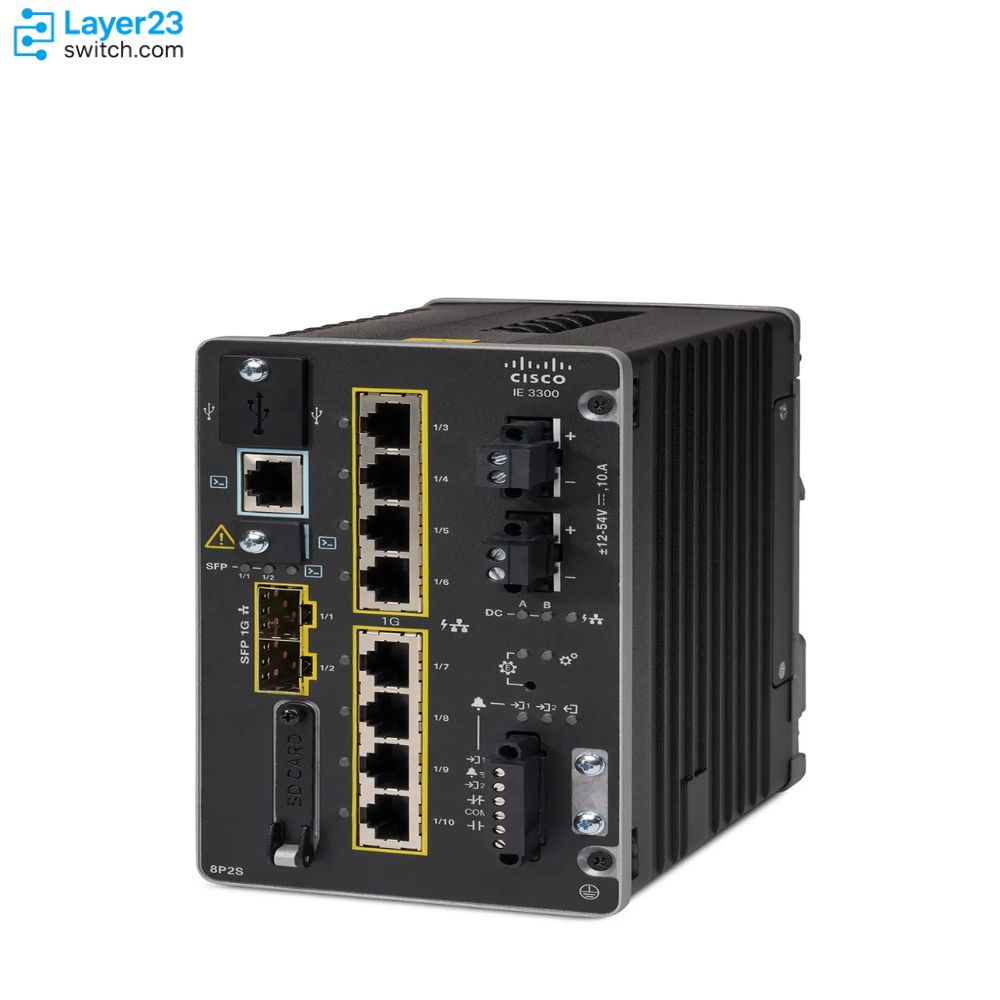

IE-3300-8P2S-E – 8x1G PoE+ Ports – 2x1G SFP Uplinks – 240W PoE Budget

4.810 reviews6 Questions9 sold this month
List Price: $11,041.39 57% OFF
$4,774.70
Price Alert
In StockShips in as little as 1 business day Brand New
Related models
Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policyExpress Shipping2-6 Business Daysvia UPS, FedEx, DHL and more
Trusted & Secure Payments

Shop Expert-Recommended Accessories for the IE-3300-8P2S-E

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.
  • GLC-LH-SMD

    GLC-LH-SMD

    1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
    Original price was: $1,260.58.Current price is: $95.80.
  • GLC-TE

    GLC-TE

    1000BASE-T SFP - RJ-45 Cat5 Copper - 100m Reach
    Original price was: $570.10.Current price is: $70.00.
  • GLC-SX-MMD

    GLC-SX-MMD

    1000BASE-SX SFP - MMF 850nm - DOM
    Original price was: $633.46.Current price is: $59.00.
  • GLC-EX-SMD

    GLC-EX-SMD

    1000BASE-EX SFP - 40km SMF - DOM
    Original price was: $2,527.49.Current price is: $205.00.
  • GLC-ZX-SMD

    GLC-ZX-SMD

    1000BASE-ZX SFP - 70km SMF - EXT DOM
    Original price was: $5,061.30.Current price is: $215.70.
  • IEM-3300-8T

    IEM-3300-8T

    8x1G Copper Ports - IE3300 Expansion Module - Non-PoE
    Original price was: $2,533.64.Current price is: $1,350.00.
  • IEM-3300-8S

    IEM-3300-8S

    8x1G SFP Ports - IE3300 Expansion Module
    Original price was: $3,024.71.Current price is: $1,200.80.
  • IEM-3300-16P=

    IEM-3300-16P

    16x1G PoE+ Copper Ports - IE3300 Expansion Module
    Original price was: $11,287.49.Current price is: $5,405.00.
  • PWR-IE65W-PC-AC

    PWR-IE65W-PC-AC

    65W AC/DC PSU - 54V PoE Output - DIN-Rail
    Original price was: $627.12.Current price is: $475.23.
  • PWR-IE65W-PC-DC

    PWR-IE65W-PC-DC

    65W Low-DC PSU - 54V PoE Output - DIN-Rail
    Original price was: $677.07.Current price is: $420.00.
  • PWR-IE170W-PC-AC

    PWR-IE170W-PC-AC

    170W AC/DC PSU - 54V PoE Output - DIN-Rail
    Original price was: $4,407.90.Current price is: $782.13.
  • PWR-IE170W-PC-DC

    PWR-IE170W-PC-DC

    170W Low-DC PSU - 54V PoE Output - DIN-Rail
    Original price was: $2,090.39.Current price is: $1,150.00.
  • PWR-IE240W-PCAC-L

    PWR-IE240W-PCAC-L

    240W AC PSU - 54V PoE Output - Hardwired DIN-Rail
    Original price was: $4,407.90.Current price is: $1,098.70.
  • PWR-IE480W-PCAC-L

    PWR-IE480W-PCAC-L

    480W AC PSU - 54V PoE Output - DIN-Rail
    Original price was: $3,160.94.Current price is: $1,388.49.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded
Customers
Units shipped
Countries

Inventory You Can See

Cisco stock on hand
Models ready to ship
Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

  • Advance replacement for in-stock models
  • New unit for dead-on-arrival
  • 14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

IE-3300-8P2S-E Description

The IE-3300-8P2S-E is a Cisco Catalyst IE3300 Rugged Series industrial switch for DIN rail cabinets that power IP cameras, phones and sensors at the plant or roadside edge. The switch runs Network Essentials on eight PoE/PoE+ copper ports and two 100/1000 SFP uplinks, with a 240W PoE budget (360W with a PoE module), dual 9.6 to 60VDC inputs and a -40°C to +70°C rating. PoE+ output needs a 54VDC feed, and routing stays at static and inter-VLAN routes until Network Advantage is added.

Quick Specs

Parameter

Specification

Product ID

IE-3300-8P2S-E

Copper ports

8x 10/100/1000 RJ45, PoE/PoE+

SFP uplinks

2x 100/1000 SFP

PoE power budget

240W base; 360W with PoE expansion module

Network license

Network Essentials (perpetual)

Expansion

1x IEM-3300 module, up to 26 GE system ports

Input voltage

Dual DC, 9.6 to 60VDC; 48VDC for PoE, 54VDC for PoE+

Power consumption

32W at 54V, excluding PoE output

Forwarding rate

Line rate for all ports and all packet sizes

IEEE 1588 PTPv2

Default Profile and Power Profile

Operating temperature

-40°C to +70°C (40 LFM vented enclosure)

Cooling and mounting

Fanless, DIN rail

Product Performance

Base PoE Power Budget
Maximum PoE/PoE+ Ports With Expansion Module
Unicast MAC Addresses

Key Features

Full PoE+ Class On All Eight Ports

The 240W budget equals eight ports at the 30W PoE+ maximum, so every copper port can carry a full-class device at the same time. That holds only on a 54VDC feed; at 48VDC the ports deliver PoE, not PoE+.

More Powered Ports From One Module

IEM-3300-8P= or IEM-3300-16P= raises the system to as many as 24 PoE/PoE+ ports on a shared 360W budget, which averages 15W per port when all 24 draw power. IEM-3300-4MU= instead adds four 1G/2.5G ports at 802.3bt Type 4, without PTP on those ports.

Where Network Essentials Stops

Routing on this license covers inter-VLAN and static routes. OSPF, BGP, EIGRP, VRF-lite, MACsec-256 and multicast routing arrive with the perpetual IE3300-NW-A= license, applied to the installed switch without a hardware change.

Plant Protocols And Utility Timing

CIP EtherNet/IP and PROFINET run natively, and REP, Fast REP and PROFINET MRP rings are part of Network Essentials. IEEE 1588 PTPv2 supports both the Default Profile and the IEEE C37.238:2011 Power Profile on this Gigabit-uplink base.

SwapDrive From An SD Card

A failed unit can be replaced without reconfiguration when its configuration sits on an SD card. The 4 GB or 16 GB card is optional and does not ship with the switch.

IOx On Version 06 Hardware

Docker containers, Cyber Vision and Secure Equipment Access can run on the switch through IOx. On IE3300-8P2S hardware, IOx needs Hardware Version ID 06 or later, shown as V06 on the label or in show version.

Application Scenarios

Traffic Camera Cabinets

In a NEMA TS 2 roadside cabinet, the switch powers intersection cameras and detection sensors over PoE+ and returns their traffic to the traffic center on a fiber SFP uplink.

Packaging Line Cells

A packaging line keeps its PLC, HMI panel and PoE+ inspection cameras on one DIN rail switch, which joins the line’s PROFINET MRP ring through the two SFP ports.

Substation Yard Monitoring

Electric utilities place the switch in IEC 61850-3 and IEEE 1613 substation cabinets, where it powers yard cameras and carries PTPv2 Power Profile timing to bay devices.

Product Comparison

Parameter

IE-3300-8P2S-E

IE-3300-8T2S-E

IE-3300-8P2S-A

IE-3200-8P2S-E

Copper ports

8x 10/100/1000 RJ45 PoE/PoE+; up to 24 PoE/PoE+ with expansion module

8x 10/100/1000 RJ45, no PoE

8x 10/100/1000 RJ45 PoE/PoE+; up to 24 PoE/PoE+ with expansion module

8x 10/100/1000 RJ45 PoE/PoE+ (fixed system)

SFP ports

2x 100/1000 SFP

2x 100/1000 SFP

2x 100/1000 SFP

2x 100/1000 SFP

PoE power budget

240W base; 360W with expansion module

Not applicable

240W base; 360W with expansion module

240W

Input voltage

9.6 to 60VDC; 48VDC for PoE, 54VDC for PoE+

9.6 to 60VDC

9.6 to 60VDC; 48VDC for PoE, 54VDC for PoE+

9.6 to 60VDC; 48VDC for PoE, 54VDC for PoE+

Operating temperature

-40°C to +70°C (40 LFM vented enclosure)

-40°C to +70°C (40 LFM vented enclosure)

-40°C to +70°C (40 LFM vented enclosure)

-40°C to +70°C (40 LFM vented enclosure)

Ring protocols

REP, Fast REP, PROFINET MRP

REP, Fast REP, PROFINET MRP

REP, Fast REP, PROFINET MRP

REP, Fast REP, PROFINET MRP

Mounting

DIN rail

DIN rail

DIN rail

DIN rail

Network license

Network Essentials

Network Essentials

Network Advantage

Network Essentials

IE-3300-8P2S-E and IE-3300-8T2S-E share the eight-copper, two-SFP base, but only IE-3300-8P2S-E sources PoE/PoE+, with 240W on the base and 360W with a PoE module, so cabinets with no powered devices can use the data-only IE-3300-8T2S-E. A cabinet that stays at eight or fewer powered ports can also take IE-3200-8P2S-E, which keeps the 240W budget on a fixed system with no expansion bay. OSPF, BGP, EIGRP, VRF-lite or MACsec-256 require Network Advantage: order IE-3300-8P2S-A, or add the perpetual IE3300-NW-A= license to an installed IE-3300-8P2S-E. Catalyst Center Advantage management also requires Network Advantage on the switch.

PoE Power Planning

Planning Item

Value or Check

PoE standards

IEEE 802.3af PoE and 802.3at PoE+ on the eight copper ports

Base PoE budget

240W shared by eight ports; eight 30W PoE+ devices use the full 240W

Budget with PoE module

360W with IEM-3300-8P=, IEM-3300-16P= or IEM-3300-4MU=; 24 powered ports average 15W each at full load

Input voltage for PoE

48VDC minimum for PoE; 54VDC for PoE+

Supply sizing

Switch draw (32W) plus PoE load must stay within the supply wattage; a full 240W PoE load brings the total to 272W

PoE-capable supplies

PWR-IE65W-PC-AC=, PWR-IE65W-PC-DC=, PWR-IE170W-PC-AC=, PWR-IE170W-PC-DC=, PWR-IE240W-PCAC-L=, PWR-IE480W-PCAC-L=; 50W models carry no PoE

Dual DC inputs

With both inputs live the switch draws from the higher-voltage source; the other input takes over if it fails

Device count check

Add up the PoE class of every connected device and compare it with the active 240W or 360W budget

Ordering Checklist

  • PoE-capable power supply: Select a PoE-capable DIN rail supply such as PWR-IE170W-PC-DC= or PWR-IE480W-PCAC-L=, not a 50W model. The 32W switch draw plus the PoE load must fit within the supply wattage.
  • Supply for hazardous locations: Class I Div 2 or Zone 2 cabinets need a supply other than PWR-IE240W-PCAC-L= or PWR-IE480W-PCAC-L=. These -L supplies are IP20 rated and not certified for hazardous locations or smart grid sites.
  • PoE expansion module: Add IEM-3300-8P=, IEM-3300-16P= or IEM-3300-4MU= when more powered ports are planned. Only one module fits, and it lifts the shared budget from 240W to 360W.
  • SD card for SwapDrive: Add SD-IE-16GB= when SwapDrive replacement is planned. The SD card is optional and is not shipped with the switch.
  • Catalyst Center license: Order IE3300-DNA-E or a 3, 5 or 7-year term such as IE3300-DNA-E-5Y for Catalyst Center management. IE3300-DNA-A requires Network Advantage, which IE3300-NW-A= adds.
  • Industrial SFP optics: Choose industrial optics such as GLC-SX-MM-RGD= or GLC-LX-SM-RGD= for the two SFP uplinks. Commercial or extended-grade SFPs force a derating of the switch operating temperature.
  • 19-inch rack mounting: Add STK-RACK-DINRAIL= when the switch goes into a 19-inch rack. The DIN rail mount kit is a separate line.

Optional Add-ons

Model

Description

IEM-3300-8P=

Expansion module, 8x GE PoE/PoE+ ports (360W system budget on this base)

IEM-3300-16P=

Expansion module, 16x GE PoE/PoE+ ports (360W system budget on this base)

IEM-3300-4MU=

Expansion module, 4x 1GE/2.5G copper ports with 802.3bt Type 4 PoE, no PTP

PWR-IE65W-PC-AC=

65W PoE-capable DIN rail supply, 100-240VAC or 125-250VDC input

PWR-IE65W-PC-DC=

65W PoE-capable DIN rail supply, 24-48VDC input

PWR-IE170W-PC-AC=

170W PoE-capable DIN rail supply, 100-240VAC or 125-250VDC input

PWR-IE170W-PC-DC=

170W PoE-capable DIN rail supply, 12-54VDC input

PWR-IE240W-PCAC-L=

240W PoE-capable DIN rail supply, 100-240VAC input, IP20

PWR-IE480W-PCAC-L=

480W PoE-capable DIN rail supply, 100-240VAC input, IP20

GLC-FE-100FX-RGD=

Industrial 100BASE-FX SFP, 2 km over multimode fiber

GLC-SX-MM-RGD=

Industrial 1000BASE-SX SFP, 220-550 m over multimode fiber

GLC-LX-SM-RGD=

Industrial 1000BASE-LX/LH SFP, 550 m MMF or 10 km SMF

GLC-ZX-SM-RGD=

Industrial 1000BASE-ZX SFP, 70 km over single-mode fiber

SD-IE-16GB=

16GB SD card for configuration storage and SwapDrive

STK-RACK-DINRAIL=

19-inch DIN rail mount kit

IE3300-NW-A=

Network Advantage license for IE3300, perpetual

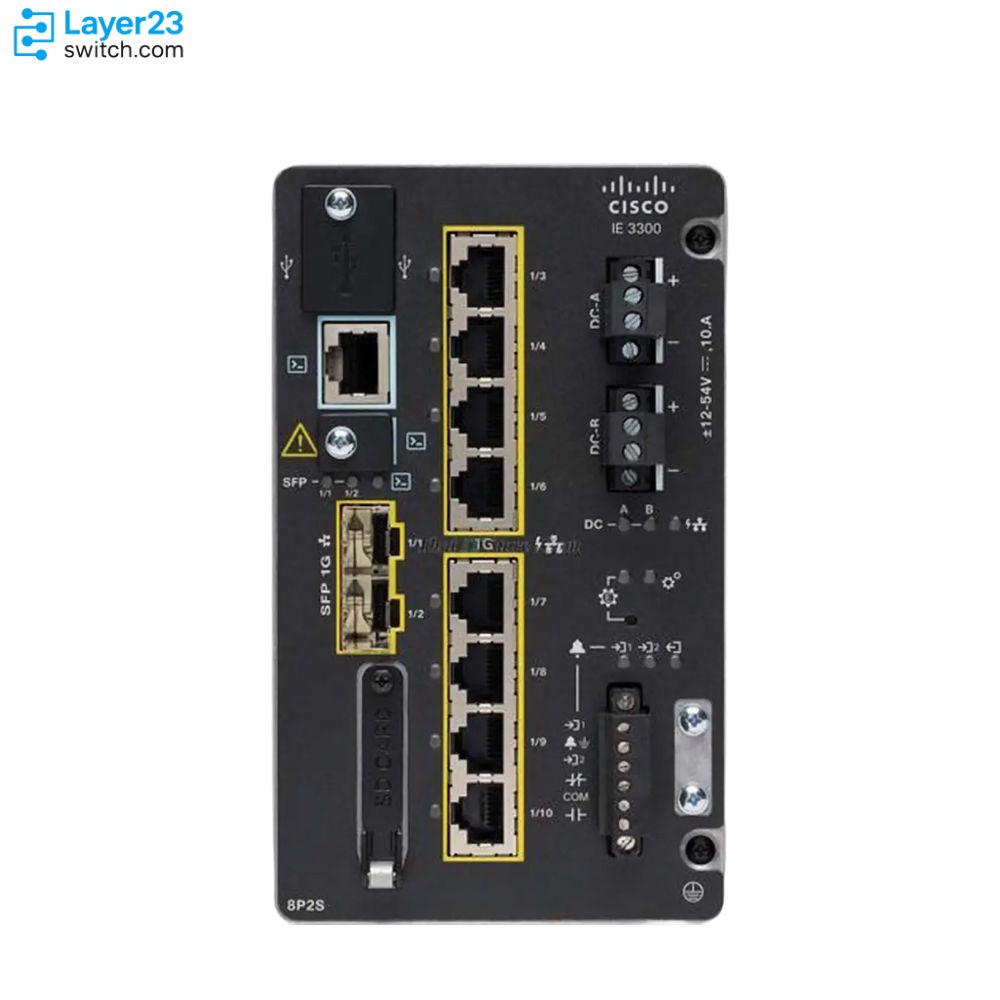

IE-3300-8P2S-E Front Panel Overview

The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.

1

10/100/1000 Copper Ethernet ports (downlink ports)

7

Flash memory card slot

2

Power connector DC-B

8

SFP module slots (uplink ports)

3

Power connector DC-A

9

USB mini-Type B (console) port

4

Protective ground connection

10

RJ-45 console port

5

Alarm connector

11

USB mini-Type A port

6

10/100/1000 Copper Ethernet ports (downlink ports)

Specifications

Parameter Specification Parameter Specification
Product ID IE-3300-8P2S-E Network license Network Essentials, perpetual
Operating system Cisco IOS XE (IE3x00 Universal image) Downlink ports 8 x 10/100/1000 RJ-45 PoE/PoE+
Uplink ports 2 x 100/1000 SFP Expansion modules 1x IEM-3300 module; up to 26 GE system ports; up to 24 PoE/PoE+ ports
Console port 1 RS-232 (via RJ-45), 1 USB Mini Type B Alarm interfaces 2 alarm inputs, 1 alarm output
Forwarding rate Line rate for all ports and all packet sizes DRAM 4 GB
Flash 1.5 GB Removable storage 4 GB or 16 GB SD card (optional, not shipped by default); USB 2.0 (optional)
MAC addresses 16K VLAN IDs 256
PVST instances 128 IPv4 routes 3,000 indirect (with Network Advantage license)
IPv6 routes 512 indirect (with Network Advantage license) IGMP snooping groups 1K
ACL entries 3K Queues per port 8
Jumbo frames 8,996 bytes Redundancy protocols REP ring, REP Preferred, Fast REP, PROFINET MRP, REP ZTP
Layer 3 features Inter-VLAN routing, static routing Security features 802.1x, DHCP snooping, DAI, IP source guard, MACsec-128, FIPS 140-2, SUDI 2099
Management features WebUI, Cisco Catalyst Center, SNMP, NETCONF, RESTCONF, YANG, Full Flexible NetFlow Industrial protocols CIP EtherNet/IP, PROFINET
Time synchronization IEEE 1588 PTPv2 Default and Power Profile Edge computing Docker containers, Cyber Vision, Secure Equipment Access; Hardware Version ID 06 or later
Power redundancy Dual DC power inputs DC input voltage 9.6 to 60 VDC; 48 VDC for PoE, 54 VDC for PoE+
Input current 10.5A maximum Power consumption 32W at 54V, excluding PoE power
Default PoE budget 240W PoE budget with other supplies 360W including expansion module
PoE standards IEEE 802.3af, IEEE 802.3at Cooling Fanless, convection cooled
Dimensions (H x W x D) 6 x 3.6 x 5.3 in. (15.2 x 9.1 x 13.5 cm) Mounting DIN rail
Operating temperature -40°C to 70°C (40 LFM vented enclosure); -40°C to 60°C (sealed enclosure); -40°C to 75°C (minimum 200 LFM fan or blower enclosure); 85°C type tested for 16 hours Storage temperature -40°C to 85°C
Operating humidity 5% to 95% noncondensing Operating altitude Up to 15,000 ft
Ingress protection IP30 Shock IEC 60068-2-27: 50G 3 ms half-sine operating, 65-80G 9 ms trapezoid non-operating; MIL-STD-810 Method 514.4
Vibration IEC 60068-2-6, 5-150 Hz sine Corrosion IEC 60068-2-52 salt fog, IEC 60068-2-60 flowing mixed gas
MTBF 611,350 hours Safety certifications UL/CSA 60950-1, UL/CSA 62368-1, UL/CSA 61010-2-201
EMC certifications Emissions: FCC 47 CFR Part 15 Class A, EN 55032/CISPR 32 Class A, CISPR 11 Class A, ICES-003 Class A, VCCI Class A, EN 300 386; immunity: CISPR 24/35, EN 55024/55035, KN 35, EN 61000-4-2/-3/-4/-5/-6/-8/-10/-16/-17/-18/-29 Hazardous locations UL121201 and CSA 213 Class I Div 2 Groups A-D; Class I Zone 2 Gc/IIC (UL/CSA, IECEx, ATEX); ATEX requires cabinet enclosure
Industrial compliance IEC 62443-4-1, IEC 62443-4-2, EN 61000-6-2, EN 61000-6-4, IEEE 1613, EN/IEC 61850-3, ODVA EtherNet/IP, NEMA TS 2-2016, AREMA C&S 11/19; railway EN50125-1:2014, EN50125-3:2003, EN50121-4, EN50121-3-2/EN50155; marine DNV-CG-0339, IEC 60945, IACS UR E10

Quality Certifications

Customer Reviews

Write A Review
4.8
(10 reviews)
5 Stars
8
4 Stars
2
3 Stars
0
2 Stars
0
1 Stars
0
    Bruce Wu
    Posted on 29/03/2026
    Verified Buyer
    4.0

    Solid construction throughout. Inspires confidence in long-term use. Invoice formatting was a bit different from what our AP system expects, but workable.

    Karen Costa
    Posted on 16/02/2026
    Verified Buyer
    5.0

    No deployment hiccups. Hardware just worked as advertised.

    Ryan Davis
    Posted on 08/01/2026
    Verified Buyer
    4.0

    My team doesn’t even consider other vendors anymore. Layer23 is our standard. Wish the lead time was a bit shorter, but product quality made up for it.

    Neo
    Posted on 20/06/2025
    Verified Buyer
    5.0

    Whoa. Delivery was fast.

    Alfredo Arellano
    Posted on 01/05/2025
    Verified Buyer
    5.0

    Good price and delivered on time, which was critical for our project schedule.

Questions & Answers

  • What is the operating temperature range of IE-3300-8P2S-E?

    IE-3300-8P2S-E operates from -40°C to +70°C in a vented enclosure with 40 LFM of airflow. A sealed enclosure holds the rating to +60°C, and an enclosure with a fan or blower of at least 200 LFM allows +75°C.
  • What input voltage does IE-3300-8P2S-E need for its full PoE budget?

    IE-3300-8P2S-E needs a 54VDC feed for its full PoE budget. The redundant DC inputs accept 9.6 to 60VDC, but full PoE+ output at 30W per port on all eight ports holds only on 54VDC; at 48VDC the ports deliver PoE, not PoE+.
  • Which non-PoE IEM-3300 modules can IE-3300-8P2S-E take?

    IE-3300-8P2S-E accepts IEM-3300-8T, which adds 8 copper Gigabit ports, and IEM-3300-8S, which adds 8 SFP Gigabit ports, per the Cisco Industrial Ethernet DIN rail FAQ. Neither module supplies PoE or PoE+, so powered ports still come from the eight base ports and the PoE modules.
  • Which software image does IE-3300-8P2S-E run under Network Essentials?

    IE-3300-8P2S-E runs the ie3x00-universalk9 Universal image under its Network Essentials license. Cisco IOS XE 26.2.1 uses this one image across the IE3200, IE3300, IE3400 and IE3400H series, so the image file name is the same on each of them.
  • Which routing features does IE-3300-8P2S-E lack on Network Essentials?

    IE-3300-8P2S-E on Network Essentials has no RIP, IS-IS, PBR, VRRP/HSRP or BFD. Network Advantage adds these for IPv4 and IPv6, together with OSPF, BGP and EIGRP. Order IE-3300-8P2S-A, or add the perpetual IE3300-NW-A= license to the installed switch.
  • How many VLANs, STP instances and ACL entries does IE-3300-8P2S-E support?

    IE-3300-8P2S-E supports 256 VLANs, 128 STP instances and 3K access control entries, with 1K IGMP multicast groups. Jumbo frames are accepted up to 8996 bytes, and the switch keeps line-rate forwarding at those limits.

Warranty

Visit How to Pay page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

DataSheet Downloads

  • IE-3300-8P2S-E Datasheet
