IE-3200-8P2S-E Description
The IE-3200-8P2S-E is a Cisco Catalyst IE3200 Rugged Series fixed industrial switch for DIN rail cabinets that power Gigabit endpoints. The switch has eight 10/100/1000 PoE/PoE+ copper ports and two 100/1000 SFP uplinks, shares a 240W PoE budget across the copper ports, and runs on redundant DC inputs from 9.6 to 60VDC at -40°C to +70°C in a vented enclosure. PoE needs a 48VDC input and PoE+ needs 54VDC, and the chassis takes no expansion module.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3200-8P2S-E |
|
Downlink ports |
8x 10/100/1000 RJ45, PoE/PoE+ |
|
Uplink ports |
2x 100/1000 SFP |
|
PoE budget |
240W, shared across 8 ports |
|
Network license |
Network Essentials (perpetual) |
|
System configuration |
Fixed system, no expansion module |
|
Forwarding rate |
Line rate for all ports and packet sizes |
|
MAC addresses |
16K |
|
Input voltage |
Dual DC inputs, 9.6 to 60VDC; 48VDC for PoE, 54VDC for PoE+ |
|
Power consumption |
32W (measured at 54V, excluding PoE) |
|
Operating temperature |
-40°C to +70°C (40 LFM vented enclosure) |
|
Cisco IOS XE support |
From 16.10.1; listed in Release 26.2.x |
|
Mounting and cooling |
DIN rail; fanless, convection cooled |
Product Performance
Key Features
The 240W budget averages 30W per port when every port draws power at once. A port whose request would exceed the switch power capacity is denied PoE, and its PoE status LED alternates green and amber.
The eight copper and two SFP ports are the full port count, because the fixed chassis takes no expansion module. The body measures 6.0 x 3.6 x 5.3 in, weighs 3.8 lbs and occupies 3.6 in of DIN rail width.
Both SFP ports run at 100M or 1G. A Fast Ethernet run already cabled stays in service on GLC-FE-100LX-RGD, which reaches 10 km over single-mode fiber, and Gigabit links on GLC-BX80-U-I= and GLC-BX80-D-I= reach 80 km.
Rings recover through REP, REP Preferred, Fast REP or PROFINET MRP, and from Cisco IOS XE 17.7.1 MRP no longer needs a separate manager or client license. IEEE 1588 PTPv2 runs in both the default and the power profile.
With both DC-A and DC-B live, the switch draws from the feed at the higher voltage and moves to the other if that feed fails. Two alarm inputs sense dry contacts in the cabinet, and the alarm relay switches 1.0 A at 24 VDC or 0.5 A at 48 VDC.
The switch meets IEEE 1613 and IEC 61850-3 for substation networking and NEMA TS 2-2016 for traffic cabinets. It is also certified for Class I Div 2 Groups A-D and Class I Zone 2 IIC, and ATEX installations place it inside a cabinet enclosure.
Application Scenarios
At an intersection, the switch sits in a NEMA TS 2 traffic cabinet, powers roadside cameras from its PoE ports and returns their video to the control center over an SFP fiber uplink.
In a substation, the IEC 61850-3 and IEEE 1613 compliant switch networks protection and control devices, classifies GOOSE traffic and keeps the ring running through REP.
A distribution center mounts the switch in a DIN rail cabinet near the ceiling, where it powers Wi-Fi access points and IP phones and links them to the building network over fiber.
Product Comparison
|
Parameter |
IE-3200-8P2S-E | |||
|---|---|---|---|---|
|
10/100/1000 RJ45 copper ports |
8, PoE/PoE+ |
8, non-PoE |
8, PoE/PoE+ |
8, PoE/PoE+ |
|
100/1000 SFP ports |
2 |
2 |
2 |
2 |
|
PoE power budget |
240W |
Not applicable |
240W base, 360W with expansion module |
240W base, 480W with expansion module |
|
Total ports |
10 (fixed system) |
10 (fixed system) |
10 base, up to 26 with expansion module (IE3300 and IE3400 only) |
10 base, up to 26 with expansion module (IE3300 and IE3400 only) |
|
Software license (default) |
Network Essentials |
Network Essentials |
Network Essentials |
Network Essentials |
|
Network Advantage upgrade license |
Not confirmed |
Not confirmed |
IE3300-NW-A= |
IE3400-NW-A= |
|
PRP, HSR-SAN and DLR |
Not confirmed |
Not confirmed |
Not confirmed |
Included in Network Essentials |
|
MAC addresses |
16K |
8K |
16K |
16K |
|
Power consumption |
32W (excluding PoE) |
23W |
32W (excluding PoE) |
47W (excluding PoE) |
IE-3200-8P2S-E is the PoE/PoE+ model of the IE3200 pair: its eight copper ports share a 240W budget, while IE-3200-8T2S-E keeps the same fixed ten-port layout with data-only copper, 8K MAC addresses and a 23W draw, which suits cabinets with no powered devices. Cabinets that need more than eight powered ports or more than 240W move to IE-3300-8P2S-E, which has an IEM-3300 bay that lifts PoE to 360W and the system to 26 GE ports. Network Essentials on the IE3200 stops at inter-VLAN and static routing and no Network Advantage upgrade is confirmed for it, so dynamic routing means IE-3300-8P2S-A. Plants running PRP, HSR-SAN or DLR need IE-3400-8P2S-E, which includes them in Network Essentials and reaches 480W with an expansion module.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE budget |
240W across the eight copper ports |
|
PoE standards |
IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) |
|
DC input for PoE |
48VDC minimum for PoE; 54VDC for PoE+ |
|
Switch load before PoE |
32W, measured at 54V |
|
Supply sizing rule |
Switch load plus PoE port power must stay within the supply wattage |
|
PoE headroom on a 65W supply |
33W on PWR-IE65W-PC-AC= or PWR-IE65W-PC-DC= |
|
PoE headroom on a 170W supply |
138W on PWR-IE170W-PC-AC= or PWR-IE170W-PC-DC= |
|
PoE headroom on a 240W supply |
208W on PWR-IE240W-PCAC-L= |
|
Supply for the full 240W budget |
At least 272W; PWR-IE480W-PCAC-L= is the IE DIN rail supply rated above it |
|
Supplies without PoE support |
PWR-IE50W-AC=, PWR-IE50W-AC-IEC= and PWR-IE50W-AC-L= |
|
Check before ordering |
Count the powered devices, confirm each one’s PoE or PoE+ class, and compare their total with the headroom of the chosen supply |
Ordering Checklist
- Power supply: Order a DIN rail supply separately: PWR-IE65W-PC-AC=, PWR-IE65W-PC-DC=, PWR-IE170W-PC-AC=, PWR-IE170W-PC-DC=, PWR-IE240W-PCAC-L= or PWR-IE480W-PCAC-L=, not PWR-IE50W-AC=. The 50W supplies do not support PoE, and IE3200 power supplies are separate PIDs rather than part of the switch order.
- DC source for PoE: Leave every terminal of the DC source untied to earth ground, and match the 48VDC (PoE) or 54VDC (PoE+) input to the powered devices. PoE-capable IE3x00 switches must not have a grounded DC terminal, and PoE+ needs 54VDC input.
- SD card: Include SD-IE-16GB= if SwapDrive replacement is planned. The SD card is a separate accessory and lets a replacement switch load the old configuration without reconfiguring.
- Catalyst Center license: Order IE3200-DNA-E or its 3, 5 or 7-year term (IE3200-DNA-E-3Y, -5Y, -7Y) if Catalyst Center will manage the switch. The license is an optional, separate purchase, and no Network Advantage license is listed for IE3200.
- SFP temperature grade: Choose industrial SFPs such as GLC-SX-MM-RGD or GLC-FE-100FX-RGD for the two uplinks. Extended and commercial SFPs require the switch operating temperature to be derated.
- Mounting: Use a TH 35-7.5 or TH 35-15 DIN rail, or STK-RACK-DINRAIL= for a 19-inch rack. The switch mounts vertically on DIN rail, and the rack kit is a separate accessory.
Optional Add-ons
|
Model |
Description |
|---|---|
|
65W DIN rail power supply with PoE support, 100-240VAC or 125-250VDC input | |
|
65W DIN rail power supply with PoE support, 24-48VDC input | |
|
170W DIN rail power supply with PoE support, 100-240VAC or 125-250VDC input | |
|
170W DIN rail power supply with PoE support, 12-54VDC input | |
|
240W DIN rail power supply with PoE support, 100-240VAC input, IP20 | |
|
480W DIN rail power supply with PoE support, 100-240VAC input, IP20 | |
|
GLC-FE-100FX-RGD |
Industrial 100BASE-FX SFP, 2 km over multimode fiber |
|
GLC-FE-100LX-RGD |
Industrial 100BASE-LX10 SFP, 10 km over single-mode fiber |
|
Industrial 1000BASE-SX SFP, 220-550 m over multimode fiber | |
|
Industrial 1000BASE-LX/LH SFP, 550 m MMF or 10 km SMF | |
|
GLC-ZX-SM-RGD |
Industrial 1000BASE-ZX SFP, 70 km over single-mode fiber |
|
GLC-T-RGD= |
Industrial 1000BASE-T copper SFP, 100 m |
|
SD-IE-16GB= |
16GB SD card for configuration storage and SwapDrive |
|
STK-RACK-DINRAIL= |
19-inch DIN rail mount kit |
|
IE3200-DNA-E |
Cisco Catalyst Center Essentials license for IE3200 |

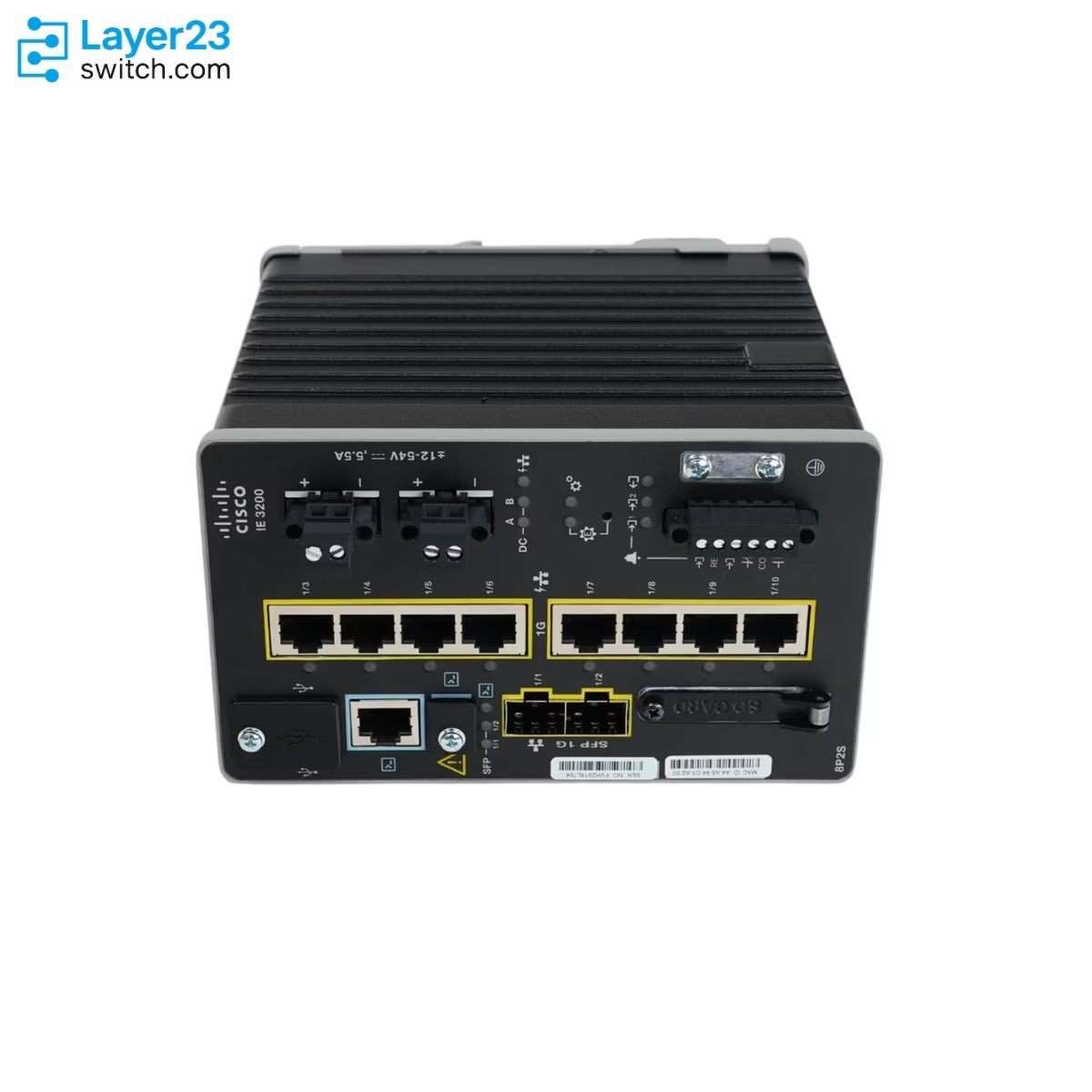

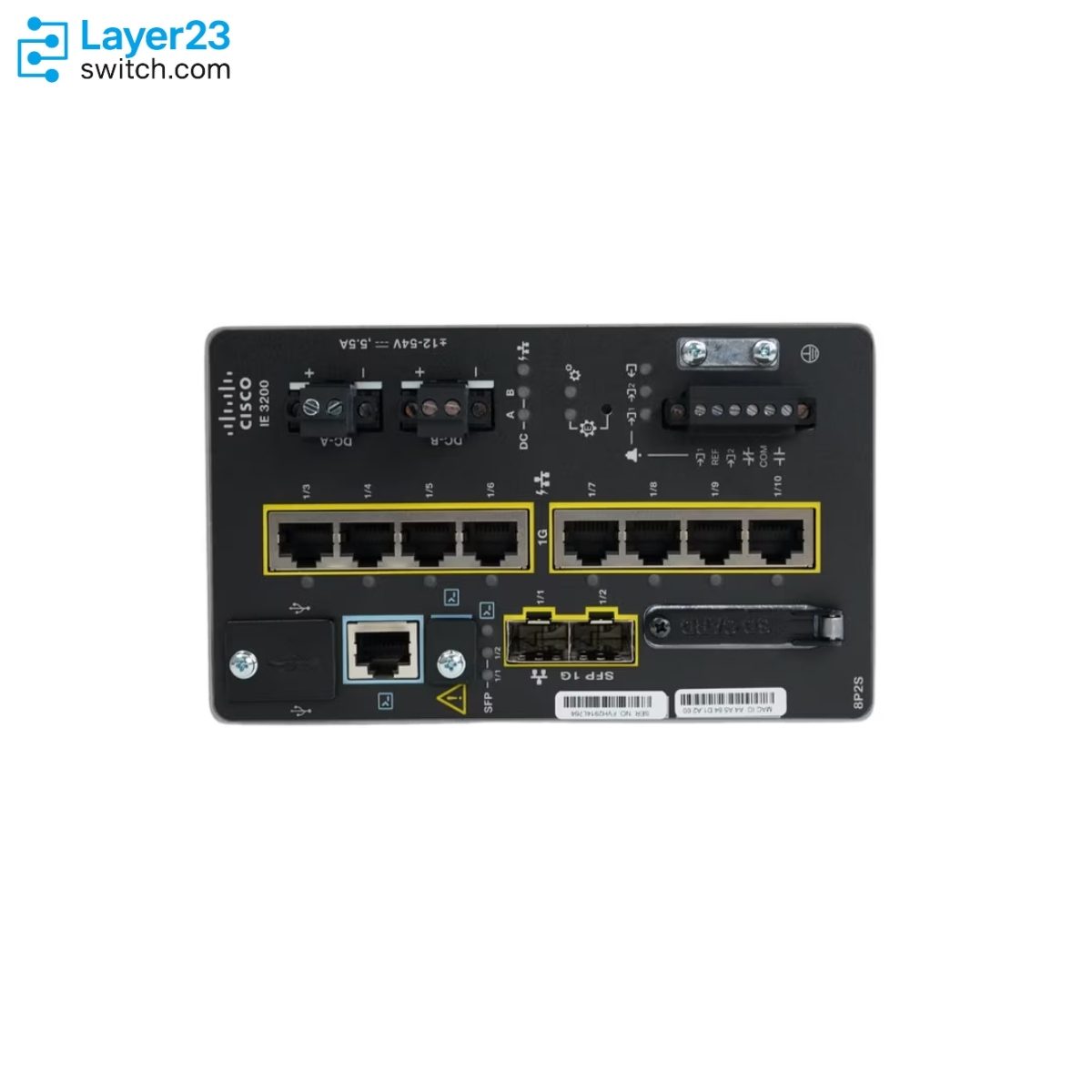

IE-3200-8P2S-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 3004_eca22c-ce> |
10/100/1000 Copper Ethernet ports (downlink ports) 3004_062b02-3f> |
7 3004_b5d5cb-97> |
Flash memory card slot 3004_81ebc9-9a> |
|---|---|---|---|
|
2 3004_05c461-08> |
Power connector DC-B 3004_b3c18b-f4> |
8 3004_d3fd5e-38> |
SFP module slots (uplink ports) 3004_87255b-c1> |
|
3 3004_c8300a-bc> |
Power connector DC-A 3004_b4301d-d0> |
9 3004_8e517d-f5> |
USB mini-Type B (console) port 3004_587966-81> |
|
4 3004_7f307b-e0> |
Protective ground connection 3004_513299-f1> |
10 3004_8166d5-ea> |
RJ-45 console port 3004_740420-2d> |
|
5 3004_77e8fb-52> |
Alarm connector 3004_def089-da> |
11 3004_389f1c-65> |
USB mini-Type A port 3004_3ad750-92> |
|
6 3004_a86644-9a> |
10/100/1000 Copper Ethernet ports (downlink ports) 3004_9f6bda-63> | 3004_949585-47> | 3004_f1588f-9a> |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3200-8P2S-E | Network license | Network Essentials (perpetual) |
| Minimum software release | Cisco IOS XE 16.10.1 | Downlink ports | 8 x 10/100/1000 PoE/PoE+ RJ-45 |
| Uplink ports | 2 x 100/1000 SFP | Total ports | 10 |
| Port speeds | 10/100/1000 Mbps copper, full or half duplex, autonegotiation, auto-MDIX; 100 m maximum cable length | Supported transceivers | 100M: GLC-FE-100FX-RGD, GLC-FE-100LX-RGD and commercial GLC-FE-100 models; 1G: GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD, GLC-T-RGD=, GLC-BX-U-I=, GLC-BX-D-I=, GLC-BX40-U-I=, GLC-BX40-D-I=, GLC-BX80-U-I=, GLC-BX80-D-I=, plus extended and commercial-temperature GE SFPs |
| Console port | 1 RS-232 (via RJ-45), 1 USB Mini Type B | Alarm interfaces | 2 alarm inputs, 1 alarm output; output rated 1.0 A at 24 VDC or 0.5 A at 48 VDC |
| Forwarding rate | Line rate for all ports and all packet sizes | DRAM | 2 GB |
| Flash | 1.5 GB | Removable storage | 4 GB or 16 GB SD card (optional, not shipped by default); USB 2.0 |
| MAC addresses | 16K | VLAN IDs | 256 |
| PVST instances | 128 | IGMP snooping groups | 1K |
| ACL entries | 3K (PACL/VACL/RACL) | Queues per port | 8 |
| Jumbo frames | 8,996 bytes | Redundancy protocols | REP ring, REP Preferred, Fast REP, PROFINET MRP |
| Layer 2 features | 802.1Q, PVST+, MSTP, RSTP, LACP, PAgP, EtherChannel, Q-in-Q, voice VLAN, VTPv2, VTPv3, UDLD, CDP, LLDP | Layer 3 features | Inter-VLAN routing, static routing |
| Multicast features | IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier | Security features | Port security, 802.1X, MAC authentication bypass, DHCP snooping, dynamic ARP inspection, IP source guard, storm control, BPDU guard, PACL/RACL/VACL, MACsec-128, FIPS 140-2, SUDI 2099 |
| Management features | WebUI, SNMP, syslog, DHCP server, SPAN, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF, YANG, SwapDrive | Industrial protocols | CIP EtherNet/IP, PROFINET; SCADA protocol classification for GOOSE and MODBUS TCP/IP; dying gasp |
| Time synchronization | IEEE 1588 PTP v2 (default and power profile) | Power redundancy | Dual DC power inputs (DC-A, DC-B) |
| DC input voltage | 9.6 to 60 VDC; 48 VDC required for PoE, 54 VDC for PoE+ | Input current | 5.5A maximum |
| Power consumption | 32W (measured at 54V, excluding PoE power) | Default PoE budget | 240W, shared across 8 ports |
| PoE standards | IEEE 802.3af, IEEE 802.3at | Cooling | Fanless, convection cooled |
| Dimensions (H x W x D) | 6.0 x 3.6 x 5.3 in. (15.2 x 9.1 x 13.5 cm) | Mounting | DIN rail (IEC/EN 60715 TH 35-7.5 or TH 35-15), vertical orientation |
| Operating temperature | -40°C to 70°C (40 LFM vented enclosure); -40°C to 60°C (sealed enclosure); -40°C to 75°C (minimum 200 LFM fan or blower-equipped enclosure); 85°C type tested for 16 hours | Storage temperature | -40°C to 85°C |
| Operating humidity | 5% to 95% noncondensing | Operating altitude | Up to 15,000 ft |
| Ingress protection | IP30 | Shock | IEC 60068-2-27 (operational 50G, 3 ms, half sine; non-operational 65-80G, 9 ms, trapezoidal); MIL-STD-810 Method 514.4 |
| Vibration | IEC 60068-2-6 (sinusoidal, 5-150 Hz) | Corrosion | IEC 60068-2-52 (salt fog), IEC 60068-2-60 (flowing mixed gas) |
| MTBF | 613,125 hours | Safety certifications | UL/CSA 60950-1, IEC 60950-1 CB, UL/CSA 62368-1, IEC 62368-1 CB, UL/CSA 61010-2-201, IEC/EN 61010-2-201 CB |
| EMC certifications | Emissions: FCC 47 CFR Part 15 subpart B Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 Class A, ICES 003 Class A, CNS 13438 Class A, KN 32 Class A, EN 300 386; immunity: CISPR 24, EN 55024, KN 35, EN 61000-4-2, -3, -4, -5, -6, -8, -10, -16, -17, -18, -29 | Hazardous locations | UL121201 and CSA 213 Class I Div 2 Groups A-D; UL/CSA, IEC (IECEx) and EN (ATEX) 60079-0, -15 Class I Zone 2 Gc/IIC (ATEX requires a cabinet enclosure) |
| Industrial compliance | IEC 62443-4-1, IEC 62443-4-2; EN 61000-6-2, EN 61000-6-4, EN 61000-6-1, EN 61326-1, IEEE 1613, EN/IEC 61850-3, ODVA EtherNet/IP, NEMA TS 2-2016, AREMA C&S sections 11 and 19; railway EN50125-1:2014, EN50125-3:2003, EN50121-4, EN50155 (specific requirements, exclusion clauses apply); marine DNV-CG-0339, IEC 60945, IACS UR E10 |
