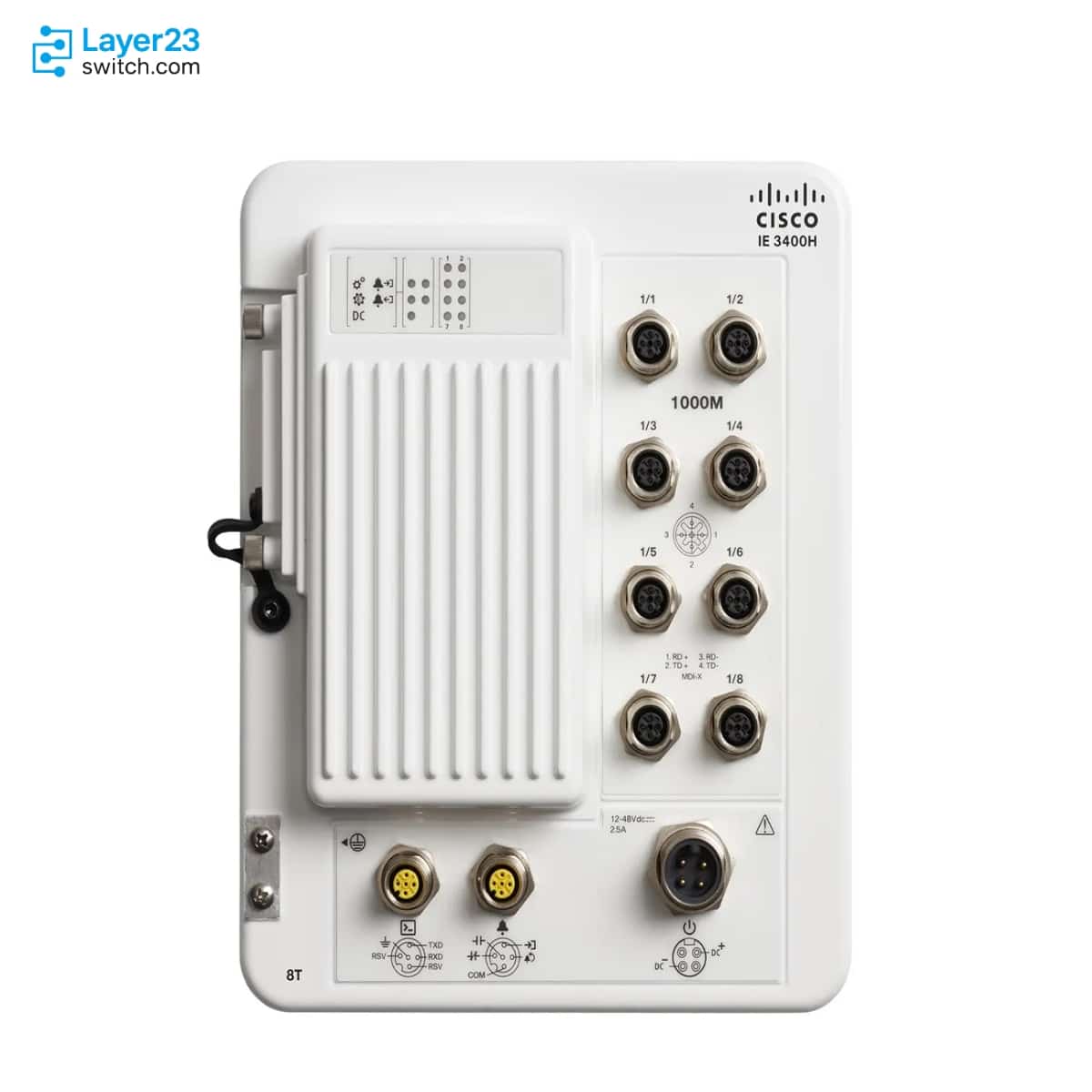

IE-3400H-24T-A – 24x1G M12 X-coded Ports – IP66/IP67 Rated – Network Advantage
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
IE-3400H-24T-A Description
The IE-3400H-24T-A is the highest-density model in the Cisco Catalyst IE3400 Heavy Duty Series, packing 24 Gigabit M12 X-coded ports into one IP66/IP67 and UL 50E Type 4X sealed unit with the perpetual Network Advantage license. Where most sealed switches top out at 8 or 16 drops, this 13.9-inch wall-mount chassis absorbs an entire zone's cameras, controllers, and operator stations at a mounting point that offers no cabinet and no climate control. Running the same IOS XE image as the IE3400 Rugged Series, its Advantage tier delivers OSPF, BGP, EIGRP, VRF-lite, TrustSec SGT/SGACL, MACsec-256, and multicast routing above the Essentials baseline of REP and MRP rings, PRP, HSR, DLR, PROFINET and EtherNet/IP (CIP), IEEE 1588 PTPv2, and IOx edge compute. Automotive and railway approvals on the GE hardware, IEC 60068 corrosion type-testing, the -40°C to +75°C span, and the 13,800 ft altitude ceiling carry the full port count into vehicles, washdown halls, and open-air structures.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3400H-24T-A |
|
Ports |
24x 10/100/1000M GE, M12 X-coded (8-pin) |
|
Ingress protection |
IP66 and IP67; UL 50E Type 4X; outdoor rated (60950-22) |
|
Network license |
Network Advantage (perpetual) |
|
Forwarding |
Line rate on all ports and packet sizes |
|
Unicast MAC addresses |
16K |
|
IPv4 indirect routes |
3000 (with Network Advantage) |
|
Input power |
Single DC input via Mini-Change connector, 9.6-60VDC |
|
Power consumption |
49.0W at 9.6V; 49.8W at 60V |
|
Operating temperature |
-40°C to +75°C (200 LFM); -40°C to +60°C in still air |
|
Altitude |
Up to 13,800 ft (4,200 m) operating and storage |
|
Alarm and console |
1 alarm in / 1 alarm out; M12 A-coded console port |
|
Mounting |
Wall mount, brackets included |
Product Performance
Key Features
Twenty-four Gigabit drops eliminate the second and third sealed switch at dense mounting points, collapsing an entire machine hall zone or carriage backbone into a single IP66/IP67 unit.
Every port is an M12 X-coded 8-pin connector that screws home, so two dozen full-rate links stay connected through the sustained vibration of rail bogies, cranes, and stamping floors.
OSPF, BGP, EIGRP, PBR, VRF-lite, VRF-Aware SGT, TrustSec SGT/SGACL, and MACsec-256 are perpetual on this PID, turning the densest sealed node into a routed, policy-enforcing OT boundary.
PRP on Gig1/1-1/4, HSR-SAN, HSR-PRP Dual Redbox, DLR, REP, and PROFINET-MRP come with the Essentials baseline inside Advantage, covering seamless topologies at all 24 ports’ scale.
As a GE (-T) SKU it holds UN ECE R10, E-Mark, and the EN50155:2021 railway group with EN45545-2 fire safety – approvals its FE siblings and many competing 24-port units lack.
Even at 24 ports the fanless unit is rated -40°C to +75°C with airflow, +60°C in still air, 13,800 ft of altitude, and IEC 60068-2-52/-2-60 corrosion exposure, with type-testing at +85°C for 16 hours.
Application Scenarios
Running the length of a train car as its single EN50155-approved node, terminating CCTV, passenger information, traction monitoring, and door systems on one sealed 24-port chassis.
Anchoring stamping, bottling, and packaging zones where cameras, drives, HMIs, and quality stations push past sixteen drops at one washdown-exposed mounting position.
Serving container terminals, mine sites, and process yards that want fewer sealed boxes on structures, trading several small units for one high-density point with routed segmentation.
Product Comparison
|
Parameter |
IE-3400H-24T-A | ||
|---|---|---|---|
|
Ports |
24x GE M12 X-coded |
16x GE M12 X-coded |
8x GE M12 X-coded |
|
Network license |
Network Advantage |
Network Advantage |
Network Advantage |
|
Power consumption |
49.0W at 9.6V |
41.6W at 9.6V |
30.4W at 9.6V |
|
Maximum input current |
5.1A at 9.6V |
4.4A at 9.6V |
3.2A at 9.6V |
|
Width |
13.90 in (35.31 cm) |
10.90 in (27.69 cm) |
7.90 in (20.07 cm) |
|
Weight with brackets |
13.90 lb (6.30 kg) |
11.25 lb (5.10 kg) |
8.45 lb (3.83 kg) |
|
MTBF |
439,475 hours |
489,458 hours |
566,908 hours |
- All three GE Advantage models share the sealed housing depth, feature set, and scale tables, so the IE-3400H-24T-A justifies its extra 3 to 6 inches of width, roughly 7-19W of draw, and lower MTBF only through port count – it is the answer when one mounting point genuinely concentrates more than sixteen devices.
- Splitting a dense zone across two smaller units instead – IE-3400H-16T-A plus IE-3400H-8T-A – buys higher per-unit MTBF and placement flexibility at the cost of a second DC feed, a second mounting position, and more cordsets, a trade worth running for vibration-critical vehicles.
- For deciding which SKU to order, map physical drops per mounting point first: 17 or more lands on IE-3400H-24T-A, 9 to 16 on IE-3400H-16T-A, and 8 or fewer on IE-3400H-8T-A, since the fixed housings offer no expansion path between them.
Selection Guide
1. Past Sixteen Drops, One Position
This model exists for the mounting point that must terminate 17-24 endpoints itself; with no expansion bay anywhere in the Heavy Duty line, choosing it early beats retrofitting a second sealed unit onto a finished structure.
2. One Chassis Or Two Smaller Ones
Weigh a single 24-port node against a 16-plus-8 split: the single chassis needs one feed and one position but concentrates failure impact; the split roughly halves blast radius and raises per-unit MTBF while doubling power and cabling work.
3. Feed Sizing At Full Density
The single Mini-Change input must supply up to 5.1A at 9.6V; specify PWR-IE160W-67-DC= or an equivalently rated vehicle circuit, order the Molex cordsets with the switch, and accept that no redundant second input exists.
4. License And Platform Boundaries
This -A PID ships with routing, VRF, TrustSec, and MACsec-256 active; a cabinet-equipped site wanting fiber uplinks, dual feeds, expansion modules, or hazardous-location listings should evaluate the DIN rail IE3400 Rugged Series instead, since the Heavy Duty line trades those for its IP67 shell.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
DC circuit rating |
Provide a 9.6-60VDC source good for 5.1A worst case, with the Mini-Change cordset ordered. |
The densest IE3400H draws the most current, and no supply or cordset is included. |
|
Single-input reality |
Sign off the redundancy design around one power feed. |
There is no second redundant input on any Heavy Duty model. |
|
Twenty-four cable runs |
Budget and order X-coded 8-pin M12 cordsets for every populated port. |
Each Gigabit link requires the locking X-coded cable; nothing else mates. |
|
Console provisioning |
Add CAB-CONSOLE-M12= for the M12 A-coded console port. |
Commissioning and recovery need serial access that standard cables cannot provide. |
|
SwapDrive readiness |
Include SD-IE-16GB when field-replaceable operation is required. |
Zero-touch replacement only works if the optional SD card holds the configuration. |
|
Approval fit |
Match the GE-SKU vehicle/rail set to the project and confirm no hazardous-location need. |
FE models lack those approvals, and the whole series omits Class I Div 2 / Zone 2 listings. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
PWR-IE160W-67-DC= |
IP67-rated DC-DC unit, 18-60V input, 54V/160W output |
|
CAB-CONSOLE-M12= |
Console cable, M12 A-coded to DB9F, 6 ft |
|
SD-IE-16GB |
16GB SD card for configuration storage and SwapDrive replacement |
|
IE3400H-DNA-A |
Catalyst Center Advantage license, 3/5/7-year terms (optional) |
|
LIC-MRP-MGR-XE= |
MRP manager license |
|
LIC-MRP-CLIENT-XE= |
MRP client license |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3400H-24T-A | Network license | Network Advantage, perpetual (upgrade PID for -E units: IE3400H-NW-A=) |
| Ports | 24x 10/100/1000M GE, M12 X-coded 8-pin | Ingress protection | IEC 60529 IP66/IP67; UL 50E Type 4X; UL/CSA/EN/IEC 60950-22 outdoor |
| Forwarding | Line rate, all ports and packet sizes; 8 egress queues | MAC / routes | 16K MAC; 3000 IPv4 + 512 IPv6 indirect routes (Network Advantage) |
| VLANs / ACL | 256 VLANs; 128 STP instances; 3,024 PACL entries | Memory | 4 GB DRAM; 1.5 GB user flash; optional 4/16 GB SD card |
| Jumbo frames | 8996 bytes (2000 bytes with ERSPAN/DLR/PRP/HSR/SGT) | Advantage features | OSPF/BGP/RIP/ISIS/EIGRP (v4+v6), PBR, VRRP/HSRP, VRF-lite, VRF-Aware SGT, TrustSec SGT/SGACL, MACsec-256, multicast routing |
| Essentials baseline | REP/Fast REP, PROFINET-MRP, PRP (Gig1/1-1/4), HSR-SAN, HSR-PRP Dual Redbox, DLR, L2NAT (Gig1/1-1/2), CIP, PROFINET (certified), MACsec-128, FIPS 140-2, IOx | PTP timing | IEEE 1588 PTPv2, Default and Power Profile; PTP over PRP |
| Management | WebUI, Cisco Catalyst Center, NETCONF/RESTCONF/YANG, Full Flexible NetFlow | Input power | Single DC input, Mini-Change connector, 9.6-60VDC; 5.1A max at 9.6V |
| Power consumption | 49.0W at 9.6V; 49.8W at 60V | Compatible IP67 DC unit | PWR-IE160W-67-DC= ordered separately (18-60V in, 54V/160W out); Molex Mini-Change cordsets |
| Alarms / console | 1 alarm in, 1 alarm out (24VDC at 1.0A / 48VDC at 0.5A); M12 A-coded console (CAB-CONSOLE-M12=) | Operating temperature | -40°C to +75°C (200 LFM); +70°C (40 LFM); +60°C still air; +85°C type-tested 16 h |
| Altitude / humidity | To 13,800 ft (4,200 m); 5-95% non-condensing; storage -40°C to +85°C | Dimensions (H x W x D) | 9.58 x 13.90 x 3.15 in (24.33 x 35.31 x 8.00 cm), wall mount |
| Weight / MTBF | 13.90 lb (6.30 kg) with brackets; 439,475 hours | Industrial compliance | IEC 62443-4-1/-4-2, ODVA EtherNet/IP, PROFINET, AREMA C&S 11/19; corrosion IEC 60068-2-52/-2-60 |
| Vehicle / rail (GE SKUs) | UN ECE R10, E-Mark; EN50155:2021, EN50121-3-2/-4:2021, EN61373:2010, EN50124-1:2017, EN50153:2020, EN45545-2 | Warranty | 5-year limited hardware warranty |
