IE-3400H-16T-A Description

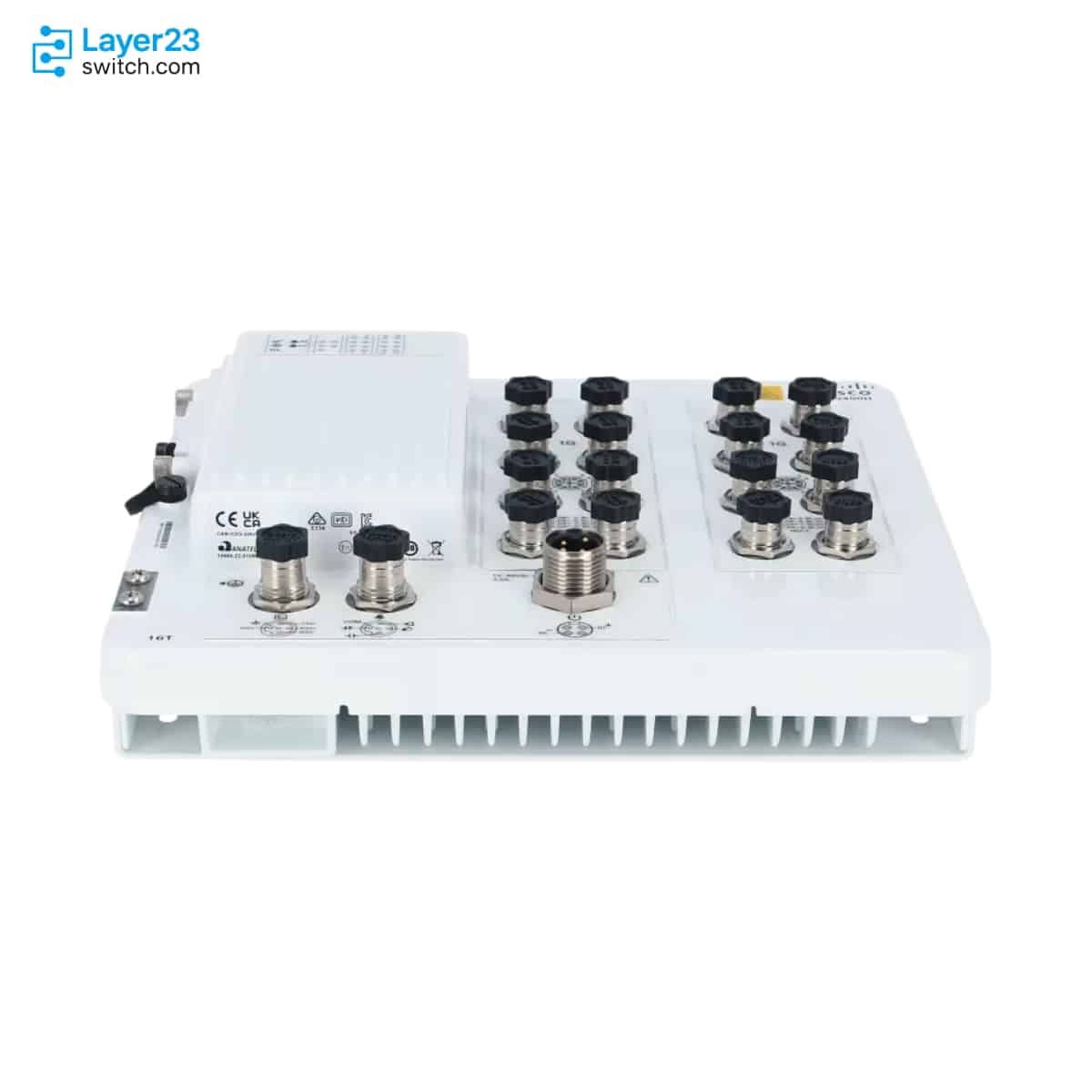

The IE-3400H-16T-A is the mid-density Gigabit model of the Cisco Catalyst IE3400 Heavy Duty Series, carrying 16 GE ports on M12 X-coded connectors in an IP66/IP67 and UL 50E Type 4X housing with the perpetual Network Advantage license. Built to be bolted onto machines, walls, and vehicle bodies with no cabinet, it concentrates twice the drops of the 8-port base while staying fanless and sealed against dust, water jets, and brief immersion. The switch runs the same IOS XE image as the IE3400 Rugged Series: Network Advantage contributes OSPF, BGP, EIGRP, VRF-lite, TrustSec SGT/SGACL, MACsec-256, and multicast routing, layered over an Essentials baseline of REP and MRP rings, PRP, HSR, DLR, PROFINET and EtherNet/IP (CIP), IEEE 1588 PTPv2, and IOx edge compute for Cyber Vision. Vehicle and railway approvals on the GE hardware, corrosion type-testing, a -40°C to +75°C span, and a 13,800 ft altitude ceiling qualify one part number for onboard, washdown, and outdoor structural duty.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3400H-16T-A |
|
Ports |
16x 10/100/1000M GE, M12 X-coded (8-pin) |
|
Ingress protection |
IP66 and IP67; UL 50E Type 4X; outdoor rated (60950-22) |
|
Network license |
Network Advantage (perpetual) |
|
Forwarding |
Line rate on all ports and packet sizes |
|
Unicast MAC addresses |
16K |
|
IPv4 indirect routes |
3000 (with Network Advantage) |
|
Input power |
Single DC input via Mini-Change connector, 9.6-60VDC |
|
Power consumption |
41.6W at 9.6V; 42.3W at 60V |
|
Operating temperature |
-40°C to +75°C (200 LFM); -40°C to +60°C in still air |
|
Altitude |
Up to 13,800 ft (4,200 m) operating and storage |
|
Alarm and console |
1 alarm in / 1 alarm out; M12 A-coded console port |
|
Mounting |
Wall mount, brackets included |
Product Performance
Key Features
Sixteen GE drops share one IP66/IP67 Type 4X housing, halving the sealed switch count where camera clusters, door systems, and control devices gather past the 8-port mark.
M12 X-coded 8-pin connectors screw down on every port, holding full Gigabit links through vibration profiles that work RJ45 contacts loose on vehicles and heavy plant.
This SKU’s perpetual Advantage license carries OSPF, BGP, EIGRP, VRF-lite, and TrustSec SGT/SGACL, so a 16-device zone can be segmented and routed at its own mounting point with MACsec-256 guarding exposed uplinks.
PRP on ports Gig1/1-1/4, HSR-SAN, HSR-PRP Dual Redbox, DLR, REP, and PROFINET-MRP come from the Essentials baseline, so seamless redundancy needs no additional licensing at any tier.
UN ECE R10 and E-Mark automotive marks plus the EN50155:2021 railway set with EN45545-2 fire safety apply to this GE model, clearing it for train, tram, and specialty-vehicle installation.
IEC 60068-2-52 salt mist and 2-60 mixed gas corrosion testing joins the +60°C still-air rating and 13,800 ft ceiling, keeping coastal, chemical, and high-altitude installations inside specification.
Application Scenarios
Mounted at the center of packaging lines and process skids where sensors, drives, HMIs, and cameras exceed eight drops, aggregating the whole cluster into one sealed unit.
Installed through carriages to serve CCTV, passenger information, and door controllers, where EN50155 approval and 16 locking M12 ports cover a car’s full device complement.
Fitted to cranes, conveyor gantries, and intermodal yard equipment that stand in salt air and spray, backhauling PLCs and cameras without any climate-controlled housing.
Product Comparison
|
Parameter |
IE-3400H-16T-A | ||
|---|---|---|---|
|
Ports |
16x GE M12 X-coded |
16x GE M12 X-coded |
24x GE M12 X-coded |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
|
Routing scope |
OSPF/BGP/EIGRP, VRF-lite, multicast |
Static and inter-VLAN routing |
OSPF/BGP/EIGRP, VRF-lite, multicast |
|
TrustSec SGT/SGACL |
Yes |
No (upgrade required) |
Yes |
|
MACsec |
256-bit |
128-bit |
256-bit |
|
Power consumption |
41.6W at 9.6V |
41.6W at 9.6V |
49.0W at 9.6V |
|
Weight with brackets |
11.25 lb (5.10 kg) |
11.25 lb (5.10 kg) |
13.90 lb (6.30 kg) |
|
MTBF |
489,458 hours |
489,458 hours |
439,475 hours |
- The IE-3400H-16T-A and IE-3400H-16T-E are the same sealed 16-port hardware split by license: the -A tier in this PID adds dynamic routing, VRF-lite, TrustSec SGT/SGACL, and MACsec-256, while the -E unit covers ring-and-VLAN duty and can adopt the full set later via the perpetual IE3400H-NW-A= upgrade.
- IE-3400H-24T-A extends the identical platform to 24 ports for about 7W more draw and 2.65 lb more weight at a lower MTBF, so it displaces this model only when a single mounting point genuinely serves more than 16 devices.
- For deciding which SKU to order, settle the feature tier first – day-one routing or TrustSec lands on an -A PID – then match density: 16 drops with advanced features is exactly this switch, budget-driven L2 sites take IE-3400H-16T-E, and only device counts past 16 justify IE-3400H-24T-A.
Selection Guide
1. Sixteen Drops Under One Seal
Zones with 9 to 16 endpoints at a single mounting point land here; the Heavy Duty line has no expansion bay, so a count that will pass 16 within the hardware’s life belongs on IE-3400H-24T-A from the first order.
2. Advantage Now Or Upgrade Later
Order this -A PID when VRF segmentation, dynamic routing, TrustSec, or MACsec-256 appear in the day-one design; a plain redundant-ring deployment starts cheaper on IE-3400H-16T-E and adds IE3400H-NW-A= only if those features actually arrive.
3. One Feed, Sized For 4.4A
The single Mini-Change input has no redundant partner, so the 9.6-60VDC source – PWR-IE160W-67-DC= or a vehicle circuit – must be dependable and rated for the 4.4A worst-case draw at 9.6V, with Molex cordsets ordered alongside.
4. Where DIN Rail Still Wins
A site that already provides a sealed cabinet gets more flexibility from the IE3400 Rugged Series: dual power inputs, SFP fiber uplinks, expansion modules, and hazardous-location listings, none of which the wall-mount Heavy Duty housing offers.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
DC feed and cordset |
Size the 9.6-60VDC source for 4.4A and order the Molex Mini-Change cordset (or PWR-IE160W-67-DC=). |
No supply or mating cordset ships with the switch, and generic wiring does not fit the Mini-Change input. |
|
Redundancy expectation |
Verify the design accepts a single power input. |
The Heavy Duty platform omits the dual redundant feeds of DIN rail IE3400 models. |
|
Sixteen X-coded runs |
Plan M12 X-coded 8-pin cordsets for every GE port before installation. |
Each of the 16 links needs the correct locking cable; D-coded FE leads do not mate. |
|
Console cable |
Put CAB-CONSOLE-M12= on the same order. |
Serial access for commissioning runs through the M12 A-coded console port only. |
|
SwapDrive media |
Add SD-IE-16GB if hot-swap field replacement is in the operations plan. |
Without the optional SD card a replacement unit cannot self-restore its configuration. |
|
Approval coverage |
Confirm vehicle/rail certificates against this GE SKU and note the absence of hazardous-location listings. |
FE (-FT) models carry no automotive/rail set, and no IE3400H is Class I Div 2 / Zone 2 certified. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
PWR-IE160W-67-DC= |
IP67-rated DC-DC unit, 18-60V input, 54V/160W output |
|
CAB-CONSOLE-M12= |
Console cable, M12 A-coded to DB9F, 6 ft |
|
SD-IE-16GB |
16GB SD card for configuration storage and SwapDrive replacement |
|
IE3400H-DNA-A |
Catalyst Center Advantage license, 3/5/7-year terms (optional) |
|
LIC-MRP-MGR-XE= |
MRP manager license |
|
LIC-MRP-CLIENT-XE= |
MRP client license |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3400H-16T-A | Network license | Network Advantage, perpetual (upgrade PID for -E units: IE3400H-NW-A=) |
| Ports | 16x 10/100/1000M GE, M12 X-coded 8-pin | Ingress protection | IEC 60529 IP66/IP67; UL 50E Type 4X; UL/CSA/EN/IEC 60950-22 outdoor |
| Forwarding | Line rate, all ports and packet sizes; 8 egress queues | MAC / routes | 16K MAC; 3000 IPv4 + 512 IPv6 indirect routes (Network Advantage) |
| VLANs / ACL | 256 VLANs; 128 STP instances; 3,024 PACL entries | Memory | 4 GB DRAM; 1.5 GB user flash; optional 4/16 GB SD card |
| Jumbo frames | 8996 bytes (2000 bytes with ERSPAN/DLR/PRP/HSR/SGT) | Advantage features | OSPF/BGP/RIP/ISIS/EIGRP (v4+v6), PBR, VRRP/HSRP, VRF-lite, VRF-Aware SGT, TrustSec SGT/SGACL, MACsec-256, multicast routing |
| Essentials baseline | REP/Fast REP, PROFINET-MRP, PRP (Gig1/1-1/4), HSR-SAN, HSR-PRP Dual Redbox, DLR, L2NAT (Gig1/1-1/2), CIP, PROFINET (certified), MACsec-128, FIPS 140-2, IOx | PTP timing | IEEE 1588 PTPv2, Default and Power Profile; PTP over PRP |
| Management | WebUI, Cisco Catalyst Center, NETCONF/RESTCONF/YANG, Full Flexible NetFlow | Input power | Single DC input, Mini-Change connector, 9.6-60VDC; 4.4A max at 9.6V |
| Power consumption | 41.6W at 9.6V; 42.3W at 60V | Compatible IP67 DC unit | PWR-IE160W-67-DC= ordered separately (18-60V in, 54V/160W out); Molex Mini-Change cordsets |
| Alarms / console | 1 alarm in, 1 alarm out (24VDC at 1.0A / 48VDC at 0.5A); M12 A-coded console (CAB-CONSOLE-M12=) | Operating temperature | -40°C to +75°C (200 LFM); +70°C (40 LFM); +60°C still air; +85°C type-tested 16 h |
| Altitude / humidity | To 13,800 ft (4,200 m); 5-95% non-condensing; storage -40°C to +85°C | Dimensions (H x W x D) | 9.58 x 10.90 x 3.15 in (24.33 x 27.69 x 8.00 cm), wall mount |
| Weight / MTBF | 11.25 lb (5.10 kg) with brackets; 489,458 hours | Industrial compliance | IEC 62443-4-1/-4-2, ODVA EtherNet/IP, PROFINET, AREMA C&S 11/19; corrosion IEC 60068-2-52/-2-60 |
| Vehicle / rail (GE SKUs) | UN ECE R10, E-Mark; EN50155:2021, EN50121-3-2/-4:2021, EN61373:2010, EN50124-1:2017, EN50153:2020, EN45545-2 | Warranty | 5-year limited hardware warranty |
Get More Information
Need pricing, stock, or shipping details for the IE-3400H-16T-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
