IE-3400-8T2S-E Description
The IE-3400-8T2S-E is a Cisco Catalyst IE3400 Rugged Series industrial switch for DIN-rail cabinets that run PRP, HSR or DLR redundancy on Network Essentials. The switch pairs eight 10/100/1000 copper ports with two 100/1000 SFP uplinks and no PoE, accepts dual DC inputs from 9.6 to 60VDC and operates from -40°C to +70°C in a vented enclosure. Network Essentials routes between VLANs and over static routes only; OSPF, BGP, SGT/SGACL and MACsec-256 require Network Advantage.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3400-8T2S-E |
|
Downlink ports |
8x 10/100/1000 RJ45 copper |
|
Uplink ports |
2x 100/1000 SFP |
|
PoE budget |
Not applicable (data-only) |
|
Network license |
Network Essentials (perpetual) |
|
Layer 3 routing |
Inter-VLAN and static routing |
|
Redundancy protocols |
PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR, REP, PROFINET MRP |
|
Industrial protocols |
CIP EtherNet/IP, PROFINET, IEEE 1588 PTPv2 |
|
Expansion |
1 expansion module, up to 26 GE system ports |
|
Input voltage |
Dual DC inputs, 9.6 to 60VDC |
|
Power consumption |
36W (measured at 12V) |
|
Operating temperature |
-40°C to +70°C (40 LFM vented enclosure) |
|
Mounting and cooling |
DIN rail; fanless, convection cooled |
Product Performance
Key Features
PRP, PTP over PRP, HSR-SAN, HSR-PRP Dual Redbox and DLR all come with Network Essentials, next to REP and PROFINET MRP rings. PRP runs as a single instance on ports Gig1/1 to Gig1/4, and while DLR, PRP or HSR is active the jumbo frame limit drops from 8996 to 2000 bytes.
The switch carries CIP EtherNet/IP and PROFINET traffic, keeps time with IEEE 1588 PTPv2 in the default and power profiles, and classifies GOOSE and MODBUS TCP/IP messages. One-to-one L2NAT translates addresses at Layer 2 and is supported on the uplink ports.
IOx hosts native Docker containers on the switch, and Cisco Cyber Vision and Secure Equipment Access are among the supported applications. IOx is part of Network Essentials and needs no license upgrade.
Ports can authenticate devices with 802.1X or MAC authentication bypass, and DHCP snooping, dynamic ARP inspection and IP source guard block spoofed addresses. Links leaving the cabinet can run MACsec-128, and the platform is certified to IEC 62443-4-2.
Seven non-PoE modules fit the expansion slot. An eight-port module such as IEM-3400-8S= brings the system to 18 Gigabit ports, while IEM-3300-16T= or IEM-3300-14T2S= reaches 26 but rules out SGT/SGACL if the switch later moves to Network Advantage.
The chassis meets IEC 61850-3 and IEEE 1613 for substations, EN50155 and EN50121-4 for rail, and Class I Division 2 and Zone 2 for hazardous locations. The +75°C limit applies only in an enclosure with at least 200 LFM of forced airflow.
Application Scenarios
On a packaging line, drives, I/O blocks and the line controller sit in an EtherNet/IP Device Level Ring, and the switch joins that ring while passing CIP traffic up to the plant network over its SFP uplinks.
A trackside equipment cabinet holds signaling controllers and wayside sensors, and the switch links them into a REP ring that runs along the line inside a chassis rated to EN50155 and EN50121-4.
Pump station PLCs report flow and pressure to the utility SCADA system over MODBUS TCP, with the switch connecting them on copper and sending the traffic back to the treatment plant over fiber.
Product Comparison
|
Parameter |
IE-3400-8T2S-E | |||
|---|---|---|---|---|
|
10/100/1000 RJ45 copper ports |
8 |
8 |
8 (PoE/PoE+) |
8 |
|
100/1000 SFP ports |
2 |
2 |
2 |
2 |
|
PoE power budget |
Not applicable (data-only) |
Not applicable (data-only) |
240W base, 480W with expansion module |
Not applicable (data-only) |
|
Input voltage range |
Redundant DC, 9.6 to 60VDC |
Redundant DC, 9.6 to 60VDC |
Redundant DC, 9.6 to 60VDC; 48VDC for PoE, 54VDC for PoE+ |
Redundant DC, 9.6 to 60VDC |
|
Operating temperature |
-40°C to +70°C (40 LFM vented) |
-40°C to +70°C (40 LFM vented) |
-40°C to +70°C (40 LFM vented) |
-40°C to +70°C (40 LFM vented) |
|
Redundancy |
REP, Fast REP, PROFINET MRP, PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR |
REP, Fast REP, PROFINET MRP, PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR |
REP, Fast REP, PROFINET MRP, PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR |
REP, Fast REP, REP ZTP, PROFINET MRP |
|
Mounting |
DIN rail |
DIN rail |
DIN rail |
DIN rail |
|
Software license (default) |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
IE-3400-8T2S-E and IE-3400-8P2S-E share eight copper ports, two 100/1000 SFP uplinks and Network Essentials, but only IE-3400-8P2S-E powers its copper ports, with PoE/PoE+ from a 240W budget or 480W with a PoE expansion module. Cabinets with powered endpoints need that model from the start, because PoE modules fit only a PoE base and this data-only chassis cannot gain powered ports later. Designs that need OSPF, BGP, VRF-lite, SGT/SGACL or MACsec-256 must run Network Advantage: order IE-3400-8T2S-A, or add the perpetual IE3400-NW-A= license to an installed switch without changing hardware. IE-3300-8T2S-E has the same ports and license tier but runs only REP and MRP rings; it suits a cabinet only where PRP, HSR-SAN and DLR are not used.
Ordering Checklist
- DC power supply: Feed 9.6 to 60VDC to the DC inputs or add an IE DIN rail supply. With IEM-3400-8S= the load reaches 63W, above the 50W PWR-IE50W-AC= but within the 65W PWR-IE65W-PC-AC=.
- Supply for hazardous locations: Class I Div 2 or Zone 2 cabinets need a supply without the -L suffix. The -L supplies are IP20 rated and not certified for hazardous locations or smart grid sites.
- Expansion module: Choose from IEM-3400-8T=, IEM-3400-8S=, IEM-3300-8T=, IEM-3300-8S=, IEM-3300-16T=, IEM-3300-6T2S= or IEM-3300-14T2S=. PoE modules plug only into PoE base switches and will not fit this switch.
- SD card: Add SD-IE-16GB= when SwapDrive configuration backup and switch replacement are planned. The SD card is optional and is not shipped with the switch by default.
- Catalyst Center license: Add IE3400-DNA-E or its 3, 5 or 7-year term when Catalyst Center manages the switch. IE3400-DNA-A also needs IE3400-NW-A=, because Catalyst Center Advantage requires Network Advantage on the switch.
- SFP temperature grade: Order industrial optics such as GLC-SX-MM-RGD= or GLC-LX-SM-RGD= for cabinets near the temperature limits. Commercial or extended-temperature SFPs force the switch to be derated.
- 19-inch rack kit: Add STK-RACK-DINRAIL= when the switch goes into a 19-inch rack instead of a cabinet DIN rail. The mount kit is a separate line item.
Optional Add-ons
|
Model |
Description |
|---|---|
|
IE3400-NW-A= |
Network Advantage license for IE3400, perpetual |
|
Expansion module, 8x GE copper ports (18 system ports) | |
|
Expansion module, 8x GE SFP ports (18 system ports) | |
|
Expansion module, 8x GE copper ports (18 system ports) | |
|
Expansion module, 8x GE SFP ports (18 system ports) | |
|
Expansion module, 16x GE copper ports (26 system ports) | |
|
Expansion module, 6x GE copper + 2x GE SFP (18 system ports) | |
|
Expansion module, 14x GE copper + 2x GE SFP (26 system ports) | |
|
50W DIN rail power supply, 100-240VAC or 125-250VDC input | |
|
50W DIN rail power supply, 90-264VAC input | |
|
65W DIN rail power supply, 100-240VAC or 125-250VDC input | |
|
65W DIN rail power supply, 24-48VDC input | |
|
GLC-FE-100FX-RGD= |
Industrial 100BASE-FX SFP, 2 km over multimode fiber |
|
Industrial 1000BASE-SX SFP, 220-550 m over multimode fiber | |
|
Industrial 1000BASE-LX/LH SFP, 550 m MMF or 10 km SMF | |
|
GLC-ZX-SM-RGD= |
Industrial 1000BASE-ZX SFP, 70 km over single-mode fiber |
|
GLC-T-RGD= |
Industrial 1000BASE-T copper SFP, 100 m |
|
SD-IE-16GB= |
16GB SD card for configuration storage and SwapDrive |
|
STK-RACK-DINRAIL= |
19-inch DIN rail mount kit |
|
IE3400-DNA-E |
Cisco Catalyst Center Essentials license for IE3400 Series |

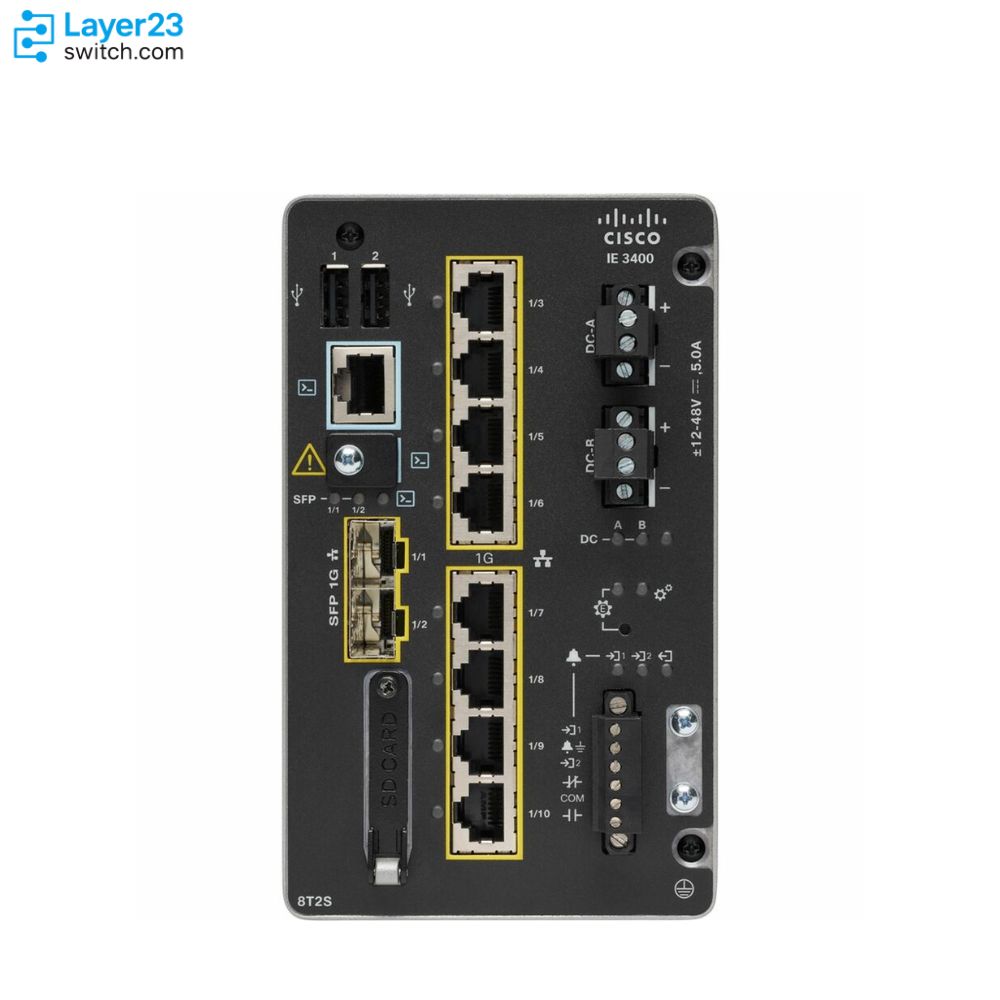

IE-3400-8T2S-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
1 |
10/100/1000 Copper Ethernet ports (downlink ports) |
7 |
Flash memory card slot |
|---|---|---|---|
|
2 |
Power connector DC-B |
8 |
SFP module slots (uplink ports) |
|
3 |
Power connector DC-A |
9 |
USB mini-Type B (console) port |
|
4 |
Protective ground connection |
10 |
RJ-45 console port |
|
5 |
Alarm connector |
11 |
USB mini-Type A port |
|
6 |
10/100/1000 Copper Ethernet ports (downlink ports) |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3400-8T2S-E | Network license | Network Essentials (perpetual) |
| License upgrade | IE3400-NW-A= (Network Advantage, perpetual) | Total base ports | 10 |
| Downlink ports | 8x 10/100/1000 RJ45 copper | Uplink ports | 2x 100/1000 SFP |
| PoE power budget | Not applicable (data-only copper ports) | Expansion | 1 expansion module; up to 26 GE system ports |
| Supported expansion modules | IEM-3400-8T=, IEM-3400-8S=, IEM-3300-8T=, IEM-3300-8S=, IEM-3300-16T=, IEM-3300-6T2S=, IEM-3300-14T2S= (non-PoE modules only) | Expansion module width | Single-wide module adds 2 in; double-wide module adds 3 in |
| Console port | 1 RS-232 (via RJ-45), 1 USB Mini Type B | Alarms | 2 alarm inputs, 1 alarm output |
| Removable storage | USB 2.0 and SD card (optional, not shipped by default) | Forwarding rate | Line rate for all ports and all packet sizes |
| Number of queues | 8 | MAC addresses | 16K |
| IGMP multicast groups | 1K | No. of VLANs | 256 |
| STP instances | 128 | Access control entries (PACL/VACL/RACL) | 3K |
| IPv4 indirect routes | 3000 (with Network Advantage license) | IPv6 indirect routes | 512 (with Network Advantage license) |
| DRAM | 4 GB | Flash (user accessible) | 1.5 GB |
| SD card capacity | 4 GB, 16 GB (optional) | Jumbo frames | 8996 bytes; 2000 bytes when using ERSPAN, DLR, PRP, HSR or SGT |
| Layer 2 switching | IEEE 802.1Q, 802.1w, 802.1s, 802.1ab, 802.3ad, PVST+, MSTP, RSTP, LACP, PAgP, VTPv2/v3, Q-in-Q, selective Q-in-Q, voice VLAN, UDLD | Multicast | IGMP v1/v2/v3 snooping, IGMP filtering, IGMP querier |
| Layer 3 routing | Inter-VLAN routing, static routing | Security | Port security, 802.1X, MAC authentication bypass, DHCP snooping, dynamic ARP inspection, IP source guard, storm control, PACL/RACL/VACL, MACsec-128, FIPS 140-2, SUDI 2099, Full Flexible NetFlow |
| Quality of service (QoS) | Ingress policing, rate limit, egress queuing/shaping, auto QoS | IPv6 | IPv6 host support |
| Redundancy | REP ring, Fast REP, REP Negotiated, REP Autodiscovery, REP ZTP, PROFINET MRP, PRP (Gig1/1 to Gig1/4, single instance), PTP over PRP, HSR-SAN, HSR-PRP Dual Redbox, DLR | Industrial protocols | CIP EtherNet/IP, PROFINET, IEEE 1588 PTPv2 (default and power profiles) |
| Utility | Dying gasp; GOOSE and MODBUS TCP/IP classification | Industrial management | Layer 2 switching with 1:1 L2NAT (supported on uplink ports) |
| IOx edge compute | Native Docker containers, Cisco Cyber Vision, Secure Equipment Access | Automation | YANG, NETCONF, RESTCONF |
| Management | WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN/RSPAN, Express setup, Delayless IPDT, Cisco Catalyst Center, SwapDrive zero-configuration replacement | Operating system | Cisco IOS XE with secure boot, image signing and Trust Anchor module |
| Input voltage range | Redundant DC input, 9.6 to 60VDC (dual DC power inputs) | Input current | 6.3A |
| Power consumption | 36W (measured at 12V) | Supported DIN rail power supplies | PWR-IE50W-AC=, PWR-IE50W-AC-IEC=, PWR-IE50W-AC-L=, PWR-IE65W-PC-AC=, PWR-IE65W-PC-DC=, PWR-IE170W-PC-AC=, PWR-IE170W-PC-DC=, PWR-IE240W-PCAC-L=, PWR-IE480W-PCAC-L= |
| Cooling | Fanless, convection cooled | Operating temperature | -40°C to +70°C (40 LFM vented enclosure); -40°C to +60°C (sealed enclosure); -40°C to +75°C (min. 200 LFM fan or blower-equipped enclosure); +85°C type tested for 16 hours |
| Operating altitude | Up to 15,000 ft | Storage temperature | -40°C to +85°C |
| Operating humidity | 5% to 95% relative humidity, non-condensing | Dimensions (H x W x D) | 6 x 3.6 x 5.3 in (15.2 x 9.1 x 13.5 cm) |
| Weight | 1.7 kg (3.8 lb) | Mounting | DIN rail |
| Ingress protection | IP30 | MTBF | 549,808 hours (Telcordia Issue 3) |
| Industrial automation control system | IEC 62443-4-1, IEC 62443-4-2 | Industry standards | EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61326-1, EN 61131-2, IEEE 1613, EN/IEC 61850-3, ODVA EtherNet/IP, NEMA TS 2-2016, AREMA C&S sections 11 and 19 |
| Electromagnetic emissions | FCC 47 CFR Part 15 Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 Class A, ICES-003 Class A, CNS 13438 Class A, KN 32 Class A, EN 300 386 | Electromagnetic immunity | CISPR 24/CISPR 35, EN 55024/EN 55035, KN 35, EN 61000-4-2, -3, -4, -5, -6, -8, -10, -16, -17, -18, -29 |
| Safety certifications | UL/CSA 60950-1, IEC 60950-1 CB, UL/CSA 62368-1, IEC 62368-1 CB, UL/CSA 61010-2-201, IEC/EN 61010-2-201 | Hazardous locations | UL121201 and CSA 213 Class I Div 2 Groups A-D; UL/CSA, IECEx and ATEX 60079-0/-15 Class I Zone 2 Gc/IIC (ATEX requires a cabinet enclosure) |
| Railway | EN50125-1:2014, EN50125-3:2003, EN50121-4, EN50121-3-2/EN50155 | Marine | DNV-CG-0339, IEC 60945, IACS UR E10 |
| Shock | IEC 60068-2-27 (operational 50G, 3 ms half sine; non-operational 65-80G, 9 ms trapezoidal) | Vibration | IEC 60068-2-6 (sinusoidal, 5-150 Hz) |
| Corrosion | IEC 60068-2-52 (salt fog), IEC 60068-2-60 (flowing mixed gas) | Supported SFPs | 100M: GLC-FE-100FX-RGD=, GLC-FE-100LX-RGD=; 1G: GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD=, GLC-T-RGD=, GLC-BX40-U-I=, GLC-BX40-D-I=, GLC-BX80-U-I=, GLC-BX80-D-I=; non-industrial SFPs require temperature derating |
Get More Information
Need pricing, stock, or shipping details for the IE-3400-8T2S-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Which routing features does IE-3400-8T2S-E gain after the IE3400-NW-A= license is installed?
-
What is the total power draw of IE-3400-8T2S-E with an IEM-3400-8T= module?
-
How much power do the IEM-3300 modules add to IE-3400-8T2S-E on Network Essentials?
-
Which 12-54VDC DIN rail supply is listed for IE-3400-8T2S-E?
-
How much width does an expansion module add to IE-3400-8T2S-E in the cabinet?
