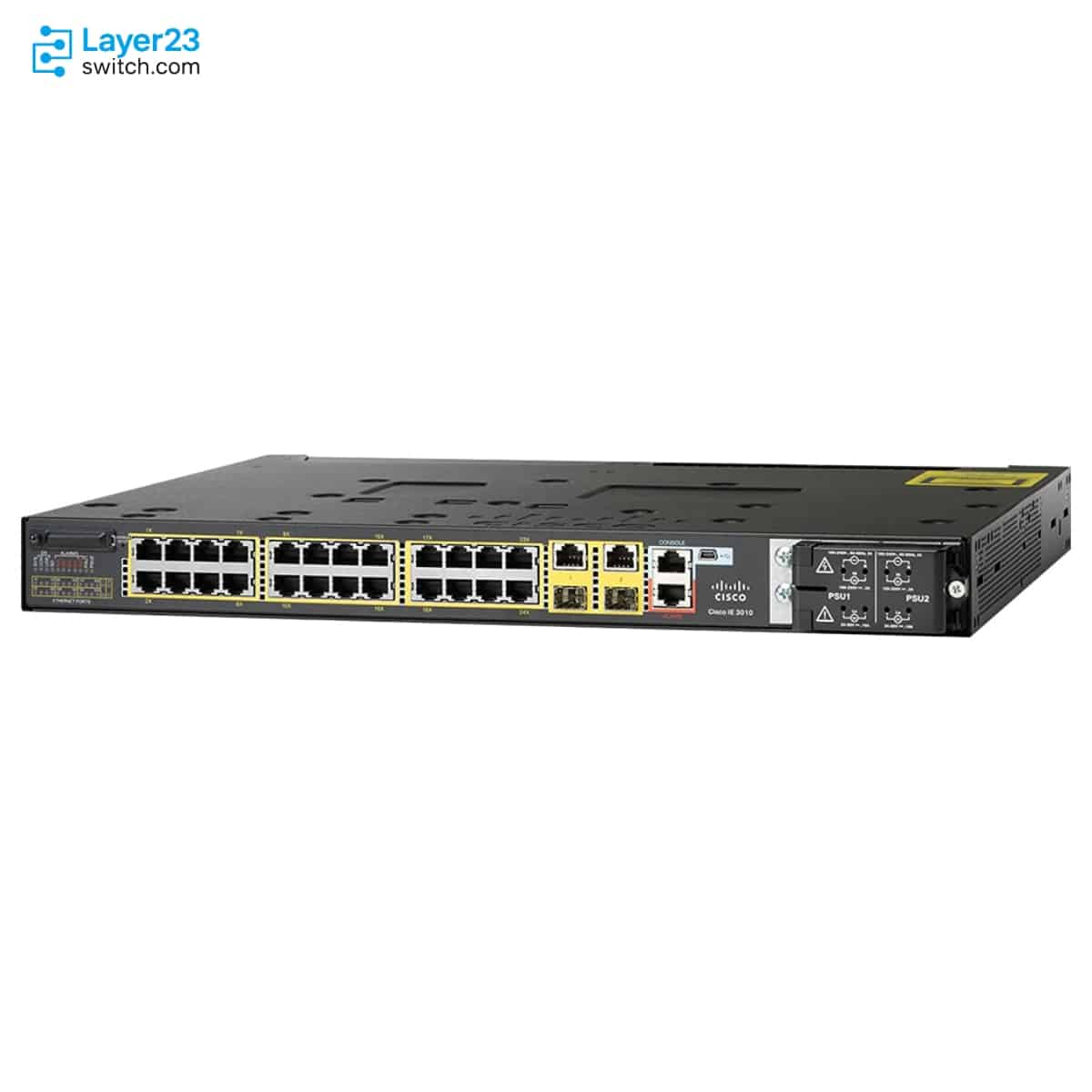

IE-3010-24TC – 24xFE Copper – 2xGE Dual-Purpose Uplinks
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
IE-3010-24TC Description
IE-3010-24TC is a Cisco Industrial Ethernet 3010 Series rugged industrial Ethernet switch for industrial access and aggregation roles in factory automation, transportation, utility, and other harsh-environment networks. This switch provides 24 10/100BASE-TX copper access ports, two dual-purpose Gigabit Ethernet uplinks that can use 10/100/1000BASE-T copper or 100/1000 SFP media, two AC or DC power-supply module slots, and Cisco IOS support with Layer 2 LAN Base from Release 12.2(53)EZ or Layer 3 IP Services from Release 15.0(2)SE or later.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
SKU |
IE-3010-24TC |
|
Product type |
Rugged industrial Ethernet switch |
|
Downlink ports |
24 x 10/100BASE-TX |
|
Uplink ports |
2 x dual-purpose Gigabit Ethernet uplinks |
|
Dual-purpose media |
Each uplink uses one 10/100/1000BASE-T port or one 100/1000 SFP port |
|
Power-supply module slots |
2 AC and DC power-supply module slots |
|
Supported PSU families |
PWR-RGD-LOW-DC/IA and PWR-RGD-AC-DC/IA |
|
Minimum Layer 2 software |
Cisco IOS Software Release 12.2(53)EZ |
|
Minimum Layer 3 software |
Cisco IOS Software Release 15.0(2)SE or later |
|
AC or high-DC nominal input |
100 to 240 VAC 50 to 60 Hz or 100 to 250 VDC |
|
Low-DC nominal input |
24 to 60 VDC |
|
Operating environment |
-40C to +74C listed range with enclosure and airflow conditions |
|
Management ports |
RJ-45 console and USB mini-Type B console |
Product Performance
Key Features
The port layout fits PLCs, HMIs, sensors, controllers, gateways, and other Ethernet-enabled industrial devices that connect over 10/100BASE-TX copper.
Each Gigabit uplink can run as copper or SFP media, which lets the BOM match short copper uplinks or rugged fiber SFP modules without changing the base switch SKU.
Cisco lists low-DC and high AC/DC power-supply module families for the IE 3010 platform, so the switch should be quoted against the site input-power design.
The Cisco IE 3010 data sheet lists extended environmental ratings, rack mounting, wall-mount options, redundant AC or DC input options, alarm relays, and surge or noise immunity for industrial environments.
The hardware guide shows RJ-45 and USB mini-Type B console ports, an SD flash memory card slot, panel LEDs, alarm I/O, and two PSU indicators for field setup and service checks.
Cisco lists Cisco IOS Software Release 12.2(53)EZ for Layer 2 support and Cisco IOS Software Release 15.0(2)SE or later for Layer 3 IP Services support on the IE 3010 Series.
Application Scenarios
IE-3010-24TC is suited to control cabinets where the access side is mostly 10/100BASE-TX copper and the uplink can be copper or fiber through the dual-purpose Gigabit ports.
The chassis fits projects that need a rugged Cisco rack or wall-mount industrial switch with alarm relay contacts, extended environmental specifications, and AC or DC power module options.
Fits existing IE 3010 designs that need the 24-port copper access layout rather than the IE-3010-16S-8PC layout with Fast Ethernet SFP ports and PoE copper ports.
Product Comparison
|
Parameter |
IE-3010-24TC |
IE-3010-16S-8PC | |
|---|---|---|---|
|
Product type |
Rugged Industrial Ethernet switch |
Rugged Industrial Ethernet switch |
Industrial Ethernet switch |
|
Access port layout |
24 x 10/100BASE-TX copper |
16 x 100BASE-FX SFP plus 8 x 10/100BASE-TX PoE |
16 x 100BASE-FX SFP plus 8 x 10/100BASE-TX PoE |
|
PoE downlink ports |
Not the PoE access model |
8 x 10/100BASE-TX PoE ports |
8 x 10/100BASE-TX PoE ports |
|
Dual-purpose Gigabit uplinks |
2 |
2 |
2 |
|
Dual-purpose media |
10/100/1000BASE-T or 100/1000 SFP |
10/100/1000BASE-T or SFP |
10/100/1000BASE-T or SFP |
|
Power supply selection |
PWR-RGD-AC-DC/IA 150W or PWR-RGD-LOW-DC/IA 150W module selected by input type |
2 AC and DC PSU slots |
2 AC and DC PSU slots |
|
Minimum Layer 2 software |
Cisco IOS Software Release 12.2(53)EZ |
Cisco IOS Software Release 12.2(53)EZ |
Cisco IOS Software Release 12.2(53)EZ |
|
Minimum Layer 3 software |
Cisco IOS Software Release 15.0(2)SE or later |
Cisco IOS Software Release 15.0(2)SE or later |
Cisco IOS Software Release 15.0(2)SE or later |
|
Weight without PSU |
9.1 lb (4.1 kg) |
10 lb (4.5 kg) |
10 lb (4.5 kg) |
|
Dimensions |
1.75 x 17.5 x 14.0 in. |
1.75 x 17.5 x 14.0 in. |
6.0 in W x 5.8 in H x 4.4 in D (152 x 147 x 112 mm) |
- In an IE-3010-24TC vs IE-3010-16S-8PC comparison, the main difference is the access port layout: IE-3010-24TC uses 24 copper Fast Ethernet ports, while IE-3010-16S-8PC mixes Fast Ethernet SFP ports with PoE copper ports.
- The IE-3010-24TC difference from IE-3010-16S-8PC matters when the installed cabinet needs copper access endpoints and does not require the eight PoE downlink ports listed for the alternate model.
- For buyers comparing IE-3010-24TC vs IE-3010-16S-8PC, the which model to choose check should start with access media, PoE requirement, and the shared dual-purpose Gigabit uplink design. IE-3000-8TC is included as an additional same-family comparison point.
Selection Guide
1. Choose IE-3010-24TC for 24 copper Fast Ethernet endpoints
Select this SKU when the access layer is built around 10/100BASE-TX industrial devices and the project needs the IE 3010 rugged switch form factor.
2. Compare IE-3010-16S-8PC when fiber or PoE access is required
Choose the alternate IE 3010 model only if the BOM calls for 16 Fast Ethernet SFP ports or 8 PoE copper ports instead of the 24 copper Fast Ethernet layout.
3. Match the PSU module to the site power design
Verify whether the installation needs the low-DC PWR-RGD-LOW-DC/IA family, the high AC/DC PWR-RGD-AC-DC/IA family, and one or two power-supply modules.
4. Check the uplink media and IOS image baseline
Confirm the active dual-purpose uplink medium, rugged SFP part number, Layer 2 or Layer 3 software requirement, and mounting accessory before adding IE-3010-24TC to the quote.
Ordering Checklist
|
Check item |
What to confirm |
Why it matters |
|---|---|---|
|
Access ports |
24 x 10/100BASE-TX copper on IE-3010-24TC |
Prevents substituting the IE-3010-16S-8PC fiber and PoE access layout |
|
Uplink media |
10/100/1000BASE-T or SFP medium for each dual-purpose uplink |
Only one medium is active per dual-purpose uplink |
|
Power supply |
PWR-RGD-LOW-DC/IA or PWR-RGD-AC-DC/IA family and one or two PSU modules |
The base switch supports two Cisco PSU slots and the input range changes by PSU |
|
Software image |
Layer 2 LAN Base or Layer 3 IP Services requirement |
Cisco lists different minimum IOS releases for Layer 2 and Layer 3 support |
|
Mounting method |
Rack-mount kit or wall-mount installation requirement |
IE 3010 deployment can use rack or wall mounting depending on the enclosure |
|
Alarm wiring |
Four alarm inputs and one alarm output relay |
Industrial monitoring designs may require alarm contacts to be wired into external systems |
|
Optical modules |
Cisco-listed rugged SFP model for link speed and fiber distance |
The base SKU does not define the optic type or reach |
Optional Add-ons
|
Model |
Description |
|---|---|
|
PWR-RGD-LOW-DC/IA |
Low DC 24/48V power supply module for the IE 3010 switch |
|
PWR-RGD-AC-DC/IA |
High AC/DC power supply module for the IE 3010 switch |
|
SD-IE-1GB= |
Spare 1 GB SD flash memory card |
|
RM-RGD-19IN= |
Spare 19 in. rack-mount kit |
|
CAB-CONSOLE-RJ45= |
Spare console cable with RJ45 and DB9F |
|
CAB-CONSOLE-USB= |
Spare console cable with USB Type A and mini-B |
|
Rugged Gigabit Ethernet SFP with LC connector for multimode fiber | |
|
GLC-LX-SM-RGD= |
Rugged Gigabit Ethernet SFP with LC connector for single-mode fiber |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| SKU | IE-3010-24TC | Device type | Rugged industrial Ethernet switch |
| Access ports | 24 x 10/100BASE-TX copper | Dual-purpose uplinks | 2 x Gigabit Ethernet uplinks |
| Uplink media options | 10/100/1000BASE-T or 100/1000 SFP per uplink | Power-supply slots | 2 AC and DC power-supply module slots |
| Low-DC PSU family | PWR-RGD-LOW-DC/IA | High AC/DC PSU family | PWR-RGD-AC-DC/IA |
| Low-DC nominal input | 24 to 60 VDC | AC or high-DC nominal input | 100 to 240 VAC 50 to 60 Hz or 100 to 250 VDC |
| One AC/DC PSU consumption | 29.8 W AC or 28.6 W DC | Two AC/DC PSU consumption | 35.5 W AC or 34.4 W DC |
| One low-DC PSU consumption | 26.8 W DC | Two low-DC PSU consumption | 30.7 W DC |
| Minimum Layer 2 software | Cisco IOS Software Release 12.2(53)EZ | Minimum Layer 3 software | Cisco IOS Software Release 15.0(2)SE or later |
| Operating temperature | -40C to +70C vented, -40C to +60C sealed, -34C to +74C with 100 LFM or more airflow | Storage temperature | -40 to 185F (-40 to 85C) |
| Relative humidity | 5 to 95 percent noncondensing | Operating altitude | Up to 10,000 ft (3049 m) |
| Thermal spacing | 1.75 in. (4.4 cm) | Dimensions | 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm) |
| Weight | 9.1 lb (4.1 kg) without power-supply module | Alarm contacts | Four alarm inputs and one alarm output relay |
| Management console ports | RJ-45 console and USB mini-Type B console | Removable storage | SD flash memory card slot |
| Listed protection class | IP20 | ||
| Power supply selection | PWR-RGD-AC-DC/IA 150W high AC/DC module or PWR-RGD-LOW-DC/IA 150W low DC module selected by input type |
