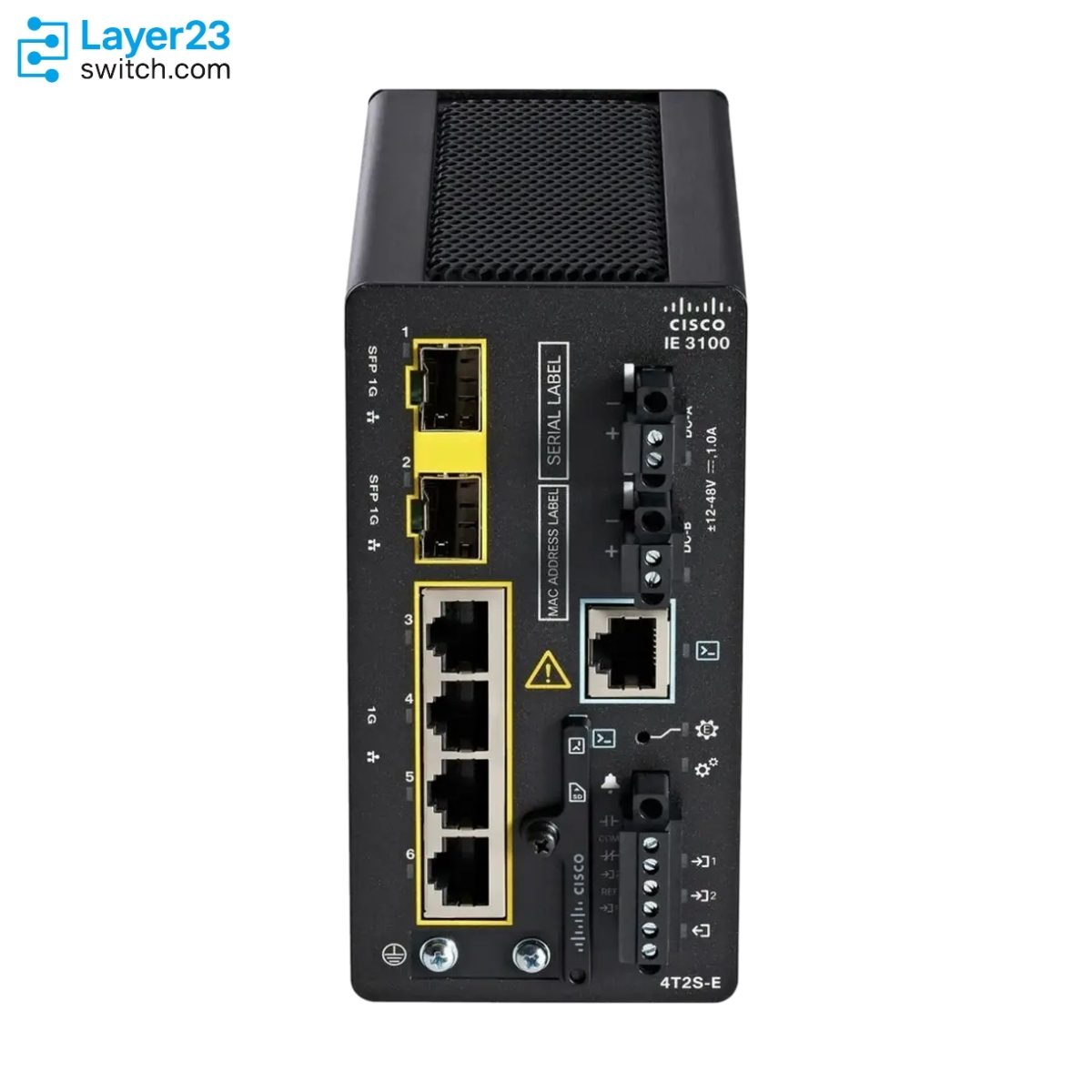

IE-3100-4T2S-E Description
IE-3100-4T2S-E is a Cisco Catalyst IE3100 Rugged Series Industrial Ethernet switch for compact industrial edge deployments that need fixed Gigabit access ports in a DIN-rail form factor. This Network Essentials model provides 4 x 10/100/1000 RJ45 copper downlink ports and 2 x 1000BASE-X SFP uplink ports, uses dual DC power inputs, is identified as a non-PoE IE3100 variant, and is specified at 14 W power consumption with an 8.928 Mpps forwarding rate for industrial automation, utility, transportation, or hardened access networks where the exact port mix and power profile must match the BOM.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
IE-3100-4T2S-E |
|
Product type |
Industrial Ethernet switch |
|
Network license |
Network Essentials |
|
Total ports |
6 Gigabit Ethernet ports |
|
Copper downlink ports |
4 x 10/100/1000 RJ45 ports |
|
SFP-only uplink ports |
2 x 1000BASE-X SFP ports |
|
PoE budget |
Not applicable for this non-PoE model |
|
Power input |
Dual DC inputs |
|
Nominal input voltage |
12V to 48V |
|
Power consumption |
14 W |
|
Forwarding rate |
8.928 Mpps |
|
MTBF |
931290 hours |
Product Performance
Key Features
IE-3100-4T2S-E fits cabinets that need four Gigabit copper endpoints and two fiber uplink positions without moving to an 8-port or 18-port chassis.
The two uplinks are 1000BASE-X SFP ports rather than combo ports, so the fiber handoff and SFP family should be settled before the order is released.
Cisco does not list a PoE budget for IE-3100-4T2S-E, which keeps this PID separate from the powered IE-3100-4P2S-E and larger PoE IE3100 variants.
Cisco maps this exact product ID to Network Essentials, keeping the E suffix tied to the intended IE3100 software tier during substitution review.
The data sheet lists 12V to 48V nominal input, 9.6V to 60V absolute input, and 14 W power consumption for this non-PoE model.
Cisco documents DIN-rail mounting, alarm I/O, SD card support, Cisco IOS XE, WebUI, Catalyst Center management, and industrial protocol support for the IE3100 family.
Application Scenarios
IE-3100-4T2S-E suits machine-area cabinets where PLCs, HMIs, drives, sensors, or controllers need Gigabit RJ45 access and the design does not assign switch-supplied power.
This model is appropriate when the cabinet needs two SFP-only uplinks for 100/1000 fiber handoff instead of dual-media copper/SFP combo uplinks.
Fits projects standardizing on IE3100 Network Essentials where the site needs a compact four-port access switch rather than the powered 4P2S-E or the 8-port 8T2C-E.
Product Comparison
|
Parameter |
IE-3100-4T2S-E | |||
|---|---|---|---|---|
|
Product type |
Industrial Ethernet switch |
Industrial Ethernet switch |
Industrial Ethernet switch |
Industrial Ethernet switch |
|
Network license |
Network Essentials |
Network Essentials |
Network Essentials |
Network Essentials |
|
Total ports |
6 |
6 |
10 |
12 |
|
10/100/1000 RJ45 copper ports |
4 |
4 PoE/PoE+ |
8 |
8 |
|
1000BASE-X SFP-only uplinks |
2 |
2 |
No SFP-only uplinks listed |
4 |
|
1000BASE-T/1000BASE-X combo uplinks |
No combo uplinks listed |
No combo uplinks listed |
2 |
No combo uplinks listed |
|
PoE power budget |
Not applicable |
120 W |
Not applicable |
Not applicable |
|
Power consumption |
14 W |
22.5 W excluding PoE load |
17.7 W |
17.8 W |
|
MTBF |
931290 hours |
755460 hours |
854560 hours |
575966 hours |
- In an IE-3100-4T2S-E vs IE-3100-4P2S-E comparison, both models keep four copper ports and two SFP uplinks, but IE-3100-4P2S-E adds PoE/PoE+ and a 120 W PoE budget.
- The IE-3100-4T2S-E vs IE-3100-8T2C-E decision is port density and uplink type: IE-3100-4T2S-E has four RJ45 ports with SFP-only uplinks, while IE-3100-8T2C-E has eight RJ45 ports and two combo uplinks.
- For IE-3100-4T2S-E vs IE-3100-8T4S-E comparison work, both are non-PoE SFP-uplink IE3100 models, but IE-3100-8T4S-E doubles the copper port count and increases SFP uplinks to four.
- Buyers deciding which model to choose should lock endpoint power, copper-port count, and SFP-only versus combo uplink requirements before treating these IE3100 Network Essentials PIDs as substitutes.
Selection Guide
1. Keep 4T2S-E for a small data-only cabinet
Choose IE-3100-4T2S-E when the BOM requires four Gigabit copper access ports, two 1GE SFP uplinks, Network Essentials, and no PoE budget.
2. Move to 4P2S-E for powered endpoints
Select IE-3100-4P2S-E when the same four copper access positions must provide PoE/PoE+ power and the order needs the Cisco-listed 120 W PoE budget.
3. Use 8T2C-E for more copper endpoints
Move to IE-3100-8T2C-E when eight data-only RJ45 ports are required and the design accepts two dual-media combo uplinks instead of two SFP-only uplinks.
4. Reserve 8T4S-E for more fiber uplinks
Select IE-3100-8T4S-E when the cabinet needs eight RJ45 ports and four 100/1000 SFP uplinks while staying in the non-PoE IE3100 Network Essentials group.
Ordering Checklist
|
Review area |
Required confirmation |
Procurement risk |
|---|---|---|
|
Exact Cisco PID |
IE-3100-4T2S-E with Network Essentials |
Prevents accidental substitution with powered 4P2S-E or larger 8-port IE3100 variants |
|
Endpoint power plan |
No PoE budget is listed for this non-PoE model |
Keeps cameras, phones, or access points that need PoE from being assigned to a data-only SKU |
|
Uplink media |
2 x 1000BASE-X SFP uplinks |
Confirms the order needs SFP fiber ports rather than dual-media combo uplinks |
|
Power design |
Dual DC inputs with 12V to 48V nominal range and 14 W consumption |
Aligns the switch with the industrial power supply and enclosure wiring plan |
|
Mechanical fit |
DIN-rail mounting with a compact 2.55 in. width in the Cisco data sheet |
Reduces enclosure spacing risk in narrow control cabinets |
|
SFP and SD-card options |
SFP modules and optional SD cards are separate line items |
Stops the switch PID from being treated as a complete optics or storage bundle |
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco Industrial Ethernet 50 W AC or high-DC power supply option | |
|
Cisco Industrial Ethernet 50 W AC low-profile power supply option | |
|
Cisco Industrial Ethernet 50 W AC power supply with IEC connector | |
|
Cisco rugged 1000BASE-SX SFP listed for IE3100 SFP support | |
|
GLC-LX-SM-RGD= |
Cisco rugged 1000BASE-LX/LH SFP listed for IE3100 SFP support |
|
GLC-ZX-SM-RGD= |
Cisco rugged 1000BASE-ZX SFP listed for IE3100 SFP support |
|
SD-IE-16GB= |
Cisco IE 16 GB SD memory card option |
|
STK-RACK-DINRAIL= |
19 in. DIN rail mount kit listed in Cisco ordering information |

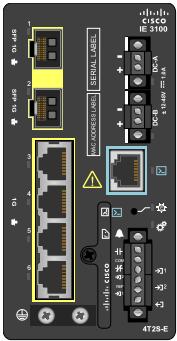

IE-3100-4T2S-E Front Panel Overview
The illustrations in this section provide an overview of the variety of components available on the various switch models in this product family. Not all models are illustrated.|
Number |
Feature |
Number |
Feature |
|---|---|---|---|
|
1 |
Dual-media SFP port LEDs |
6 |
Express Setup LED |
|
2 |
Dual-media copper port LEDs |
7 |
System LED |
|
3 |
1000BASE-T port LEDs |
8 |
Alarm input LEDs |
|
4 |
Power connector LED |
9 |
Alarm output LED |
|
5 |
Management console LED |
10 |
PoE Status LED Note This LED is present in PoE models only. |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | IE-3100-4T2S-E | Product type | Industrial Ethernet switch |
| Network license | Network Essentials | Total ports | 6 Gigabit Ethernet ports |
| Copper downlink ports | 4 x 10/100/1000 RJ45 ports | SFP-only uplink ports | 2 x 1000BASE-X ports |
| Combo uplink ports | No combo uplinks listed for this PID | PoE power budget | Not applicable for this non-PoE model |
| Power input | Dual DC inputs | Nominal input voltage | 12V to 48V |
| Absolute input voltage | 9.6V to 60V | Maximum current at 12V | 1.6 A |
| Maximum current at 24V | 0.8 A | Maximum current at 48V | 0.4 A |
| Inrush current at 12V | 10 A for 7 ms | Inrush current at 24V or 48V | 6 A for 6 ms |
| Power consumption | 14 W | Forwarding rate | 8.928 Mpps |
| Forwarding bandwidth | 6 Gbps | DRAM | 4 GB |
| User-accessible flash | 1.5 GB | SD card capacity | 1 GB, 4 GB, or 16 GB optional SD card |
| Unicast MAC addresses | 8000 | VLAN scale | 256 VLANs |
| IGMP multicast groups | 512 | STP instances | 128 |
| Console ports | 1 RS-232 via RJ45 and 1 micro USB | Alarm I/O | 2 dry-contact alarm inputs and 1 alarm output |
| Mounting | DIN rail | Operating system | Cisco IOS XE |
| Operating temperature | -40C to 75C in blower-equipped cabinet | Storage temperature | -40C to 85C |
| Relative humidity | 5% to 95% noncondensing | Operating altitude | Up to 15000 ft with no temperature derating |
| Dimensions | 5.00 x 2.55 x 4.33 in. / 12.70 x 6.48 x 11.00 cm | Weight | 1.6 lb / 0.73 kg |
| Ingress protection | IP30 | MTBF | 931290 hours |
| Industrial protocol support | EtherNet/IP CIP, Modbus, SCADA, GOOSE, and PROFINET MRP | Management | Cisco Catalyst Center, WebUI, CLI, SNMP, and open APIs |
Get More Information
Need pricing, stock, or shipping details for the IE-3100-4T2S-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What does IE-3100-4T2S-E provide in a small cabinet?
-
Is IE-3100-4T2S-E a PoE switch?
-
When does IE-3100-4T2S-E fit over larger IE3100 models?
-
What uplink type does IE-3100-4T2S-E use?
-
What installation details matter for IE-3100-4T2S-E?
-
How is IE-3100-4T2S-E different from IE-3100-4P2S-E?
-
What fiber optic check matters for IE-3100-4T2S-E?
-
What power range is relevant to IE-3100-4T2S-E?
