C9300X-12Y-A Description

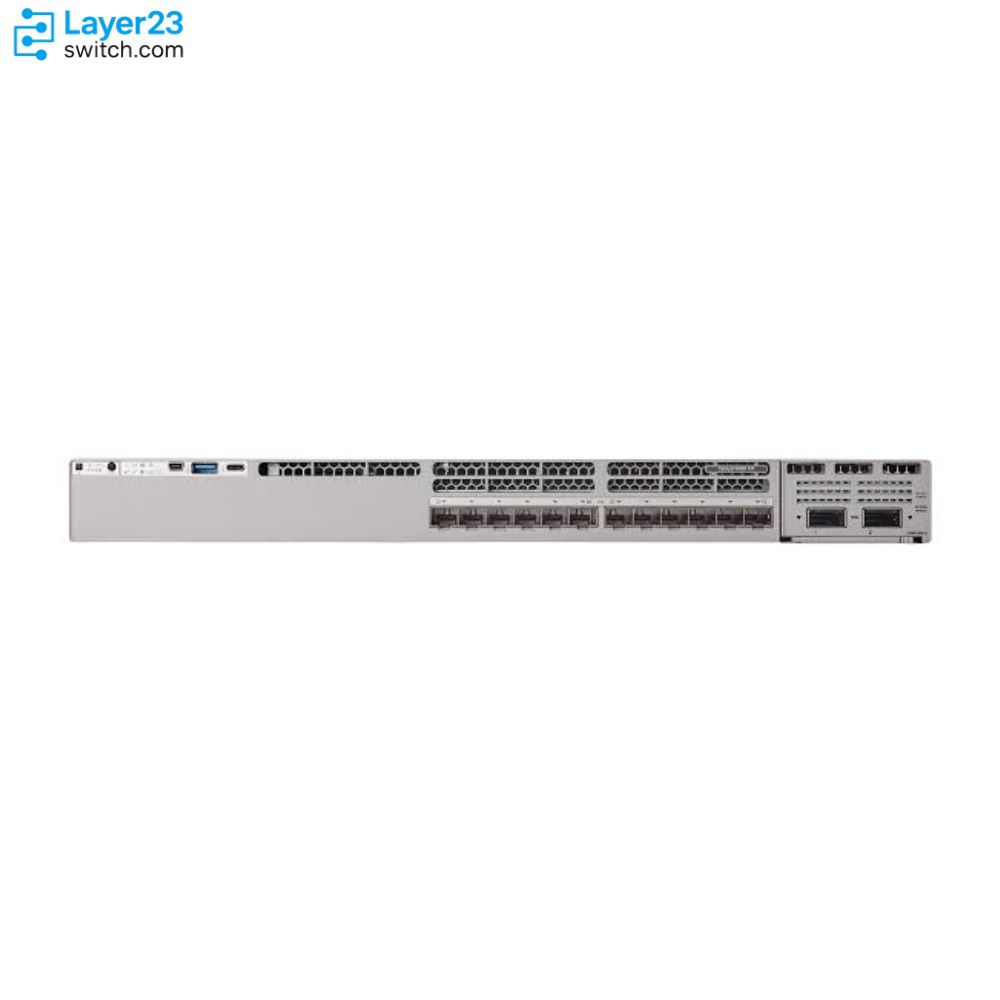

The C9300X-12Y-A is a Cisco Catalyst 9300X Series stackable access switch for fiber-fed closets and aggregation points that terminate 25G links. The switch has twelve 25G/10G/1G SFP28 ports, a modular uplink slot and 1,000 Gbps of switching capacity under Network Advantage, with a default 715W PWR-C1-715WAC-P supply and no PoE. The uplink slot takes C9300X-NM modules but not the 4x100G C9300X-NM-4C.

Quick Specs

Parameter

Specification

Product ID

C9300X-12Y-A

Total ports

12x 25G/10G/1G SFP28 Fiber Downlink Ports

Uplink

Modular Uplink Bay (C9300X-NM Network Module, C9300X-NM-2C by Default)

Network license

Network Advantage

PoE support

Not a PoE Switch (Data Only)

Default power supply

PWR-C1-715WAC-P (715W AC)

Switching capacity

1,000 Gbps Standalone / 2,000 Gbps Stacked

Forwarding rate

744.04 Mpps Standalone / 1,488 Mpps Stacked

Stacking

StackWise-1T, up to 8 Members

StackPower

Cisco StackPower+ Supported

Fan modules

3x Field-Replaceable, N+1 Redundant

Minimum software release

Cisco IOS XE Bengaluru 17.5.1 or Later

Management port

10/100/1000 Ethernet Management Port, RJ-45 Console, USB Mini-Type B Console

Product Performance

Switching Bandwidth
Forwarding Rate
StackWise-1T Stack Bandwidth

Key Features

Twelve SFP28 Fiber Ports

Each of the 12 downlink ports negotiates 25G, 10G or 1G, so one optic family covers servers and older fiber links. There are no copper Multigigabit ports on this chassis.

Modular Uplink Slot

The uplink bay takes C9300X-NM modules such as the 8x10G Multigigabit, 8x25G or 2x100G types, and the ordering configurator defaults to C9300X-NM-2C. The 4x100G C9300X-NM-4C is not supported on this 12-port chassis.

Data Only, Redundant Power

The switch has no PoE, so the 715W PWR-C1-715WAC-P supply carries only the switch itself. The second power slot adds redundancy rather than PoE budget.

StackWise-1T And StackPower+

Stacking with other Catalyst 9300X switches runs at the full 1 Tbps of StackWise-1T. Mixing in Catalyst 9300 members drops the stack to StackWise-480, and StackPower+ shares power across members.

Network Advantage Scope

Network Advantage adds VXLAN, LISP, Cisco TrustSec, MPLS, NETCONF and RESTCONF automation, and xFSU high availability on top of the Layer 2 and limited routed-access scope of Network Essentials.

100G Hardware IPsec

With a separate HSEC license key, the Catalyst 9300X hardware encrypts traffic with IPsec at up to 100G, so encrypted uplinks need no extra appliance.

Application Scenarios

Fiber-Fed Access Aggregation

Where access switches already reach the closet over fiber, the switch terminates their links on SFP28 ports at 25G, 10G or 1G and sends the combined traffic upstream through its uplink module.

Server Row Leaf

In a small data center row, the switch terminates 25G server links directly on SFP28 ports and connects to the spine or core through a C9300X-NM uplink module.

Fiber Closet Upgrade

A wiring closet moving off older fiber switches keeps its fiber cabling and gains 25G ports, and it can join other Catalyst 9300X switches in a StackWise-1T stack.

Product Comparison

Parameter

C9300X-12Y-A

C9300X-24Y-A

C9300X-48TX-A

Downlink ports

12 x 25G/10G/1G SFP28

24 x 25G/10G/1G SFP28

48 x 10G Multigigabit copper (100M/1G/2.5G/5G/10G)

Default PoE budget

None (data only)

None (data only)

None (data only)

Uplink ports

Modular (C9300X-NM)

Modular (C9300X-NM)

Modular (C9300X-NM)

C9300X-NM-4C (4x100G/40G) support

Not compatible

Compatible

Compatible

Network license

Network Advantage

Network Advantage

Network Advantage

Stack bandwidth

1 Tbps (StackWise-1T)

1 Tbps (StackWise-1T)

1 Tbps (StackWise-1T)

Switching capacity

1,000 Gbps standalone / 2,000 Gbps stacked

2,000 Gbps standalone / 3,000 Gbps stacked

1,760 Gbps standalone / 2,760 Gbps stacked

Default power supply

PWR-C1-715WAC-P (715W)

PWR-C1-715WAC-P (715W)

PWR-C1-715WAC-P (715W)

License PID family

C9300-DNA-L-E/A (25G fiber group)

C9300-DNA-L-E/A (25G fiber group)

C9300-DNA/DNX-x-48 (48-port copper group)

C9300X-12Y-A and C9300X-24Y-A both use SFP28 fiber downlinks, Network Advantage and a 715W PWR-C1-715WAC-P supply, but C9300X-12Y-A has 12 ports and 1,000 Gbps standalone switching against 24 ports and 2,000 Gbps. The 4x100G C9300X-NM-4C module does not fit C9300X-12Y-A, so a site that wants it needs C9300X-24Y-A or C9300X-48TX-A. Copper Multigigabit access from 100M to 10G points to C9300X-48TX-A, which has 48 ports, no PoE and the C9300-DNA/DNX-x-48 license family instead of the C9300-DNA-L-E/A group used here. Cisco lists no Advantage-to-Essentials downgrade PID, so order C9300X-12Y-E for Essentials.

Ordering Checklist

  • License PID family: Order an Advantage term of 3, 5 or 7 years from the 25G-fiber group (C9300-DNA-L-A series), not the 48-port copper C9300-DNA-A-48 family. A term from the wrong family does not match the C9300X 25G fiber hardware.
  • Uplink module: Keep the default C9300X-NM-2C, change to C9300X-NM-8M or C9300X-NM-8Y, or select C9300X-NM-NONE; C9300X-NM-4C is not supported. The 4x100G module is limited to the 24-port SFP28 and 48-port Multigigabit C9300X chassis.
  • Second power supply: Keep the default second PWR-C1-715WAC-P, change to PWR-C1-1100WAC-P, or select C9300-SPS-NONE to remove it. CCW selects a second supply by default, so an unchanged order adds one.
  • StackWise cable: Keep the default 3 m cable, or choose STACK-T1-50CM or STACK-T1-1M; C9300X-STACK-NONE removes it. The default C9300X cable is 3 m, longer than most single-rack runs need.
  • StackPower cable: Keep the default 150 cm cable, or select C9300-SPWR-NONE to remove it. The cable is only needed where C9300X StackPower+ is planned.

Optional Add-ons

Model

Description

C9300X-NM-8M / C9300X-NM-8Y / C9300X-NM-2C

Field-installable Catalyst 9300X uplink network modules confirmed for the C9300X-12Y-A modular uplink bay; C9300X-NM-4C is not compatible with this 12-port chassis.

PWR-C1-1100WAC-P

Second AC power supply option for the C9300X-12Y-A power bay, confirmed by the chassis dimension table for the 1100 W supply configuration, for AC redundancy.

STACK-T1-50CM / STACK-T1-1M / STACK-T1-3M

StackWise-1T data stacking cables (0.5 m / 1 m / 3 m) for stacking additional C9300X-12Y-A or other C9300X units.

FAN-T2=

Field-replaceable fan module spare for the standard three-fan N+1 redundant fan tray.

Specifications

Parameter Specification Parameter Specification
Product ID C9300X-12Y-A Network license Network Advantage
Total ports 12x 25G/10G/1G SFP28 Fiber Downlink Ports Uplink Modular Uplink Bay (C9300X-NM Network Module)
PoE support Not a PoE Switch (Data Only) Default power supply PWR-C1-715WAC-P (715W AC, 2,440 BTU/hr Output)
Power supply options Dual Redundant Slots; Optional PWR-C1-1100WAC-P (1100W AC) Switching capacity 1,000 Gbps Standalone / 2,000 Gbps Stacked
Forwarding rate 744.04 Mpps Standalone / 1,488 Mpps Stacked MAC addresses 32,000 Entries
IPv4 routes 39,000 (24,000 Connected + 15,000 Indirect) IPv6 routes 19,500 Entries
Multicast routes 8,000 Entries QoS / ACL entries 4,000 QoS / 8,000 ACL
DRAM / flash 16 GB DRAM / 16 GB Flash VLAN / SVI scale 4094 VLAN IDs, 1,000 SVIs, 13,000 STP Virtual Ports
Stacking StackWise-1T, up to 8 Members, 3 m Cable by Default StackPower Cisco StackPower+ Supported
Fan modules 3x Field-Replaceable FAN-T2=, N+1 Redundant, 20 cfm Management port 10/100/1000 Ethernet Mgmt, RJ-45 Console, USB Mini-Type B Console
Minimum software release Cisco IOS XE Bengaluru 17.5.1 or Later Operating temperature -5C to 45C (up to 3000m/10,000 ft)
Storage temperature -40C to 70C Operating humidity 5%-90% Non-Condensing
Acoustic standard ISO 7779 / ISO 9296, Bystander Position, 25C Ambient Certifications UL 60950-1, IEC 60950-1, EN 55032 Class A, CISPR 32 Class A, RoHS 5
Dimensions Chassis Only 1.73 x 17.5 x 16.1 in; with Default Supply 1.73 x 17.5 x 17.6 in Weight 6.80 kg (15.0 lb) with Default Supply
MTBF 265,650 Hours Connectors SFP28 LC Fiber; RJ-45 Management/Console; StackWise Proprietary
Ordering structure Hardware + Network Advantage + Cisco Catalyst/DNA Advantage Subscription

Get More Information

Need pricing, stock, or shipping details for the C9300X-12Y-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.

Quality Certifications

Customer Reviews

Write A Review
4.8
(11 reviews)
5 Stars
9
4 Stars
2
3 Stars
0
2 Stars
0
1 Stars
0
    Andrew Berg
    Posted on 21/01/2026
    Verified Buyer
    5.0

    Took a chance, glad I did. Layer23 is the real deal.

    Henrik Reyes
    Posted on 11/01/2026
    Verified Buyer
    4.0

    Layer23 products consistently install smoothly in our environment.

    Ahmed Russell
    Posted on 14/12/2025
    Verified Buyer
    5.0

    Shipping cost was reasonable for the level of care provided.

    Tony Montana
    Posted on 18/08/2025
    Verified Buyer
    5.0

    You kept your word. I like that. Good business.

    Network Mgr
    Posted on 05/04/2025
    Verified Buyer
    5.0

    Great communication from the sales rep.

Questions & Answers

  • What license is needed to turn on IPsec on C9300X-12Y-A?

    C9300X-12Y-A needs an HSECK9 Smart Licensing authorization code, obtained in CSSM, before IPsec can be enabled. Without it IPsec cannot be turned on. It is a one-time install that persists across reloads and config erase, so keep the code on record with the other license files for the switch.

  • Which items come bundled with a 3, 5 or 7 year subscription on C9300X-12Y-A?

    A 3, 5 or 7 year Cisco Catalyst or Cisco DNA Advantage subscription bundles the Cisco ThousandEyes Network and Application Synthetics license (TE-EMBEDDED-T) and the Cisco Spaces Extend license (D-DNAS-EXT-S-T). The subscription also adds SD-Access, ETA, AVC with NBAR2, app hosting and Wireshark.

  • Does the 16.5.1a data sheet baseline apply to C9300X-12Y-A?

    No. The 16.5.1a family baseline in the Catalyst 9300 data sheet does not apply to C9300X hardware. Per the release notes, C9300X-12Y-A starts at IOS XE Bengaluru 17.5.1. Do not load an older image on it, and run one release on every member of a stack.

  • Can C9300X-12Y-A use a PWR-C1-1900WAC-P power supply?

    Yes. PWR-C1-1900WAC-P is orderable for the modular-uplink C9300X models as a primary or secondary supply, and it can be mixed with the other power supplies. The chassis takes two supplies in 1+1 redundancy, and the supply options are 350W AC, 715W AC, 715W DC, 1100W AC and 1900W AC.

  • What input range and heat output does the PWR-C1-715WAC-P of C9300X-12Y-A have?

    PWR-C1-715WAC-P is rated 715W with a 100-240VAC input at 47-63Hz through an IEC 320-C16 inlet. Its output is 2440 BTU/hr, which sets the cooling load per supply in a closet. Use a cord with a matching IEC 320-C16 connector for the destination country, and size the rack circuit against the 715W rating.

  • How many C9300X-12Y-A switches can share power in a StackPower+ ring?

    A StackPower ring joins up to 4 C9300X-12Y-A switches with 1+N redundancy. A star topology with the XPS 2200 extends this to 8 switches. One 8-member data stack can hold two separate power stacks. Order the StackPower cable for each member, either 30 cm or 150 cm.

  • Can C9300X-12Y-A use a C9300-NM-8X uplink module from a standard Catalyst 9300?

    No. The C9300 modules C9300-NM-4M, C9300-NM-4G, C9300-NM-8X, C9300-NM-2Y and C9300-NM-2Q are not supported on the 9300X. The bay takes only C9300X-NM modules. A slot without a module must hold C9300-NM-BLANK to maintain airflow, and the modules are hot-swappable. Check the module PID against the C9300X-NM family before you order a replacement.

  • What ambient temperature range does C9300X-12Y-A support at altitude?

    C9300X-12Y-A operates from -5C to +45C below 5000 ft (1500m). The limit drops to +40C below 10,000 ft (3000m). The minimum cold-start ambient is 32F, so a closet that falls below that temperature needs heating before the switch is powered on. Plan cooling for the higher-altitude sites against the lower limit.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

EOL EOSL checker
Check lifecycle dates
cisco switch selector tool

Cisco Switch Selector Tool

Filter Cisco switches by ports, uplinks, PoE, performance, features, license, and budget.

Find matching switches >
cisco sn check tool

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

Standard Services

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F3 Team Support

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Shipping

DataSheet Downloads

  • C9300X-12Y-A Datasheet

  • Cisco Catalyst 9300 Switch Datasheet

Related Searches of Catalyst 9300 Switches
