PWR-C1-1100WAC-P Description

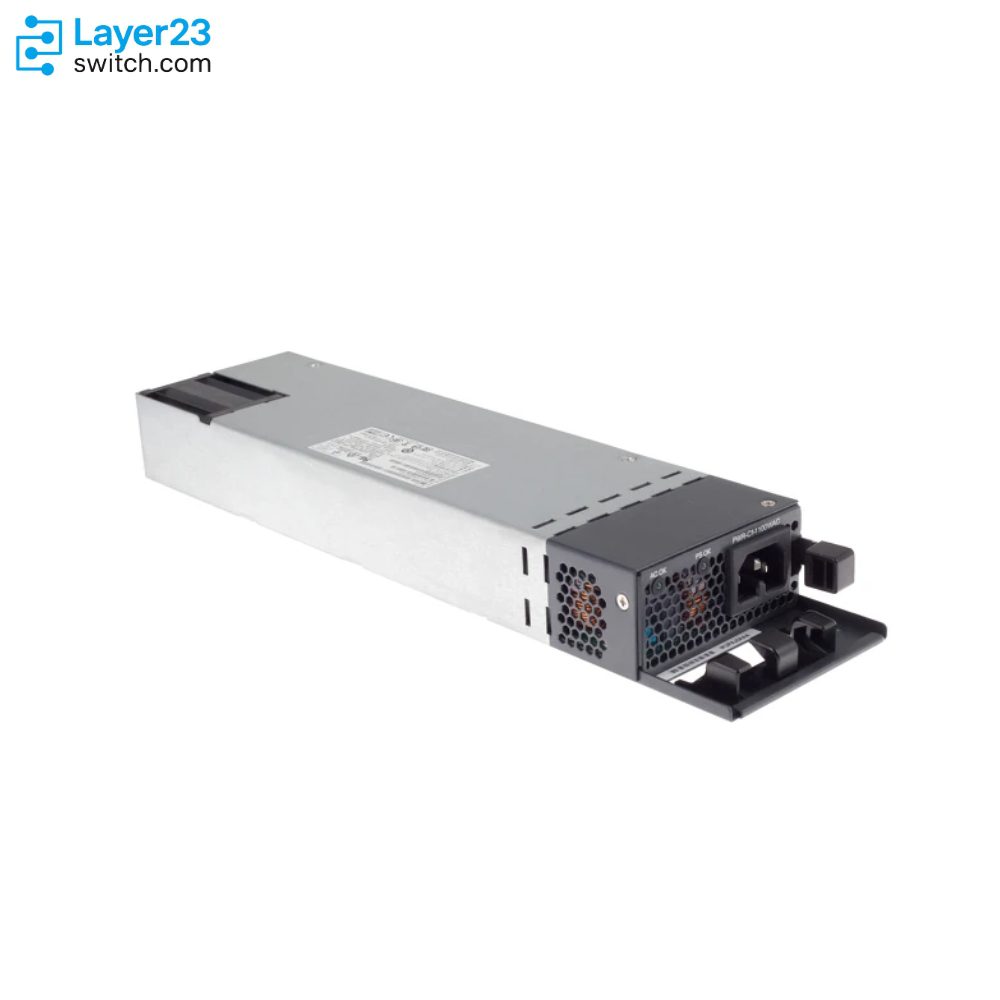

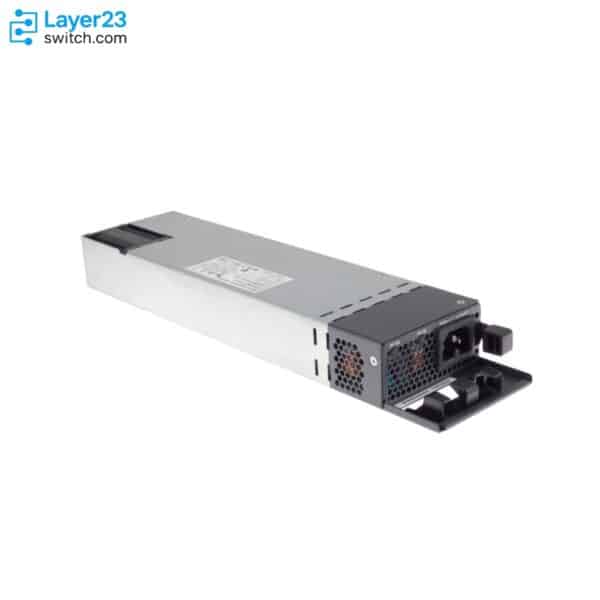

PWR-C1-1100WAC-P is a Cisco Catalyst 9300 Series 1100 W AC Platinum power supply for Catalyst 9300, 9300L, and 9300X switch power bays. It is used when the switch or PoE plan needs more headroom than the 715 W class but does not require the 1900 W module.
The BOM should use this part when the required module is the Platinum 1100 W C1 AC supply. PWR-C1-715WAC-P is the lower output class, PWR-C1-1900WAC-P moves to a higher output plan with voltage-dependent ratings, and non-Platinum C1 variants should not be swapped in when the P suffix is specified.
Before ordering, verify the target Catalyst family, C9300LM exclusion, AC input voltage, PoE budget, redundancy plan, spare-part format, stock, price, warranty coverage, shipping options, and lead time. Layer23-Switch can help confirm compatibility and shipment details.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-C1-1100WAC-P |
|
Product family |
Cisco Catalyst 9300 Series power supplies |
|
Product type |
1100W AC power supply module |
|
Efficiency class |
Platinum certified |
|
Supported switch families |
Catalyst 9300, Catalyst 9300L, and Catalyst 9300X |
|
C9300LM support boundary |
PWR-C1 supplies are not used with C9300LM switches |
|
Maximum output power |
1100W |
|
Input voltage and frequency |
115 to 240 VAC autoranging, 50 to 60 Hz |
|
Input current |
12-6A |
|
Output rating |
-56V at 19.64A |
|
Total output BTU |
3754 BTU/hr, 1100W |
|
Unit weight |
3.1 lb (1.4 kg) |
|
Dimensions |
1.58 x 3.25 x 13.7 in. (40.1 x 82.55 x 348.2 mm) |
Application Scenarios
PWR-C1-1100WAC-P fits service stock for Catalyst 9300, Catalyst 9300L, or Catalyst 9300X deployments that require the C1 1100W AC Platinum power module listed in Cisco power-supply tables.
Access-switch BOMs that move beyond the 715W AC power class can use this SKU when Cisco’s PoE requirement tables call for one or two 1100W AC Platinum supplies.
Warehouses that support both Catalyst 9300 and Catalyst 9300LM switches should keep PWR-C1-1100WAC-P out of C9300LM replacements, where Cisco lists C6 power supplies instead of the C1 family.
Product Comparison
|
Parameter |
PWR-C1-1100WAC-P |
PWR-C1-1100WAC | ||
|---|---|---|---|---|
|
Product type |
AC power supply module |
AC power supply module |
AC power supply module |
AC power supply module |
|
Efficiency / variant |
Platinum certified |
Standard AC supply |
Platinum certified |
Platinum certified |
|
Supported Catalyst 9300 family |
C9300, C9300L, and C9300X |
C9300 |
C9300, C9300L, and C9300X |
C9300, C9300L, and C9300X |
|
C9300LM support boundary |
Not for C9300LM |
Not for C9300LM |
Not for C9300LM |
Not for C9300LM |
|
Maximum output power |
1100W |
1100W |
715W |
1900W at 230V; 1500W at 115V |
|
Input voltage and frequency |
115 to 240 VAC, 50 to 60 Hz |
115 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
200 to 240 VAC at 1900W or 115 to 127 VAC at 1500W |
|
Input current |
12-6A |
12-6A |
10-5A |
Maximum 12A at 230V; maximum 16A at 115V |
|
Output rating |
-56V at 19.64A |
-56V at 19.64A |
-56V at 12.8A |
-56V at 33.92A or -56V at 26.78A |
|
Total output BTU |
3754 BTU/hr, 1100W |
3754 BTU/hr, 1100W |
2440 BTU/hr, 715W |
6483 BTU/hr at 230V or 5118 BTU/hr at 115V |
|
Unit weight |
3.1 lb (1.4 kg) |
3 lb (1.4 kg) |
2.6 lb (1.2 kg) |
3.4 lb (1.5 kg) |
|
Dimensions |
1.58 x 3.25 x 13.7 in. |
1.58 x 3.25 x 13.7 in. |
1.58 x 3.25 x 12.20 in. |
1.58 x 3.25 x 13.7 in. |
- In a PWR-C1-1100WAC-P vs PWR-C1-1100WAC comparison, the output class is the same 1100W AC range, but the current SKU is the Platinum certified variant used across Catalyst 9300, 9300L, and 9300X power tables.
- The PWR-C1-1100WAC-P difference from PWR-C1-715WAC-P is wattage class: both are Platinum AC supplies, but the current SKU provides 1100W while PWR-C1-715WAC-P provides 715W.
- For a PWR-C1-1100WAC-P vs PWR-C1-1900WAC-P comparison, the key order check is the power plan and input-voltage design because the 1900W module has a higher output class tied to its 230V or 115V operating condition.
- Buyers comparing which model to choose should start with the installed Catalyst family, required PoE budget, C9300LM exclusion, and facility AC voltage before adding the power line to the quote.
Selection Guide
1. Match the C1 bay and Catalyst family
Choose PWR-C1-1100WAC-P when the installed switch is in the Catalyst 9300, Catalyst 9300L, or Catalyst 9300X family and the BOM needs a C1 1100W AC Platinum supply.
2. Keep C9300LM on C6 power supplies
Move away from this SKU for C9300LM replacements because Cisco states that C9300LM switches use C6 supplies and cannot use the other listed PWR-C1 supplies.
3. Separate 715W and 1900W power classes
Select PWR-C1-715WAC-P when the documented requirement is the lower 715W Platinum AC class, or move to PWR-C1-1900WAC-P only when the Catalyst 9300 power plan and input voltage support that higher class.
4. Verify the Meraki-option suffix
Keep PWR-C1-1100WAC-P separate from PWR-C1-1100WAC-P-M when receiving Meraki-option hardware, because Cisco identifies the -M PSU for C9300-M rather than the standard Catalyst 9300 order path.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Fact |
Quote Check |
|---|---|---|
|
48-port C9300L PoE all-port requirement |
Cisco lists 1 x PWR-C1-1100WAC-P or 2 x PWR-C1-715WAC-P for PoE on all ports |
Add the 1100W supply when the 48-port C9300L power plan needs all-port PoE headroom |
|
48-port C9300L PoE+ all-port requirement |
Cisco lists 2 x PWR-C1-1100WAC-P or 1 x PWR-C1-1100WAC-P plus 1 x PWR-C1-715WAC-P or PWR-C1-715WDC |
Confirm the second PSU line before assuming all-port 30W PoE+ |
|
Catalyst 9300 dual supply design |
Catalyst 9300 switches support dual redundant power supplies and a second supply can be added later |
Treat the secondary PSU as a separate power and redundancy decision |
|
Slot population rule |
The empty power-supply slot must be covered with a blank module |
Keep the cooling requirement visible when only one PSU ships or one PSU is replaced |
|
StackPower environment |
Catalyst 9300 power supplies can be mixed in a stack power design |
Check the actual power-sharing or redundancy mode before removing or downsizing a PSU |
Ordering Checklist
|
Check Area |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact PID |
PWR-C1-1100WAC-P |
Prevents substitution with PWR-C1-1100WAC, PWR-C1-1100WAC-P-M, or a different wattage class |
|
Switch family |
Catalyst 9300, Catalyst 9300L, or Catalyst 9300X |
Keeps the spare aligned with Cisco’s supported C1 power-supply tables |
|
C9300LM exclusion |
C9300LM switches use C6 power supplies instead of PWR-C1 supplies |
Avoids assigning the wrong physical PSU family to C9300LM stock |
|
AC input |
115 to 240 VAC autoranging, 50 to 60 Hz |
Ensures the site power feed matches the 1100W AC Platinum supply |
|
PoE power plan |
Single or dual PWR-C1-1100WAC-P requirement for the target switch model |
Prevents all-port PoE or PoE+ assumptions from being separated from the installed PSU count |
|
Second bay contents |
A second PSU or blank module in the unused slot |
Maintains the cooling and slot-population requirement documented by Cisco |
|
Regional AC cord |
AC power cord selected for the deployment country and outlet type |
Keeps the power supply line from shipping without the correct cord plan |
Specifications
Packaging weight and dimensions included:| Weight | 2.86 kg |
|---|---|
| Dimensions | 43 × 15 × 12 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-C1-1100WAC-P | Product family | Cisco Catalyst 9300 Series power supplies |
| Product type | 1100W AC power supply module | Efficiency class | Platinum certified |
| Supported switch families | Catalyst 9300, Catalyst 9300L, and Catalyst 9300X | C9300LM support boundary | PWR-C1 supplies are not used with C9300LM switches |
| Maximum output power | 1100W | Input voltage and frequency | 115 to 240 VAC autoranging, 50 to 60 Hz |
| Input current | 12-6A | Output rating | -56V at 19.64A |
| Total input BTU | 4147 BTU/hr, 1215W | Total output BTU | 3754 BTU/hr, 1100W |
| Unit weight | 3.1 lb (1.4 kg) | Dimensions | 1.58 x 3.25 x 13.7 in. (40.1 x 82.55 x 348.2 mm) |
| Power-supply slots | Two internal Catalyst 9300 power-supply slots | Slot population rule | Use a second PSU or blank module in the unused slot |

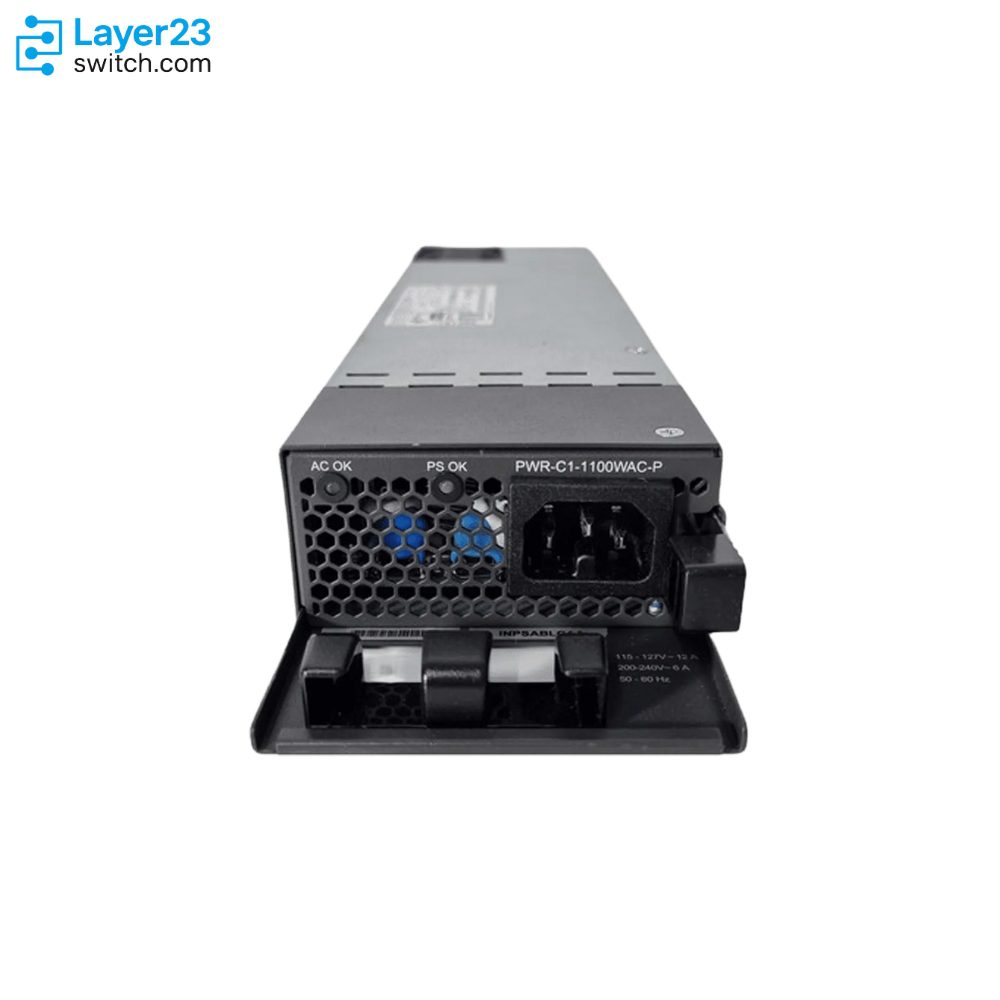

| Hot-swap note | Power supply is hot-swappable when the power budget remains supported | AC status LEDs | AC OK and PS OK LEDs indicate input and output status |
| Meraki-option boundary | PWR-C1-1100WAC-P-M is for C9300-M | Meraki MS390 boundary | MA-PWR-1100WAC is for Meraki MS390 |
Get More Information
Need pricing, stock, or shipping details for the PWR-C1-1100WAC-P ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is PWR-C1-1100WAC-P used for?
-
Why choose PWR-C1-1100WAC-P over PWR-C1-715WAC-P?
-
Does PWR-C1-1100WAC-P fit all Catalyst chassis?
-
How does PWR-C1-1100WAC-P affect redundancy planning?
-
What does Platinum mean for PWR-C1-1100WAC-P?
-
Can PWR-C1-1100WAC-P solve every PoE budget alarm?
-
What field check follows a PWR-C1-1100WAC-P replacement?
-
When is PWR-C1-1100WAC-P excessive?
