PWR-C5-125WAC Description

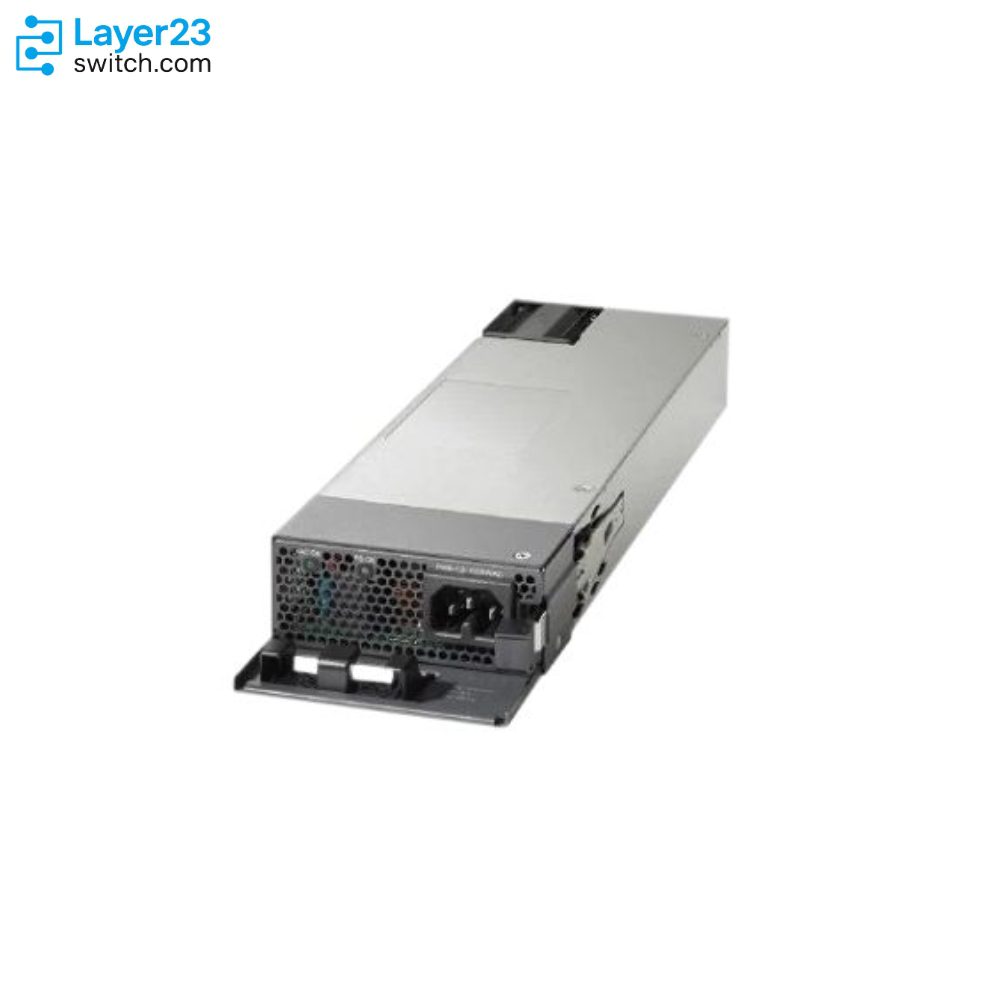

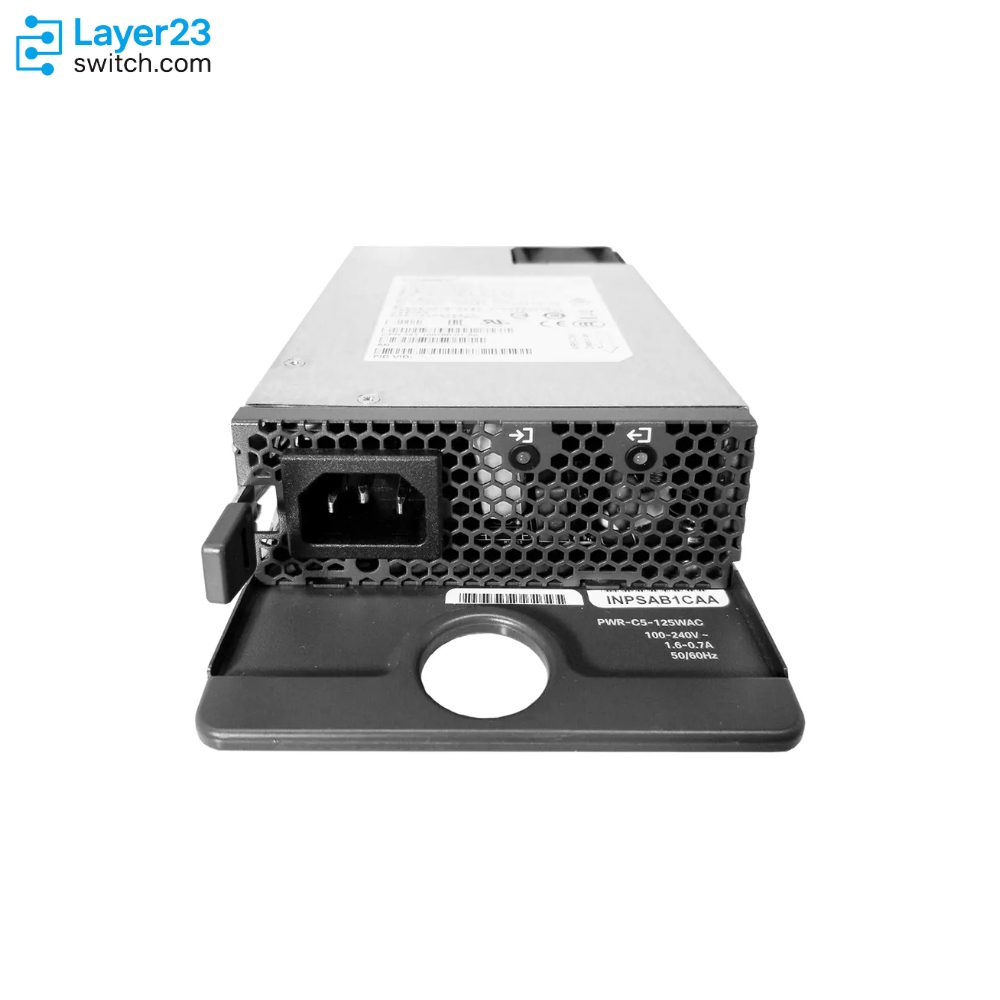

PWR-C5-125WAC is a Cisco Catalyst 9200 Series 125W AC Config 5 power supply module for supported Catalyst 9200L data switch models and Catalyst 9200 data models that use the C5/C6 125W power-supply class. It serves as a field-replaceable AC PSU for 24-port and 48-port data-only deployments, with Cisco-confirmed support for C9200L-24T-4G, C9200L-24T-4X, C9200L-48T-4G, C9200L-48T-4X, C9200-24T, and C9200-48T switch power bays. The module is rated for 125W maximum output, accepts 100 to 240 VAC at 50 to 60 Hz, provides 12V at 10.5A output, and uses an IEC 320-C14 input receptacle for AC power connection.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-C5-125WAC |
|
Cisco ordering form |
PWR-C5-125WAC (=) |
|
Secondary PSU option |
PWR-C5-125WAC/2 |
|
Product type |
AC power supply module |
|
Cisco description |
125W AC Config 5 Power Supply |
|
Compatible C9200L data models |
C9200L-24T-4G, C9200L-24T-4X, C9200L-48T-4G, and C9200L-48T-4X |
|
C9200 data model support |
C9200-24T and C9200-48T support PWR-C5-125WAC or PWR-C6-125WAC |
|
Rated maximum output |
125W |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
|
Input current |
1.6-0.7A |
|
Output rating |
12V at 10.5A |
|
Input receptacle |
IEC 320-C14 |
Application Scenarios
Use PWR-C5-125WAC when the installed chassis is one of the Catalyst 9200L data models that Cisco ties to the 125W Config 5 AC supply.
For C9200-24T and C9200-48T service stock, this SKU can sit beside PWR-C6-125WAC because Cisco documents no functional difference between the two variants on those C9200 data switches.
Receiving teams should keep PWR-C5-125WAC out of Catalyst 9200L PoE replacement orders, where Cisco moves the platform to 600W or 1KW power-supply classes.
Product Comparison
|
Parameter |
PWR-C5-125WAC | |||
|---|---|---|---|---|
|
Cisco description |
125W AC Config 5 Power Supply |
125W AC Config 6 Power Supply |
600W AC Config 5 Power Supply |
1KW AC Config 5 Power Supply |
|
Product type |
AC power supply module |
AC power supply module |
AC power supply module |
AC power supply module |
|
Rated maximum output |
125W |
125W |
600W |
1000W |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
|
Input current |
1.6-0.7A |
1.6-0.7A |
7-2.8A |
12-6A |
|
Output rating |
12V at 10.5A |
12V at 10.5A |
54V at 11.1A |
54V at 16.5A |
|
Total output BTU |
426.5 BTU/hr, 125W |
426.5 BTU/hr, 125W |
2047.3 BTU/hr, 600W |
3412 BTU/hr, 1000W |
|
Input receptacle |
IEC 320-C14 |
IEC 320-C14 |
IEC 320-C16 |
IEC 320-C16 |
|
Power cord rating |
10A |
10A |
15A |
15A |
|
C9200 data model context |
C9200-24T and C9200-48T support the C5 125W supply |
C9200-24T and C9200-48T support the C6 125W supply |
C9200 24-port PoE and C9200-48PL power class |
C9200 48-port PoE power class |
|
C9200L support boundary |
Supported C5 125W supply for C9200L data models |
C6 variant not supported on C9200L data models |
Supported C5 600W supply for C9200L 24-port and partial PoE models |
Supported C5 1KW supply for C9200L 48-port full PoE and PXG models |
- In a PWR-C5-125WAC vs PWR-C6-125WAC comparison, both 125W AC supplies share the same electrical ratings, but the C5 part is the supported path for Catalyst 9200L data models while the C6 variant is not supported on C9200L.
- The PWR-C5-125WAC difference from PWR-C5-600WAC is wattage and switch class: PWR-C5-125WAC serves data-switch power bays, while PWR-C5-600WAC belongs to the 600W PoE power-supply group.
- In a PWR-C5-125WAC vs PWR-C5-1KWAC comparison, the 125W model should not be substituted for the 1KW supply used by Cisco’s 48-port PoE power class.
- For buyers comparing which model to choose, start with C9200L data, C9200 data, 24-port PoE, or 48-port PoE platform identity before selecting a Config 5 or Config 6 PSU.
Selection Guide
1. Anchor the order to a data-switch chassis
Choose PWR-C5-125WAC when the BOM is for a Catalyst 9200L data switch in the C9200L-24T or C9200L-48T family because Cisco lists those models with the 125W Config 5 AC supply.
2. Treat C9200L differently from C9200
Keep C9200L data orders on PWR-C5-125WAC; use PWR-C6-125WAC only for supported C9200-24T or C9200-48T service stock where Cisco allows the C5 and C6 125W supplies to mix.
3. Move PoE replacements to the higher wattage family
Select PWR-C5-600WAC or PWR-C5-1KWAC instead when the installed Catalyst 9200L switch is a PoE model, because Cisco separates those power classes from the 125W data-switch supply.
4. Verify the physical power path
Confirm the rack feed, IEC 320-C14 receptacle, 10A country cord, and second-slot PSU or blank cover before purchase so the replacement can be staged without a cable or cooling mismatch.
Ordering Checklist
|
Control Point |
Required Evidence |
Ordering Risk |
|---|---|---|
|
Base PSU identity |
PWR-C5-125WAC |
Prevents receiving a Config 6 part or a higher wattage PSU when the order needs the Config 5 125W module |
|
Cisco order form |
PWR-C5-125WAC (=) for spare ordering or PWR-C5-125WAC/2 for the secondary supply line |
Keeps the standard spare and second-PSU ordering paths separate |
|
Chassis family |
Catalyst 9200L data model or supported C9200 data model |
Avoids assigning this SKU to an unsupported switch family |
|
PoE model boundary |
600W or 1KW PSU family for Catalyst 9200L PoE models |
Prevents a 125W data-switch supply from being ordered for a PoE chassis |
|
Facility input and cord |
100 to 240 VAC, 50 to 60 Hz, IEC 320-C14, and 10A regional cord |
Aligns rack power and country cable selection with Cisco’s AC specification |
|
Power bay closure |
Every power supply slot populated by a PSU or blank cover |
Maintains the chassis cooling path required by Cisco installation guidance |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-C5-125WAC | Cisco ordering form | PWR-C5-125WAC (=) |
| Secondary PSU option | PWR-C5-125WAC/2 | Product type | AC power supply module |
| Cisco description | 125W AC Config 5 Power Supply | Compatible C9200L data models | C9200L-24T-4G, C9200L-24T-4X, C9200L-48T-4G, and C9200L-48T-4X |
| C9200 data model support | C9200-24T and C9200-48T support PWR-C5-125WAC or PWR-C6-125WAC | C9200L C6 boundary | C6 125W variant not supported on C9200L data models |
| C5 and C6 note for C9200 data models | No functional difference on C9200-24T and C9200-48T | Rated maximum output | 125W |
| Total output BTU | 426.5 BTU/hr, 125W | Input voltage and frequency | 100 to 240 VAC, 50 to 60 Hz |
| Input current | 1.6-0.7A | Output rating | 12V at 10.5A |
| Output holdup time | 20 ms minimum at 100 VAC | Input receptacle | IEC 320-C14 |
| Power cord rating | 10A | Physical dimensions | 1.58 x 4.0 x 7.6 in. (H x W x D) |
| Weight | 1.5 lb (0.68 kg) | Power supply slots | Two internal power supply slots on Catalyst 9200 switch chassis |
| Slot population rule | Each slot must contain a power supply or blank cover | Field replacement note | Main module field replaceable and redundant module hot-swappable |
| Power module fan note | Power supply modules include internal fans |
