PWR-C5-600WAC Description

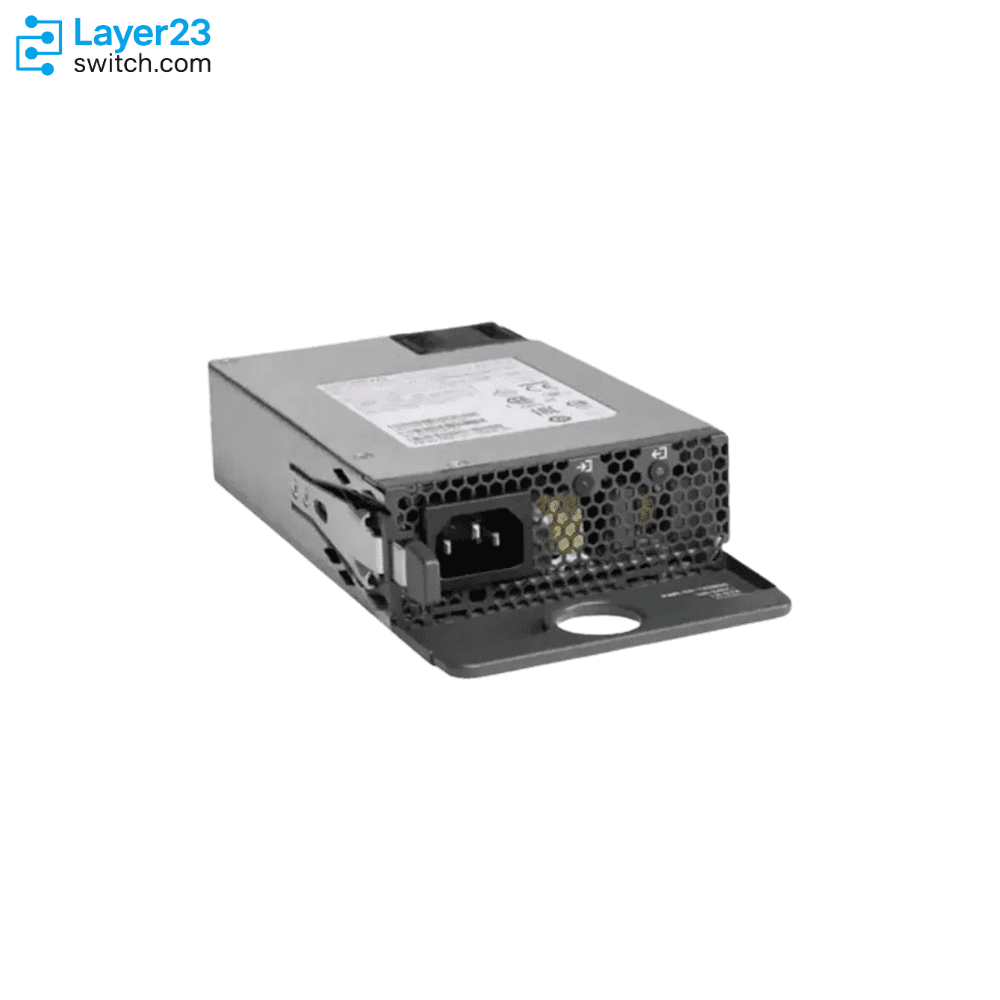

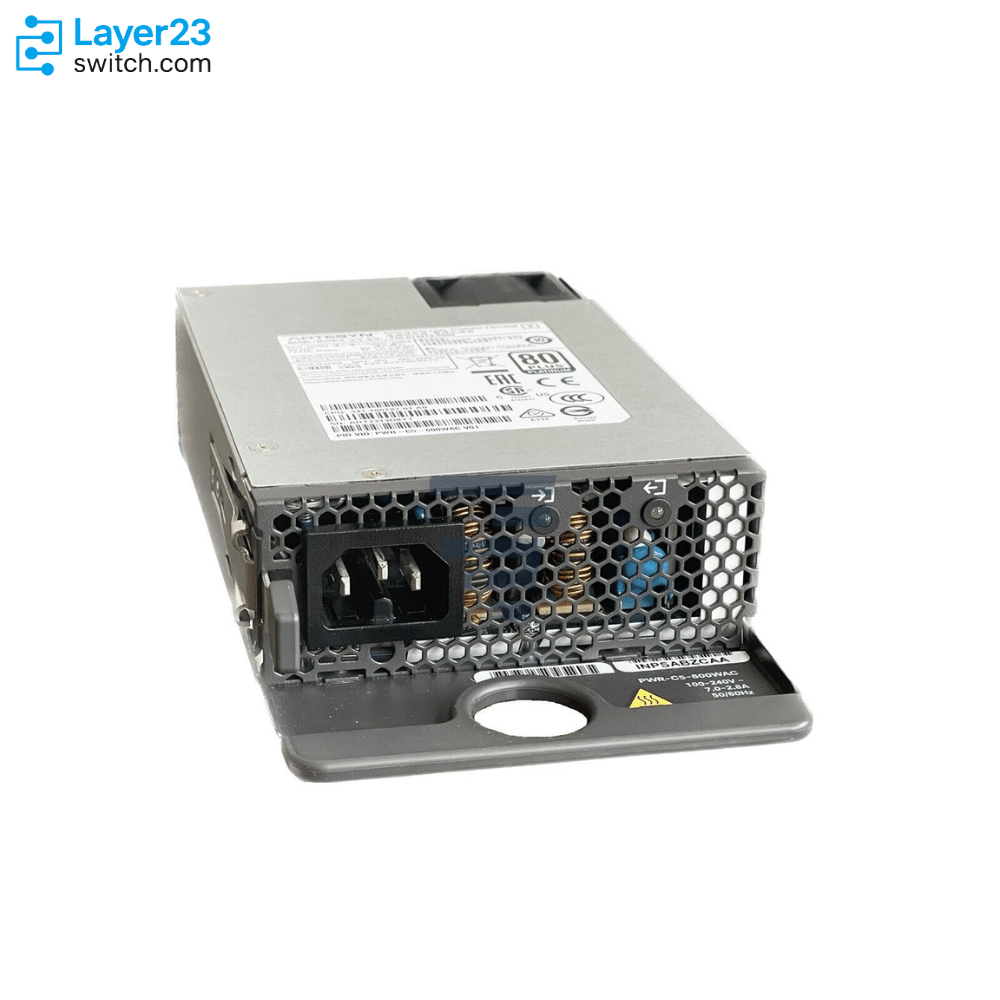

PWR-C5-600WAC is a Cisco 600W AC Config 5 power supply module for Catalyst 9200 Series switch power and PoE redundancy planning. It is used as the AC PSU option for supported Catalyst 9200 and Catalyst 9200L PoE models, including C9200 and selected C9200L 24-port and 48-port PoE configurations, with PWR-C5-600WAC/2 used when ordering a secondary supply. Cisco documentation identifies the module as a 600W AC supply with 100 to 240 VAC, 50 to 60 Hz input and 54V at 11.1A output, supporting 370W available PoE with one 600W AC PSU and 740W with a second 600W AC PSU on the listed supported switch models.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-C5-600WAC |
|
Cisco ordering form |
PWR-C5-600WAC (=) |
|
Secondary PSU option |
PWR-C5-600WAC/2 |
|
Product type |
AC power supply module |
|
Cisco description |
600W AC Config 5 Power Supply |
|
Compatible C9200L PoE models |
C9200L-24P-4G, C9200L-24P-4X, C9200L-24PXG-4X, C9200L-24PXG-2Y, C9200L-48PL-4G, and C9200L-48PL-4X |
|
Compatible C9200 PoE models |
C9200-24P, C9200-24PB, C9200-24PXG, and C9200-48PL |
|
Rated maximum output |
600W |
|
Available PoE with one AC PSU |
370W on supported 600W PoE models |
|
Available PoE with second AC PSU |
740W on supported 600W PoE models |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
|
Output rating |
54V at 11.1A |
Application Scenarios
Select PWR-C5-600WAC for Catalyst 9200L 24-port PoE and 24-port multigigabit PoE switches that Cisco maps to the 600W Config 5 AC supply.
Use this PSU for C9200L-48PL-4G or C9200L-48PL-4X replacements where the chassis belongs to Cisco’s partial-PoE 600W class rather than the 1KW 48-port full-PoE group.
Keep PWR-C5-600WAC available for selected C9200 600W PoE models, but separate it from PWR-C6-600WAC receiving labels when the order requires a specific Config code.
Product Comparison
|
Parameter |
PWR-C5-600WAC | |||
|---|---|---|---|---|
|
Cisco description |
600W AC Config 5 Power Supply |
600W AC Config 6 Power Supply |
125W AC Config 5 Power Supply |
1KW AC Config 5 Power Supply |
|
Product type |
AC power supply module |
AC power supply module |
AC power supply module |
AC power supply module |
|
Rated maximum output |
600W |
600W |
125W |
1000W |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
|
Input current |
7-2.8A |
7-2.8A |
1.6-0.7A |
12-6A |
|
Output rating |
54V at 11.1A |
54V at 11.1A |
12V at 10.5A |
54V at 16.5A |
|
Total output BTU |
2047.3 BTU/hr, 600W |
2047.3 BTU/hr, 600W |
426.5 BTU/hr, 125W |
3412 BTU/hr, 1000W |
|
Input receptacle |
IEC 320-C16 |
IEC 320-C16 |
IEC 320-C14 |
IEC 320-C16 |
|
Power cord rating |
15A |
15A |
10A |
15A |
|
C9200L support boundary |
C5 600W supply for listed 24-port PoE, C9200-24PXG, and C9200-48PL models |
C6 variant not supported on C9200L |
C5 125W supply for C9200L data models |
C5 1KW supply for C9200L 48-port full-PoE and C9200-48PXG models |
|
C9200 model context |
C9200-24P, C9200-24PB, C9200-24PXG, and C9200-48PL |
Same C9200 600W PoE model group as the C5 variant |
C9200-24T and C9200-48T data models |
C9200-48P, C9200-48PB, and C9200-48PXG |
|
Available PoE with one AC PSU |
370W on supported 600W PoE models |
370W on supported 600W PoE models |
Data-switch supply without PoE budget |
740W on supported 1KW PoE models |
- In a PWR-C5-600WAC vs PWR-C6-600WAC comparison, the electrical values match at 600W output, 7-2.8A input current, 54V at 11.1A output, IEC 320-C16 receptacle, and 15A cord rating.
- The PWR-C5-600WAC difference from PWR-C6-600WAC is the C9200L support boundary: Cisco keeps C9200L 600W PoE models on the C5 variant, while selected C9200 modular PoE models can use either Config code.
- For a PWR-C5-600WAC vs PWR-C5-125WAC comparison, the current SKU belongs to the PoE 600W class; the 125W supply maps to data-switch power bays with a different output rating and C14 receptacle.
- In a PWR-C5-600WAC vs PWR-C5-1KWAC comparison, which model to choose depends on the switch wattage class because Cisco separates 600W PoE models from 1KW 48-port full-PoE models.
Selection Guide
1. Anchor C9200L 600W orders to the C5 line
Choose PWR-C5-600WAC when the installed C9200L switch is a 24-port PoE, C9200-24PXG, or C9200-48PL model that Cisco lists with the Config 5 600W supply.
2. Keep Config 6 out of C9200L receiving
Move to PWR-C6-600WAC only for supported C9200 modular PoE service stock, because Cisco’s C9200L compatibility matrix keeps the 600W fixed-uplink path on PWR-C5-600WAC.
3. Match wattage before approving the spare
Select PWR-C5-125WAC for C9200L data-switch bays or PWR-C5-1KWAC for C9200L 48-port full-PoE and C9200-48PXG bays instead of treating all Catalyst 9200 PSUs as interchangeable.
4. Verify the second-bay plan
Confirm whether the order is for the base PID, the PWR-C5-600WAC/2 secondary option, or a blank-cover position because each Catalyst 9200 power slot must be populated by a PSU or blank module.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Value |
Procurement Impact |
|---|---|---|
|
One AC power supply |
370W available PoE on supported 600W PoE models |
Sets the endpoint budget when only one PWR-C5-600WAC is installed |
|
Second 600W AC power supply |
740W available PoE on supported 600W PoE models |
Adds the Cisco-listed higher PoE budget and redundant supply path |
|
C9200L wattage boundary |
C9200L data models use 125W, C9200L 600W PoE models use PWR-C5-600WAC, and C9200L 48-port full-PoE models use 1KW |
Prevents a PSU from another wattage class from being staged into the wrong switch |
|
Power-slot closure |
Each internal PSU slot must contain a power supply or blank cover |
Maintains the chassis cooling path required by Cisco installation guidance |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact PSU identity |
PWR-C5-600WAC |
Prevents receiving a Config 6, 125W, 1KW, or DC supply when the BOM requires the C5 600W AC module |
|
Cisco order form |
PWR-C5-600WAC (=) for the base supply or PWR-C5-600WAC/2 for the secondary supply option |
Keeps spare ordering and second-PSU ordering from being merged into one line |
|
C9200L chassis match |
C9200L-24P-4G, C9200L-24P-4X, C9200L-24PXG-4X, C9200L-24PXG-2Y, C9200L-48PL-4G, or C9200L-48PL-4X |
Confirms the installed fixed-uplink switch is in Cisco’s C5 600W support group |
|
Facility input and cord |
100 to 240 VAC, 50 to 60 Hz, IEC 320-C16, and 15A regional cord |
Aligns rack power and country cable selection with Cisco’s AC specification |
|
PoE budget target |
370W with one AC PSU or 740W with the second 600W AC PSU on supported 600W PoE models |
Prevents endpoint planning from assuming a 1KW full-PoE budget |
|
PSU bay closure |
The second internal power slot contains a supply or blank cover |
Avoids operating the chassis with an open power-supply bay |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-C5-600WAC | Cisco ordering form | PWR-C5-600WAC (=) |
| Secondary PSU option | PWR-C5-600WAC/2 | Product type | AC power supply module |
| Cisco description | 600W AC Config 5 Power Supply | Compatible C9200L PoE models | C9200L-24P-4G, C9200L-24P-4X, C9200L-24PXG-4X, C9200L-24PXG-2Y, C9200L-48PL-4G, and C9200L-48PL-4X |
| Compatible C9200 PoE models | C9200-24P, C9200-24PB, C9200-24PXG, and C9200-48PL | C9200L C6 boundary | C6 600W variant not supported on C9200L |
| C5 and C6 note for C9200 models | No functional difference on listed C9200 600W PoE models | Rated maximum output | 600W |
| Total output BTU | 2047.3 BTU/hr, 600W | Input voltage and frequency | 100 to 240 VAC, 50 to 60 Hz |
| Input current | 7-2.8A | Output rating | 54V at 11.1A |
| Output holdup time | 20 ms minimum at 100 VAC | Input receptacle | IEC 320-C16 |
| Power cord rating | 15A | Physical dimensions | 1.58 x 4.0 x 7.6 in. (H x W x D) |
| Weight | 1.7 lb (0.77 kg) | Power supply slots | Two internal power supply slots on Catalyst 9200 switch chassis |
| Slot population rule | Each power supply slot must contain a power supply or a blank cover | FRU behavior | Main module field replaceable; redundant module hot-swappable |
| Power module fan note | All power supply modules except blank modules have internal fans | Available PoE with one AC PSU | 370W on supported 600W PoE models |
| Available PoE with second AC PSU | 740W on supported 600W PoE models |
