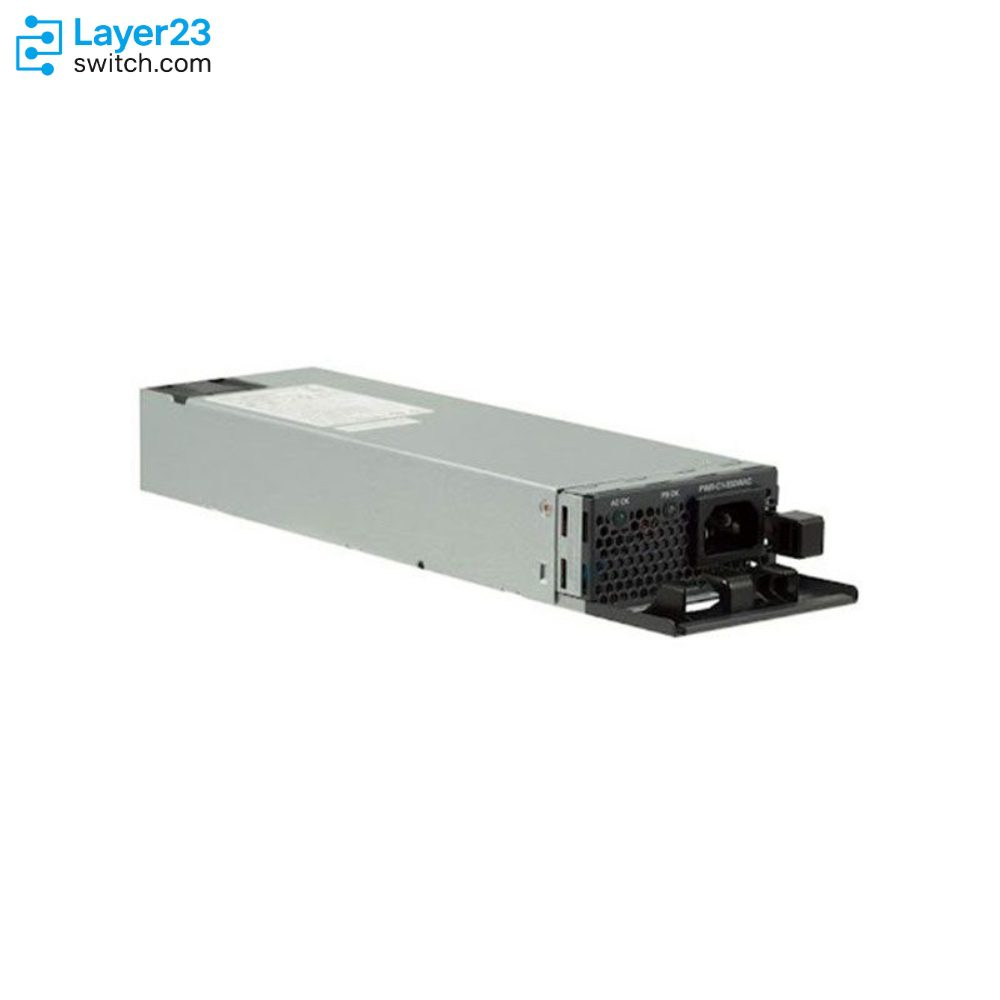

C9400-PWR-2100AC – 2100W AC PSU – Catalyst 9400 – Platinum Rated
1/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9400-PWR-2100AC Description
C9400-PWR-2100AC is a Cisco Catalyst 9400 Series Platinum-rated 2100W AC power supply module for Catalyst 9400 modular switch chassis. It supports power designs that use the 2100W PSU class instead of the larger 3200W option, with wide-ranging single-phase AC input, low-line and high-line output behavior, 55 VDC system output, a C19 power-cord connector, hot-swappable serviceability, and redundant or combined power-supply modes for chassis power planning.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9400-PWR-2100AC |
|
Cisco ordering PID |
C9400-PWR-2100AC (=) |
|
Product type |
2100W AC power supply module |
|
Cisco ordering description |
Cisco Catalyst 9400 Series Platinum Rated 2100W AC Power Supply |
|
Compatible platform |
Cisco Catalyst 9400 Series modular switch chassis |
|
Input type |
Single-phase AC |
|
AC input voltage |
85 to 132 VAC low-line or 180 to 264 VAC high-line |
|
AC input current |
11.44 A at 100 VAC or 200 VAC |
|
Total output power |
950W at 100-120 VAC or 2112W at 200-240 VAC |
|
Output capacity |
55 VDC: 940W at 115 VAC or 2102W at 230 VAC; 3.3 VDC: 10W |
|
Minimum airflow |
7 CFM at 100 percent load |
|
Branch circuit requirement |
Dedicated fused branch circuit; North America 15A |
Application Scenarios
Use C9400-PWR-2100AC for Catalyst 9400 maintenance inventory when installed systems already use the 2100W AC power-supply family and the replacement must preserve the same PSU capacity.
Select this SKU only after checking the site feed because the available output changes from 950W on 100-120 VAC to 2112W on 200-240 VAC.
Keep C9400-PWR-2100AC separate from the 3200W AC, 3200W Titanium AC, and 3200W DC supplies when the BOM depends on a specific power class or input-power design.
Product Comparison
|
Parameter |
C9400-PWR-2100AC | |||
|---|---|---|---|---|
|
Cisco ordering description |
Platinum Rated 2100W AC Power Supply |
Platinum Rated 3200W AC Power Supply |
Titanium Rated 3200W AC Power Supply |
3200W DC Power Supply |
|
Input type |
AC |
AC |
AC |
DC |
|
Input voltage |
85 to 132 VAC or 180 to 264 VAC |
85 to 132 VAC or 180 to 264 VAC |
85 to 132 VAC or 180 to 264 VAC |
-40 to -72 VDC with extended range to -75 VDC |
|
Input current |
11.44 A at 100 VAC or 200 VAC |
17.6 A at 100 VAC or 200 VAC |
17.6 A at 100 VAC or 200 VAC |
36 A nominal per input; 44 A maximum per input |
|
Total output power |
950W at low-line AC or 2112W at high-line AC |
1570W at low-line AC or 3200W at high-line AC |
1570W at low-line AC or 3200W at high-line AC |
3200W |
|
55 VDC output capacity |
940W at 115 VAC or 2102W at 230 VAC |
1560W at 115 VAC or 3190W at 230 VAC |
1560W at 115 VAC or 3190W at 230 VAC |
3190W |
|
3.3 VDC standby output |
10W |
10W |
10W |
10W |
|
Minimum airflow |
7 CFM at 100 percent load |
7 CFM at 100 percent load |
19.87 CFM at 100 percent load |
9.5 CFM at 100 percent load |
|
Output holdup time |
20 ms minimum |
20 ms minimum |
20 ms minimum |
8 ms |
|
Heat dissipation |
460.0 BTU/hr at 2112W; 244.0 BTU/hr at 950W |
948.86 BTU/hr at 3200W; 594.85 BTU/hr at 1570W |
948.87 BTU/hr at 3200W; 465.54 BTU/hr at 1570W |
950 BTU/hr at 3200W |
|
Weight |
5.0 lb (2.3 kg) |
5.0 lb (2.3 kg) |
4.0 to 5.0 lb (1.81 to 2.3 kg) |
6.6 lb (3.0 kg) |
|
Power connection |
IEC60320/C19 appliance connector |
IEC60320/C19 appliance connector |
IEC60320/C19 appliance connector |
DC input terminals |
- In a C9400-PWR-2100AC vs C9400-PWR-3200AC comparison, the main difference is AC output capacity: C9400-PWR-2100AC is the 950W low-line and 2112W high-line option, while C9400-PWR-3200AC is the 1570W low-line and 3200W high-line option.
- The C9400-PWR-2100AC difference from C9400-PWR-3200ACT is both power class and PSU identity, because C9400-PWR-3200ACT is the Titanium-rated 3200W AC module with a 19.87 CFM minimum airflow value.
- For a C9400-PWR-2100AC vs C9400-PWR-3200DC comparison, the key order check is input power: the current SKU uses AC input and a C19 cord path, while C9400-PWR-3200DC is the DC plant power-supply option.
- Which model to choose should follow the installed Catalyst 9400 PSU family, site input power, low-line or high-line output target, and redundant or combined power mode shown in the comparison table.
Selection Guide
1. Use the 2100W AC line for matched PSU bays
Choose C9400-PWR-2100AC when the Catalyst 9400 chassis power plan or replacement stock calls for the 2100W AC supply rather than a 3200W module.
2. Verify the input-voltage class first
Check whether the site uses 100-120 VAC or 200-240 VAC because this SKU changes from 950W total output on low-line input to 2112W on high-line input.
3. Move to the 3200W AC family when the output tier changes
Select C9400-PWR-3200AC or C9400-PWR-3200ACT only when the BOM requires the 3200W AC class; do not treat the 2100W and 3200W supplies as equal capacity spares.
4. Keep DC plant designs on the DC PSU
Use C9400-PWR-3200DC for Catalyst 9400 DC input power designs, because C9400-PWR-2100AC is an AC-input module with a regional C19 power-cord requirement.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Value |
Procurement Impact |
|---|---|---|
|
Low-line AC output |
940W at 55 VDC plus 10W standby output at 115 VAC |
Sets the lower chassis power budget when the site feed is 100-120 VAC |
|
High-line AC output |
2102W at 55 VDC plus 10W standby output at 230 VAC |
Supports the higher 2112W total output class for 200-240 VAC racks |
|
N+1 redundant mode formula |
2102W x (N-1) plus 10W standby at 230 VAC; 940W x (N-1) plus 10W standby at 115 VAC |
Determines how many supplies remain available after reserving one module for redundancy |
|
Combined mode formula |
2102W x N plus 10W standby at 230 VAC; 940W x N plus 10W standby at 115 VAC |
Shows the combined power pool when the design is not reserving an equivalent standby module |
|
Power budget validation |
Cisco directs users to calculate or estimate system power budget and PoE requirements with Cisco Power Calculator |
Prevents PSU quantity from being approved without checking supervisors, line cards, and PoE load |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
C9400-PWR-2100AC |
Prevents substitution with 3200W AC, Titanium 3200W AC, or 3200W DC modules |
|
Catalyst 9400 chassis |
C9404R, C9407R, or C9410R chassis power plan |
Confirms the PSU belongs to the Catalyst 9400 modular platform family |
|
Site AC voltage |
100-120 VAC low-line or 200-240 VAC high-line |
Controls whether the Cisco output value is 950W or 2112W total output |
|
Branch circuit |
Dedicated fused branch circuit with North America 15A guidance |
Keeps the rack electrical plan aligned with Cisco installation requirements |
|
Regional power cord |
IEC60320/C19 appliance connector and correct regional cord option |
Avoids a cord mismatch between the PSU and facility power |
|
Power-supply mode |
Combined mode, N+1 redundancy, or N+N redundancy |
Determines active and standby PSU placement for the Catalyst 9400 chassis |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9400-PWR-2100AC | Cisco ordering PID | C9400-PWR-2100AC (=) |
| Product type | 2100W AC power supply module | Cisco ordering description | Cisco Catalyst 9400 Series Platinum Rated 2100W AC Power Supply |
| Compatible platform | Cisco Catalyst 9400 Series modular switch chassis | Supported chassis order context | C9404R, C9407R, and C9410R |
| Input type | Single-phase AC | AC-input type | Wide-ranging input with power factor correction |
| AC input voltage | 85 to 132 VAC low-line or 180 to 264 VAC high-line | AC input current | 11.44 A at 100 VAC or 200 VAC |
| AC input frequency | 50/60 Hz nominal, 47 to 63 Hz full range | Branch circuit requirement | Dedicated fused branch circuit; North America 15A |
| Total output power | 950W at 100-120 VAC or 2112W at 200-240 VAC | 55 VDC output capacity | 940W at 115 VAC or 2102W at 230 VAC |
| 3.3 VDC standby output | 10W | Low-line output current | 17.09 A at 55V; 3.0 A at 3.3V |
| High-line output current | 38.21 A at 55V; 3.0 A at 3.3V | Output holdup time | 20 ms minimum |
| kVA rating | 2112W total output power or 2246.8 kVA at high-line operation | Heat dissipation | 460.0 BTU/hr at 2112W; 244.0 BTU/hr at 950W |
| Weight | 5.0 lb (2.3 kg) | Minimum airflow | 7 CFM at 100 percent load |
| Power cord connector | IEC60320/C19 appliance connector | Power supply modes | Redundant and combined modes |
| Hot-swappable | Yes | MTBF | 300,000 hours |
| Minimum software requirement | Cisco IOS XE Software Release 16.8.1 |
