PWR-C5-715WDC – 715W DC PSU – Catalyst 9200L PoE Spare
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
PWR-C5-715WDC Description

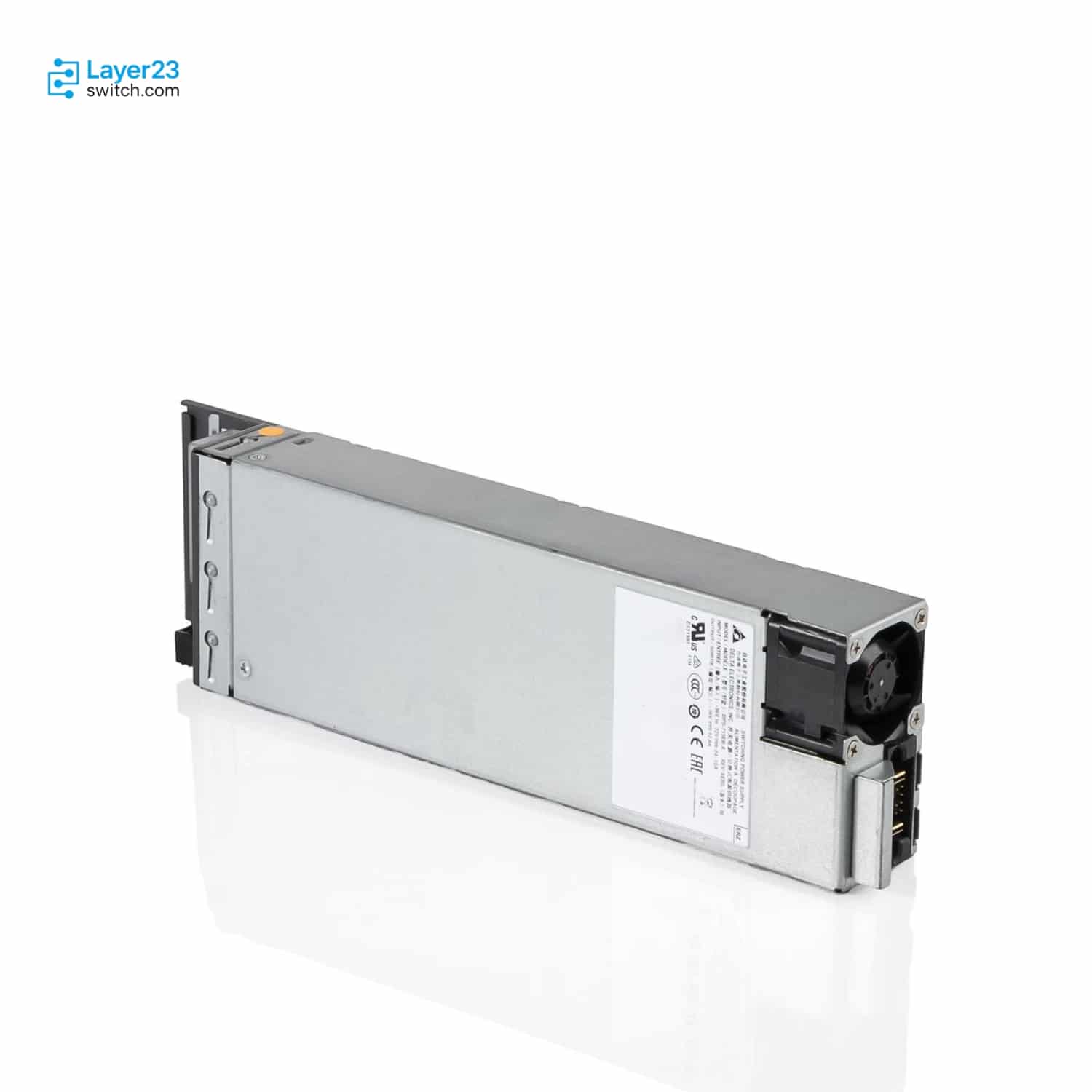

PWR-C5-715WDC is a Cisco Catalyst 9200 Series 715W DC Config 5 power supply module used as a spare DC input supply for Catalyst 9200 and Catalyst 9200L PoE switch power bays. It provides a -40 to -72 VDC terminal-block input option for DC-powered access-switch deployments, is listed by Cisco as a spare-only ordering PID, and is supported from Cisco IOS XE 17.8.1 for the C9200/C9200L PoE platform scope documented for this power-supply family.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-C5-715WDC |
|
Product type |
DC power supply module |
|
Cisco description |
715W DC Config 5 Power Supply |
|
Ordering status |
Spare only |
|
Minimum software support |
Cisco IOS XE 17.8.1 and later |
|
Supported platform scope |
C9200L and C9200 PoE models only for the PWR-C5-715WDC and PWR-C6-715WDC spare family |
|
Rated maximum output |
715W |
|
Available PoE with one DC PSU |
485W on listed PoE models |
|
Available PoE with second DC PSU |
740W on listed 24-port PoE rows and 970W on listed 48-port PoE rows |
|
Input voltage range |
-40 to -72 VDC |
|
Input receptacle |
Terminal block |
|
C9200L 24-port DC PoE rows |
C9200L-24P-4G, C9200L-24P-4X, C9200L-24PXG-4X, and C9200L-24PXG-2Y |
|
C9200L 48-port DC PoE rows |
C9200L-48P-4G, C9200L-48P-4X, C9200L-48PL-4G, C9200L-48PL-4X, C9200L-48PXG-4X, and C9200L-48PXG-2Y |
Application Scenarios
Select PWR-C5-715WDC when the Catalyst 9200L PoE switch must be powered from a DC plant and the BOM requires Cisco’s Config 5 DC spare rather than an AC module.
Use this SKU in a supported C9200L or C9200 PoE power plan where the 715 W DC spare is mixed with an AC supply as the primary or secondary module.
Stage PWR-C5-715WDC only after confirming whether the installed switch belongs to a 24-port or 48-port PoE row, because the second-PSU PoE value differs across those Cisco tables.
Product Comparison
|
Parameter |
PWR-C5-715WDC | |||
|---|---|---|---|---|
|
Cisco description |
715W DC Config 5 Power Supply |
715W DC Config 6 Power Supply |
600W AC Config 5 Power Supply |
1KW AC Config 5 Power Supply |
|
Product type |
DC power supply module |
DC power supply module |
AC power supply module |
AC power supply module |
|
Ordering status |
Spare only |
Spare only |
Base spare or secondary PSU option |
Base spare or secondary PSU option |
|
715W DC spare software note |
Cisco IOS XE 17.8.1 and later |
Cisco IOS XE 17.8.1 and later |
Not part of the 715W DC spare note |
Not part of the 715W DC spare note |
|
Rated maximum output |
715W |
715W |
600W |
1000W |
|
Input voltage range |
-40 to -72 VDC |
-40 to -72 VDC |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
|
Input current |
20-11.3A |
20-11.3A |
7-2.8A |
12-6A |
|
Output rating |
55V at 13.25A; 5V at 0.3A |
55V at 13.25A; 5V at 0.3A |
54V at 11.1A |
54V at 16.5A |
|
Total output BTU |
2440 BTU/hr, 715W |
2440 BTU/hr, 715W |
2047.3 BTU/hr, 600W |
3412 BTU/hr, 1000W |
|
Input receptacle |
Terminal block |
Terminal block |
IEC 320-C16 |
IEC 320-C16 |
|
Power feed or cord rating |
25A |
25A |
15A cord rating |
15A cord rating |
|
Physical dimensions |
1.6 x 4.0 x 7.1 in. |
1.6 x 4.0 x 7.1 in. |
1.58 x 4.0 x 7.6 in. |
1.58 x 4.0 x 7.6 in. |
|
Weight |
3.5 lb (1.59 kg) |
3.5 lb (1.59 kg) |
1.7 lb (0.77 kg) |
2 lb (0.9 kg) |
|
C9200L table role |
DC spare shown in C9200L PoE rows |
Adjacent DC Config 6 spare |
AC supply for listed 24-port PoE and partial-PoE C9200L rows |
AC supply for listed 48-port full-PoE C9200L rows |
|
PoE with one PSU |
485W on listed PoE models |
485W on listed PoE models |
370W on supported 600W AC PoE models |
740W on listed 1KW AC PoE models |
- In a PWR-C5-715WDC vs PWR-C6-715WDC comparison, the confirmed electrical values match at 715W output, -40 to -72 VDC input, 20-11.3A input current, terminal-block input, and 25A feed rating.
- The PWR-C5-715WDC difference from PWR-C6-715WDC is the Config code and table placement, so buyers should keep the exact Cisco spare PID aligned with the switch model row in the BOM.
- For PWR-C5-715WDC vs PWR-C5-600WAC, the main comparison point is facility power: PWR-C5-715WDC uses DC input and raises the one-PSU PoE value to 485W, while PWR-C5-600WAC uses AC input and maps to 370W on supported 600W AC PoE models.
- In a PWR-C5-715WDC vs PWR-C5-1KWAC comparison, which model to choose depends on input power and PoE planning because the DC spare is rated 715W while the 1KW AC supply is tied to 48-port full-PoE AC rows.
Selection Guide
1. Choose DC input only when the site power plan requires it
Choose PWR-C5-715WDC when the rack feed is -40 to -72 VDC and the installed Catalyst 9200 PoE switch is covered by Cisco’s 715 W DC spare support note.
2. Keep the Config 5 PID separate from Config 6
Use the exact PWR-C5-715WDC spare when the BOM calls for Config 5, and move to PWR-C6-715WDC only when the Cisco table or ordering line requires the Config 6 DC spare.
3. Match the PoE row before approving the replacement
Select this SKU with the confirmed 485W one-PSU PoE value, then verify whether the second-PSU target is 740W or 970W for the specific 24-port or 48-port PoE switch row.
4. Verify software and wiring before release
Verify Cisco IOS XE 17.8.1 or later, terminal-block wiring, 25A feed planning, and the AC/DC primary-secondary mix because those checks control whether the spare can be staged safely.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Value |
Procurement Impact |
|---|---|---|
|
One DC power supply |
485W available PoE on listed 715 W DC PoE rows |
Sets the endpoint budget when a single 715 W DC spare is installed |
|
Second DC power supply on 24-port rows |
740W on listed 24-port PoE and 24-port mGig PoE rows |
Confirms the second-PSU budget for 24-port access-switch orders |
|
Second DC power supply on 48-port rows |
970W on listed 48-port PoE, partial-PoE, and mGig PoE rows |
Prevents a 48-port DC design from assuming the 1440W value shown for 1KW AC supplies |
|
AC and DC mix |
PWR-C5-715WDC and PWR-C6-715WDC can mix with AC power supplies as primary or secondary on the same C9200L or C9200 device |
Allows a mixed input-power design only where the switch model and software support it |
|
Software support |
Cisco IOS XE 17.8.1 and later |
Blocks orders for older software baselines that do not support the 715 W DC spare |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact Cisco PID |
PWR-C5-715WDC= |
Prevents substitution with the Config 6 DC spare or an AC supply |
|
Switch support scope |
C9200L or C9200 PoE model covered by Cisco’s 715 W DC support note |
Keeps the DC module out of data-only switch power bays |
|
Software release |
Cisco IOS XE 17.8.1 or later |
Confirms the switch software can recognize the 715 W DC spare |
|
Facility power |
-40 to -72 VDC input and terminal-block feed |
Aligns the PSU order with the site power plant instead of an AC circuit |
|
Power-feed rating |
25A feed planning for the DC module |
Prevents the DC power connection from being treated like an IEC AC cord order |
|
PoE budget target |
485W with one DC PSU, then 740W or 970W with the second DC PSU depending on switch row |
Avoids overcommitting endpoints against the wrong Cisco power table |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-C5-715WDC | Cisco ordering form | PWR-C5-715WDC= |
| Product type | DC power supply module | Cisco description | 715W DC Config 5 Power Supply |
| Ordering status | Spare only | Supported platform scope | PWR-C5-715WDC and PWR-C6-715WDC spare family supported only on C9200L and C9200 PoE models |
| Minimum software support | Cisco IOS XE 17.8.1 and later | C9200L 24-port DC PoE rows | C9200L-24P-4G, C9200L-24P-4X, C9200L-24PXG-4X, and C9200L-24PXG-2Y |
| C9200L 48-port DC PoE rows | C9200L-48P-4G, C9200L-48P-4X, C9200L-48PL-4G, C9200L-48PL-4X, C9200L-48PXG-4X, and C9200L-48PXG-2Y | Rated maximum output | 715W |
| Total output BTU | 2440 BTU/hr, 715W | Input voltage range | -40 to -72 VDC |
| Input current | 20-11.3A | Output ratings | 55V at 13.25A; 5V at 0.3A |
| Output holdup time | 2 ms minimum at -40 VDC | Input receptacle | Terminal block |
| Power feed rating | 25A | Physical dimensions | 1.6 x 4.0 x 7.1 in. (H x W x D) |
| Weight | 3.5 lb (1.59 kg) | Power supply slots | Two power supply slots on Catalyst 9200 switch chassis |
| Slot population rule | Each power supply slot must contain a power supply or a blank module | FRU behavior | Main module field replaceable; redundant module hot-swappable |
| Power module fan note | All power supply modules except blank modules have internal fans | AC and DC mix note | PWR-C5-715WDC and PWR-C6-715WDC can mix with AC power supplies as primary or secondary on the same C9200L or C9200 device |
| Available PoE with one DC PSU | 485W on listed PoE models | Second DC PSU on 24-port rows | 740W on listed 24-port PoE rows |
| Second DC PSU on 48-port rows | 970W on listed 48-port PoE rows |
