PWR-C6-1KWAC Description

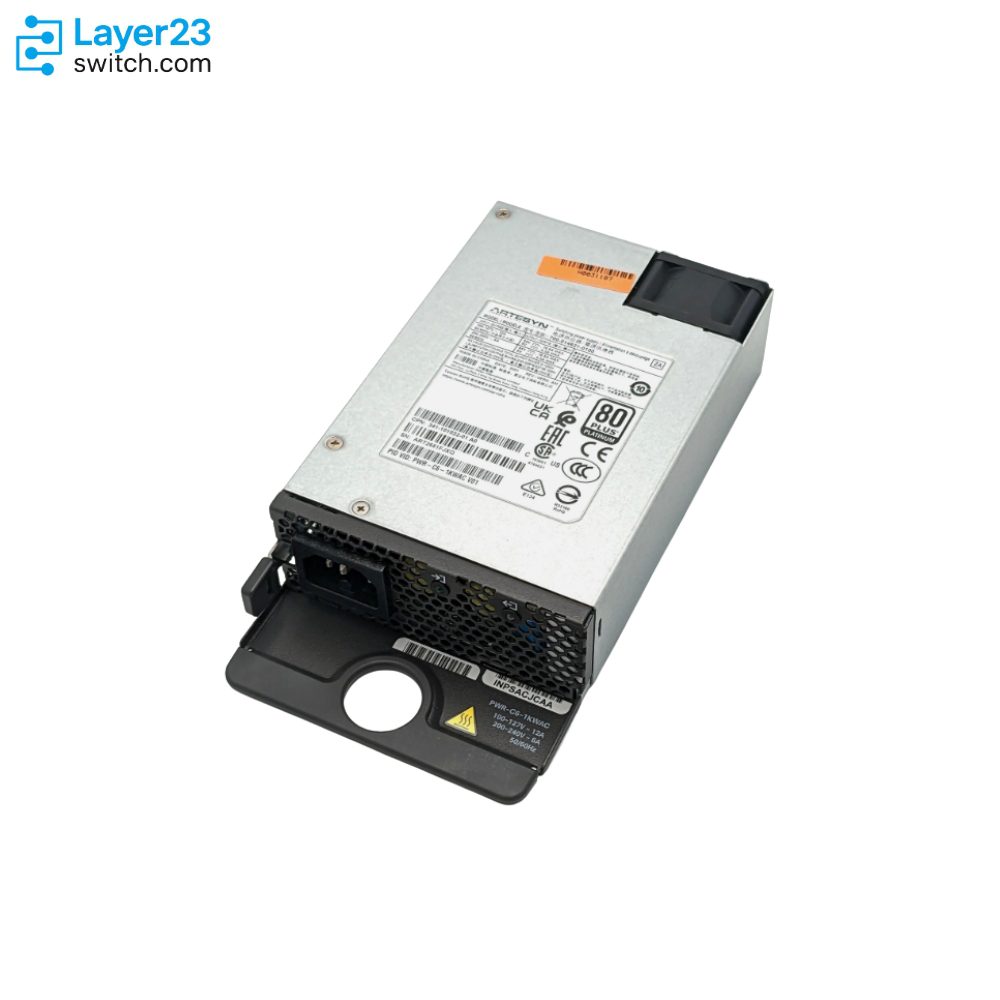

The PWR-C6-1KWAC is a Cisco 1KW AC Config 6 power supply module for Catalyst 9200 48-port PoE switches such as the C9200-48P, C9200-48PB and C9200-48PXG. The module takes 100 to 240 VAC at 50 to 60 Hz and delivers 54V at 16.5A, which gives the host 740W of available PoE from one supply and 1440W from two. The Config 6 module is not supported on C9200L switches, which use the Config 5 version.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-C6-1KWAC |
|
Cisco ordering form |
PWR-C6-1KWAC (=) |
|
Product type |
AC power supply module |
|
Cisco ordering description |
1KW AC Config 6 Power Supply |
|
Compatible C9200 48-port PoE models |
C9200-48P, C9200-48PB, and C9200-48PXG |
|
C9200L support boundary |
C6 variant not supported on C9200L |
|
Rated maximum output |
1000W |
|
Available PoE with one AC PSU |
740W on supported C9200 48-port PoE models |
|
Available PoE with second AC PSU |
1440W on supported C9200 48-port PoE models |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
|
Input current |
12-6A |
|
Output rating |
54V at 16.5A |
Application Scenarios
A floor closet where a C9200-48P powers phones, cameras and access points on most of its 48 ports pairs two 1KW supplies to reach the 1440W PoE budget.
Access points on the multigigabit ports of a C9200-48PXG draw PoE from the 1KW supply, and a second supply keeps them powered if one AC feed is lost.
Product Comparison
|
Parameter |
PWR-C6-1KWAC | ||
|---|---|---|---|
|
Supported switch models |
C9200-48P, C9200-48PB, C9200-48PXG; not supported on C9200L |
C9200-48P, C9200-48PB, C9200-48PXG; C9200L 48-port PoE models |
C9200-24P, C9200-24PB, C9200-24PXG, C9200-48PL; not supported on C9200L |
|
Maximum output |
1000W |
1000W |
600W |
|
Input current |
12-6A |
12-6A |
7-2.8A |
|
Output |
54V at 16.5A |
54V at 16.5A |
54V at 11.1A |
|
Input receptacle |
IEC 320-C16 |
IEC 320-C16 |
IEC 320-C16 |
|
Available PoE (one supply / two supplies) |
740W / 1440W |
740W / 1440W |
370W / 740W |
PWR-C6-1KWAC and PWR-C5-1KWAC= share the same 1000W rating, 54V at 16.5A output, 12-6A input and IEC 320-C16 receptacle, so the difference is the platform: the Config 6 supply is the one for C9200 modular-uplink 48-port PoE switches (C9200-48P, C9200-48PB, C9200-48PXG), while C9200L 48-port PoE switches stay on PWR-C5-1KWAC=. On the C9200 models the C5 and C6 parts have no functional difference, so the PID already in the BOM decides which one to use. One PWR-C6-1KWAC gives 740W of available PoE and a second one gives 1440W. A C9200 PoE model in the 600W class, such as C9200-48PL, takes PWR-C6-600WAC instead.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Value |
Procurement Impact |
|---|---|---|
|
One AC power supply |
740W available PoE on C9200-48P, C9200-48PB, and C9200-48PXG |
Keeps endpoint count and power draw aligned with a single installed 1KW AC supply |
|
PoE with secondary supply |
1440W available PoE on the same supported C9200 48-port PoE models |
Adds the confirmed full PoE budget and power-supply redundancy path |
|
C9200L boundary |
C9200L 48-port PoE models list PWR-C5-1KWAC, not the C6 variant |
Prevents a C9200 spare from being placed into a C9200L replacement order |
|
Slot population |
A power supply or blank cover must occupy each PSU slot |
Maintains the cooling path required by Cisco installation guidance |
Ordering Checklist
- Catalyst 9200 hosts: Match the supply to C9200-48P in the C9200 modular-uplink family, which ships with PWR-C6-1KWAC as the default power supply. PWR-C6 supplies fit C9200 only; C9200L 48-port PoE switches such as C9200L-48P-4G and C9200L-48P-4X use PWR-C5-1KWAC.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-C6-1KWAC | Product type | AC power supply module |
| Cisco ordering description | 1KW AC Config 6 Power Supply | Compatible C9200 models | C9200-48P, C9200-48PB, and C9200-48PXG |
| C9200L support boundary | C6 variant not supported on C9200L | Slot population rule | Each power supply slot must contain a power supply or a blank cover |
| Cisco ordering form | PWR-C6-1KWAC (=) | C5/C6 functional note | No functional difference from PWR-C5-1KWAC on supported C9200 models |
| Rated maximum output | 1000W | Output rating | 54V at 16.5A |
| Output holdup time | 20 ms minimum at 100 VAC | Input receptacle | IEC 320-C16 |
| FRU behavior | Main module field replaceable; redundant module hot-swappable | Minimum software support note | PWR-C6 AC modules supported from Cisco IOS XE Gibraltar 16.11.1 |
| Power supply slots | Two internal power supply slots on Catalyst 9200 switch chassis | AC input voltage | 100 to 240 VAC |
| AC input frequency | 50 to 60 Hz | Input current | 12-6A |
| Power cord rating | 15A | Available PoE with one AC PSU | 740W on supported C9200 48-port PoE models |
| Available PoE with second AC PSU | 1440W on supported C9200 48-port PoE models | Total output BTU | 3,412 BTU/hr, 1000W |
| Dimensions | 1.58 x 4.0 x 7.6 in. (H x W x D) |
