PWR-C6-715WDC Description

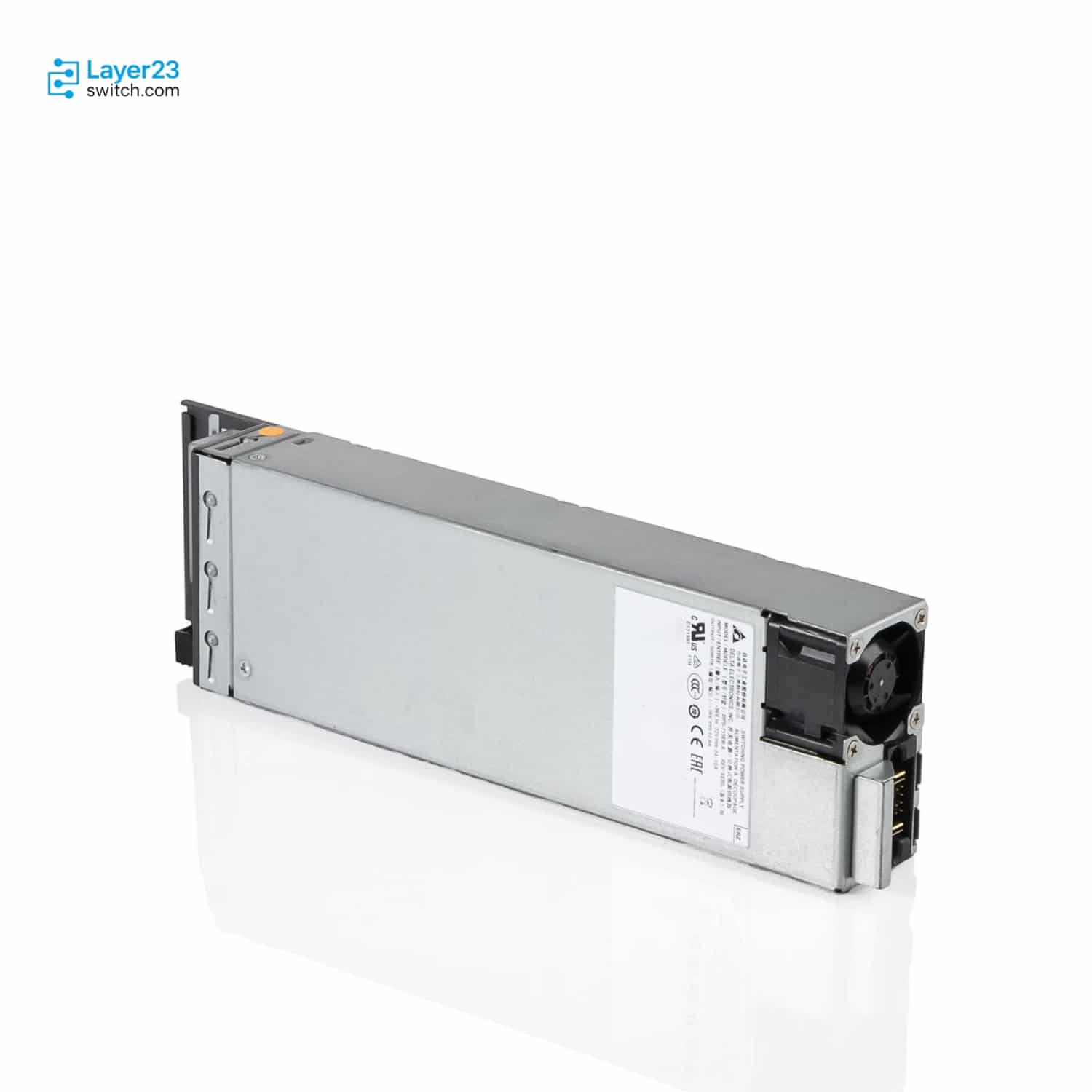

PWR-C6-715WDC is a Cisco Catalyst 9200 Series Config 6 715W DC power supply spare for supported C9200 PoE switch power bays. It provides a terminal-block DC input option for -40 to -72 VDC plant power, is listed by Cisco for specific 24-port and 48-port Catalyst 9200 PoE rows, and is supported from Cisco IOS XE 17.8.1 for deployments that need DC-fed access-switch power or a matching spare PSU.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-C6-715WDC |
|
Product type |
DC power supply module |
|
Cisco description |
715W DC Config 6 Power Supply |
|
Ordering status |
Spare only |
|
Minimum software support |
Cisco IOS XE 17.8.1 and later |
|
Supported platform scope |
C9200 PoE models in the PWR-C6-715WDC table rows |
|
Rated maximum output |
715W |
|
Available PoE with one DC PSU |
485W on listed C9200 PoE models |
|
Available PoE with second DC PSU |
740W on listed 24-port rows and 970W on listed 48-port rows |
|
Input voltage range |
-40 to -72 VDC |
|
Input receptacle |
Terminal block |
|
C9200 24-port DC PoE rows |
C9200-24P, C9200-24PB, and C9200-24PXG |
|
C9200 48-port DC PoE rows |
C9200-48P, C9200-48PL, C9200-48PB, and C9200-48PXG |
Application Scenarios
Use PWR-C6-715WDC when a C9200 PoE switch must move to a DC plant feed and the installed model appears in Cisco’s Config 6 715 W DC power table.
Operations teams that carry both Catalyst 9200 families can reserve PWR-C6-715WDC for C9200 PoE rows and keep PWR-C5-715WDC for the C9200L PoE rows shown in Cisco documentation.
Power planners should check whether the target switch is a 24-port or 48-port PoE model because Cisco lists 740W with the second DC PSU on 24-port rows and 970W on 48-port rows.
Product Comparison
|
Parameter |
PWR-C6-715WDC | |||
|---|---|---|---|---|
|
Cisco description |
715W DC Config 6 Power Supply |
715W DC Config 5 Power Supply |
600W AC Config 6 Power Supply |
1KW AC Config 6 Power Supply |
|
Product type |
DC power supply module |
DC power supply module |
AC power supply module |
AC power supply module |
|
Ordering status |
Spare only |
Spare only |
Base spare or secondary PSU option |
Base spare or secondary PSU option |
|
715W DC spare software note |
Cisco IOS XE 17.8.1 and later |
Cisco IOS XE 17.8.1 and later |
Not part of the 715W DC spare note |
Not part of the 715W DC spare note |
|
Rated maximum output |
715W |
715W |
600W |
1000W |
|
Input voltage range |
-40 to -72 VDC |
-40 to -72 VDC |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
|
Input current |
20-11.3A |
20-11.3A |
7-2.8A |
12-6A |
|
Output rating |
55V at 13.25A; 5V at 0.3A |
55V at 13.25A; 5V at 0.3A |
54V at 11.1A |
54V at 16.5A |
|
Total output BTU |
2440 BTU/hr, 715W |
2440 BTU/hr, 715W |
2047.3 BTU/hr, 600W |
3412 BTU/hr, 1000W |
|
Input receptacle |
Terminal block |
Terminal block |
IEC 320-C16 |
IEC 320-C16 |
|
Power feed or cord rating |
25A |
25A |
15A cord rating |
15A cord rating |
|
Physical dimensions |
1.6 x 4.0 x 7.1 in. |
1.6 x 4.0 x 7.1 in. |
1.58 x 4.0 x 7.6 in. |
1.58 x 4.0 x 7.6 in. |
|
Weight |
3.5 lb (1.59 kg) |
3.5 lb (1.59 kg) |
1.7 lb (0.77 kg) |
2 lb (0.9 kg) |
|
C9200 table role |
DC spare shown in C9200 PoE rows |
Adjacent DC spare family and C9200L PoE table rows |
AC supply for C9200 24-port PoE and C9200-48PL rows |
AC supply for C9200 48-port PoE rows |
|
PoE with one PSU |
485W on listed C9200 PoE models |
485W on listed PoE models |
370W on supported 600W AC PoE models |
740W on supported 1KW AC PoE models |
- In a PWR-C6-715WDC vs PWR-C5-715WDC comparison, the confirmed DC electrical values match at 715W output, -40 to -72 VDC input, 20-11.3A input current, terminal-block input, 25A feed rating, and 3.5 lb weight.
- The PWR-C6-715WDC difference from PWR-C5-715WDC is the Config code and table placement: Cisco shows the C6 DC spare on C9200 PoE rows and the C5 DC spare on C9200L PoE rows.
- For PWR-C6-715WDC vs PWR-C6-600WAC, the main comparison point is facility power and wattage class because the current SKU is a 715W DC spare while PWR-C6-600WAC is a 600W AC supply for the listed C9200 24-port PoE and C9200-48PL rows.
- In a PWR-C6-715WDC vs PWR-C6-1KWAC comparison, which model to choose depends on DC conversion versus AC full-PoE planning because Cisco lists 485W with one DC PSU and 740W with one 1KW AC PSU on supported 48-port rows.
Selection Guide
1. Anchor the order to a C9200 PoE row
Choose PWR-C6-715WDC when the installed switch is a C9200 PoE model listed with the Config 6 715 W DC spare and the site requires a -40 to -72 VDC input path.
2. Do not merge the C6 and C5 receiving lanes
Keep the C6 PID on C9200 PoE orders and move C9200L PoE replacements to PWR-C5-715WDC because the Cisco table placement separates those two DC spare paths.
3. Use AC SKUs only for AC-fed builds
Select PWR-C6-600WAC or PWR-C6-1KWAC instead of PWR-C6-715WDC when the rack feed is 100 to 240 VAC and the switch belongs to the matching 600W or 1KW AC power class.
4. Verify the software and PoE target together
Confirm Cisco IOS XE 17.8.1 or later before the spare is staged, then map the endpoint load to the listed 485W single-DC-PSU value or the 740W and 970W second-DC-PSU rows.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Value |
Procurement Impact |
|---|---|---|
|
One DC power supply |
485W available PoE on listed C9200 PoE rows |
Sets the endpoint budget when one Config 6 DC spare is installed |
|
Second DC power supply on 24-port rows |
740W on listed C9200 24-port PoE rows |
Confirms the higher DC budget for 24-port access-switch orders |
|
Second DC power supply on 48-port rows |
970W on listed C9200 48-port PoE and partial-PoE rows |
Prevents 48-port DC designs from assuming the 1440W value shown with 1KW AC supplies |
|
AC and DC mix |
PWR-C5-715WDC and PWR-C6-715WDC can mix with AC power supplies as primary or secondary on the same C9200L or C9200 device |
Allows mixed input-power planning only where the exact switch row and software support it |
|
Software support |
Cisco IOS XE 17.8.1 and later |
Blocks orders for switch software baselines that cannot support the 715 W DC spare |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact Cisco PID |
PWR-C6-715WDC= |
Prevents receiving a Config 5 DC spare or an AC supply under the wrong line |
|
Switch family |
C9200 PoE row listed for the 715 W DC Config 6 spare |
Keeps the C6 DC module aligned with the Cisco-supported platform table |
|
Software release |
Cisco IOS XE 17.8.1 or later |
Confirms the switch can recognize the 715 W DC spare family |
|
Facility power |
-40 to -72 VDC input through a terminal block |
Avoids pairing a DC PSU with an AC cord and receptacle plan |
|
Feed rating |
25A power-feed planning for the DC module |
Prevents the wiring review from treating this as a 15A IEC AC PSU |
|
PoE target |
485W with one DC PSU, then 740W or 970W with the second DC PSU depending on switch row |
Keeps endpoint counts tied to Cisco’s DC power table |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-C6-715WDC | Cisco ordering form | PWR-C6-715WDC= |
| Product type | DC power supply module | Cisco description | 715W DC Config 6 Power Supply |
| Ordering status | Spare only | Supported platform scope | C9200 PoE models in the PWR-C6-715WDC table rows |
| Minimum software support | Cisco IOS XE 17.8.1 and later | C9200 24-port DC PoE rows | C9200-24P, C9200-24PB, and C9200-24PXG |
| C9200 48-port DC PoE rows | C9200-48P, C9200-48PL, C9200-48PB, and C9200-48PXG | Rated maximum output | 715W |
| Total output BTU | 2440 BTU/hr, 715W | Input voltage range | -40 to -72 VDC |
| Input current | 20-11.3A | Output ratings | 55V at 13.25A; 5V at 0.3A |
| Output holdup time | 2 ms minimum at -40 VDC | Input receptacle | Terminal block |
| Power feed rating | 25A | Physical dimensions | 1.6 x 4.0 x 7.1 in. (H x W x D) |
| Weight | 3.5 lb (1.59 kg) | Power supply slots | Two power supply slots on Catalyst 9200 switch chassis |
| Slot population rule | Each power supply slot must contain a power supply or a blank cover | FRU behavior | Main module field replaceable; redundant module hot-swappable |
| Power module fan note | Power supply modules have internal fans | AC and DC mix note | PWR-C5-715WDC and PWR-C6-715WDC can mix with AC power supplies as primary or secondary on the same C9200L or C9200 device |
| Available PoE with one DC PSU | 485W on listed C9200 PoE models | Second DC PSU on 24-port rows | 740W on listed 24-port PoE rows |
| Second DC PSU on 48-port rows | 970W on listed 48-port PoE rows |
Get More Information
Need pricing, stock, or shipping details for the PWR-C6-715WDC ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What type of Config 6 DC supply is PWR-C6-715WDC?
-
How is facility power connected to PWR-C6-715WDC?
-
Which PoE budgets apply to PWR-C6-715WDC?
-
Which C9200 platforms are compatible with PWR-C6-715WDC?
-
How does PWR-C6-715WDC differ from PWR-C5-715WDC?
-
Can a redundant PWR-C6-715WDC be replaced while operating?
-
What software and wiring dependencies apply to PWR-C6-715WDC?
