C9K-PWR-1600WDC-R Description

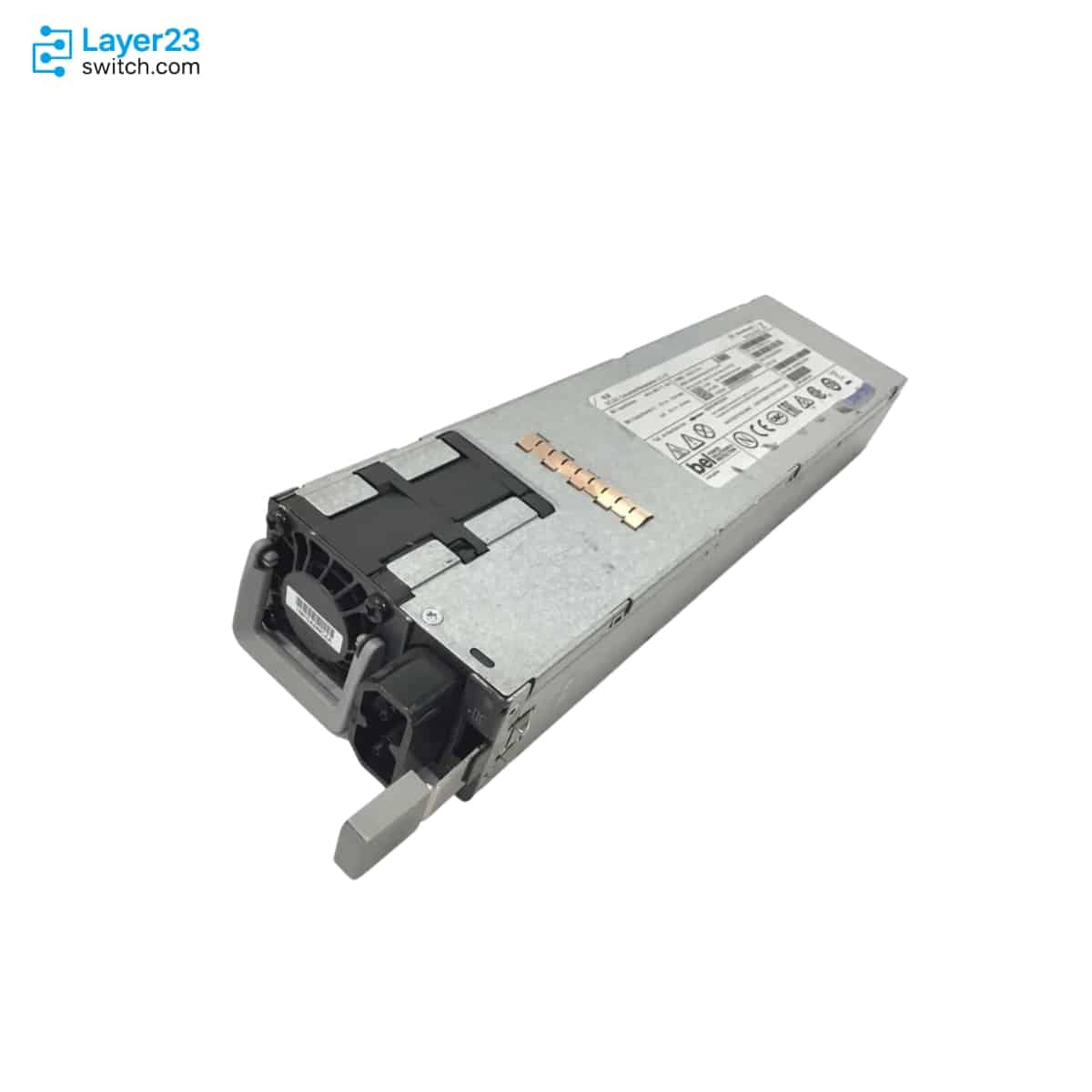

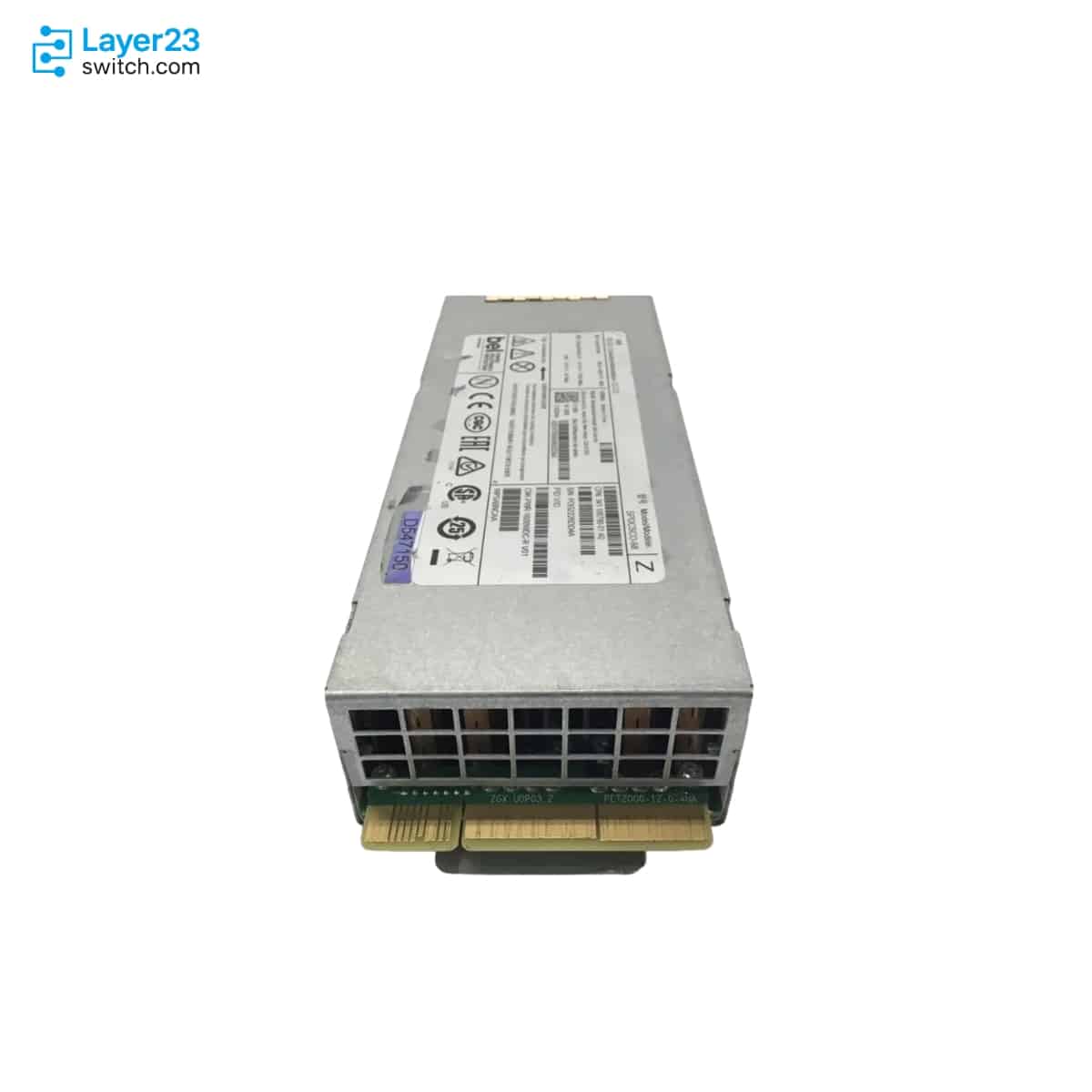

C9K-PWR-1600WDC-R is a Cisco Catalyst 9500 Series 1600W DC power supply module for the high-performance C9500-32C switch, used as a field-replaceable spare or replacement in deployments that run on a -40 to -72 VDC power plant. Cisco lists it as the supported 1600W DC PSU for that chassis, with DC input current up to 40A at -48VDC, 12V main output at 133A plus 12V standby at 3A, and an Amphenol C10-638976-000 input receptacle with a 70A power cord requirement.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9K-PWR-1600WDC-R |
|
Product type |
DC power supply module |
|
Cisco ordering description |
1600W DC Power Supply |
|
Compatible switch model |
C9500-32C |
|
Power max rating |
1600W |
|
Input voltage range |
DC -40 to -72 VDC |
|
Input current |
DC 40A max at -48VDC when fully loaded |
|
Power supply efficiency |
92 percent typical |
|
Output ratings |
12V main at 133A; 12V standby at 3A |
|
Output holdup time |
5 ms minimum for system |
|
Input receptacle |
Amphenol C10-638976-000 |
|
Power cord rating |
DC 70A |
Application Scenarios
Use C9K-PWR-1600WDC-R when the installed Catalyst 9500 High Performance switch is C9500-32C and the replacement PSU must match a DC-input 1600W power design.
Select this module for C9500-32C deployments where the site standard is -48VDC-class power and the BOM must avoid the AC-input 1600W supply.
Apply C9K-PWR-1600WDC-R in one- or two-PSU C9500-32C designs. For redundant mode, each supply should be connected to a separate power source, and any unused power bay must retain the required blank cover.
Product Comparison
|
Parameter |
C9K-PWR-1600WDC-R | ||
|---|---|---|---|
|
Cisco ordering description |
1600W DC Power Supply |
1600W AC Power Supply |
930W DC Power Supply |
|
Product type |
DC power supply module |
AC power supply module |
DC power supply module |
|
Power max rating |
1600W |
1600W |
930W |
|
Input voltage range |
DC -40 to -72 VDC |
90 to 140 VAC and 180 to 264 VAC, 47 to 63 Hz |
DC -40 to -72 VDC |
|
Input current |
DC 40A max at -48VDC when fully loaded |
10.5A max at 115VAC; 7.8A max at 230VAC |
DC 23A max at -48VDC when fully loaded |
|
Power supply efficiency |
92 percent typical |
94 percent typical |
92 percent typical |
|
Output ratings |
12V main at 133A; 12V standby at 3A |
12V main at 133A; 12V standby at 3A |
12V main at 54A; 12V standby at 3A |
|
Output holdup time |
5 ms minimum for system |
20 ms minimum for system |
8 ms minimum for system |
|
Input receptacle |
Amphenol C10-638976-000 |
AC IEC 60320 C16 |
Molex Minifit 44540-1001 |
|
Power cord rating |
DC 70A |
AC 15A |
DC 40A |
|
Supported Catalyst 9500 model |
C9500-32C |
C9500-32C |
C9500-32QC, C9500-48Y4C, and C9500-24Y4C |
- In a C9K-PWR-1600WDC-R vs C9K-PWR-1600WAC-R comparison, the key difference is input power: C9K-PWR-1600WDC-R is the DC-input module and C9K-PWR-1600WAC-R is the AC-input module.
- The C9K-PWR-1600WDC-R difference from C9K-PWR-1600WAC-R also changes connector and cord planning, because the DC model uses the Amphenol C10-638976-000 receptacle with a DC 70A cord rating.
- For buyers comparing C9K-PWR-1600WDC-R vs C9K-PWR-930WDC-R, the supported Catalyst 9500 model is the main comparison point: C9K-PWR-1600WDC-R maps to C9500-32C, while C9K-PWR-930WDC-R maps to C9500-32QC, C9500-48Y4C, and C9500-24Y4C.
- The which model to choose decision should start with the exact chassis, then confirm AC or DC facility power, DC connector requirements, and the Cisco-supported PSU family for that switch.
Selection Guide
1. Start with the chassis model
Choose C9K-PWR-1600WDC-R only for the Catalyst 9500 High Performance C9500-32C model listed with the 1600W DC PSU family.
2. Confirm the DC plant before quoting
Use this SKU when the facility power plan provides Cisco’s documented DC -40 to -72 VDC input range rather than AC input.
3. Keep the connector plan visible
Check the Amphenol C10-638976-000 receptacle and DC 70A cord rating before releasing the BOM to avoid ordering an AC cord or the lower-current 930W DC supply.
4. Decide single module or redundant order
Order the single PSU for a like-for-like replacement, or use the C9K-PWR-1600WDCR/2 redundant line item when the project needs a matched redundant DC power option.
Ordering Checklist
|
Procurement Check |
Required Evidence |
Ordering Risk |
|---|---|---|
|
Host platform |
C9500-32C confirmed from the installed switch or project BOM |
Keeps the PSU tied to the only Catalyst 9500 High Performance model Cisco lists for this 1600W DC supply |
|
Site feed |
DC -40 to -72 VDC available at the rack |
Stops the order if the cabinet is wired for AC power instead |
|
DC connector |
Amphenol C10-638976-000 planned by the installation team |
Prevents a field delay caused by the wrong connector kit or cable plan |
|
Bay population |
One installed PSU with blank cover or two installed supplies |
Maintains the documented airflow path and redundancy plan |
|
Redundant PID |
C9K-PWR-1600WDCR/2 when a pair is required |
Keeps a redundant order distinct from a single replacement PSU |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9K-PWR-1600WDC-R | Product type | DC power supply module |
| Cisco ordering description | 1600W DC Power Supply | Compatible switch model | C9500-32C |
| Power supply slots | Two AC or DC power supply slots | FRU support | Field-replaceable and hot-swappable power supply module |
| Supported PSU combinations | Two AC, two DC, AC-DC, or one installed PSU with blank cover in unused slot | Power max rating | 1600W |
| Input voltage range | DC -40 to -72 VDC | Input current | DC 40A max at -48VDC when fully loaded |
| Power supply efficiency | 92 percent typical | Output ratings | 12V main at 133A; 12V standby at 3A |
| Output holdup time | 5 ms minimum for system | Input receptacle | Amphenol C10-638976-000 |
| Power cord rating | DC 70A | BTU with C9500-32C | 3,709 BTU/hr |
| PSU hardware features | PSU fan, DC input connector, PSU LED, release handle, release latch, and retainer clips | LED status support | Bi-color green and amber LED for 1600W AC/DC PSU status |
| Redundant ordering option | C9K-PWR-1600WDCR/2 |
