PWR-C1-1900WAC-P – 1900W AC PSU – Catalyst 9300 C1 – Platinum Rated

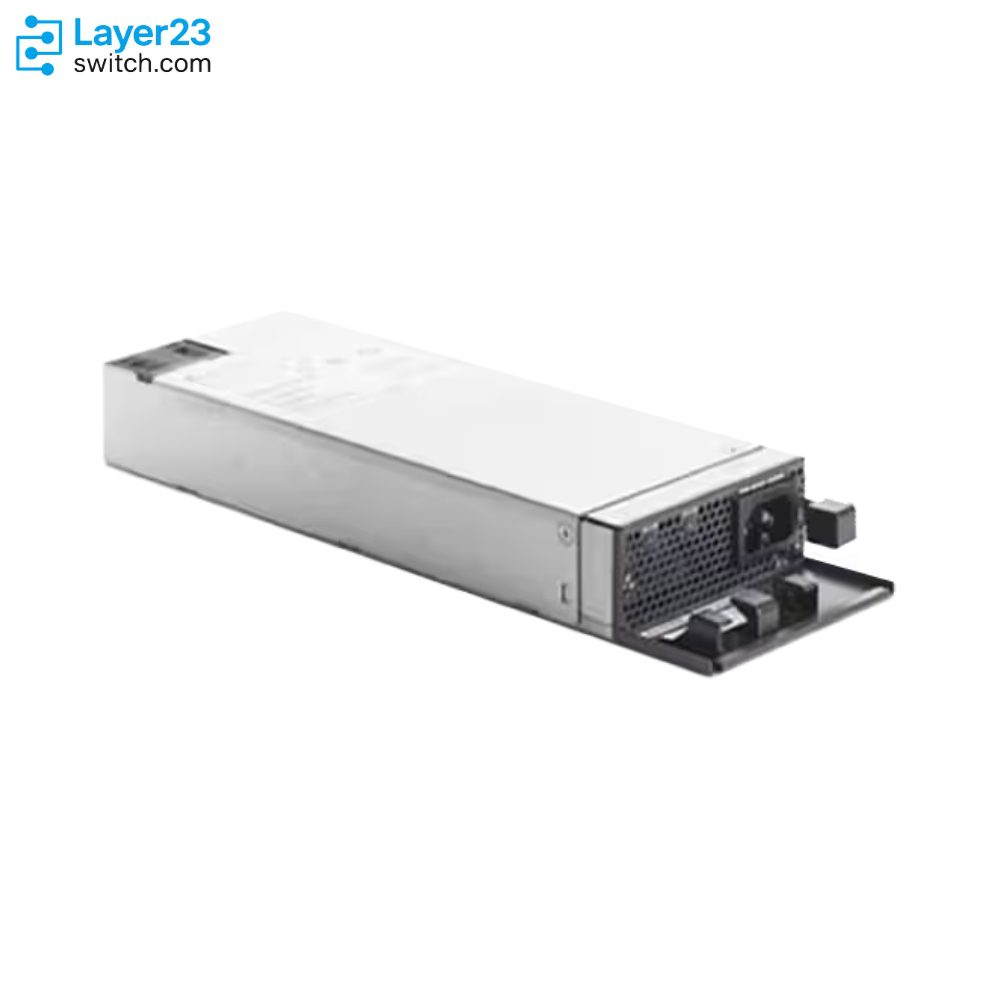

Name: PWR-C1-1900WAC-P - Cisco Catalyst 9300 1900W AC Power Supply
Brand: Cisco
SKU: PWR-C1-1900WAC-P
Price: 1598.00 USD
Availability: InStock
Rating: 4.86 (14 reviews)

Brand: Cisco Category: Catalyst 9000 Switch Power Supply Model: PWR-C1-1900WAC-P

Rated 4.86 out of 5 based on 14 customer ratings

4.914 reviews5 Questions

List Price: ~~$12,784.00~~ 88% OFF

$1,598.00

Price Alert

In StockShips in as little as 1 business day Brand New

Related models

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policyExpress Shipping2-6 Business Daysvia UPS, FedEx, DHL and more

Trusted & Secure Payments

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded

Customers

Units shipped

Countries

Inventory You Can See

Cisco stock on hand

Models ready to ship

Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

Advance replacement for in-stock models
New unit for dead-on-arrival
14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

PWR-C1-1900WAC-P Description

The PWR-C1-1900WAC-P is a Cisco Catalyst 9300 Series 1900W AC Platinum power supply for the internal power-supply bays of Catalyst 9300, 9300L and 9300X switches. The supply delivers 1900W from a 200 to 240 VAC input and 1500W from a 115 to 127 VAC input, with a -56V output rating of 33.92A and 26.78A respectively. PWR-C1 supplies are not used with C9300LM switches, which take PWR-C6 supplies.

Quick Specs

Parameter	Specification
Product ID	PWR-C1-1900WAC-P
Product type	1900W AC Platinum certified power supply module
Supported switch families	Catalyst 9300, Catalyst 9300L, and Catalyst 9300X
C9300LM support boundary	PWR-C1 supplies are not used with C9300LM switches
Maximum output power	1900W at 230V nominal input; 1500W at 115V nominal input
Input voltage and frequency	200 to 240 VAC autoranging at 1900W, 55 to 60 Hz; 115 to 127 VAC autoranging at 1500W, 50 to 60 Hz
Input current	Maximum 12A at 230V; maximum 16A at 115V
Output rating	-56V at 33.92A or -56V at 26.78A
Total input BTU	6,899 BTU/hr at 2022W or 5,565 BTU/hr at 1631W
Total output BTU	6,483 BTU/hr at 230V or 5,118 BTU/hr at 115V
Weight	1.5 kg (3.4 lb)
Dimensions	1.58 x 3.25 x 13.7 in. (40.1 x 82.55 x 348.2 mm)

Application Scenarios

High-Output UPOE Access Closet

A Catalyst 9300 access switch that feeds UPOE and PoE+ endpoints at high port density takes the 1900W supply when the power tables call for a larger PoE budget than 1100W allows.

Closets On 115 V Or 230 V

Because the module delivers 1500W on a 115 to 127 VAC feed and 1900W on a 200 to 240 VAC feed, the same supply serves closets wired to either voltage, with a different PoE ceiling at each.

Product Comparison

Parameter	PWR-C1-1900WAC-P	PWR-C1-1100WAC-P	PWR-C1-715WAC-P	PWR-C1-350WAC-P
Efficiency class	Platinum certified	Platinum certified	Platinum certified	Platinum certified
Supported switch families	C9300, C9300L and C9300X; not C9300LM	C9300, C9300L and C9300X; not C9300LM	C9300, C9300L and C9300X; not C9300LM	C9300 and selected C9300L data-only models; not C9300LM
Maximum output power	1900W at 230V; 1500W at 115V	1100W	715W	350W
Input voltage and frequency	200 to 240 VAC at 1900W or 115 to 127 VAC at 1500W	115 to 240 VAC, 50 to 60 Hz	100 to 240 VAC, 50 to 60 Hz	100 to 240 VAC, 50 to 60 Hz
Input current	Maximum 12A at 230V; maximum 16A at 115V	12-6A	10-5A	4-2A
Output rating	-56V at 33.92A or -56V at 26.78A	-56V at 19.64A	-56V at 12.8A	-56V at 6.25A
Total output BTU	6,483 BTU/hr at 230V or 5,118 BTU/hr at 115V	3,754 BTU/hr	2,440 BTU/hr	1,194 BTU/hr

PWR-C1-1900WAC-P is the highest-output supply in this group, delivering 1900W on a 200 to 240 VAC feed but 1500W on 115 to 127 VAC, while PWR-C1-1100WAC-P tops out at 1100W on 115 to 240 VAC. A 115V-only site still gains 400W over PWR-C1-1100WAC-P. PoE budgets that fit within 1100W stay on PWR-C1-1100WAC-P, within 715W on PWR-C1-715WAC-P, and data-only switches use PWR-C1-350WAC-P at 350W. None of the C1 supplies fit a C9300LM, which takes PWR-C6 supplies.

PoE Power Planning

Planning Item	Cisco-Confirmed Fact	Quote Check
High-output module condition	PWR-C1-1900WAC-P provides 1900W at 230V nominal input and 1500W at 115V nominal input	Match the AC feed before using a 1900W power budget in the BOM
UPOE+ model examples	Cisco lists PWR-C1-1900WAC-P as an upgrade option for C9300X-48HXN, C9300X-24HX, C9300-48H, and C9300-24H power tables	Confirm the exact switch model before adding the 1900W line
Dual-supply chassis design	Catalyst 9300 switches support one or two active internal power supplies and can use a blank cover when one PSU is ordered	Plan the second slot as either a second PSU or the required blank cover
Hot-swap risk	Removing a PSU can interrupt powered devices if the remaining budget does not support the load	Check StackPower mode and available power before field replacement
C9300LM exclusion	Cisco says PWR-C6 power supplies are only for C9300LM and the other PWR-C1 supplies cannot be used with C9300LM	Keep C9300LM service stock on PWR-C6 parts

Ordering Checklist

Catalyst 9300 and 9300X hosts: Order PWR-C1-1900WAC-P as the upgrade for the primary or second supply on C9300-24H, C9300-48H and C9300X-48HX. The PoE tables raise the budget on these models only with this supply.
Unsupported hosts: Do not order for C9300LM switches, which use PWR-C6-600WAC or PWR-C6-1KWAC. No PWR-C1 supply can be used in a C9300LM.

Specifications

Parameter	Specification	Parameter	Specification
Product ID	PWR-C1-1900WAC-P	Product type	1900W AC Platinum certified power supply module
Efficiency class	Platinum certified	Supported switch families	Catalyst 9300, Catalyst 9300L, and Catalyst 9300X
C9300LM support boundary	PWR-C1 supplies are not used with C9300LM switches	Maximum output at 230V input	1900W
Maximum output at 115V input	1500W	230V input range	200 to 240 VAC autoranging, 55 to 60 Hz
115V input range	115 to 127 VAC autoranging, 50 to 60 Hz	Input current at 230V	Maximum 12A
Input current at 115V	Maximum 16A	Output rating at 1900W	-56V at 33.92A
Output rating at 1500W	-56V at 26.78A	Total input BTU at 1900W	6,899 BTU/hr, 2022W
Total input BTU at 1500W	5,565 BTU/hr, 1631W	Total output BTU at 230V	6,483 BTU/hr
Total output BTU at 115V	5,118 BTU/hr	Weight	1.5 kg (3.4 lb)
Dimensions	1.58 x 3.25 x 13.7 in. (40.1 x 82.55 x 348.2 mm)	Power-supply slots	Two internal Catalyst 9300 power-supply slots
Slot population rule	Use a second PSU or blank cover in the unused slot	Installation depth note	1900W module extends 1.5 in. from the switch rear panel
Status LEDs	AC OK and PS OK LEDs indicate input and output status	Hot-swap note	Hot-swap only when the remaining power budget supports the load
Power cord planning	Use Cisco-listed suitable AC power cord options for PWR-C1-1900WAC-P
