C9400-PWR-3200AC – 3200W AC PSU – Catalyst 9400 – Platinum
4/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9400-PWR-3200AC Description

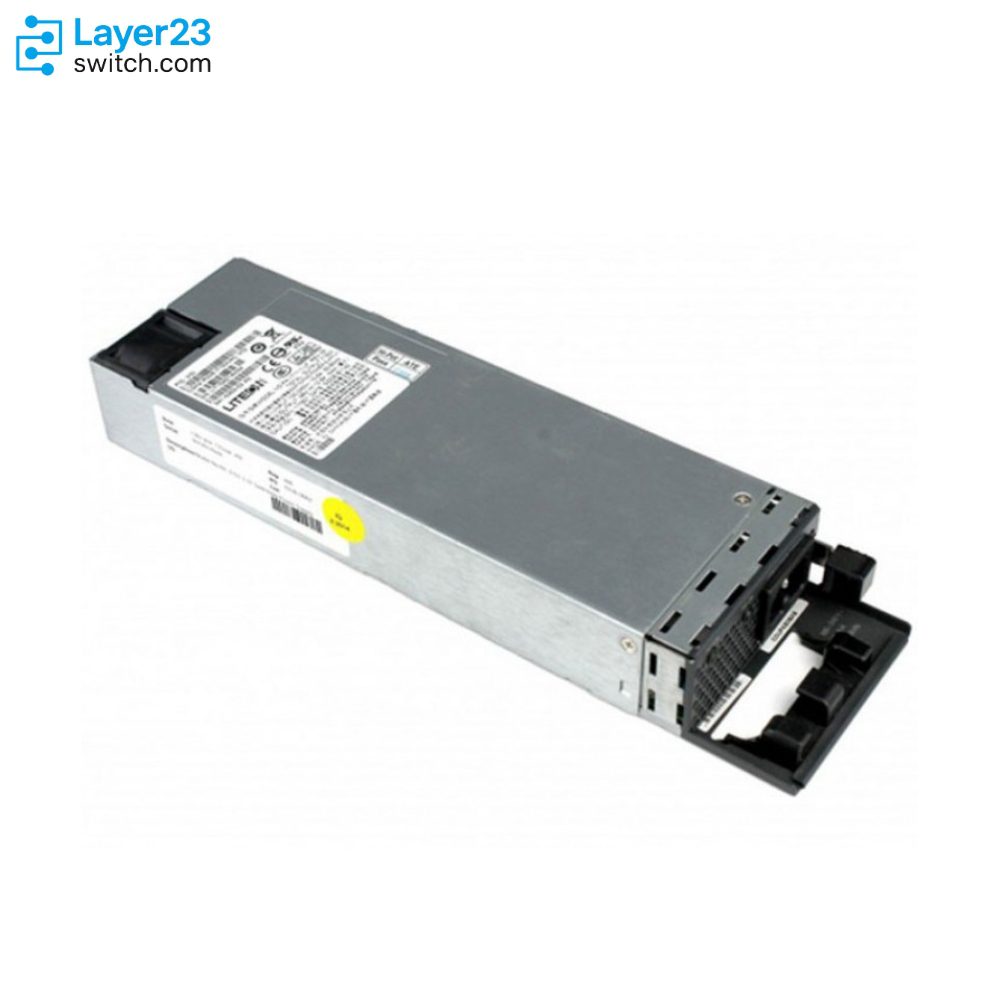

C9400-PWR-3200AC is a Cisco Catalyst 9400 Series Platinum-rated 3200W AC power supply module for Catalyst 9400 modular switch chassis. It is used as a hot-swappable chassis power module in redundant or combined power designs, with 1570W total output at 100-120 VAC low-line input or 3200W total output at 200-240 VAC high-line input. Cisco lists the module for Catalyst 9400 power-supply ordering, with single-phase AC input, an IEC60320/C19 appliance connector, and 55 VDC output capacity for chassis power planning.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9400-PWR-3200AC |
|
Cisco ordering PID |
C9400-PWR-3200AC (=) |
|
Product type |
3200W AC power supply module |
|
Cisco ordering description |
Cisco Catalyst 9400 Series Platinum Rated 3200W AC Power Supply |
|
Input type |
Single-phase AC |
|
AC input voltage |
85 to 132 VAC low-line or 180 to 264 VAC high-line |
|
AC input current |
17.6 A at 100 VAC or 200 VAC |
|
Total output power |
1570W at 100-120 VAC or 3200W at 200-240 VAC |
|
55 VDC output capacity |
1560W at 115 VAC or 3190W at 230 VAC |
|
3.3 VDC standby output |
10W |
|
Minimum airflow |
7 CFM at 100 percent load |
|
Power supply modes |
Redundant and combined modes |
Application Scenarios
Choose C9400-PWR-3200AC for Catalyst 9400 orders where the rack feed is high-line AC and the chassis power calculation depends on Cisco’s 3200W AC output class.
Keep this PSU in 100-120 VAC designs only after reviewing the lower 1570W total output value, because PoE load and line-card demand can change the required supply count.
Use this part for maintenance stock when installed Catalyst 9400 systems already use Platinum 3200W AC supplies, and confirm the C19 regional cord instead of substituting the DC or Titanium AC version.
Product Comparison
|
Parameter |
C9400-PWR-3200AC | |||
|---|---|---|---|---|
|
Cisco ordering description |
Platinum Rated 3200W AC Power Supply |
Titanium Rated 3200W AC Power Supply |
Platinum Rated 2100W AC Power Supply |
3200W DC Power Supply |
|
Input type |
AC |
AC |
AC |
DC |
|
Input voltage |
85 to 132 VAC or 180 to 264 VAC |
85 to 132 VAC or 180 to 264 VAC |
85 to 132 VAC or 180 to 264 VAC |
-40 to -72 VDC, extended to -75 VDC |
|
Input current |
17.6 A at 100 VAC or 200 VAC |
17.6 A at 100 VAC or 200 VAC |
11.44 A at 100 VAC or 200 VAC |
36 A nominal per input; 44 A maximum per input at -40 VDC |
|
Total output power |
1570W at low-line AC or 3200W at high-line AC |
1570W at low-line AC or 3200W at high-line AC |
950W at low-line AC or 2112W at high-line AC |
3200W |
|
55 VDC output capacity |
1560W at 115 VAC or 3190W at 230 VAC |
1560W at 115 VAC or 3190W at 230 VAC |
940W at 115 VAC or 2102W at 230 VAC |
3190W |
|
3.3 VDC standby output |
10W |
10W |
10W |
10W |
|
Minimum airflow |
7 CFM at 100 percent load |
19.87 CFM at 100 percent load |
7 CFM at 100 percent load |
9.5 CFM at 100 percent load |
|
Output holdup time |
20 ms minimum |
20 ms minimum |
20 ms minimum |
8 ms |
|
Heat dissipation |
948.86 BTU/hr at 3200W; 594.85 BTU/hr at 1570W |
948.87 BTU/hr at 3200W; 465.54 BTU/hr at 1570W |
460.0 BTU/hr at 2112W; 244.0 BTU/hr at 950W |
950 BTU/hr at 3200W |
|
Weight |
5.0 lb (2.3 kg) |
4.0 to 5.0 lb (1.81 to 2.3 kg) |
5.0 lb (2.3 kg) |
6.6 lb (3.0 kg) |
|
Power cord connector |
IEC60320/C19 appliance connector |
IEC60320/C19 appliance connector |
IEC60320/C19 appliance connector |
DC input terminals |
- In a C9400-PWR-3200AC vs C9400-PWR-3200ACT comparison, both are 3200W AC supplies, but C9400-PWR-3200AC is the Platinum-rated option and C9400-PWR-3200ACT is the Titanium-rated option with a different minimum airflow value.
- The C9400-PWR-3200AC difference from C9400-PWR-2100AC is the AC power class: the current SKU reaches 3200W at high-line AC, while C9400-PWR-2100AC is the 2112W high-line option.
- For buyers comparing C9400-PWR-3200AC vs C9400-PWR-3200DC, the main comparison point is the site feed because the current SKU is AC input and C9400-PWR-3200DC is the DC plant version.
- Which model to choose should follow the installed PSU family, input-power design, high-line or low-line output target, and regional cord path shown in the comparison table.
Selection Guide
1. Match the 3200W AC power class
Choose C9400-PWR-3200AC when the Catalyst 9400 BOM requires a 3200W AC supply and the site power plan is based on AC input rather than DC plant power.
2. Separate Platinum AC from Titanium AC
Keep C9400-PWR-3200AC on the order when the installed PSU family is the Platinum-rated 3200W AC module; move to C9400-PWR-3200ACT only when the order specifically calls for the Titanium-rated variant.
3. Check the low-line output limit
Verify the rack feed before finalizing the PSU count because Cisco documents 1570W total output at 100-120 VAC and 3200W total output at 200-240 VAC for this AC power class.
4. Review mixed-power mode rules
Use the Cisco power mode guidance when AC and DC modules appear in the same chassis, since AC/DC mixes and standby placement affect redundant or combined mode planning.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
C9400-PWR-3200AC |
Prevents substitution with the Titanium AC, 2100W AC, or 3200W DC PSU families |
|
Catalyst 9400 chassis |
C9404R, C9407R, or C9410R chassis power-supply plan |
Confirms the PSU count is being sized for the correct modular platform |
|
Site AC voltage |
100-120 VAC or 200-240 VAC |
Determines whether the Cisco-documented output is the low-line or high-line value |
|
Branch circuit |
Dedicated fused branch circuit, with North America 20A guidance |
Keeps the rack power plan aligned with Cisco installation requirements |
|
Regional power cord |
IEC60320/C19 appliance connector and correct regional cord option |
Prevents a cord mismatch between the PSU and facility power |
|
Power mode |
Combined, N+1, or N+N redundant mode |
Sets the number of active and standby supplies required for the chassis design |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9400-PWR-3200AC | Cisco ordering PID | C9400-PWR-3200AC (=) |
| Product type | 3200W AC power supply module | Cisco ordering description | Cisco Catalyst 9400 Series Platinum Rated 3200W AC Power Supply |
| Compatible platform | Cisco Catalyst 9400 Series modular chassis | Supported chassis order context | C9404R, C9407R, and C9410R |
| Input type | Single-phase AC | AC-input type | Wide-ranging input with power factor correction |
| AC input voltage | 85 to 132 VAC low-line or 180 to 264 VAC high-line | AC input current | 17.6 A at 100 VAC or 200 VAC |
| AC input frequency | 50/60 Hz nominal, 47 to 63 Hz full range | Branch circuit requirement | Dedicated fused branch circuit; North America 20A |
| Total output power | 1570W at 100-120 VAC or 3200W at 200-240 VAC | 55 VDC output capacity | 1560W at 115 VAC or 3190W at 230 VAC |
| 3.3 VDC standby output | 10W | Low-line output current | 28.36 A at 55V; 3.0 A at 3.3V |
| High-line output current | 58 A at 55V; 3.0 A at 3.3V | Output holdup time | 20 ms minimum |
| Minimum airflow | 7 CFM at 100 percent load | Heat dissipation | 948.86 BTU/hr at 3200W; 594.85 BTU/hr at 1570W |
| Weight | 5.0 lb (2.3 kg) | Power cord connector | IEC60320/C19 appliance connector |
| Power supply modes | Redundant and combined modes | Hot-swappable | Yes |
| MTBF | 300,000 hours | Minimum software requirement | Cisco IOS XE Software Release 16.6.1 |
Get More Information
Need pricing, stock, or shipping details for the C9400-PWR-3200AC ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is C9400-PWR-3200AC?
-
How is C9400-PWR-3200AC planned in a Catalyst 9400 chassis?
-
Does C9400-PWR-3200AC provide the same output on every input feed?
-
Can C9400-PWR-3200AC be mixed with C9400-PWR-2100AC?
-
Why do C9400-PWR-3200AC questions mention PoE line cards?
-
What maintenance risk applies to C9400-PWR-3200AC?
-
Is C9400-PWR-3200AC interchangeable with fixed-switch supplies?
-
What procurement detail matters for C9400-PWR-3200AC?
