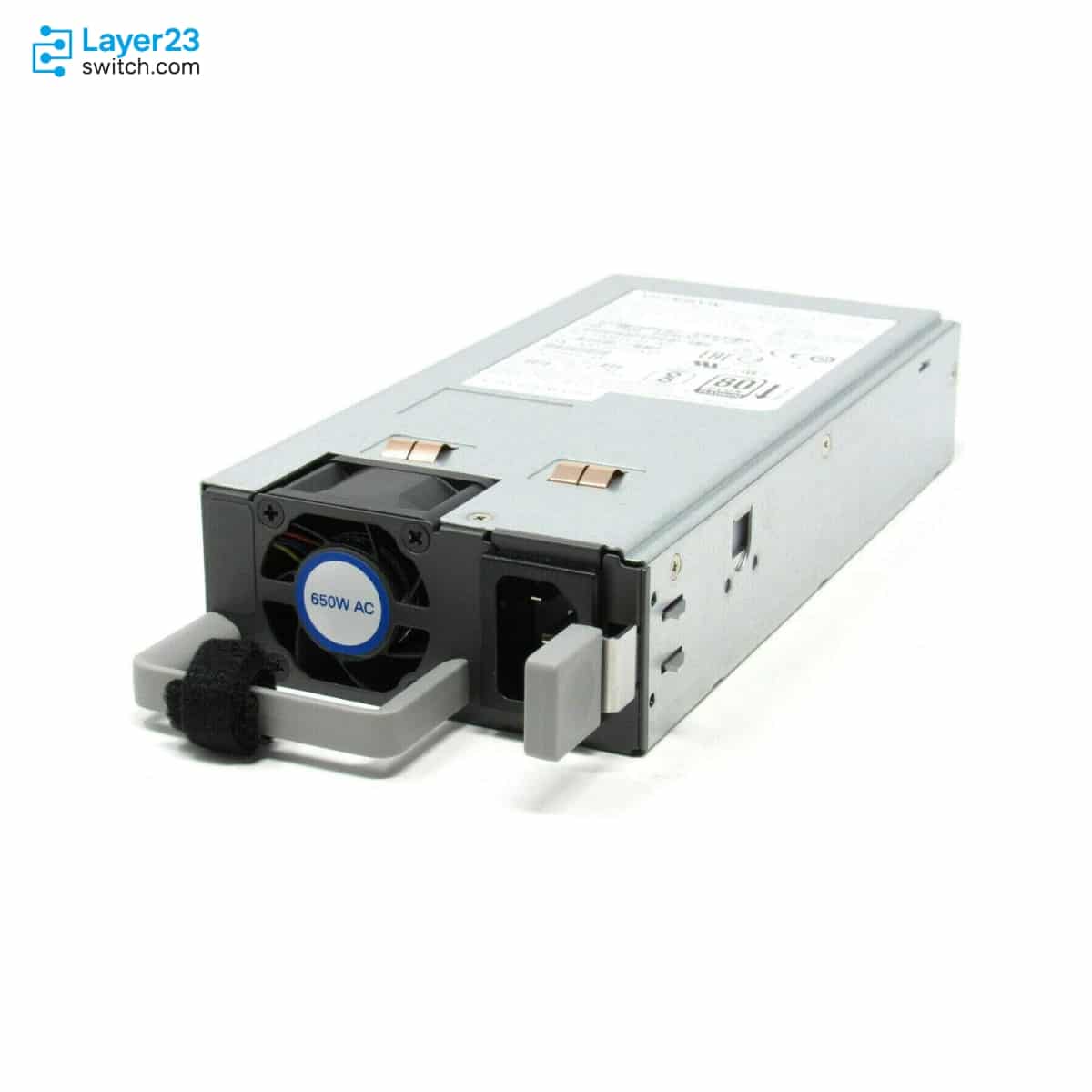

C9K-PWR-650WAC-R – 650W AC PSU – Catalyst 9500 High Performance
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9K-PWR-650WAC-R Description
C9K-PWR-650WAC-R is a Cisco Catalyst 9500 Series High Performance 650W AC power supply module for C9500-32QC, C9500-48Y4C, and C9500-24Y4C switches, used as the installed or redundant PSU in core and aggregation deployments where these platforms need Cisco-supported AC input power. Cisco documents this field-replaceable, hot-swappable module as a 650W AC supply with a 90 to 264 VAC, 47 to 63 Hz input range, an IEC 60320 C14 receptacle with a 10A cord rating, and support for the 2-slot power design that keeps a blank cover in any unused slot to maintain chassis airflow.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9K-PWR-650WAC-R |
|
Product type |
AC power supply module |
|
Cisco ordering description |
650W AC Power Supply |
|
Compatible switch models |
C9500-32QC, C9500-48Y4C, C9500-24Y4C |
|
Power max rating |
650W |
|
Input voltage and frequency |
90 to 264 VAC, 47 to 63 Hz |
|
Input current |
6.8A max at 115VAC; 3.4A max at 230VAC when full loading |
|
Power supply efficiency |
94 percent typical |
|
Output ratings |
12V main at 54A; 12V standby at 3A |
|
Output holdup time |
AC 20 ms minimum for system |
|
Input receptacle |
AC IEC 60320 C14 |
|
Power cord rating |
AC 10A |
Application Scenarios
C9K-PWR-650WAC-R fits a replacement or spare-pool plan for C9500-32QC, C9500-48Y4C, and C9500-24Y4C switches that already use the Cisco 650W AC PSU family.
The Catalyst 9500 chassis supports one installed power supply with a blank cover in the other slot, or two installed supplies for redundancy. This SKU is suitable when the second bay must match the 650W AC PSU table entry.
Projects comparing C9K-PWR-650WAC-R and C9K-PWR-650WACL-R should separate the two PIDs by the Cisco-listed surge, hold-up, and over-power protection differences instead of treating the names as interchangeable.
Product Comparison
|
Parameter |
C9K-PWR-650WAC-R | ||
|---|---|---|---|
|
Cisco ordering description |
650W AC Power Supply |
650W AC Power Supply |
930W DC Power Supply |
|
Product type |
AC power supply module |
AC power supply module |
DC power supply module |
|
Power max rating |
650W |
650W |
930W |
|
Input voltage range |
90 to 264 VAC, 47 to 63 Hz |
90 to 264 VAC, 47 to 63 Hz |
DC -40 to -72 VDC |
|
Input current |
6.8A max at 115VAC; 3.4A max at 230VAC |
6.8A max at 115VAC; 3.4A max at 230VAC |
DC 23A max at -48VDC when fully loaded |
|
Output ratings |
12V main at 54A; 12V standby at 3A |
12V main at 54A; 12V standby at 3A |
12V main at 54A; 12V standby at 3A |
|
Input receptacle |
AC IEC 60320 C14 |
AC IEC 60320 C14 |
Molex Minifit 44540-1001 |
|
Power cord rating |
AC 10A |
AC 10A |
DC 40A |
|
Supported Catalyst 9500 models |
C9500-32QC, C9500-48Y4C, C9500-24Y4C |
C9500-32QC, C9500-48Y4C, C9500-24Y4C |
C9500-32QC, C9500-48Y4C, C9500-24Y4C |
|
IEC-61000-4-5 surge |
4KV CM, 2KV DM |
2.5KV CM, 1KV DM |
2.5KV CM, 1KV DM |
|
AC line hold-up time |
At least 20 ms at 90 percent load |
At least 12 ms at 100 percent load |
At least 12 ms at 100 percent load |
|
Over Power Protection |
130 percent x rated load |
140 percent x rated load |
140 percent x rated load |
- In a C9K-PWR-650WAC-R vs C9K-PWR-650WACL-R comparison, both PIDs are 650W AC Catalyst 9500 power supplies for the same listed high-performance switch models.
- The C9K-PWR-650WAC-R difference from C9K-PWR-650WACL-R is not wattage or input connector; the table differences are surge rating, AC line hold-up time, and over-power protection value.
- For buyers comparing C9K-PWR-650WAC-R vs C9K-PWR-650WACL-R, the which model to choose decision should follow the exact PID required by the BOM and any regional power-supply rule attached to the deployment. C9K-PWR-930WDC-R is included as an additional same-family comparison point.
Selection Guide
1. Match the supported switch family first
Choose C9K-PWR-650WAC-R only for the Catalyst 9500 High Performance models Cisco maps to the 650W PSU family: C9500-32QC, C9500-48Y4C, and C9500-24Y4C.
2. Keep AC input and cord details visible
Confirm that the site feed matches the 90 to 264 VAC, 47 to 63 Hz input range and that the purchase line includes the correct IEC 60320 C14 power-cord plan.
3. Avoid cross-family substitutions
Do not replace this SKU with a 1600W C9500-32C PSU or a 950W C9500-16X PSU, because Cisco maps those power supplies to different Catalyst 9500 hardware.
4. Separate the WACL-R variant deliberately
Select C9K-PWR-650WACL-R only when the order requires that exact 650W AC variant; the two 650W PIDs have different surge, hold-up, and over-power protection entries.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
C9K-PWR-650WAC-R |
Prevents receiving the C9K-PWR-650WACL-R variant when the BOM calls for this PID |
|
Switch model |
C9500-32QC, C9500-48Y4C, or C9500-24Y4C |
Cisco lists this 650W AC PSU for these Catalyst 9500 High Performance models |
|
Input power |
90 to 264 VAC, 47 to 63 Hz |
Confirms the site feed matches the Cisco-listed AC input range |
|
Power cord |
AC IEC 60320 C14 receptacle with AC 10A cord rating |
Prevents cord mismatch during receiving and rack staging |
|
Empty PSU slot |
Blank cover remains installed when a bay is empty |
Maintains designed airflow and physical bay coverage |
|
Variant check |
C9K-PWR-650WAC-R vs C9K-PWR-650WACL-R |
Keeps surge, hold-up, and over-power protection requirements aligned with the selected PID |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9K-PWR-650WAC-R | Product type | AC power supply module |
| Cisco ordering description | 650W AC Power Supply | Compatible switch models | C9500-32QC, C9500-48Y4C, C9500-24Y4C |
| Power supply slots | Two AC or DC power supply slots | FRU support | Field-replaceable and hot-swappable power supply module |
| Supported PSU combinations | Two AC, two DC, AC-DC, or one installed PSU with blank cover in unused slot | Power max rating | 650W |
| Input voltage and frequency | 90 to 264 VAC, 47 to 63 Hz | Input current | 6.8A max at 115VAC; 3.4A max at 230VAC when full loading |
| Power supply efficiency | 94 percent typical | Output ratings | 12V main at 54A; 12V standby at 3A |
| Output holdup time | AC 20 ms minimum for system | Input receptacle | AC IEC 60320 C14 |
| Power cord rating | AC 10A | BTU with C9500-32QC | 1,815 BTU/hr |
| BTU with C9500-48Y4C | 1,856 BTU/hr | BTU with C9500-24Y4C | 1,454 BTU/hr |

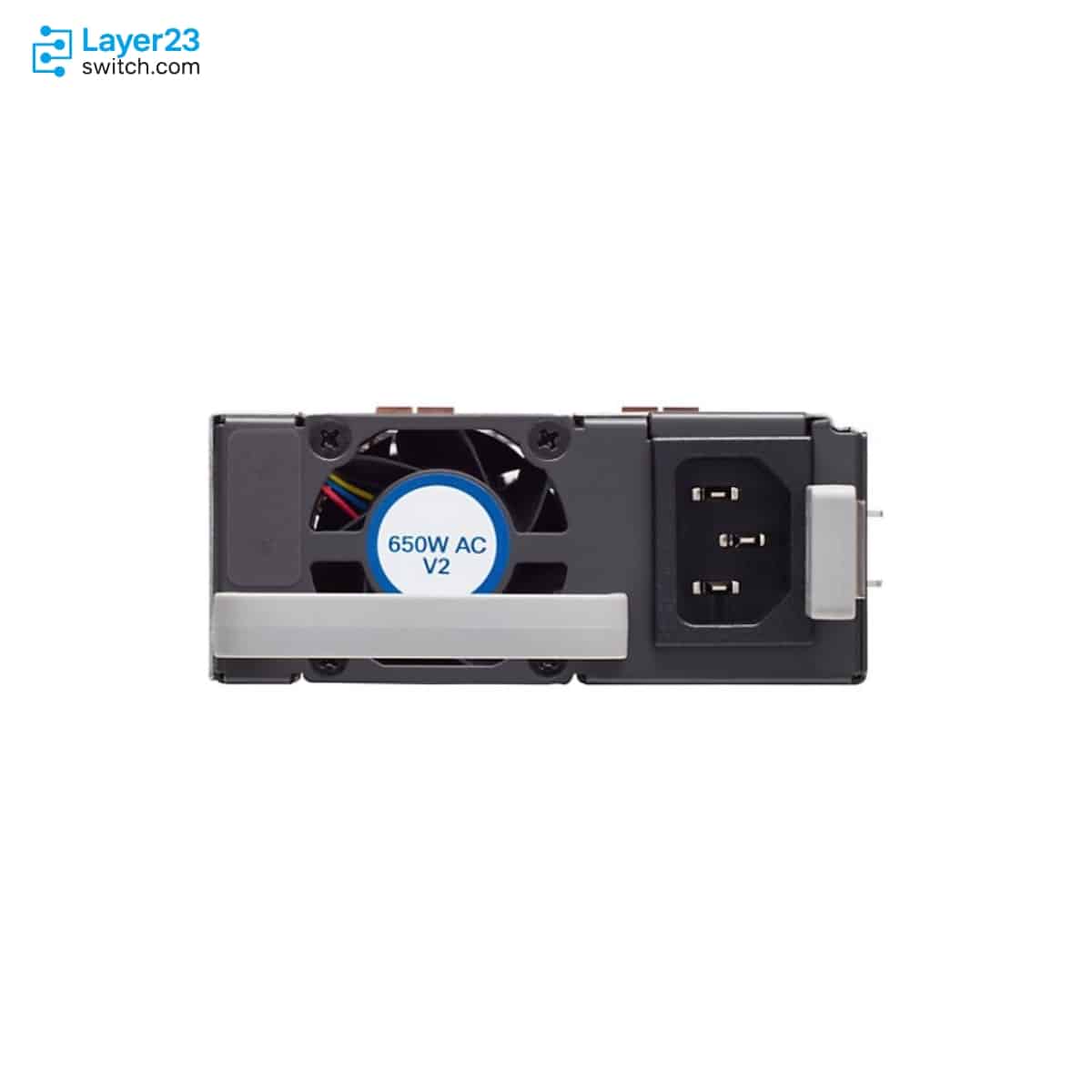

| PSU hardware features | Velcro strap, PSU fan, AC power cord connector, release latch, retainer clips, and status LEDs | IEC-61000-4-5 surge | 4KV CM, 2KV DM |
| Over Power Protection | 130 percent x rated load |
