C9400-PWR-3200DC Description

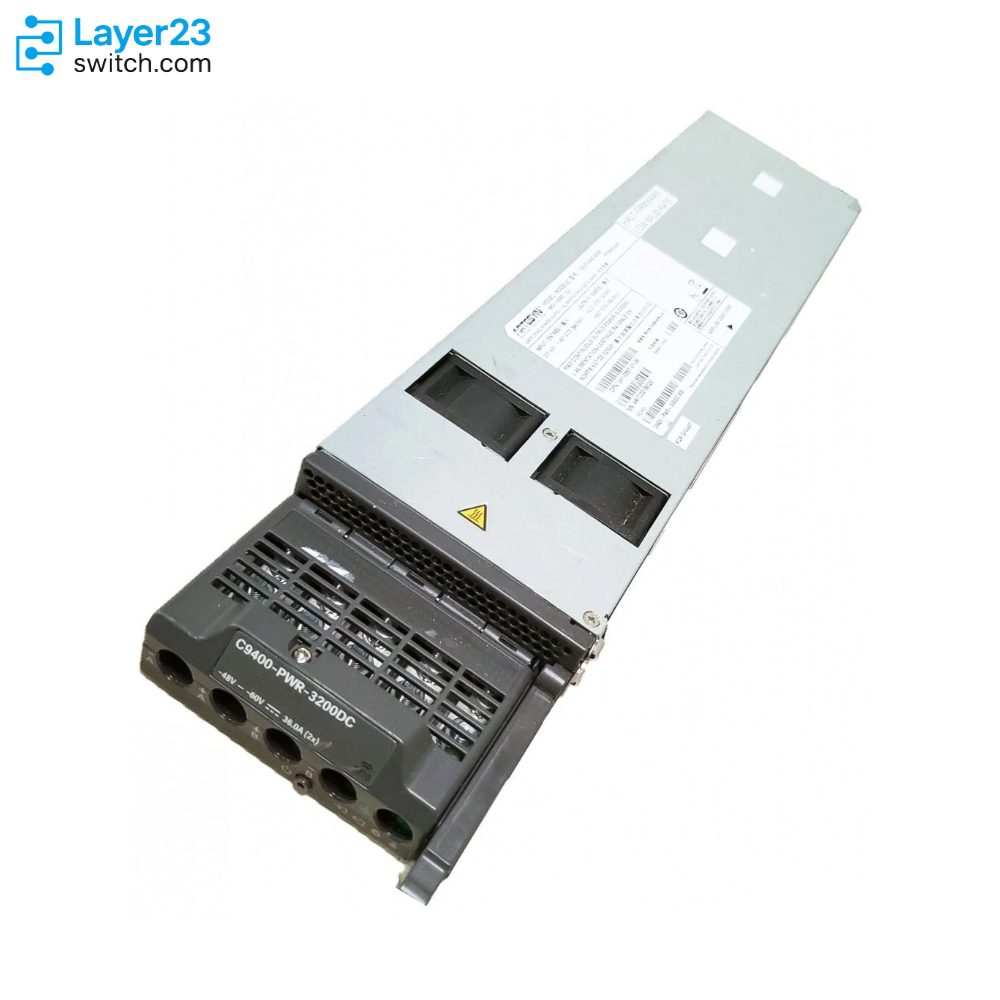

C9400-PWR-3200DC is a Cisco Catalyst 9400 Series 3200W DC-input power supply module for Catalyst 9400 modular switch chassis that use DC site power.
This power supply is intended for Catalyst 9400 deployments where the power design is based on DC input rather than AC input. Cisco documents dual DC inputs, 55 VDC main output, 3.3 VDC standby output, and support for redundant or combined power supply modes on Catalyst 9400 chassis.
Before requesting a quote, confirm the chassis model, DC plant voltage, feeder and grounding design, redundancy mode, total switch power budget, and whether the order needs the base SKU or spare-part form.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9400-PWR-3200DC |
|
Product type |
DC power supply module |
|
Product family |
Cisco Catalyst 9400 Series |
|
Cisco ordering description |
Cisco Catalyst 9400 Series 3200W DC Power Supply |
|
Input type |
DC |
|
DC input voltage |
-40 to -72 VDC, with extended range up to -75 VDC |
|
DC input current |
36 A per DC input nominal, 72 A total at -48 to -60 VDC |
|
Maximum input current |
44 A per DC input at -40 VDC |
|
Main output capacity |
55 VDC output, 3190 W |
|
Standby output capacity |
3.3 VDC output, 10 W |
|
Output holdup time |
8 ms |
|
Operating temperature |
-5 to +55 degrees C at full load; -5 to +60 degrees C at half load |
|
Operating humidity |
10 to 90 percent, noncondensing |
|
Heat dissipation |
950 BTU per hour at 3200 W |
|
Weight |
6.61 lb (3.0 kg) |
|
Supported platforms |
Cisco Catalyst 9400 Series switches |
Application Scenarios
Use C9400-PWR-3200DC when a Catalyst 9400 chassis is planned around DC site power and the bill of materials needs the 3200W DC-input PSU family.
Choose this SKU when an installed Catalyst 9400 chassis already uses 3200W DC power supplies and the maintenance plan needs a matching replacement or spare module.
Use C9400-PWR-3200DC in Catalyst 9400 power designs that require Cisco-supported redundant or combined power supply modes. Confirm the active and standby PSU mix before quoting.
Product Comparison
|
Parameter |
C9400-PWR-3200DC | |||
|---|---|---|---|---|
|
Product family |
Catalyst 9400 Series power supply |
Catalyst 9400 Series power supply |
Catalyst 9400 Series power supply |
Catalyst 9400 Series power supply |
|
Cisco ordering description |
3200W DC Power Supply |
3200W AC Power Supply |
3200W Titanium Power Supply |
2100W AC Power Supply |
|
Input type |
DC |
AC |
AC |
AC |
|
Input voltage |
-40 to -72 VDC, extended to -75 VDC |
85 to 132 VAC or 180 to 264 VAC |
85 to 132 VAC or 180 to 264 VAC |
85 to 132 VAC or 180 to 264 VAC |
|
Input Current |
36 A per DC input nominal; 44 A maximum per DC input at -40 VDC |
17.6 A at 100 VAC or 200 VAC |
17.6 A at 100 VAC or 200 VAC |
11.44 A at 100 VAC or 200 VAC |
|
Main output capacity |
3190 W at 55 VDC |
1560 W at 115 VAC or 3190 W at 230 VAC |
1560 W at 115 VAC or 3190 W at 230 VAC |
940 W at 115 VAC or 2102 W at 230 VAC |
|
Standby output capacity |
10 W at 3.3 VDC |
10 W at 3.3 VDC |
10 W at 3.3 VDC |
10 W at 3.3 VDC |
|
Output holdup time |
8 ms |
20 ms minimum |
20 ms minimum |
20 ms minimum |
|
Heat dissipation |
950 BTU per hour at 3200 W |
948.86 BTU per hour at 3200 W |
948.87 BTU per hour at 3200 W |
460.0 BTU per hour at 2112 W |
|
Weight |
6.61 lb (3.0 kg) |
5.0 lb (2.3 kg) |
4.0 to 5.0 lb (1.81 to 2.3 kg) |
5.0 lb (2.3 kg) |
- Choose C9400-PWR-3200DC when the Catalyst 9400 chassis must use DC input power rather than AC input power.
- Compare C9400-PWR-3200AC when the site uses AC input and still needs the 3200W power class.
- Compare C9400-PWR-3200ACT when the order specifically calls for the 3200W Titanium power supply option.
- Compare C9400-PWR-2100AC only when the AC power budget supports a lower 2100W power supply class.
Selection Guide
1. Confirm the site DC power range
Select C9400-PWR-3200DC only when the site DC plant, cabling, and protection plan match Cisco’s documented DC input range for this PSU.
2. Size the chassis power budget before quote approval
Check supervisor modules, line cards, fan tray, PoE load, and redundancy target before treating a 3200W DC power supply count as final.
3. Verify the redundancy or combined power mode
Confirm whether the Catalyst 9400 chassis will use combined mode, N+1 redundancy, or N+N redundancy, especially if AC and DC power supply modules are mixed.
4. Match the order to the installed PSU family
For replacement orders, match the existing PSU type and capacity. For new builds, confirm whether the order requires the base SKU or the spare-part ordering form.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
C9400-PWR-3200DC |
Prevents confusion with the AC, Titanium AC, or 2100W PSU families |
|
Product family |
Cisco Catalyst 9400 Series |
Confirms the PSU is being ordered for the correct modular switch platform |
|
Input Power |
-40 to -72 VDC, extended range up to -75 VDC |
Confirms the site power plant matches the DC-input module |
|
DC Input Design |
Dual DC inputs, feeder protection, and grounding |
The PSU uses DC input connections that must match the installation design |
|
Output Capacity |
3190 W at 55 VDC and 10 W at 3.3 VDC |
Confirms the module can support the planned chassis power load |
|
Redundancy Mode |
Combined, N+1, or N+N power mode |
Determines the number and placement of active and standby power supplies |
|
PSU Mix |
DC-only or documented AC/DC mix |
Prevents unsupported active and standby power supply combinations |
|
Purchase Details |
Quote, stock availability, warranty support, and shipping destination |
Helps Layer23-Switch confirm the commercial details before procurement |
Specifications
Packaging weight and dimensions included:| Weight | 1.52 kg |
|---|---|
| Dimensions | 31 × 15 × 12 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9400-PWR-3200DC | Product type | DC power supply module |
| Product family | Cisco Catalyst 9400 Series | Cisco ordering description | Cisco Catalyst 9400 Series 3200W DC Power Supply |
| Input type | DC | DC input voltage | -40 to -72 VDC, extended range up to -75 VDC |
| Nominal DC Input Current | 36 A per DC input, 72 A total at -48 to -60 VDC | Maximum DC Input Current | 44 A per DC input at -40 VDC |
| Main output capacity | 55 VDC output, 3190 W | Standby output capacity | 3.3 VDC output, 10 W |
| Output holdup time | 8 ms | Heat dissipation | 950 BTU per hour at 3200 W |
| Operating temperature | -5 to +55 degrees C at full load; -5 to +60 degrees C at half load | Operating humidity | 10 to 90 percent, noncondensing |
| Operating Altitude | -500 to 13,123 feet over allowable temperature range | Weight | 6.61 lb (3.0 kg) |
| Supported platforms | Cisco Catalyst 9400 Series switches | Power Modes | Redundant and combined power supply modes |
