PWR-C5-1KWAC – 1KW AC PSU – Catalyst 9200L 48-Port PoE
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
PWR-C5-1KWAC Description

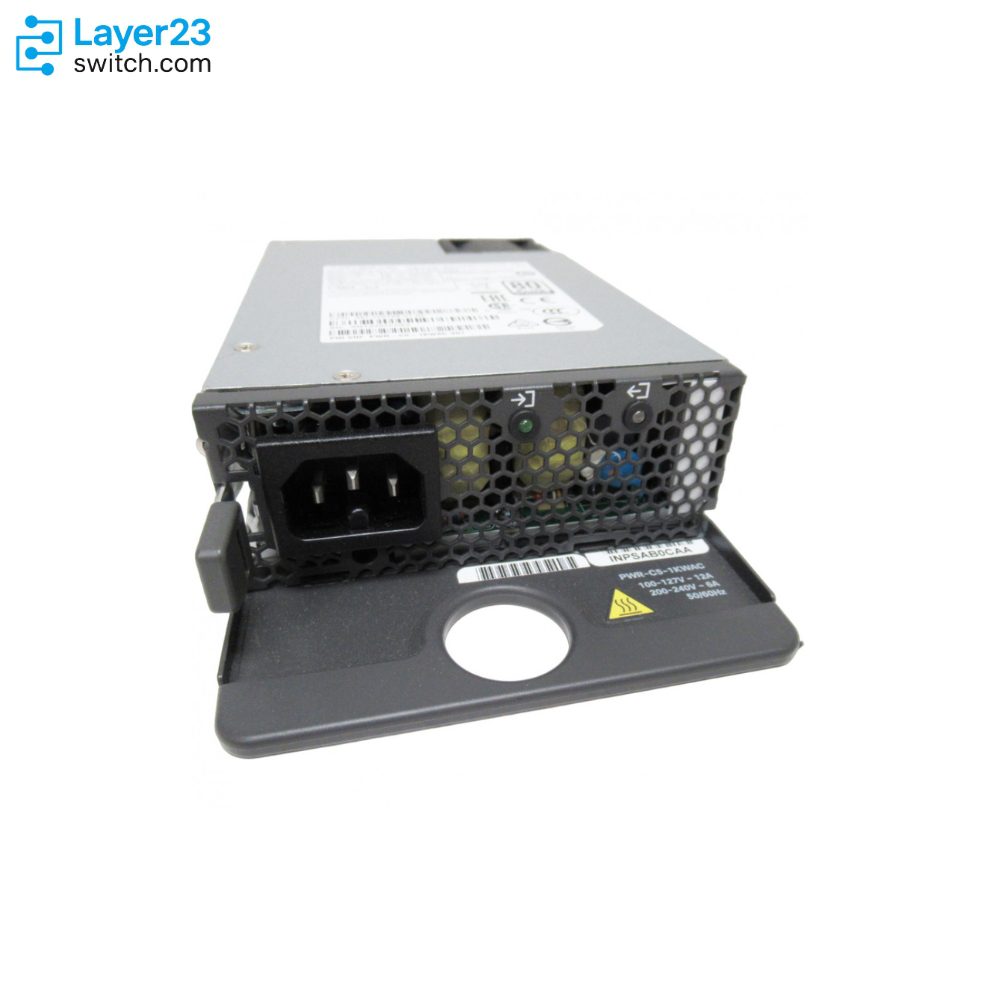

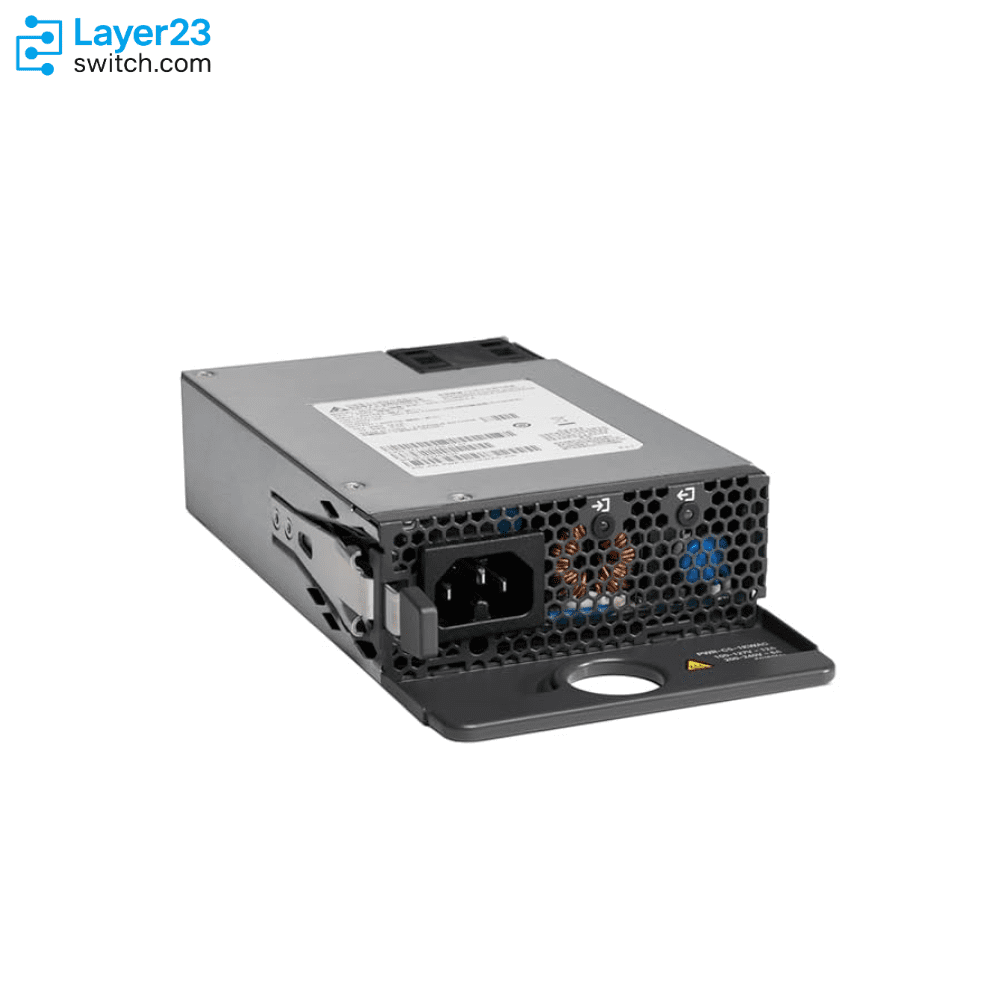

PWR-C5-1KWAC is a Cisco Catalyst 9200 Series 1 kW AC Config 5 power supply module for supported Catalyst 9200 and Catalyst 9200L 48-port PoE switches. It provides the AC power module role for C9200-48P, C9200-48PB, C9200-48PXG, and listed C9200L 48-port PoE models, with Cisco-documented 740W available PoE when one AC supply is installed and 1440W with a second AC supply on those platforms. The module is rated for 1000W maximum output, accepts 100 to 240 VAC at 50 to 60 Hz, uses an IEC 320-C16 input receptacle, and supports Catalyst 9200 power redundancy planning without being treated as a standalone switch or generic power adapter.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-C5-1KWAC |
|
Cisco ordering form |
PWR-C5-1KWAC (=) |
|
Secondary PSU option |
PWR-C5-1KWAC/2 |
|
Product type |
AC power supply module |
|
Cisco description |
1KW AC Config 5 Power Supply |
|
Compatible C9200L 48-port PoE models |
C9200L-48P-4G, C9200L-48P-4X, C9200L-48PXG-4X, and C9200L-48PXG-2Y |
|
Compatible C9200 48-port PoE models |
C9200-48P, C9200-48PB, and C9200-48PXG |
|
Rated maximum output |
1000W |
|
Available PoE with one AC PSU |
740W on listed 48-port PoE models |
|
Available PoE with second AC PSU |
1440W on listed 48-port PoE models |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
|
Output rating |
54V at 16.5A |
Application Scenarios
Use PWR-C5-1KWAC for Catalyst 9200L full-PoE 48-port switches where Cisco names the C5 1KW AC supply as the supported PSU for both power slots.
Inventory that supports C9200-48P, C9200-48PB, or C9200-48PXG sites can keep this C5 part in the 1KW service pool, because Cisco documents no functional difference between the C5 and C6 1KW variants on those C9200 models.
Deployments that need the listed 1440W PoE budget on 48-port PoE models should include a second matching AC supply instead of assuming the single 1KW module provides full PoE capacity.
Product Comparison
|
Parameter |
PWR-C5-1KWAC | |||
|---|---|---|---|---|
|
Cisco description |
1KW AC Config 5 Power Supply |
1KW AC Config 6 Power Supply |
600W AC Config 5 Power Supply |
125W AC Config 5 Power Supply |
|
Product type |
AC power supply module |
AC power supply module |
AC power supply module |
AC power supply module |
|
Rated maximum output |
1000W |
1000W |
600W |
125W |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
|
Input current |
12-6A |
12-6A |
7-2.8A |
1.6-0.7A |
|
Output rating |
54V at 16.5A |
54V at 16.5A |
54V at 11.1A |
12V at 10.5A |
|
Total output BTU |
3412 BTU/hr, 1000W |
3412 BTU/hr, 1000W |
2047.3 BTU/hr, 600W |
426.5 BTU/hr, 125W |
|
Input receptacle |
IEC 320-C16 |
IEC 320-C16 |
IEC 320-C16 |
IEC 320-C14 |
|
Power cord rating |
15A |
15A |
15A |
10A |
|
C9200 model context |
48-port PoE models can use C5 or C6 1KW supplies |
48-port PoE models can use C6 or C5 1KW supplies |
24-port PoE and C9200-48PL power class |
C9200 data-switch power class |
|
C9200L support boundary |
Supported C5 1KW supply for C9200L 48-port PoE models |
C6 variant not supported on C9200L |
Supported C5 600W supply for listed C9200L 24-port and partial-PoE models |
Supported C5 125W supply for C9200L data models |
- In a PWR-C5-1KWAC vs PWR-C6-1KWAC comparison, the electrical values match across 1000W output, 12-6A input current, 54V at 16.5A output, IEC 320-C16 receptacle, and 15A cord rating.
- The PWR-C5-1KWAC difference from PWR-C6-1KWAC is the platform boundary: C9200 48-port PoE models accept either variant, while C9200L 48-port PoE models stay on the C5 1KW supply.
- For a PWR-C5-1KWAC vs PWR-C5-600WAC comparison, the order should follow the switch power class because the 1KW part maps to 48-port PoE builds and the 600W part maps to lower PoE classes.
- In a PWR-C5-1KWAC vs PWR-C5-125WAC comparison, the 125W supply is for data-switch power bays, so it should not be used where a 48-port PoE chassis requires the 1KW PSU family.
Selection Guide
1. Keep C9200L full-PoE sites on C5
Choose PWR-C5-1KWAC when the installed switch is C9200L-48P-4G, C9200L-48P-4X, C9200L-48PXG-4X, or C9200L-48PXG-2Y because Cisco lists the C5 1KW supply for those 48-port PoE models.
2. Use C5 or C6 only where Cisco permits both
Use this SKU for C9200-48P, C9200-48PB, or C9200-48PXG service stock when the site accepts the C5 variant; move to PWR-C6-1KWAC only when the order specifically calls for the Config 6 line.
3. Match wattage to the switch power class
Select PWR-C5-600WAC for the listed 600W PoE models or PWR-C5-125WAC for C9200L data models, rather than substituting them into a 48-port full-PoE build that needs the 1KW class.
4. Verify the power bay and cord set
Confirm the IEC 320-C16 receptacle, 15A cord rating, 100 to 240 VAC input, and blank-cover or second-PSU plan so the switch keeps the cooling path Cisco requires.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Value |
Procurement Impact |
|---|---|---|
|
One AC power supply |
740W available PoE on listed 48-port PoE models |
Sets the endpoint power plan when only one PWR-C5-1KWAC is installed |
|
PoE with secondary supply |
1440W available PoE with a second matching AC supply |
Adds the confirmed full-PoE budget and redundancy path for the 48-port PoE build |
|
C9200L C6 boundary |
C9200L 48-port PoE models use the C5 1KW supply and do not support the C6 variant |
Prevents receiving a C9200-only spare for a C9200L replacement |
|
Slot population |
Each power supply slot must contain a power supply or a blank cover |
Keeps chassis cooling aligned with Cisco installation guidance |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact PSU identity |
PWR-C5-1KWAC |
Confirms the order is for the Config 5 1KW AC supply rather than a lower wattage or C6-only request |
|
Cisco order form |
PWR-C5-1KWAC (=) or PWR-C5-1KWAC/2 |
Separates the spare or primary PSU line from the secondary power-supply option |
|
C9200L chassis match |
C9200L-48P-4G, C9200L-48P-4X, C9200L-48PXG-4X, or C9200L-48PXG-2Y |
These are the listed C9200L 48-port PoE models for the C5 1KW supply |
|
AC facility and cord |
100 to 240 VAC, 50 to 60 Hz, IEC 320-C16, and 15A cord rating |
Aligns the replacement PSU with rack power and regional cord selection |
|
PoE budget target |
740W with one AC PSU or 1440W with a second AC PSU on listed 48-port PoE models |
Prevents endpoint power planning from assuming the wrong supply count |
|
Slot closure |
Power supply or blank cover installed in every PSU slot |
Maintains the chassis cooling path required by Cisco guidance |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-C5-1KWAC | Cisco ordering form | PWR-C5-1KWAC (=) |
| Secondary PSU option | PWR-C5-1KWAC/2 | Product type | AC power supply module |
| Cisco description | 1KW AC Config 5 Power Supply | Compatible C9200L 48-port PoE models | C9200L-48P-4G, C9200L-48P-4X, C9200L-48PXG-4X, and C9200L-48PXG-2Y |
| Compatible C9200 48-port PoE models | C9200-48P, C9200-48PB, and C9200-48PXG | C9200L C6 boundary | C6 1KW variant not supported on C9200L |
| C5 and C6 note for C9200 models | No functional difference on C9200-48P, C9200-48PB, and C9200-48PXG | Rated maximum output | 1000W |
| Total output BTU | 3412 BTU/hr, 1000W | Input voltage and frequency | 100 to 240 VAC, 50 to 60 Hz |
| Input current | 12-6A | Output rating | 54V at 16.5A |
| Output holdup time | 20 ms minimum at 100 VAC | Input receptacle | IEC 320-C16 |
| Power cord rating | 15A | Physical dimensions | 1.58 x 4.0 x 7.6 in. (H x W x D) |
| Weight | 2 lb (0.9 kg) | Power supply slots | Two internal power supply slots on Catalyst 9200 switch chassis |
| Slot population rule | Each power supply slot must contain a power supply or a blank cover | FRU behavior | Main module field replaceable; redundant module hot-swappable |
| Power module fan note | All power supply modules except blank modules have internal fans | Available PoE with one AC PSU | 740W on listed 48-port PoE models |
| Available PoE with second AC PSU | 1440W on listed 48-port PoE models |
