PWR-C6-125WAC= – 125W AC PSU – Catalyst 9200 Data Switches
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
PWR-C6-125WAC= Description

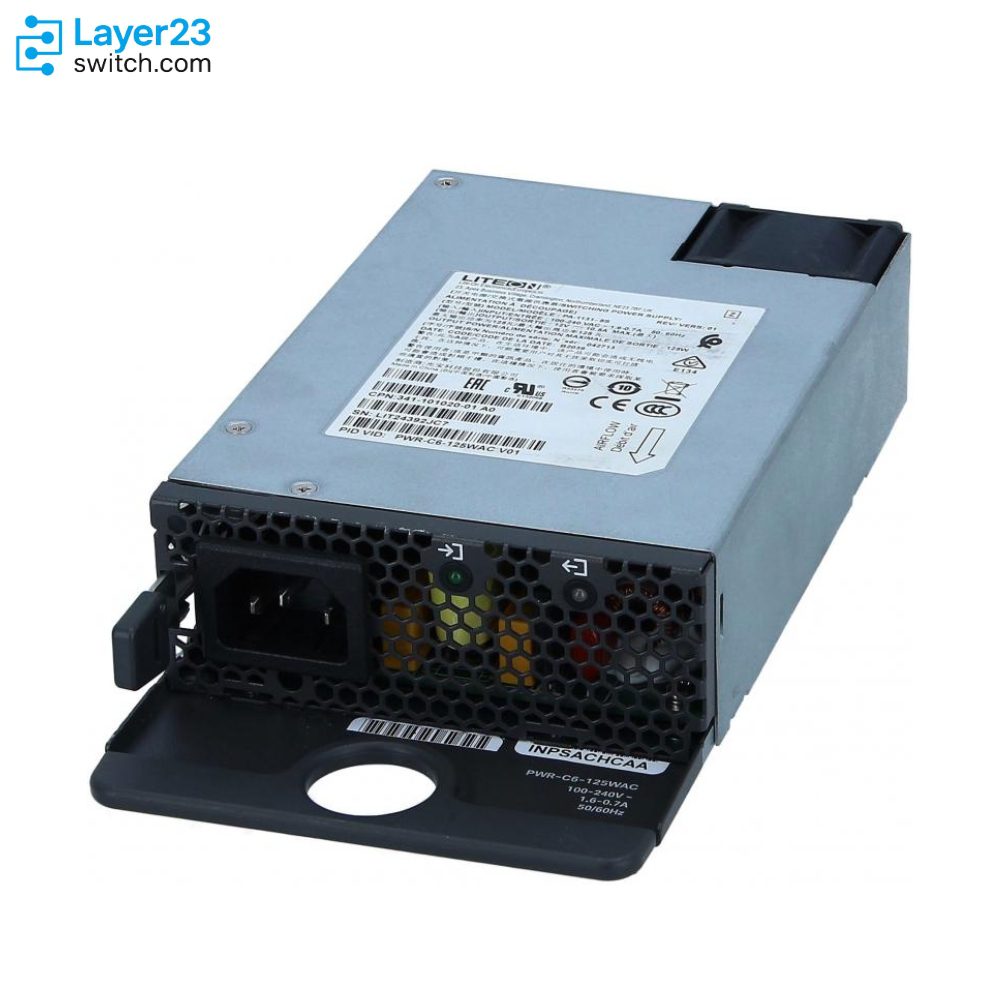

PWR-C6-125WAC= is a Cisco Catalyst 9200 125W AC Config 6 power supply module for Catalyst 9200 data switch power bays, used as a spare or additional AC supply for C9200-24T and C9200-48T deployments. It provides 125W maximum output, supports 100 to 240 VAC input at 50 to 60 Hz, uses an IEC 320-C14 input receptacle with a 10A power-cord rating, and delivers 12V at 10.5A output for non-PoE C9200 data models where the C6 power-supply boundary must be kept separate from C9200L power supply planning.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-C6-125WAC= |
|
Cisco ordering form |
PWR-C6-125WAC (=) |
|
Product type |
AC power supply module |
|
Cisco description |
125W AC Config 6 Power Supply |
|
Compatible C9200 data models |
C9200-24T and C9200-48T |
|
Rated maximum output |
125W |
|
Total output BTU |
426.5 BTU/hr, 125W |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
|
Input current |
1.6-0.7A |
|
Output rating |
12V at 10.5A |
|
Input receptacle |
IEC 320-C14 |
|
Power cord rating |
10A |
Application Scenarios
Maintenance teams can align this PSU with C9200-24T or C9200-48T access switches where the installed hardware is a data model and the confirmed supply class is 125W AC.
Catalyst 9200 power bays should never be left open. The bill of materials should account for either a second AC unit or the Cisco blank cover that keeps the chassis cooling path intact.
Spare pools that also serve C9200L sites need a separate receiving lane for PWR-C5-125WAC. Cisco permits C5 and C6 mixing on C9200-24T and C9200-48T, but keeps the C6 variant out of C9200L data switches.
Product Comparison
|
Parameter |
PWR-C6-125WAC= | ||
|---|---|---|---|
|
Cisco description |
125W AC Config 6 Power Supply |
125W AC Config 5 Power Supply |
600W AC Config 6 Power Supply |
|
Product type |
AC power supply module |
AC power supply module |
AC power supply module |
|
Rated maximum output |
125W |
125W |
600W |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
|
Input current |
1.6-0.7A |
1.6-0.7A |
7-2.8A |
|
Output rating |
12V at 10.5A |
12V at 10.5A |
54V at 11.1A |
|
Total output BTU |
426.5 BTU/hr, 125W |
426.5 BTU/hr, 125W |
2047.3 BTU/hr, 600W |
|
Input receptacle |
IEC 320-C14 |
IEC 320-C14 |
IEC 320-C16 |
|
Power cord rating |
10A |
10A |
15A |
|
C9200 data model support |
C9200-24T and C9200-48T |
C9200-24T and C9200-48T |
C9200-24T and C9200-48T |
|
C9200L data model support |
C6 variant not supported on C9200L data models |
Supported C5 125W supply for C9200L data models |
Supported C5 125W supply for C9200L data models |
|
C5/C6 functional difference on C9200 data models |
No functional difference from PWR-C5-125WAC |
No functional difference from PWR-C6-125WAC |
No functional difference from PWR-C6-125WAC |
- In a PWR-C6-125WAC= vs PWR-C5-125WAC comparison, the confirmed electrical ratings match, including 125W output, 100 to 240 VAC input, 1.6-0.7A input current, and 12V at 10.5A output.
- The PWR-C6-125WAC= difference from PWR-C5-125WAC is the Config 6 versus Config 5 platform boundary; Cisco permits both on C9200-24T and C9200-48T but does not support the C6 variant on C9200L data models.
- For buyers comparing which model to choose, the receiving check should start with C9200 versus C9200L platform identity before treating the two 125W AC parts as interchangeable.
- Review PWR-C5-125WAC= alongside the current SKU for the adjacent technical comparison points. PWR-C6-600WAC is included as an additional same-family comparison point.
Selection Guide
1. Match the switch platform first
Choose PWR-C6-125WAC= only when the installed switch is a Catalyst 9200 data model in the C9200-24T or C9200-48T family.
2. Keep C9200L orders on the C5 supply
Select PWR-C5-125WAC for C9200L data models because Cisco’s support matrix lists the C6 variant as unsupported on C9200L.
3. Separate replacement and secondary order lines
Use the equals-sign PWR-C6-125WAC= line for the Config 6 125W AC supply order form, and use PWR-C6-125WAC/2 only when the order specifically calls for the secondary power supply line.
4. Validate power-slot coverage
Confirm whether the chassis will run with one AC power supply plus a blank cover or with two installed AC supplies, because Cisco requires both power supply slots to be populated for proper cooling.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU |
PWR-C6-125WAC= |
Confirms the order follows Cisco’s PWR-C6-125WAC (=) Config 6 power supply listing |
|
Switch model |
C9200-24T or C9200-48T |
These C9200 data models are the confirmed 125W C6 AC supply use case |
|
C9200L boundary |
Do not use the C6 variant on C9200L data models |
Cisco’s support matrix separates C9200L data models onto the C5 125W supply |
|
Secondary PSU need |
PWR-C6-125WAC/2 if the BOM calls for a secondary supply line |
Prevents mixing the standard equals-sign order form with the `/2` secondary power supply order line |
|
Power source |
100 to 240 VAC, 50 to 60 Hz |
Keeps the rack power feed aligned with Cisco’s AC input specification |
|
Power cord |
IEC 320-C14 input receptacle with 10A cord rating and correct region |
Avoids receiving a PSU without the country-specific AC cord plan |
|
Slot coverage |
Installed PSU or blank cover in every power supply slot |
Cisco warns that an empty power supply slot breaks the required chassis cooling layout |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-C6-125WAC= | Cisco ordering form | PWR-C6-125WAC (=) |
| Product type | AC power supply module | Cisco description | 125W AC Config 6 Power Supply |
| Compatible C9200 data models | C9200-24T and C9200-48T | Rated maximum output | 125W |
| Total output BTU | 426.5 BTU/hr, 125W | Input voltage and frequency | 100 to 240 VAC, 50 to 60 Hz |
| Input current | 1.6-0.7A | Output rating | 12V at 10.5A |
| Output holdup time | 20 ms minimum at 100 VAC | Input receptacle | IEC 320-C14 |
| Power cord rating | 10A | Physical dimensions | 1.58 x 4.0 x 7.6 in. (H x W x D) |
| Weight | 1.5 lb (0.68 kg) | Power supply slots | Two internal power supply slots on Catalyst 9200 switch chassis |
| Slot population rule | Each power supply slot must contain a power supply or a blank cover | FRU behavior | Main module field replaceable; redundant module hot-swappable |
| Power module features | Release latch, AC power cord connector, and status LEDs | Minimum software support note | Supported from Cisco IOS XE Gibraltar 16.11.1 |
| C9200L support boundary | C6 variant not supported on C9200L data models |
