PWR-C6-600WAC Description

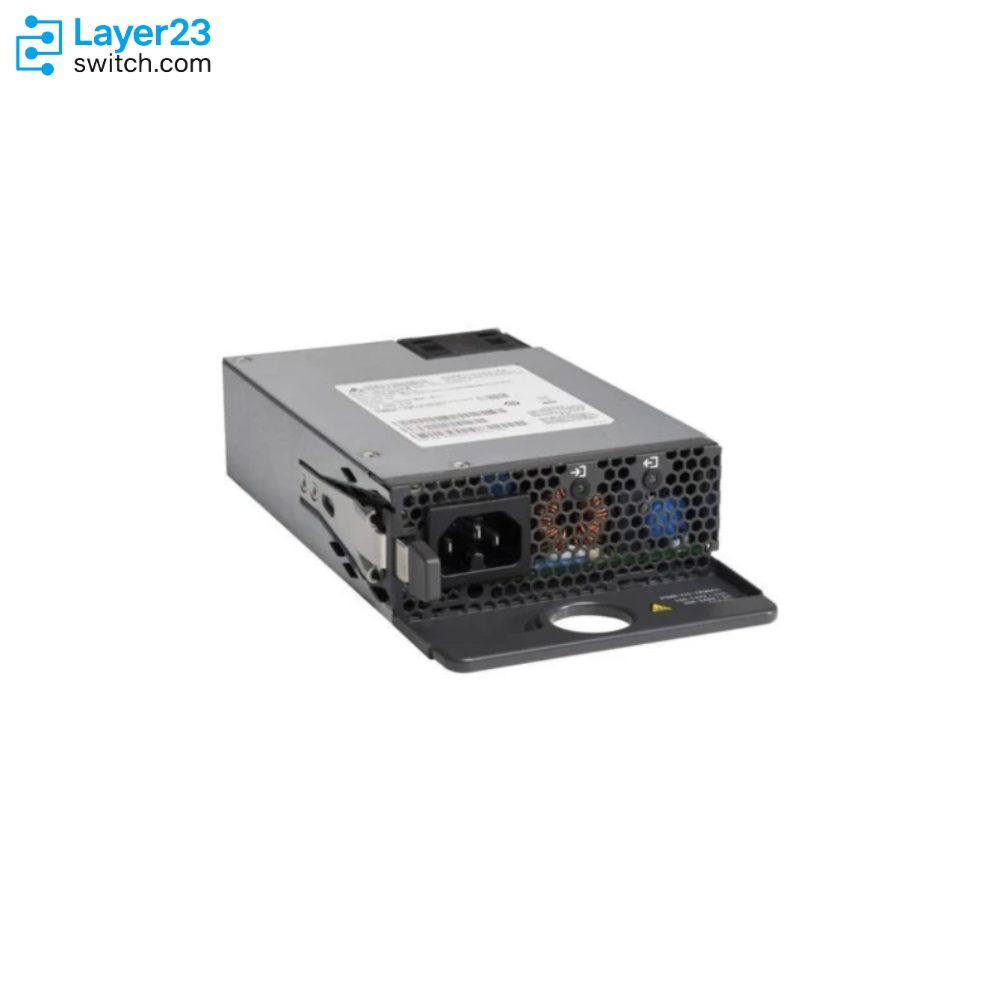

PWR-C6-600WAC is a Cisco Catalyst 9200 Series 600W AC Config 6 power supply module for selected C9200 PoE switch power bays.
Cisco positions this part in the middle of the Catalyst 9200 power-supply range: it is not the 125W data-switch supply and it is not the 1KW supply for the full 48-port PoE group. The confirmed C9200 model set is C9200-24P, C9200-24PB, C9200-24PXG, and C9200-48PL, with 370W available PoE from one AC supply and 740W when the second 600W AC supply is added.
The easiest receiving error is treating all 600W Catalyst 9200 supplies as the same spare. Check the C9200 chassis family, Config 6 line, 100 to 240 VAC feed, IEC 320-C16 cord interface, second-bay blank or PSU coverage, and whether the quote calls for the standard order form or the `/2` secondary power supply option.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
PWR-C6-600WAC |
|
Cisco ordering form |
PWR-C6-600WAC (=) |
|
Product type |
AC power supply module |
|
Product family |
Cisco Catalyst 9200 Series power supply |
|
Cisco description |
600W AC Config 6 Power Supply |
|
Compatible C9200 PoE models |
C9200-24P, C9200-24PB, C9200-24PXG, and C9200-48PL |
|
C9200L support boundary |
C6 variant not supported on C9200L |
|
Rated maximum output |
600W |
|
Available PoE with one AC PSU |
370W on supported C9200 PoE models |
|
Available PoE with second AC PSU |
740W on supported C9200 PoE models |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
|
Input current |
7-2.8A |
|
Output rating |
54V at 11.1A |
Application Scenarios
Service depots can reserve PWR-C6-600WAC for C9200-24P, C9200-24PB, C9200-24PXG, and C9200-48PL sites where the installed chassis belongs to Cisco’s 600W AC power class.
A closet planned around 370W available PoE can move to Cisco’s listed 740W budget by adding the second 600W AC supply on the same supported C9200 switch model.
Inventory teams that support both switch families should keep PWR-C6-600WAC away from C9200L replacements, where the confirmed 600W receiving path is the C5 supply.
Product Comparison
|
Parameter |
PWR-C6-600WAC |
PWR-C5-600WAC (=) |
PWR-C6-1KWAC (=) |
|---|---|---|---|
|
Product family |
Catalyst 9200 power supply |
Catalyst 9200 power supply |
Catalyst 9200 power supply |
|
Cisco description |
600W AC Config 6 Power Supply |
600W AC Config 5 Power Supply |
1KW AC Config 6 Power Supply |
|
Product type |
AC power supply module |
AC power supply module |
AC power supply module |
|
Rated maximum output |
600W |
600W |
1000W |
|
Input voltage and frequency |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
100 to 240 VAC, 50 to 60 Hz |
|
Input current |
7-2.8A |
7-2.8A |
12-6A |
|
Output rating |
54V at 11.1A |
54V at 11.1A |
54V at 16.5A |
|
Total output BTU |
2047.3 BTU/hr, 600W |
2047.3 BTU/hr, 600W |
3412 BTU/hr, 1000W |
|
Input receptacle |
IEC 320-C16 |
IEC 320-C16 |
IEC 320-C16 |
|
Power cord rating |
15A |
15A |
15A |
|
C9200 PoE model support |
C9200-24P, C9200-24PB, C9200-24PXG, and C9200-48PL |
C9200-24P, C9200-24PB, C9200-24PXG, and C9200-48PL |
C9200-48P, C9200-48PB, and C9200-48PXG |
|
C9200L PoE model support |
C6 variant not supported on C9200L |
Supported C5 600W supply for C9200L PoE models |
C6 variant not supported on C9200L |
|
Available PoE with one AC PSU |
370W on supported C9200 PoE models |
370W on supported C9200 PoE models |
740W on supported C9200 48-port PoE models |
- In a PWR-C6-600WAC vs PWR-C5-600WAC comparison, the confirmed electrical values match across 600W output, 100 to 240 VAC input, 7-2.8A input current, 54V at 11.1A output, 2047.3 BTU/hr output, IEC 320-C16 receptacle, and 15A cord rating.
- The PWR-C6-600WAC difference from PWR-C5-600WAC is the Config 6 platform boundary: Cisco allows both variants on the supported C9200 PoE models, while C9200L PoE models stay on the C5 600W part.
- In a PWR-C6-600WAC vs PWR-C6-1KWAC comparison, the key difference is wattage class and switch category: the 600W supply fits the listed C9200 24-port PoE and C9200-48PL models, while the 1KW supply fits the listed C9200 48-port PoE models.
- For buyers comparing which model to choose, the order check should start with the installed switch model and only then confirm Config 5 or Config 6 receiving requirements.
Selection Guide
1. Start with the 600W C9200 model group
Place PWR-C6-600WAC on the BOM only after the installed switch is confirmed as C9200-24P, C9200-24PB, C9200-24PXG, or C9200-48PL.
2. Treat C9200L as a separate spare lane
Move C9200L PoE replacements to PWR-C5-600WAC, since Cisco does not place the C6 variant in the C9200L support path.
3. Confirm wattage before Config code
Reject a 1KW substitution if the chassis belongs to the 600W group; Cisco separates the 600W and 1KW power-supply categories by switch model.
4. Check whether this is the added PSU line
Keep PWR-C6-600WAC (=) for the standard Config 6 600W AC supply order and reserve PWR-C6-600WAC/2 for a secondary power-supply selection.
PoE Power Planning
|
Planning Item |
Cisco-Confirmed Value |
Procurement Impact |
|---|---|---|
|
One AC power supply |
370W available PoE on C9200-24P, C9200-24PB, C9200-24PXG, and C9200-48PL |
Ties endpoint count to a single installed 600W AC supply |
|
Second 600W AC power supply |
740W available PoE on the same supported C9200 models |
Adds the Cisco-listed higher PoE budget and redundant PSU path |
|
1KW supply boundary |
C9200-48P, C9200-48PB, and C9200-48PXG list the 1KW AC supply class |
Prevents a 600W supply from being ordered for the full 48-port PoE platform group |
|
Slot population |
A power supply or blank cover must occupy each PSU slot |
Keeps the chassis cooling path aligned with Cisco installation guidance |
Ordering Checklist
|
Control Point |
Required Evidence |
Ordering Risk |
|---|---|---|
|
PSU identity |
PWR-C6-600WAC or PWR-C6-600WAC (=) |
Avoids receiving a C5 spare when the BOM calls for the Config 6 line |
|
Secondary option |
PWR-C6-600WAC/2 only for the added supply position |
Keeps the base power-supply line distinct from the secondary PSU selection |
|
Chassis match |
C9200-24P, C9200-24PB, C9200-24PXG, or C9200-48PL |
Confirms the installed switch is in Cisco’s 600W C9200 PoE group |
|
C9200L exclusion |
C9200L PoE orders should use the C5 600W path |
Prevents a C9200 spare from being assigned to a C9200L replacement |
|
Facility input |
100 to 240 VAC at 50 to 60 Hz |
Confirms the rack feed matches the AC supply rating |
|
Cable interface |
IEC 320-C16 receptacle and 15A regional cord |
Reduces cord mismatch during receiving and rack staging |
|
PSU bay closure |
Second slot populated by a PSU or blank cover |
Keeps the chassis from operating with an open power-supply bay |
Specifications
Packaging weight and dimensions included:| Weight | 1.56 kg |
|---|---|
| Dimensions | 18 × 30 × 11.5 cm |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | PWR-C6-600WAC | Cisco ordering form | PWR-C6-600WAC (=) |
| Product type | AC power supply module | Cisco description | 600W AC Config 6 Power Supply |
| Product family | Cisco Catalyst 9200 Series power supply | Compatible C9200 models | C9200-24P, C9200-24PB, C9200-24PXG, and C9200-48PL |
| C9200L support boundary | C6 variant not supported on C9200L | C5/C6 functional note | No functional difference from PWR-C5-600WAC on supported C9200 models |
| Rated maximum output | 600W | Total output BTU | 2047.3 BTU/hr, 600W |
| Input voltage and frequency | 100 to 240 VAC, 50 to 60 Hz | Input current | 7-2.8A |
| Output rating | 54V at 11.1A | Output holdup time | 20 ms minimum at 100 VAC |
| Input receptacle | IEC 320-C16 | Power cord rating | 15A |
| Physical dimensions | 1.58 x 4.0 x 7.6 in. (H x W x D) | Weight | 1.7 lb (0.77 kg) |
| Power supply slots | Two internal power supply slots on Catalyst 9200 switch chassis | Slot population rule | Each power supply slot must contain a power supply or a blank cover |
| FRU behavior | Main module field replaceable; redundant module hot-swappable | Minimum software support note | PWR-C6 AC modules supported from Cisco IOS XE Gibraltar 16.11.1 |
| Available PoE with one AC PSU | 370W on supported C9200 PoE models | Available PoE with second AC PSU | 740W on supported C9200 PoE models |
