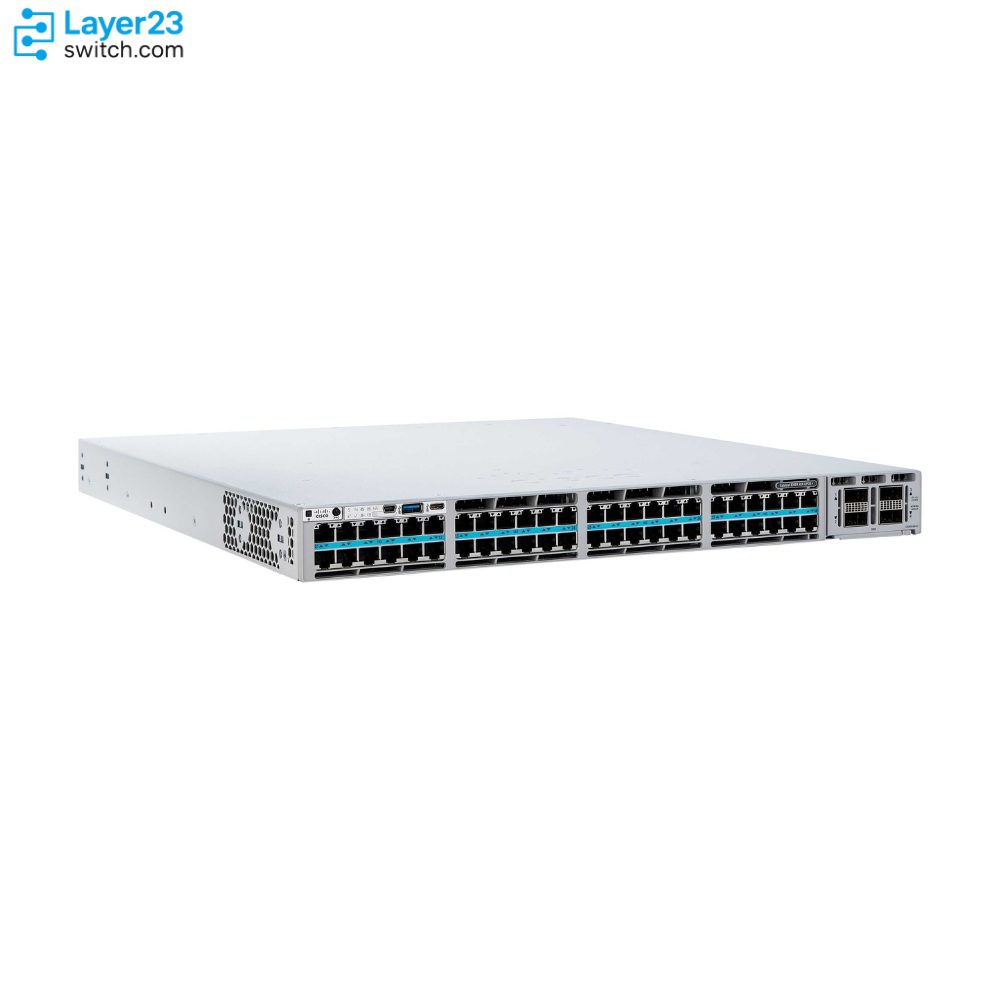

C9300X-48HX-E – 48x 10G UPOE+ Ports – Modular Uplink – 590W PoE Budget
3/mo Solds
Cisco C9300X-48HX-E Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9300X-48HX-E. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.
Optics & Cables Compatible with Cisco C9300X-48HX-E
-
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $2,658.11.$71.68Current price is: $71.68. Condition: New Factory Sealed -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $10,672.47.$170.00Current price is: $170.00. Condition: New Factory Sealed -
SFP-25G-SR-S
25GBASE-SR SFP28 - 850nm MMF - 100m OM4Original price was: $2,658.11.$314.00Current price is: $314.00. Condition: New Factory Sealed -
SFP-10/25G-LR-S
10/25GBASE-LR SFP28 - 1310nm 10km SMF TransceiverOriginal price was: $5,877.20.$333.50Current price is: $333.50. Condition: New Factory Sealed -
QSFP-40G-SR4
40G SR4 QSFP - MPO-12 MMF - 4x10G BreakoutOriginal price was: $8,001.01.$139.00Current price is: $139.00. Condition: New Factory Sealed -
QSFP-40G-SR-BD
40G SR-BiDi QSFP - LC MMF - 150m OM4Original price was: $2,925.26.$120.00Current price is: $120.00. Condition: New Factory Sealed -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$62.50Current price is: $62.50. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed
Power Supplies & Fans Compatible with Cisco C9300X-48HX-E
-
PWR-C1-1100WAC-P
1100W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $2,317.88.$635.40Current price is: $635.40. Condition: New Factory Sealed -
PWR-C1-1900WAC-P
1900W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $12,784.00.$1,598.00Current price is: $1,598.00. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9300X-48HX-E Description
The C9300X-48HX-E is a Cisco Catalyst 9300X Series access switch built for 48 ports of 10G Multigigabit copper (10G/5G/2.5G/1G/100M) with Cisco UPOE+ power sourcing and modular uplinks, ordered with the Network Essentials perpetual license. It targets campus access closets that need to drive high-power endpoints such as Wi-Fi 6E/7 access points, PTZ cameras, and mGig-capable workstations over a single cable run instead of pulling separate fiber or power. The switch ships with a single PWR-C1-1100WAC-P 1100W AC supply and delivers a 590W PoE budget out of the box, with StackWise-1T stacking at up to 8 units and support for field-replaceable C9300X-NM network modules to raise uplink speed without a forklift upgrade. Network Essentials covers Layer 2, routed access, and standard telemetry, positioning this SKU for access-layer deployments that do not require the advanced routing, segmentation, or automation entitlements reserved for Network Advantage.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300X-48HX-E |
|
Port Layout |
48x 10G Multigigabit UPOE+ (10G/5G/2.5G/1G/100M) |
|
Uplinks |
Modular, C9300X-NM network module bay |
|
Switching Capacity |
1,760 Gbps (2,760 Gbps stacked) |
|
Forwarding Rate |
1309 Mpps (2232 Mpps stacked) |
|
Stacking |
StackWise-1T, up to 8 members |
|
Default power supply model |
PWR-C1-1100WAC-P |
|
Default power supply wattage |
1100W AC |
|
Default PoE budget |
590W |
|
Maximum PoE budget with second 1900W AC supply |
2490W |
|
Network license |
Network Essentials |
|
Minimum software release |
Cisco IOS XE 16.5.1a |
|
Fan modules |
3x field-replaceable, N+1 redundant |
Product Performance
Key Features
Each of the 48 ports negotiates 10G/5G/2.5G/1G/100M and sources Cisco UPOE+, so a single closet run can carry both mGig bandwidth and high-draw PoE loads without separate power cabling to the endpoint.
The uplink bay accepts field-replaceable C9300X-NM modules, letting a 10G/25G/40G/100G uplink upgrade happen in the same chassis instead of forcing a switch replacement when core bandwidth needs grow.
StackWise-1T stacking runs at 1 Tbps across up to 8 members when stacked with other C9300X units, giving the access layer a single logical switch with more east-west headroom than the StackWise-480 fabric used by non-X Catalyst 9300 models.
The default 1100W AC supply yields a 590W PoE budget on its own; adding a second 1900W AC supply raises the available PoE budget to 2490W, which matters when a closet’s endpoint count grows past what one supply can carry.
Network Essentials on this PID covers Layer 2 switching, routed access, and standard telemetry, so segments that need VXLAN, SD-Access, or unlimited-scale OSPF must budget for a Network Advantage SKU instead of this license tier.
C9300X-48HX supports Cisco StackPower+, which pools power across stack members at a larger shared budget than the StackPower feature on non-X Catalyst 9300 switches, so a stack can rebalance available power headroom across units instead of sizing every member’s supply in isolation.
Application Scenarios
Deployed as a floor-level access switch for Multigigabit-capable access points, PTZ cameras, and desktop endpoints that need UPOE+ power over a single Cat 5e/6/6A run instead of a separate power source.
Used where individual endpoints such as Wi-Fi 6E/7 APs exceed 1G and require a 2.5G/5G/10G Multigigabit port to avoid becoming the bottleneck between the access point and the wiring closet.
Added into a StackWise-1T stack with other C9300X units to grow port count in a single logical switch while keeping the same license tier and management plane across the stack.
Product Comparison
|
Parameter |
C9300X-48HX-E | ||
|---|---|---|---|
|
Port count and speed |
48x 10G Multigigabit |
48x 10G Multigigabit |
48x 10G Multigigabit |
|
PoE support |
Cisco UPOE+ |
Cisco UPOE+ |
Data only, no PoE |
|
Default power supply |
PWR-C1-1100WAC-P (1100W AC) |
PWR-C1-1100WAC-P (1100W AC) |
PWR-C1-715WAC-P (715W AC) |
|
Default PoE budget |
590W |
590W |
Not applicable |
|
Maximum PoE budget with second 1900W AC supply |
2490W |
2490W |
Not applicable |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
|
Switching capacity |
1,760 Gbps (2,760 Gbps stacked) |
1,760 Gbps (2,760 Gbps stacked) |
1,760 Gbps (2,760 Gbps stacked) |
|
Stacking |
StackWise-1T, up to 8 members |
StackWise-1T, up to 8 members |
StackWise-1T, up to 8 members |
- The C9300X-48HX-E and C9300X-48HX-A share identical hardware, port layout, and 590W default PoE budget; the only difference is license tier, so a design that only needs Layer 2 and routed access can order the -E PID and skip the Network Advantage subscription cost, while a design that needs VXLAN, SD-Access, or unlimited-route OSPF must move to C9300X-48HX-A.
- The C9300X-48HX-E and C9300X-48TX-E run on the same C9300X platform and switching capacity, but the C9300X-48TX-E carries no UPOE+ circuitry and ships on a smaller 715W AC supply, so a closet with only data-only workstations or fiber-fed endpoints can use the lower-cost data-only PID instead of paying for PoE capacity it will not use.
- Deciding among the three starts with whether the deployment needs Cisco UPOE+ power at all: if it does not, the C9300X-48TX-E removes PoE budget as a selection factor entirely; if it does, the choice narrows to license tier between the -E and -A PIDs, which does not change port count, power supply, or switching capacity in this comparison.
Selection Guide
1. Upgrade Path When Segmentation Or SD-Access Is Needed
This PID ships with Network Essentials, which covers Layer 2 and routed access; the same C9300X-48HX hardware in Network Advantage adds VXLAN, SD-Access, and unlimited-route OSPF, so a deployment that later needs network segmentation or SD-Access has to move to the C9300X-48HX-A PID rather than a software upgrade on this license.
2. No-PoE Closets Do Not Need The UPOE+ Supply Premium
This SKU carries Cisco UPOE+ circuitry and a 1100W default supply for a 590W PoE budget; the C9300X-48TX-E on the same platform drops PoE support entirely on a 715W supply, so a closet with no PoE endpoints can move to the data-only PID and avoid paying for power sourcing capacity it will not use.
3. Stack Mixing Boundary With Non-X Models
StackWise-1T only runs at its full 1 Tbps rate when every member is a C9300X SKU at the same license tier; adding a non-X Catalyst 9300 member to the same stack drops the whole stack to StackWise-480, so a design that needs full StackWise-1T throughput must keep this SKU out of mixed C9300/C9300X stacks.
4. Network Module Bay Reuse
This SKU’s uplink bay accepts the same C9300X-NM modules across the -E and -A license tiers, so a stack that mixes both PIDs at the same license level keeps a single network module inventory instead of stocking separate modules per license tier.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Default power supply |
PWR-C1-1100WAC-P (1100W AC) |
|
Default PoE budget |
590W |
|
PoE standard supported |
Cisco UPOE+ (also PoE+ and PoE) |
|
Second supply for extended budget |
PWR-C1-1900WAC-P or PWR-C1-1900WHV-T |
|
Maximum PoE budget with second 1900W AC supply |
2490W |
|
Maximum PoE budget with two 1900W-class supplies |
Up to 3290W (per Cisco datasheet upgrade path) |
|
Port count to budget against |
48 Multigigabit UPOE+ ports |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Network license match |
Confirm the Network Essentials perpetual license matches the Cisco Catalyst or Cisco DNA Essentials subscription term ordered alongside it. |
A mismatched license tier and subscription tier can block activation in Smart Licensing. |
|
Smart Account binding |
Confirm the target Smart Account and Virtual Account before the order is placed. |
A license tied to the wrong account can stall entitlement activation after delivery. |
|
Second power supply need |
Confirm whether the deployment’s PoE load will exceed the 590W default budget before deciding on a second supply. |
Ordering without the second PWR-C1-1900WAC-P supply leaves no path to the 2490W extended PoE budget without a follow-up order. |
|
Network module compatibility |
Confirm any C9300X-NM module ordered separately is on the C9300X-compatible list, not a non-X C9300 module. |
C9300X network modules are not cross-compatible with the non-X Catalyst 9300 generation. |
|
Hardware coverage terms |
Confirm the Cisco Enhanced Limited Lifetime Hardware coverage terms apply to this PID before relying on Next-Business-Day replacement. |
Coverage requires the original owner and stops 5 years after Cisco’s end-of-life announcement for the platform. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
Field-installable Catalyst 9300X uplink network modules confirmed for the C9300X-48HX modular uplink bay, covering 10G Multigigabit, 25G, 40G, and 100G uplink options. | |
|
Cisco-confirmed second AC power supply option for the C9300X-48HX power bay, the documented upgrade path from the default PWR-C1-1100WAC-P for extended PoE headroom. | |
|
StackWise-1T data stacking cables (0.5 m / 1 m / 3 m) for stacking additional C9300X-48HX or other C9300X units. | |
|
FAN-T2= |
Field-replaceable fan module spare for the standard three-fan N+1 redundant fan tray. |
C9300X-48HX-E Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300X-48HX-E | Network license | Network Essentials |
| Port layout | 48x 10G Multigigabit UPOE+ (10G/5G/2.5G/1G/100M) | PoE standard | Cisco UPOE+, PoE+, PoE |
| Uplinks | Modular, C9300X-NM network module bay | Default PoE budget | 590W (PWR-C1-1100WAC-P) |
| Switching capacity | 1,760 Gbps (2,760 Gbps stacked) | Maximum PoE budget with second 1900W AC supply | 2490W |
| Forwarding rate | 1309 Mpps (2232 Mpps stacked) | Maximum PoE budget with two 1900W-class supplies | Up to 3290W |
| Stacking | StackWise-1T, up to 8 members | StackPower support | StackPower+ (larger budget than C9300 StackPower) |
| MAC address table | 32,000 entries | Default power supply | PWR-C1-1100WAC-P, 1100W AC |
| IPv4 routes | 39,000 (24,000 connected + 15,000 indirect) | Power supply options | Dual redundant bays, second supply field-installable |
| IPv6 routes | 19,500 entries | Fan modules | 3x field-replaceable, N+1 redundant, FAN-T2= |
| Multicast routes | 8,000 entries | Minimum software release | Cisco IOS XE 16.5.1a |
| QoS table entries | 4,000 entries | MTBF | 185,420 hours |
| ACL table entries | 8,000 entries | Operating temperature | -5C to 45C (up to 5000 ft/1500m) |
| DRAM / Flash | 16 GB DRAM, 16 GB Flash | Storage temperature | -40C to 70C |
| VLANs / SVIs | 4094 VLAN IDs, 1000 SVIs | Relative humidity | 5%-90% noncondensing |
| Routed ports per stack | 448 ports | Operating altitude | Up to 10,000 ft (3000m) at 45C max |
| Packet buffer | 32 MB | Acoustic noise | ISO 7779 measured, ISO 9296 declared |
| Dimensions (with default supply) | 1.73 x 17.5 x 22.03 in | Compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, RoHS 5 |
| Weight (with default supply) | 14.6 lb (6.62 kg) | EMC certifications | FCC Part 15, EN 55032 Class A, CISPR 32 Class A, ICES-003 Class A |
| Peak power draw (100% PoE, 115Vac) | 694.4W with no network module installed | Warranty | Cisco Enhanced Limited Lifetime Hardware Warranty (E-LLW) |
| Management interfaces | RJ-45 Ethernet management, RJ-45-to-DB9 console, USB console |
Get More Information
Need pricing, stock, or shipping details for the C9300X-48HX-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
