C9300L-48T-4G-E Description
The C9300L-48T-4G-E is a Cisco Catalyst 9300L Series stackable access switch for wiring closets that connect locally powered endpoints over Gigabit copper. The switch has 48 10/100/1000 data-only ports, four fixed 1G SFP uplinks, 104 Gbps of switching capacity and Network Essentials licensing, with no PoE budget on its default 350W supply. Network Essentials covers Layer 2 and routed access with OSPF up to 1,000 routes, but not BGP, VXLAN or MPLS.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-48T-4G-E |
|
Product type |
Fixed-uplink stackable access switch |
|
Downlink ports |
48 x 10/100/1000 Mbps data copper ports |
|
Uplink ports |
4 x 1G SFP fixed uplink ports |
|
Network license |
Network Essentials |
|
Default power supply |
PWR-C1-350WAC-P |
|
PoE support |
No PoE |
|
Stacking architecture |
StackWise-320 |
|
Switching capacity |
104 Gbps standalone; 424 Gbps with stacking |
|
Forwarding rate |
77.38 Mpps standalone; 315.48 Mpps with stacking |
|
Introductory software release |
Cisco IOS XE Gibraltar 16.11.1c |
Product Performance
Key Features
The license covers Layer 2, routed access with OSPF up to 1,000 routes, 802.1X and MACsec-128. BGP, VXLAN and MPLS are Network Advantage features.
The 48 copper ports carry no PoE, so endpoints that need inline power require a separate power source.
Four SFP uplinks are built in, and the fixed-uplink design means no network module is chosen or installed.
Stacks of up to eight members use 320 Gbps links and lift switching capacity from 104 Gbps to 424 Gbps. All members need the same license level.
The 48 access ports and four uplinks total 52 Gbps, or 104 Gbps counted in both directions, so every port can run at full speed at once.
Cisco IOS XE 16.11.x release notes list no support for StackPower, mGig or breakout interfaces on C9300L models.
Application Scenarios
An office floor closet can connect desktops, printers and thin clients over 48 Gigabit copper ports and reach the distribution layer on four 1G SFP uplinks.
A library or classroom block where devices bring their own power can use the data-only ports without reserving any PoE capacity.
A branch that grows past 48 ports can add switches to a StackWise-320 stack of up to eight members and keep one management point.
Product Comparison
|
Parameter |
C9300L-48T-4G-E | |||
|---|---|---|---|---|
|
Total 10/100/1000, Multigigabit copper or SFP fiber |
48 ports data |
48 ports data |
48 ports data |
48 ports PoE+ |
|
Uplink configuration |
4x 1G fixed uplinks |
4x 1G fixed uplinks |
4x 10G/1G fixed uplinks |
4x 1G fixed uplinks |
|
Default AC power supply |
PWR-C1-350WAC-P (350W AC) |
PWR-C1-350WAC-P (350W AC) |
PWR-C1-350WAC-P (350W AC) |
PWR-C1-715WAC-P (715W AC) |
|
Available PoE power (default) |
No PoE |
No PoE |
No PoE |
505W |
|
Available PoE power with 1100W secondary PS |
No PoE |
No PoE |
No PoE |
1440W |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Stack bandwidth |
320 Gbps (StackWise-320) |
320 Gbps (StackWise-320) |
320 Gbps (StackWise-320) |
320 Gbps (StackWise-320) |
|
Switching capacity |
104 Gbps |
104 Gbps |
176 Gbps |
104 Gbps |
C9300L-48T-4G-E and C9300L-48T-4G-A share the same data-only hardware with 4 x 1G SFP uplinks and a PWR-C1-350WAC-P, and differ in license: C9300L-48T-4G-E ships with Network Essentials and C9300L-48T-4G-A with Network Advantage. When Network Advantage is needed on day one, order C9300L-48T-4G-A, or upgrade an installed switch later with a C9300L-LIC= term (C9300L-48-E-A-3, -5 or -7), which cannot be placed on the same order as the switch. Closets that need 10G/1G SFP+ uplinks move to C9300L-48T-4X-E at 176 Gbps standalone against 104 Gbps. Closets that power endpoints over Ethernet need C9300L-48P-4G-E, which keeps the 4 x 1G SFP uplinks and adds 505W of default PoE on a PWR-C1-715WAC-P.
Ordering Checklist
- Subscription term: Order a 48-port Cisco DNA Essentials term such as C9300L-DNA-E-48-3Y, C9300L-DNA-E-48-5Y or C9300L-DNA-E-48-7Y; CCW defaults to Advantage with a 5-year term. The subscription tier must match the Network Essentials or Network Advantage license on the switch, and the default does not suit every suffix.
- Second power supply: A second supply identical to the primary is selected by default; C9300L-SPS-NONE removes it. Without it the switch runs on one supply instead of the two-supply layout the configurator assumes.
- Stacking kit: C9300L-STACK-KIT with a 50 cm cable is the default; 1 m and 3 m cables are the other options. A stack needs the kit and a cable long enough for the rack layout.
- Power cords: Two cords ship per switch, North America by default; select the cord type for the destination country. The default cord does not fit outlets outside North America.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Stack kit for C9300L SKUs with two stack adapters and one stack cable | |
|
C9300L-STACK-KIT2 |
Stack Kit 2 for C9300L SKUs with two stack adapters and one stack cable |
|
50 cm Type 3 stacking cable for C9300L Stack Kit builds | |
|
1 m Type 3 stacking cable for C9300L Stack Kit builds | |
|
STACK-T3-3M |
3 m Type 3 stacking cable for C9300L Stack Kit builds |
|
50 cm Type 3A stacking cable for C9300L Stack Kit2 builds | |
|
1 m Type 3A stacking cable for C9300L Stack Kit2 builds | |
|
3 m Type 3A stacking cable for C9300L Stack Kit2 builds | |
|
C9300L Cisco DNA Essentials 48-port 3-year term license | |
|
C9300L-DNA-E-48-5Y |
C9300L Cisco DNA Essentials 48-port 5-year term license |
|
C9300L-DNA-E-48-7Y |
C9300L Cisco DNA Essentials 48-port 7-year term license |
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

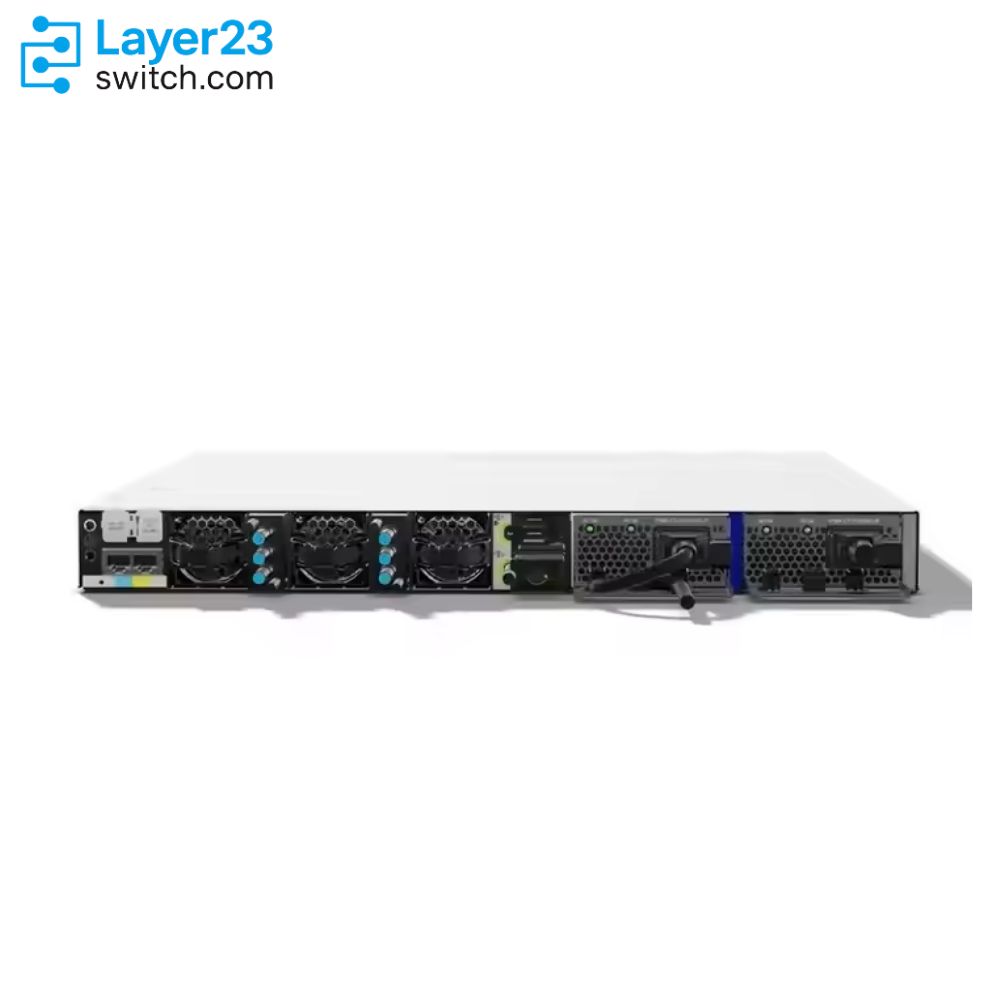

Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-48T-4G-E | Product type | Fixed-uplink stackable access switch |
| Network license | Network Essentials | Introductory software release | Cisco IOS XE Gibraltar 16.11.1c |
| Downlink ports | 48 x 10/100/1000 Mbps data copper ports | Uplink ports | 4 x 1G SFP fixed uplink ports |
| PoE support | No PoE | Default power supply | PWR-C1-350WAC-P |
| Modular uplinks | No modular uplink slot on C9300L fixed-uplink models | StackPower support | Not supported on C9300L fixed-uplink models |
| Stacking architecture | StackWise-320 | Optional stacking hardware | C9300L-STACK-KIT or C9300L-STACK-KIT2 |
| Switching capacity | 104 Gbps standalone | Switching capacity with stacking | 424 Gbps |
| Forwarding rate | 77.38 Mpps standalone | Forwarding rate with stacking | 315.48 Mpps |
| MGig support | Not supported on C9300L models listed in IOS XE 16.11.x release notes | Breakout interfaces | Not supported on C9300L models listed in IOS XE 16.11.x release notes |
| Weight | 7.0 kg (15.41 lb) with default power supply | Mean time between failures | 387,860 hours |
