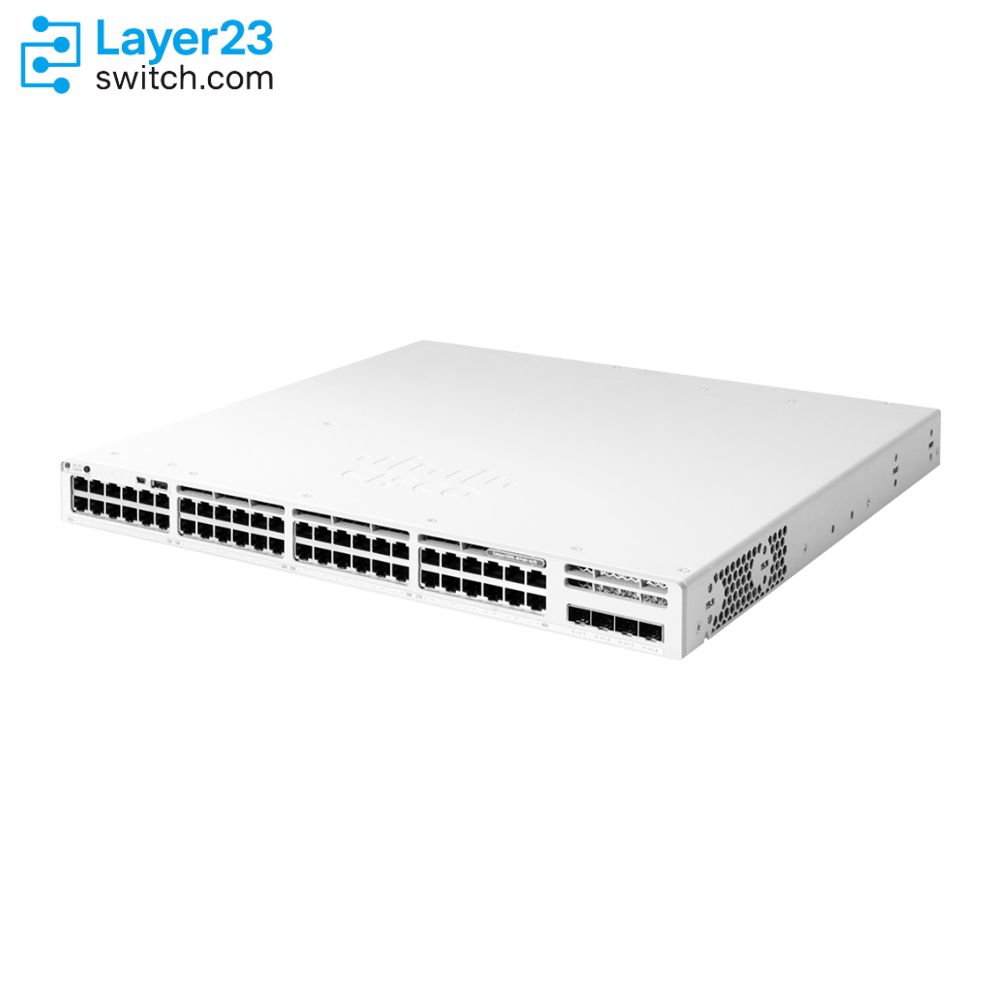

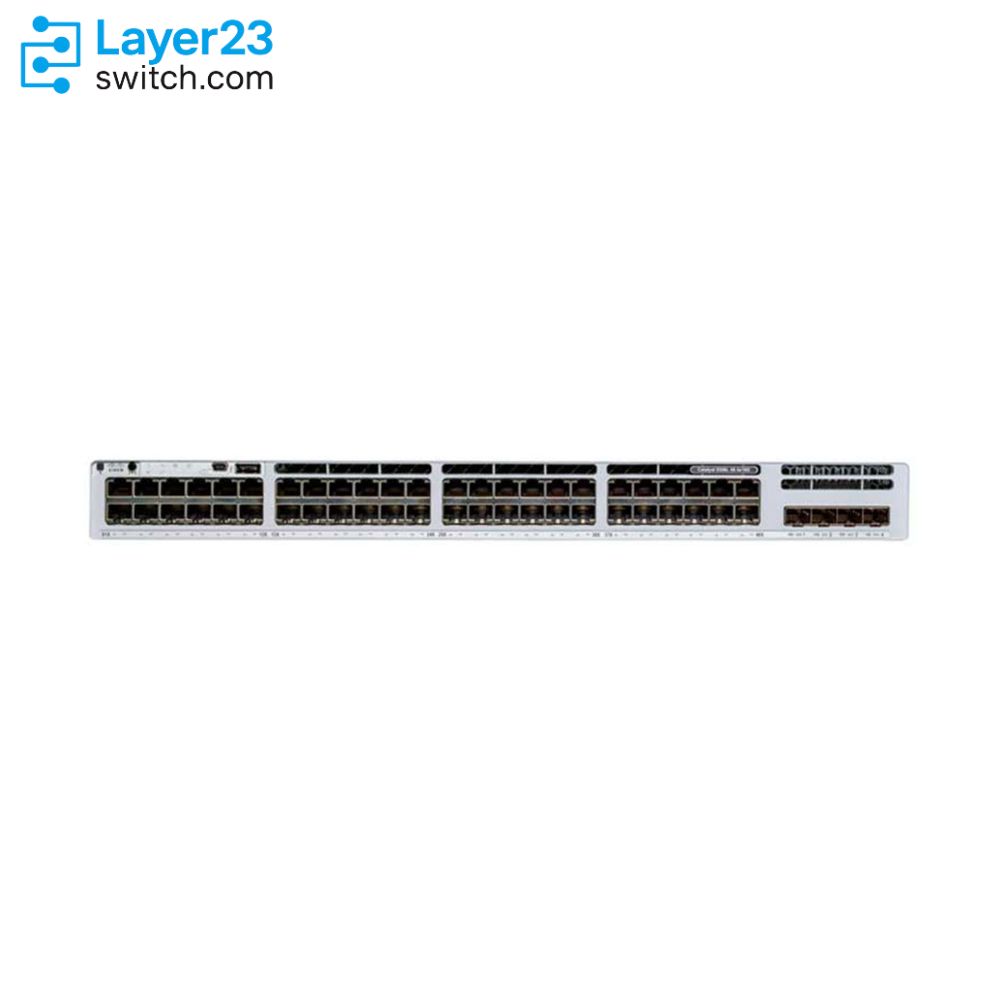

C9300L-48T-4G-A – 48x1G Data Ports – 4x1G Fixed Uplinks – Network Advantage
Cisco C9300L-48T-4G-A Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9300L-48T-4G-A. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.-
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$70.00Current price is: $70.00. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $5,329.57.$205.00Current price is: $205.00. Condition: New Factory Sealed -
GLC-ZX-SMD
1000BASE-ZX SFP - 70km SMF - EXT DOMOriginal price was: $10,672.47.$215.70Current price is: $215.70. Condition: New Factory Sealed
-
PWR-C1-350WAC-P
350W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $792.96.$166.00Current price is: $166.00. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9300L-48T-4G-A Description
The C9300L-48T-4G-A is a Cisco Catalyst 9300L fixed-uplink stackable access switch built around 48 10/100/1000 Mbps data-only copper ports and four fixed 1G SFP uplinks, running on the Network Advantage license tier. Cisco lists the C9300L-48T-4G hardware profile at 104 Gbps standalone switching capacity and 77.38 Mpps standalone forwarding, scaling to 424 Gbps and 315.48 Mpps across a StackWise-320 stack of up to eight members. The switch ships with the PWR-C1-350WAC-P 350W AC power supply and carries no PoE budget, since the C9300L-48T-4G port design is data only rather than PoE+ or Cisco UPOE. Network Advantage on this PID adds the segmentation, automation, and high-availability feature set, including VRF, VXLAN, NETCONF/RESTCONF, and MACsec-256, on top of the Layer 2 and limited routed-access baseline in Network Essentials. It fits campus wiring closets that need a full 48-port Gigabit Ethernet copper footprint for locally powered endpoints, with a fixed Gigabit SFP uplink handoff rather than a modular 10G/25G network module.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-48T-4G-A |
|
Product type |
Fixed-uplink stackable access switch |
|
Access ports |
48 x 10/100/1000 Mbps data copper ports |
|
Uplink ports |
4 x 1G SFP fixed uplink ports |
|
Network license |
Network Advantage |
|
Default power supply |
PWR-C1-350WAC-P (350W AC) |
|
PoE support |
No PoE (data-only port design) |
|
Stacking architecture |
StackWise-320, up to 8 members |
|
Switching capacity |
104 Gbps standalone; 424 Gbps with stacking |
|
Forwarding rate |
77.38 Mpps standalone; 315.48 Mpps with stacking |
|
Minimum software release |
Cisco IOS XE Release 16.11.1b |
Product Performance
Key Features
The `-A` suffix ties this 48-port data-only switch to Network Advantage, carrying VRF, VXLAN, unlimited-route OSPF, and MACsec-256 into the same C9300L-48T-4G chassis that ships as Network Essentials under the `-E` suffix.
Four 1G SFP uplinks are built into the switch, so the bill of materials does not need a separate Catalyst 9300 modular network module to reach the distribution layer.
The C9300L-48T-4G port design carries no PoE budget, which separates this SKU from the C9300L-48P-4X and C9300L-48PF-4X Catalyst 9300L profiles that reserve a PoE+ power budget on the same chassis footprint.
Catalyst 9300L switches stack over StackWise-320 using the C9300L-STACK-KIT or C9300L-STACK-KIT2 accessory, and only mix with other fixed-uplink C9300L or C9300LM members at the same license level.
Cisco maps the C9300L-48T-4G hardware profile to the PWR-C1-350WAC-P default supply, the smallest power option in the Catalyst 9300 family, reflecting the absence of PoE output on this port design.
Ordering this PID pulls in the C9300L Cisco DNA/Catalyst Advantage 48-port term subscription family, keeping the mandatory software subscription tier matched to the built-in Network Advantage license.
Application Scenarios
The C9300L-48T-4G-A fits wiring closets that need a full 48-port Gigabit copper footprint for desktops, printers, and other locally powered endpoints without a PoE requirement.
This SKU matches sites standardizing on Network Advantage across their Catalyst 9300L fixed-uplink access layer while the uplink handoff stays at 1G SFP rather than 10G/1G SFP+.
Added into an existing Network Advantage Catalyst 9300L stack when expansion adds data-only user ports, keeping the stack on the same fixed-uplink accessory and license family as neighboring PoE switches.
Product Comparison
|
Parameter |
C9300L-48T-4G-A | |||
|---|---|---|---|---|
|
Product type |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
|
Access ports |
48 x 10/100/1000 Mbps data |
48 x 10/100/1000 Mbps data |
48 x 10/100/1000 Mbps data |
48 x 10/100/1000 Mbps PoE+ |
|
Uplink ports |
4 x 1G SFP fixed |
4 x 1G SFP fixed |
4 x 10G/1G SFP+ fixed |
4 x 10G/1G SFP+ fixed |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
Default power supply |
PWR-C1-350WAC-P |
PWR-C1-350WAC-P |
PWR-C1-350WAC-P |
PWR-C1-715WAC-P |
|
PoE support |
No PoE |
No PoE |
No PoE |
PoE+ with 505W default available PoE |
|
Stacking architecture |
StackWise-320 |
StackWise-320 |
StackWise-320 |
StackWise-320 |
|
Switching capacity |
104 Gbps standalone; 424 Gbps with stacking |
104 Gbps standalone; 424 Gbps with stacking |
176 Gbps standalone; 496 Gbps with stacking |
176 Gbps standalone; 496 Gbps with stacking |
|
Forwarding rate |
77.38 Mpps standalone; 315.48 Mpps with stacking |
77.38 Mpps standalone; 315.48 Mpps with stacking |
130.95 Mpps standalone; 369.05 Mpps with stacking |
130.95 Mpps standalone; 369.05 Mpps with stacking |
- Ordering C9300L-48T-4G-A instead of C9300L-48T-4G-E keeps the identical 48-port data-only hardware, 4x1G SFP uplinks, and performance values in place; the only change is Network Advantage replacing Network Essentials, so a design that never needs VRF, VXLAN, or unlimited-route OSPF can drop to the C9300L-48T-4G-E order line and skip the Advantage subscription cost.
- Moving from C9300L-48T-4G-A to C9300L-48T-4X-A trades the fixed 1G SFP uplinks for 10G/1G SFP+ uplinks and steps the switching capacity from 104 Gbps to 176 Gbps standalone; a closet whose distribution handoff is already planned at 10G should take the C9300L-48T-4X-A line instead of pairing this Gigabit-uplink model with optics it cannot use.
- Against C9300L-48P-4X-A, the C9300L-48T-4G-A gives up PoE+ output entirely: the C9300L-48P-4X-A carries a 505W default PoE budget on a 715W AC supply for powered endpoints, while this SKU has no PoE budget on its smaller 350W AC supply, so any closet with phones, cameras, or access points needs the C9300L-48P-4X-A line instead of this data-only model.
- For deciding which SKU to order in this group, settle the uplink speed requirement first, since it separates the C9300L-48T-4G and C9300L-48T-4X hardware outright, then confirm whether any port on the run needs PoE, since that determines the C9300L-48T-4G versus C9300L-48P-4X profile; license tier is the last variable to fix once the hardware profile is set.
Selection Guide
1. Gigabit Uplink Ceiling Before The 4X Step
Keep C9300L-48T-4G-A on the bill of materials while the distribution handoff stays at 1G SFP; once the design calls for a 10G/1G SFP+ uplink, the fixed-uplink hardware itself has to change to C9300L-48T-4X-A because the C9300L-48T-4G uplink ports are not field-upgradable.
2. Advantage Commitment Without Segmentation Use
This SKU carries Network Advantage and its matching Cisco DNA/Catalyst Advantage subscription; when the deployment only needs Layer 2 switching and basic routed access with no VRF, VXLAN, or MACsec-256 requirement, C9300L-48T-4G-E covers the same C9300L-48T-4G hardware at the lower Network Essentials tier.
3. No PoE Path On This Chassis
Because the C9300L-48T-4G port design carries no PoE budget on the PWR-C1-350WAC-P supply, any run that includes IP phones, access points, or PoE cameras has to move to the C9300L-48P-4X-A profile rather than adding a second supply to this SKU for power.
4. Advantage Tier Must Match Across The Stack
C9300L-48T-4G-A stacks over StackWise-320 and only mixes with other Catalyst 9300L or 9300LM fixed-uplink members running the same Network Advantage tier; a plan to stack it with modular-uplink Catalyst 9300 or 9300X hardware, or with a Network Essentials member, is not supported and needs a separate stack group.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact order code |
C9300L-48T-4G-A |
Keeps the order on the 48-port data-only Catalyst 9300L switch with Network Advantage |
|
Endpoint power boundary |
No PoE on the C9300L-48T-4G profile |
Prevents powered access devices from being assigned to a data-only switch |
|
Uplink media |
Four fixed 1G SFP uplink ports |
Separates the order from 4X models before optics and fiber are selected |
|
License and subscription family |
Network Advantage with the C9300L Cisco DNA/Catalyst Advantage 48-port term |
Aligns the `-A` suffix with the correct Smart Account entitlement |
|
Stack materials |
C9300L-STACK-KIT or C9300L-STACK-KIT2 with the chosen cable length |
Keeps StackWise-320 hardware inside the fixed-uplink Catalyst 9300L path |
|
Power accessories |
PWR-C1-350WAC-P baseline plus any redundant supply and regional AC cord |
Completes the power bill without adding unsupported PoE assumptions |
Optional Add-ons
|
Model |
Description |
|---|---|
|
Stack kit for C9300L SKUs with two stack adapters and one stack cable | |
|
C9300L-STACK-KIT2 |
Stack Kit 2 for C9300L and C9300LM SKUs with two stack adapters and one stack cable |
|
50 cm Type 3 stacking cable for C9300L Stack Kit builds | |
|
1 m Type 3 stacking cable for C9300L Stack Kit builds | |
|
STACK-T3-3M |
3 m Type 3 stacking cable for C9300L Stack Kit builds |
|
50 cm Type 3A stacking cable for C9300L Stack Kit2 builds | |
|
1 m Type 3A stacking cable for C9300L Stack Kit2 builds | |
|
3 m Type 3A stacking cable for C9300L Stack Kit2 builds | |
|
C9300L-DNA-A-48-3Y |
C9300L Cisco DNA Advantage 48-port 3-year term license |
|
C9300L Cisco DNA Advantage 48-port 5-year term license |

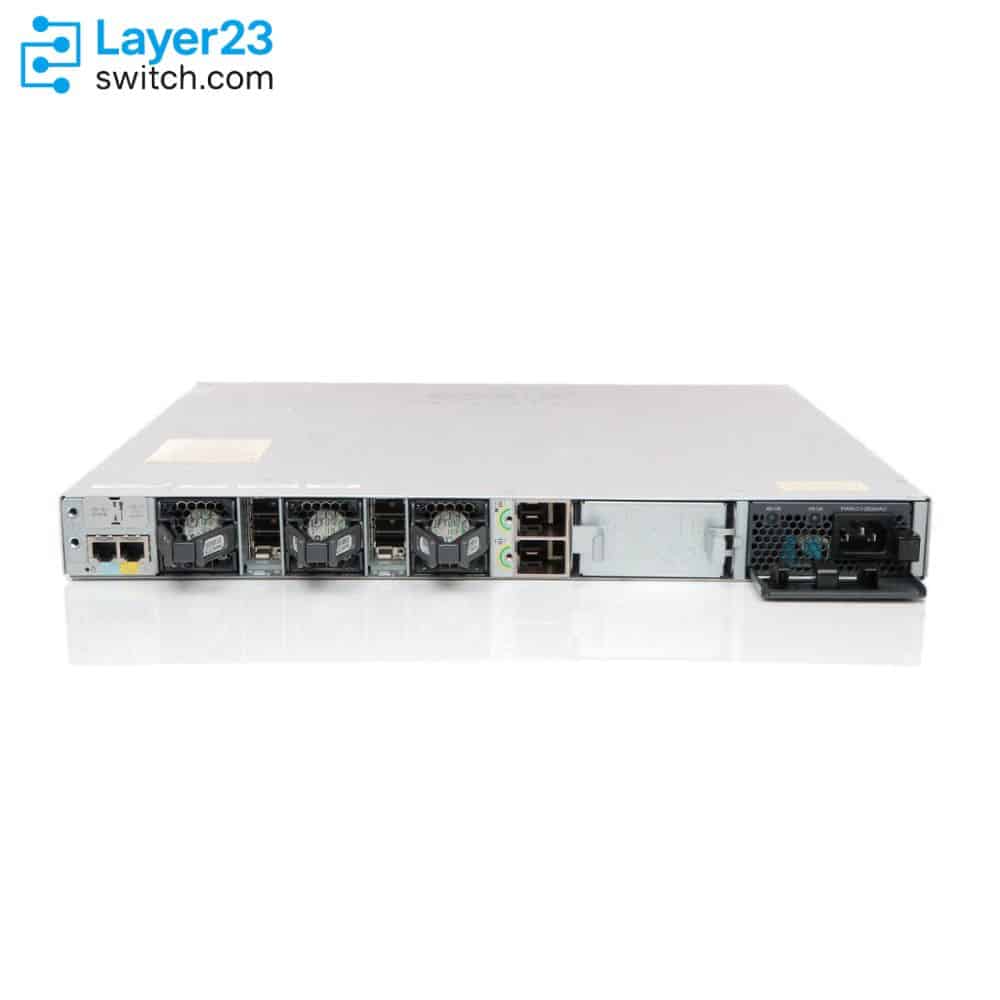

C9300L-48T-4G-A Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-48T-4G-A | Product type | Fixed-uplink stackable access switch |
| Network license | Network Advantage | Minimum software release | Cisco IOS XE Release 16.11.1b |
| Access ports | 48 x 10/100/1000 Mbps data copper ports | Uplink ports | 4 x 1G SFP fixed uplink ports |
| PoE support | Not a PoE Switch (Data Only) | Default power supply | PWR-C1-350WAC-P (350W AC) |
| Power supply slots | 2 internal slots; ships with 1 supply installed and a blank module in the second slot | Modular uplinks | None; fixed uplink design with no network module bay |
| StackPower support | Not supported on C9300L fixed-uplink models | Stacking architecture | StackWise-320 |
| Stacking bandwidth | 320 Gbps | Stack kit options | C9300L-STACK-KIT or C9300L-STACK-KIT2, up to 8 members |
| Supported stack members | Catalyst 9300L and 9300LM models at the same license level | Switching capacity | 104 Gbps standalone; 424 Gbps with stacking |
| Forwarding rate | 77.38 Mpps standalone; 315.48 Mpps with stacking | MAC addresses | 32,000 |
| IPv4 routes | 32,000 total with 24,000 direct and 8,000 indirect routes | IPv6 routes | 16,000 |
| Multicast routes | 8,000 | QoS / ACL TCAM entries | 5,120 each |
| VLAN IDs | 4094 | SVI total | 1000 |
| Packet buffer | 16 MB | Flexible NetFlow entries | 64,000 flows |
| DRAM | 8 GB | Flash | 16 GB |
| Jumbo frames | 9198 bytes | Management interfaces | 10/100/1000 Ethernet management port, RJ-45 console port, USB mini-Type B console port |
| Operating temperature | -5 to 45 C (23 to 113 F); 0 C (32 F) minimum cold start | Storage temperature | -40 to 70 C (-40 to 158 F) |
| Humidity | 5%-90% non-condensing | Altitude | 10,000 ft (3000 m) operating; 15,000 ft (4500 m) storage |
| Acoustic noise | LpA 44 dB typical / 47 dB max; LwA 5.5 B typical / 5.8 B max (Catalyst 9300L chassis baseline) | Regulatory compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, EN 55032 Class A, CISPR 32 Class A, RoHS 5 |
| Dimensions | 1.73 x 17.5 x 19.2 in. (4.4 x 44.5 x 48.8 cm) | Weight | 15.41 lb (7.0 kg) with default power supply |
| Mean time between failures | 387,860 hours | Warranty | Cisco Enhanced Limited Lifetime Hardware Warranty (E-LLW) |
