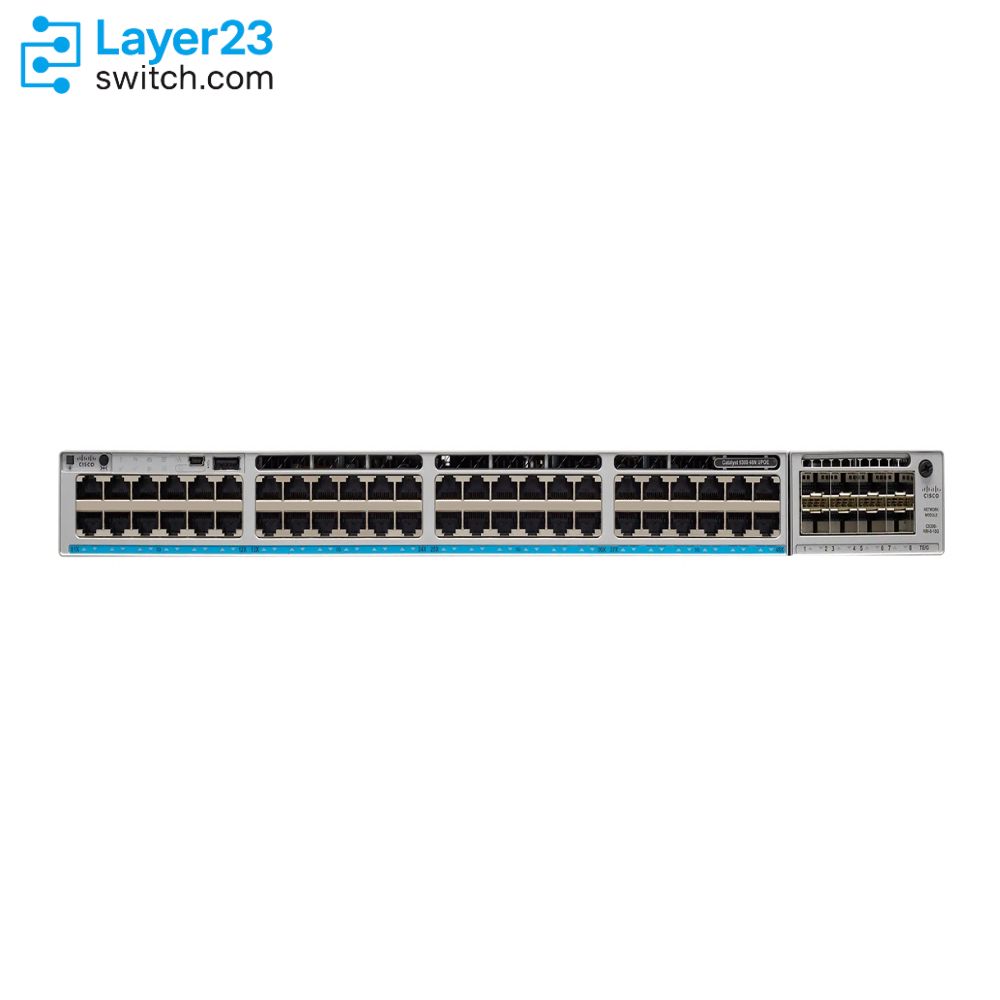

C9300-48H-E – 48x1G UPOE+ Ports – Modular Uplink – 822W PoE Budget
1/mo Solds
Cisco C9300-48H-E Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9300-48H-E. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.
Optics & Cables Compatible with Cisco C9300-48H-E
-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $1,870.01.$50.00Current price is: $50.00. Condition: New Factory Sealed -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $2,658.11.$71.68Current price is: $71.68. Condition: New Factory Sealed -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $5,342.92.$128.00Current price is: $128.00. Condition: New Factory Sealed -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $10,672.47.$170.00Current price is: $170.00. Condition: New Factory Sealed -
SFP-25G-SR-S
25GBASE-SR SFP28 - 850nm MMF - 100m OM4Original price was: $2,658.11.$314.00Current price is: $314.00. Condition: New Factory Sealed -
SFP-10/25G-LR-S
10/25GBASE-LR SFP28 - 1310nm 10km SMF TransceiverOriginal price was: $5,877.20.$333.50Current price is: $333.50. Condition: New Factory Sealed -
QSFP-40G-SR4
40G SR4 QSFP - MPO-12 MMF - 4x10G BreakoutOriginal price was: $8,001.01.$139.00Current price is: $139.00. Condition: New Factory Sealed -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$62.50Current price is: $62.50. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed
Network Modules Compatible with Cisco C9300-48H-E
-
C9300-NM-2Y
2x25G/10G/1G SFP28 Ports - Catalyst 9300 ModuleOriginal price was: $4,963.08.$1,094.40Current price is: $1,094.40. Condition: New Factory Sealed -
C9300-NM-2Q
2x40G QSFP+ Uplinks - Catalyst 9300 ModuleOriginal price was: $4,941.76.$779.40Current price is: $779.40. Condition: New Factory Sealed -
C9300-NM-4G
4x1GE SFP Ports - Catalyst 9300 ModuleOriginal price was: $1,046.49.$225.90Current price is: $225.90. Condition: New Factory Sealed -
C9300-NM-4M
4x10G/mGig Copper Ports - Catalyst 9300 ModuleOriginal price was: $2,906.92.$610.20Current price is: $610.20. Condition: New Factory Sealed -
C9300-NM-8X
8x10G/1G SFP+ Uplinks - Network Module - Catalyst 9300Original price was: $4,941.76.$741.60Current price is: $741.60. Condition: New Factory Sealed
Power Supplies & Fans Compatible with Cisco C9300-48H-E
-
PWR-C1-1100WAC-P
1100W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $2,317.88.$635.40Current price is: $635.40. Condition: New Factory Sealed -
PWR-C1-1900WAC-P
1900W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $12,784.00.$1,598.00Current price is: $1,598.00. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9300-48H-E Description
C9300-48H-E is a Cisco Catalyst 9300 Series stackable access switch for high-power campus access closets, with 48 10/100/1000 Mbps UPOE+ copper ports, a modular uplink slot, Network Essentials, StackWise-480 stacking, StackPower support, and an 822W default PoE budget from the PWR-C1-1100WAC-P supply.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300-48H-E |
|
Product type |
Stackable access switch with modular uplinks |
|
Access ports |
48 x 10/100/1000 Mbps UPOE+ copper ports |
|
Network license |
Network Essentials |
|
Cisco software subscription |
C9300 48-port Essentials term license |
|
Uplink architecture |
Modular uplink slot for Cisco Catalyst 9300 network modules |
|
Default power supply |
PWR-C1-1100WAC-P |
|
Default PoE budget |
822W |
|
Stacking architecture |
StackWise-480 |
|
StackPower |
Supported |
|
Expanded PoE budget |
2880W with supported secondary power supply configuration |
|
Minimum software release |
Cisco IOS XE Amsterdam 17.2.1 |
|
Switching and forwarding |
256 Gbps standalone switching; 190.48 Mpps standalone forwarding |
Product Performance
Key Features
The `-E` suffix ties this 48-port UPOE+ Catalyst 9300 switch to Network Essentials rather than the Network Advantage `-A` order path.
The `C9300-48H` base model confirms 48 10/100/1000 Mbps UPOE+ copper ports, separating this SKU from PoE+, UPOE, data-only, and multigigabit Catalyst 9300 choices.
C9300 switches use a modular uplink slot, and Cisco lists C9300 network modules for 1G SFP, 10G SFP+, 25G SFP28, 40G QSFP+, and multigigabit copper uplink needs.
The default supply gives 822W of available PoE, while the C9300-48H power table also lists higher budgets when secondary or upgraded power supplies are configured.
StackWise-480 support keeps this SKU in the modular-uplink C9300 stack family, so stack cable length and member planning should be set during the BOM review.
StackPower support allows shared power design across compatible Catalyst 9300 members when the order includes the matching StackPower cable and power-supply choices.
Application Scenarios
C9300-48H-E fits access closets that need 48 copper 1G downlinks with UPOE+ capability while keeping the network license tier at Essentials.
Use this SKU when the replacement decision is not only 48-port density but also the move from the C9300-48U UPOE profile to the C9300-48H UPOE+ profile.
The switch is suitable for a StackWise-480 access stack where the uplink module, StackWise cable, StackPower plan, software baseline, and 48-port Essentials subscription are all matched in the order.
Product Comparison
|
Parameter |
C9300-48H-E | |||
|---|---|---|---|---|
|
Product type |
Stackable access switch |
Stackable access switch |
Stackable access switch |
Stackable access switch |
|
Access ports |
48 x 10/100/1000 UPOE+ |
48 x 10/100/1000 UPOE+ |
48 x 10/100/1000 UPOE |
48 x 10/100/1000 PoE+ |
|
Uplink architecture |
Modular uplink slot |
Modular uplink slot |
Modular uplink slot |
Modular uplink slot |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Default power supply |
PWR-C1-1100WAC-P |
PWR-C1-1100WAC-P |
PWR-C1-1100WAC-P |
PWR-C1-715WAC-P |
|
Default PoE budget |
822W |
822W |
822W |
437W |
|
Expanded PoE budget |
2880W with supported secondary power supply configuration |
2880W with supported secondary power supply configuration |
1800W with supported secondary power supply configuration |
1440W with supported secondary power supply configuration |
|
UPOE+ planning boundary |
48-port UPOE+ switch power-supply table |
48-port UPOE+ switch power-supply table |
UPOE switch power-supply table |
PoE+ switch power-supply table |
|
Minimum software release |
Cisco IOS XE Amsterdam 17.2.1 |
Cisco IOS XE Amsterdam 17.2.1 |
Cisco IOS XE Everest 16.5.1a |
Cisco IOS XE Everest 16.5.1a |
|
Stacking architecture |
StackWise-480 |
StackWise-480 |
StackWise-480 |
StackWise-480 |
|
Switching capacity |
256 Gbps standalone; 736 Gbps with stacking |
256 Gbps standalone; 736 Gbps with stacking |
256 Gbps standalone; 736 Gbps with stacking |
256 Gbps standalone; 736 Gbps with stacking |
|
Forwarding rate |
190.48 Mpps standalone; 547.62 Mpps with stacking |
190.48 Mpps standalone; 547.62 Mpps with stacking |
190.48 Mpps standalone; 547.62 Mpps with stacking |
190.47 Mpps standalone; 547.62 Mpps with stacking |
- In a C9300-48H-E vs C9300-48H-A comparison, the hardware line remains the 48-port UPOE+ C9300-48H profile; the confirmed difference is Network Essentials versus Network Advantage.
- The C9300-48H-E difference from C9300-48U-E is the powered-port class: C9300-48H-E is the UPOE+ option, while C9300-48U-E is the UPOE Network Essentials alternative with the same default PoE budget line.
- For C9300-48H-E vs C9300-48P-E, the comparison should focus on UPOE+ versus PoE+, the default power supply, and the listed default PoE budget.
- C9300-48H-E vs C9300-24H-E is a port-count and capacity comparison because the current SKU is the 48-port UPOE+ Essentials model and the C9300-24H-E line is the 24-port UPOE+ Essentials model.
Selection Guide
1. Choose it for 48-port UPOE+ Essentials access
Select C9300-48H-E when the BOM calls for 48 1G UPOE+ access ports, modular uplink selection, and Network Essentials.
2. Move to Advantage only for the license tier
Use C9300-48H-A when the same C9300-48H UPOE+ hardware must be ordered with Network Advantage rather than Network Essentials.
3. Do not substitute the UPOE model blindly
Specify C9300-48U-E only when the access design needs 48 1G UPOE ports instead of the UPOE+ model documented for C9300-48H-E.
4. Check whether PoE+ is enough
Choose C9300-48P-E only when the powered-device plan fits PoE+ and the lower default PoE budget shown for the C9300-48P model.
PoE Power Planning
|
Planning Item |
Cisco Confirmed Value |
Order Impact |
|---|---|---|
|
UPOE+ class |
Cisco identifies the C9300-xxH family as UPOE+ and lists 90W Type 4 planning requirements for UPOE+ models |
Confirm endpoint power class instead of treating this SKU like a PoE+ or UPOE model |
|
Default PoE budget |
C9300-48H is listed with 822W available PoE and PWR-C1-1100WAC-P as the default supply |
Match powered endpoint count and endpoint draw to the base switch power budget |
|
Secondary supply choices |
The C9300-48H power table lists increased PoE budgets when secondary or upgraded power supplies are configured |
Decide whether the second supply is for redundancy, higher available PoE, or both |
|
StackPower |
Catalyst 9300 modular-uplink switches support StackPower |
Add StackPower cabling only when the site design uses shared power across stack members |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact switch SKU |
C9300-48H-E |
Prevents substitution with the Advantage `-A` SKU, the UPOE `C9300-48U` SKU, or the PoE+ `C9300-48P` SKU |
|
Uplink module |
Required C9300-NM module and media speed |
The base C9300 switch depends on a separate modular uplink selection |
|
Software subscription |
Cisco Catalyst Essentials or Cisco DNA Essentials 48-port term line |
Keeps the subscription aligned with the Network Essentials hardware suffix |
|
Power budget |
Default PWR-C1-1100WAC-P, 822W base PoE budget, and any secondary or upgraded power supply |
Prevents a UPOE+ endpoint plan from being selected without enough available PoE |
|
Stacking accessories |
StackWise cable length and StackPower cable choice |
Ensures the switch can join the intended Catalyst 9300 stack and power design |
Optional Add-ons
|
Model |
Description |
|---|---|
|
Cisco Catalyst 9300 4 x 1GE SFP network module | |
|
Cisco Catalyst 9300 8 x 10GE SFP+ network module | |
|
Cisco Catalyst 9300 2 x 40GE QSFP+ network module | |
|
Cisco Catalyst 9300 2 x 25G/10G/1G network module | |
|
Cisco Catalyst 9300 4 x multigigabit network module | |
|
NM-BLANK-T1= |
Cisco Catalyst Type 1 network module blank spare |
|
50CM type 1 stacking cable | |
|
1M type 1 stacking cable | |
|
3M type 1 stacking cable | |
|
C9300-DNX-E-48-3Y |
C9300 Cisco Catalyst Essentials 48-port 1G copper 3-year term license |
|
C9300-DNX-E-48-5Y |
C9300 Cisco Catalyst Essentials 48-port 1G copper 5-year term license |
|
C9300-DNX-E-48-7Y |
C9300 Cisco Catalyst Essentials 48-port 1G copper 7-year term license |

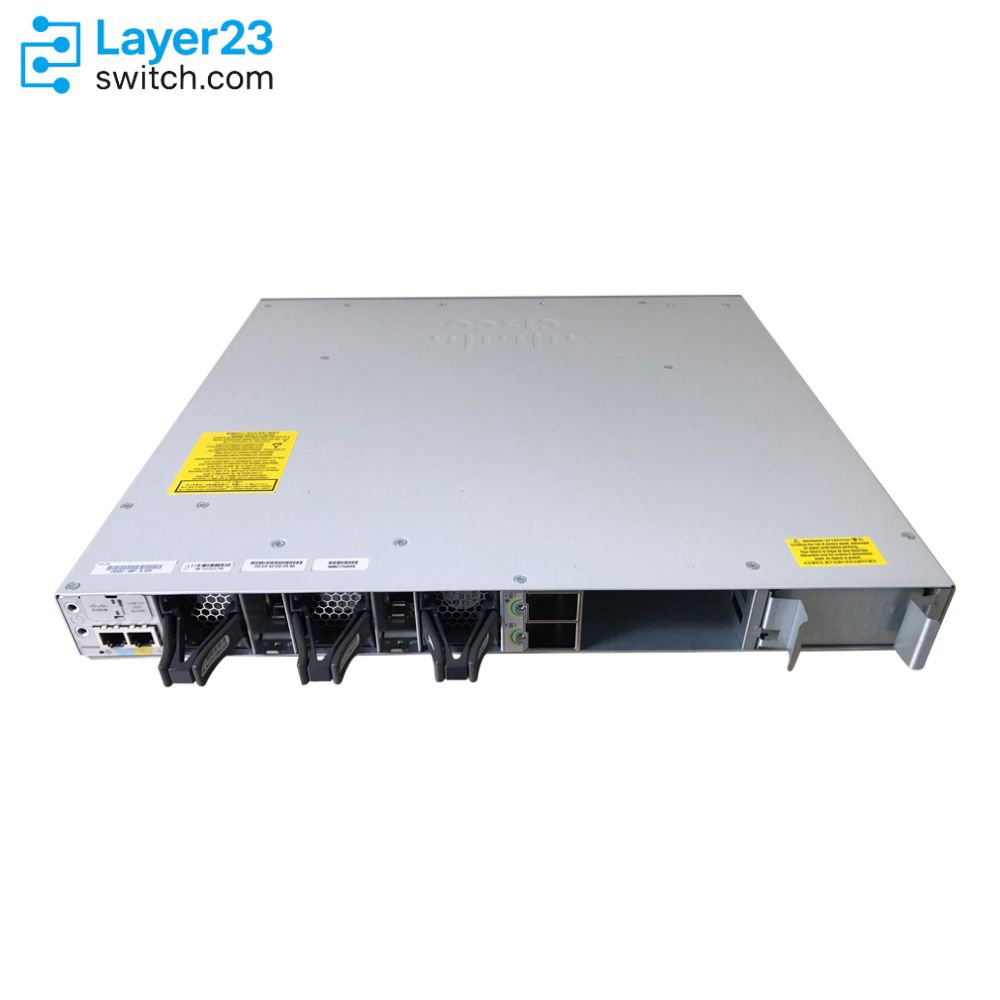

Catalyst 9300 Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300-48H-E | Product type | Stackable access switch with modular uplinks |
| Network license | Network Essentials | Access ports | 48 x 10/100/1000 Mbps UPOE+ copper ports |
| Uplink architecture | Optional field-replaceable C9300 network module | Default power supply | PWR-C1-1100WAC-P |
| Default PoE budget | 822W | PoE with 350W secondary supply | 1172W |
| PoE with 715W secondary supply | 1537W | PoE with 1100W secondary supply | 1922W |
| Maximum UPOE+ power planning value | 2880W with configured power supplies | Supported network modules | C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y, C9300-NM-4M |
| Stacking architecture | StackWise-480 | Stack bandwidth | 480 Gbps |
| StackPower | Supported | Minimum software release | Cisco IOS XE Amsterdam 17.2.1 |
| Packet buffer | 16 MB for 24- and 48-port Gigabit Ethernet models | FNF entries | 64,000 flows on 24- and 48-port Gigabit Ethernet models |
| VLAN IDs | 4094 | Total SVIs | 1000 |
| Jumbo frames | 9198 bytes | Switching capacity | 256 Gbps standalone |
| Switching capacity with stacking | 736 Gbps | Forwarding rate | 190.48 Mpps standalone |
| Forwarding rate with stacking | 547.62 Mpps | Dimensions | 1.73 x 17.5 x 19.2 in. (4.4 x 44.5 x 48.8 cm) |
| Weight | 17.03 lb (7.72 kg) |
Get More Information
Need pricing, stock, or shipping details for the C9300-48H-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Who needs C9300-48H-E for 48-port UPOE+ 90W and Network Essentials?
-
What does H mean in C9300-48H-E?
-
How is C9300-48H-E different from C9300-48UN-E?
-
Does C9300-48H-E need high power planning?
-
Is C9300-48H-E the Network Essentials 90W UPOE+ SKU?
-
Can C9300-48H-E use modular uplinks?
-
When is C9300-48H-E the wrong SKU?
-
What StackPower and 90W UPOE+ details matter for C9300-48H-E?
Warranty
Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.
All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.
Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.
If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.
We support multiple secure payment and logistics options, backed by industry-leading verification:
Visit How to Pay page for more information
Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information
Verify, plan, and comparewith confidence
Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.
Standard Services
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
- Projects and Technical Support
- Easy Purchasing Supply
- Product Lifecycle Protection
- Exclusive F3 Team Support
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Our operations manager asked to formalize Layer23 as a preferred supplier. Done.
What we saved on hardware, we reinvested in supporting infrastructure.
Layer23 is exactly the kind of vendor B2B buyers hope to find.
Professional packing. No issues with receipt.
Fast ship? You bet. Made it here in record time.
