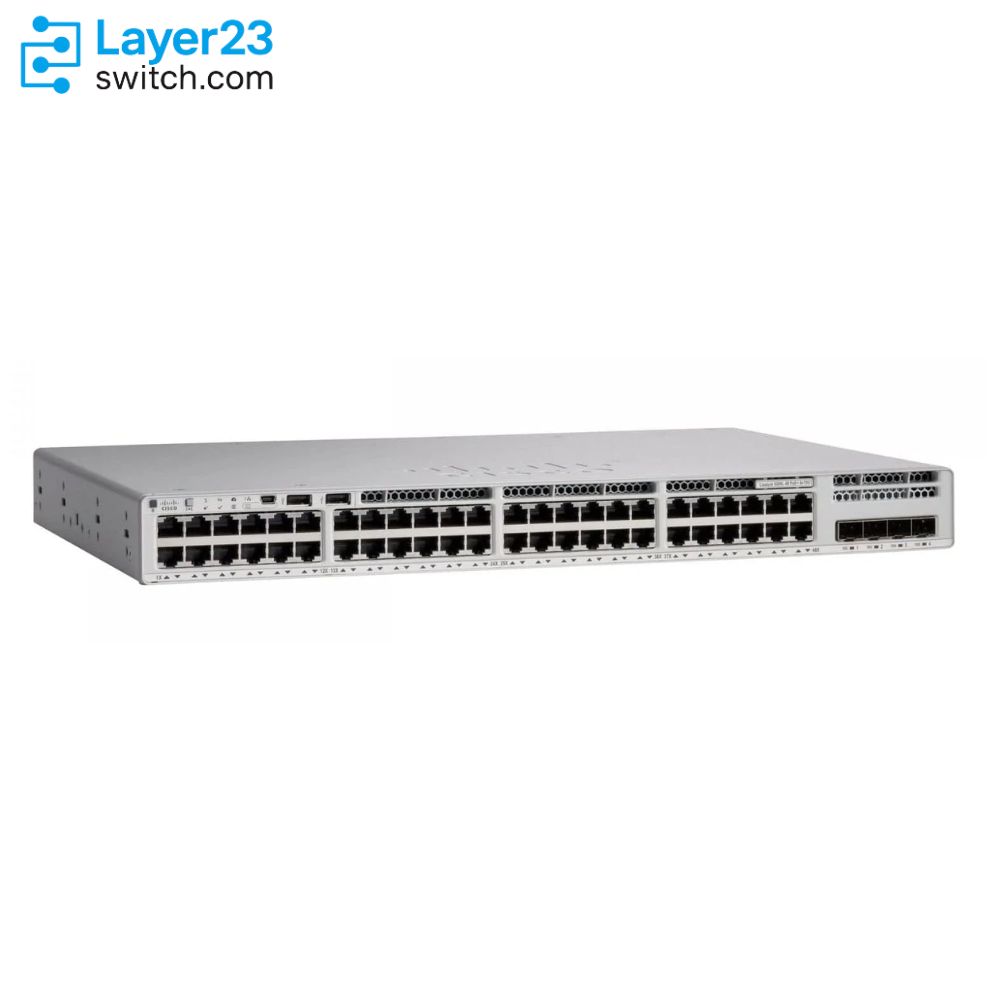

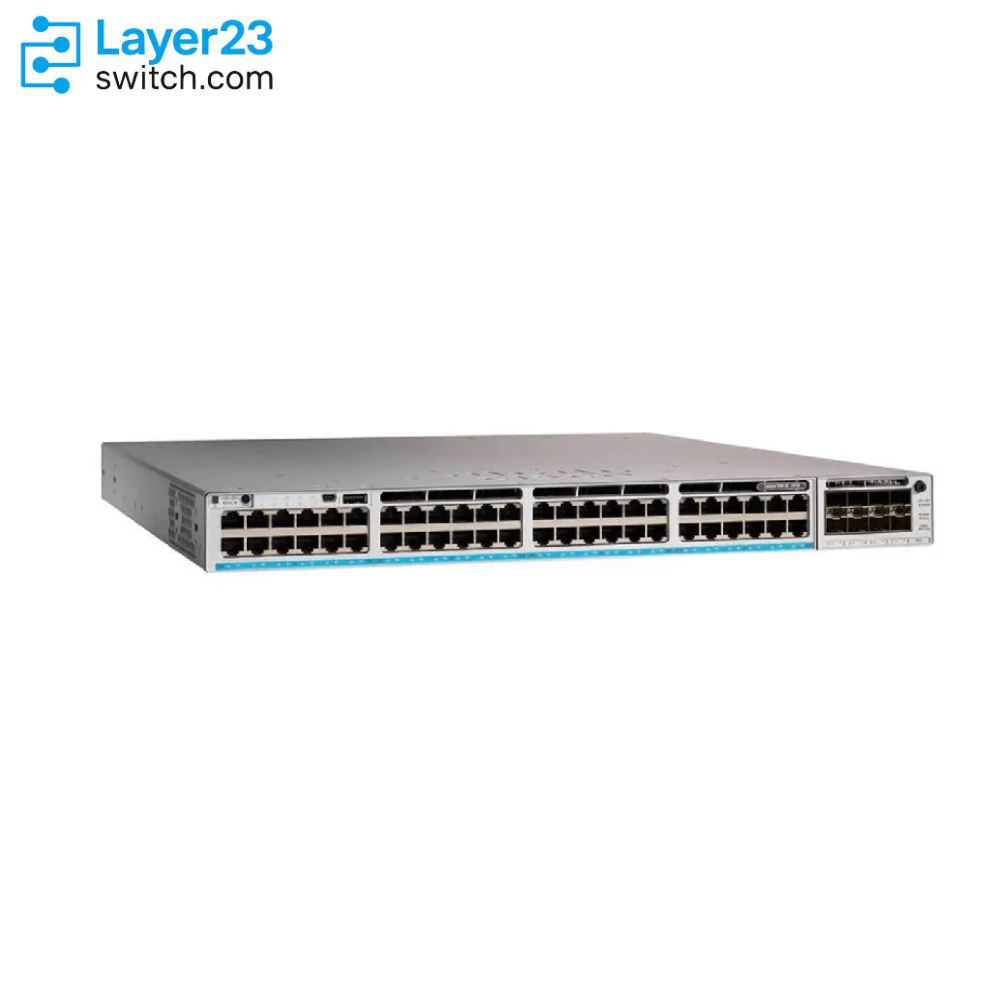

C9300-48H-A – 48x1G UPOE+ Ports – Modular Uplink – 822W PoE Budget
10/mo Solds
Cisco C9300-48H-A Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9300-48H-A. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.
Optics & Cables Compatible with Cisco C9300-48H-A
-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $1,870.01.$50.00Current price is: $50.00. Condition: New Factory Sealed -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $2,658.11.$71.68Current price is: $71.68. Condition: New Factory Sealed -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $5,342.92.$128.00Current price is: $128.00. Condition: New Factory Sealed -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $10,672.47.$170.00Current price is: $170.00. Condition: New Factory Sealed -
SFP-25G-SR-S
25GBASE-SR SFP28 - 850nm MMF - 100m OM4Original price was: $2,658.11.$314.00Current price is: $314.00. Condition: New Factory Sealed -
SFP-10/25G-LR-S
10/25GBASE-LR SFP28 - 1310nm 10km SMF TransceiverOriginal price was: $5,877.20.$333.50Current price is: $333.50. Condition: New Factory Sealed -
QSFP-40G-SR4
40G SR4 QSFP - MPO-12 MMF - 4x10G BreakoutOriginal price was: $8,001.01.$139.00Current price is: $139.00. Condition: New Factory Sealed -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$62.50Current price is: $62.50. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed
Network Modules Compatible with Cisco C9300-48H-A
-
C9300-NM-2Y
2x25G/10G/1G SFP28 Ports - Catalyst 9300 ModuleOriginal price was: $4,963.08.$1,094.40Current price is: $1,094.40. Condition: New Factory Sealed -
C9300-NM-2Q
2x40G QSFP+ Uplinks - Catalyst 9300 ModuleOriginal price was: $4,941.76.$779.40Current price is: $779.40. Condition: New Factory Sealed -
C9300-NM-4G
4x1GE SFP Ports - Catalyst 9300 ModuleOriginal price was: $1,046.49.$225.90Current price is: $225.90. Condition: New Factory Sealed -
C9300-NM-4M
4x10G/mGig Copper Ports - Catalyst 9300 ModuleOriginal price was: $2,906.92.$610.20Current price is: $610.20. Condition: New Factory Sealed -
C9300-NM-8X
8x10G/1G SFP+ Uplinks - Network Module - Catalyst 9300Original price was: $4,941.76.$741.60Current price is: $741.60. Condition: New Factory Sealed
Power Supplies & Fans Compatible with Cisco C9300-48H-A
-
PWR-C1-1100WAC-P
1100W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $2,317.88.$635.40Current price is: $635.40. Condition: New Factory Sealed -
PWR-C1-1900WAC-P
1900W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $12,784.00.$1,598.00Current price is: $1,598.00. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9300-48H-A Description
The C9300-48H-A is a Cisco Catalyst 9300 Series stackable access switch that packs 48 Cisco UPOE+ copper ports and an empty modular uplink bay onto the same standard-scale C9300 chassis, aimed at closets that need to power a large count of high-draw endpoints such as Wi-Fi 6E APs, PTZ cameras, and lighting controllers across a full floor rather than a single rack row. Cisco's Hardware Installation Guide documents an 822W PoE budget on the default PWR-C1-1100WAC-P supply, and the datasheet lists a design ceiling of 2880W once a second supply is installed, roughly a third more headroom than the 24-port C9300-24H-A reaches at 2160W. The switch runs 256 Gbps of switching capacity and a 190.48 Mpps forwarding rate, holds the Network Advantage perpetual license for unrestricted routing, VRF/VXLAN/LISP segmentation, and MACsec-256, and stacks up to 8 members over StackWise-480 with StackPower available to pool power headroom across the ring.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300-48H-A |
|
Port Count |
48x 10/100/1000 Cisco UPOE+ ports |
|
Uplink |
Modular Uplink (bay ships empty) |
|
Default Power Supply |
PWR-C1-1100WAC-P (1100W AC) |
|
Default PoE Budget |
822W |
|
Maximum PoE Budget With Secondary Supply |
2880W |
|
Switching Capacity |
256 Gbps (736 Gbps stacked) |
|
Forwarding Rate |
190.48 Mpps (547.62 Mpps stacked) |
|
Stacking |
StackWise-480, up to 8 members |
|
Network License |
Network Advantage |
|
Minimum Software Release |
Cisco IOS XE Release 16.5.1a |
Product Performance
Key Features
Packing 48 Cisco UPOE+ ports and an 822W default PoE budget onto one chassis lets a single unit cover a full floor of high-draw endpoints that would otherwise need two 24-port UPOE+ switches, reducing the number of stack members a closet has to manage.
Cisco’s documented ceiling on this chassis reaches 2880W once a second supply is installed, about a third more than the 2160W ceiling on the 24-port C9300-24H-A, so a design already sizing dense high-draw deployments has more room to grow before hitting a design limit.
Because the uplink bay ships empty, the closet design can defer whether to run 10G SFP+ (C9300-NM-8X), 40G QSFP+ (C9300-NM-2Q), or 25G SFP28 (C9300-NM-2Y) until the distribution-layer speed is confirmed, instead of locking in a fixed uplink at time of switch order.
Network Advantage adds VRF, VXLAN, LISP, and Cisco TrustSec segmentation plus NETCONF/RESTCONF/YANG automation and MACsec-256 on top of the same hardware sold as C9300-48H-E, so a design that needs network segmentation or model-driven automation at this closet does not need a separate switch model.
StackPower lets up to 4 stack members pool power across a ring, so a member running near its PoE ceiling can draw spare capacity from a neighbor instead of forcing every unit in the stack to carry its own second supply.
C9300-48H-A includes a USB 3.0 SSD bay that accepts a 120 GB or 240 GB SSD module, letting operations teams capture and store packet traces directly on the switch instead of provisioning a separate capture appliance for closet-level troubleshooting.
Application Scenarios
Deployed as the access layer for full-floor camera, digital signage, and IoT lighting rollouts where the port count justifies a 48-port chassis and the 822W default budget covers a large share of endpoints without a second supply per unit.
Used as an access-layer switch in campus designs that rely on VRF or VXLAN segmentation and Cisco TrustSec policy enforcement at the edge, where the Network Advantage license already on this hardware avoids a separate license order.
Placed in a StackWise-480 stack alongside other C9300 Network Advantage members where StackPower pools power headroom across the ring, supporting floors that plan to add high-draw endpoints over time without pre-provisioning a second supply on every unit.
Product Comparison
|
Parameter |
C9300-48H-A | |||
|---|---|---|---|---|
|
Port count |
48x 1G UPOE+ |
48x 1G UPOE+ |
24x 1G UPOE+ |
48x 1G PoE+ |
|
Default power supply |
PWR-C1-1100WAC-P |
PWR-C1-1100WAC-P |
PWR-C1-1100WAC-P |
PWR-C1-715WAC-P |
|
Default PoE budget |
822W |
822W |
830W |
437W |
|
Maximum PoE budget with secondary supply |
2880W |
2880W |
2160W |
1440W |
|
Switching capacity |
256 Gbps |
256 Gbps |
208 Gbps |
256 Gbps |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
Stacking |
StackWise-480 |
StackWise-480 |
StackWise-480 |
StackWise-480 |
|
Weight |
17.03 lb |
17.03 lb |
16.63 lb |
16.73 lb |
- Ordering C9300-48H-A instead of the base C9300-48H-E adds Network Advantage segmentation, unrestricted routed scale, and MACsec-256 on identical hardware; the ordering guide documents no in-place upgrade PID from Essentials to Advantage on standard C9300 modular-uplink hardware, so a design that starts on C9300-48H-E and later needs Advantage features has to re-order as C9300-48H-A rather than field-upgrade the license.
- Dropping to C9300-24H-A halves port count to 24 and caps the maximum PoE budget with a secondary supply at 2160W against 2880W on C9300-48H-A, which only costs anything when a floor’s high-draw endpoint count is already pushing past what one 24-port unit can carry; a closet that fits inside 24 UPOE+ ports gains nothing from the larger chassis.
- C9300-48P-A keeps the same 48-port count and identical 256 Gbps switching capacity but trades UPOE+ for PoE+, capping the default budget at 437W and the secondary-supply ceiling at 1440W versus 822W and 2880W on C9300-48H-A; that gap only matters when endpoints need more than a standard PoE+ 30W allocation per port.
- For deciding which SKU to order in this group, settle the per-port power class first (UPOE+ high-draw versus standard PoE+), then size port count against how many high-draw endpoints the floor actually needs; Network license tier and StackWise-480 stacking do not separate these three Advantage-tier models since all three already carry Network Advantage on the same stacking generation.
Selection Guide
1. 48-Port Chassis Consolidates Two 24-Port Stacks
C9300-48H-A carries an 822W PoE budget across 48 ports on one chassis; a floor that would otherwise need two 24-port C9300-24H-A units to cover the same endpoint count can consolidate onto a single 48-port unit instead, cutting the stack member count for the same PoE+ port total.
2. 2880W Ceiling Needs A Second Supply In The Order
Cisco’s documented ceiling only reaches 2880W once any second supply is installed, and upgrading the primary supply to PWR-C1-1900WAC-P alone does not raise the budget past the same design limit; a plan to grow past 822W of connected PoE load needs a second supply in the order, not just a bigger single supply.
3. No Field Path Off Network Essentials On This Chassis
Because no in-place upgrade PID moves standard C9300 modular-uplink hardware from Network Essentials to Network Advantage, C9300-48H-A only earns its higher tier over the lower-tier C9300-48H-E when Advantage-tier segmentation or automation is a known requirement, since the tier cannot be changed on the same chassis later.
4. UPOE+ Budget Gap Against The C9300-48P-A Sibling
C9300-48P-A shares the same 48-port count and 256 Gbps switching capacity as C9300-48H-A but caps its default budget at 437W and its secondary-supply ceiling at 1440W; a floor with any endpoints that need more than a standard PoE+ 30W allocation should size C9300-48H-A rather than assume the lower-cost PoE+ sibling has room to spare.
5. Empty Uplink Bay Leaves The Speed Choice Open
The modular uplink bay ships empty on C9300-48H-A, so the decision between a 10G SFP+ module (C9300-NM-8X), a 40G QSFP+ module (C9300-NM-2Q), or a 25G SFP28 module (C9300-NM-2Y) can wait until the distribution-layer uplink speed is confirmed, rather than being fixed at switch order.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Default PoE budget |
822W with the single default PWR-C1-1100WAC-P supply, no secondary supply installed. |
|
Maximum PoE budget |
Up to 2722W with a 1900W secondary supply added to the default 1100W primary supply, rising to a 2880W design ceiling once the primary supply is also upgraded to PWR-C1-1900WAC-P; upgrading only the primary supply without a second supply does not raise the budget past 822W. |
|
UPOE+ port coverage |
Cisco documents Cisco UPOE+ (90W per port, IEEE 802.3bt Type 4) as available on 21 of the 48 ports when the switch is configured per datasheet Table 12. |
|
Secondary supply requirement for full UPOE+ |
Datasheet Table 12 specifies 1 PWR-C1-1100WAC/1100WAC-P plus 1 PWR-C1-715WAC/715WAC-P/715WDC, or 2 PWR-C1-1100WAC/1100WAC-P, or 2 PWR-C1-1900WAC-P/1900WHV-T, as qualifying pairs for UPOE+ on 21 ports. |
|
StackPower option |
StackPower can share power across up to 4 stacked members (8 with XPS-2200), reducing the need to size every unit’s PoE budget independently. |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Second power supply need |
Confirm whether the connected PoE load will exceed 822W, and if so include a second supported power supply in the same order. |
The switch does not reach its 2880W ceiling on a single supply regardless of supply wattage. |
|
Network license and subscription match |
Confirm the Cisco Catalyst or Cisco DNA subscription ordered alongside C9300-48H-A is the Advantage tier, matching the built-in Network Advantage license. |
A mismatched subscription tier can stall activation or leave Advantage features unlicensed. |
|
Smart Account binding |
Confirm the target Smart Account and Virtual Account before ordering. |
Catalyst 9300 is a smart-licensed SKU; entitlements tied to the wrong account can delay activation. |
|
Uplink module selection |
Confirm which network module (C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y, C9300-NM-4M, or C9300-NM-4G) matches the distribution-layer uplink speed before the module ships as a separate line item. |
The uplink bay ships empty; the wrong module choice mismatches the intended uplink speed. |
|
Blank module for single-supply configuration |
Confirm a blank power supply module is ordered for the second bay when only one supply is installed. |
Cisco documents this as a caution for maintaining airflow and fan noise levels. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
C9300-NM-4G / C9300-NM-4M / C9300-NM-8X / C9300-NM-2Q / C9300-NM-2Y |
Field-installable Catalyst 9300 uplink network modules confirmed for the C9300-48H modular uplink bay. |
|
Cisco-confirmed second AC power supply option for the C9300-48H power bay, the documented upgrade path from the default PWR-C1-1100WAC-P for extended PoE headroom. | |
|
StackWise-480 data stacking cables (0.5 m / 1 m / 3 m) for stacking additional C9300-48H or other C9300 units. | |
|
FAN-T2= |
Field-replaceable fan module spare for the standard three-fan N+1 redundant fan tray. |
C9300-48H-A Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300-48H-A | Network license | Network Advantage |
| Port count | 48x 10/100/1000 Cisco UPOE+ ports | Uplink | Modular Uplink (empty by default) |
| Supported uplink modules | C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y, C9300-NM-4M, C9300-NM-4G | Switching capacity | 256 Gbps (736 Gbps stacked) |
| Forwarding rate | 190.48 Mpps (547.62 Mpps stacked) | MAC address table | 32,000 |
| IPv4 routes | 32,000 (24,000 connected + 8,000 learned) | IPv6 routes | 16,000 |
| Multicast routes | 8,000 | QoS entries | 5,120 |
| ACL entries | 5,120 | DRAM / Flash | 8 GB / 16 GB |
| VLANs / SVIs | 4094 VLAN IDs, 1000 SVIs | Jumbo frame size | 9198 bytes |
| Routed ports per stack | 448 | Packet buffer | 16-32 MB |
| Default power supply | PWR-C1-1100WAC-P (1100W AC) | Default PoE budget | 822W |
| Maximum PoE budget with secondary supply | 2880W | UPOE+ port coverage | Cisco UPOE+ (90W/port) on 21 of 48 ports per Table 12 |
| Power supply bays | 2 internal bays; blank module required if only one supply is installed | Power consumption (default 1100W supply, 100% PoE, 115Vac) | 1023.0W (no module) / 1043.4W (with C9300-NM-8X) |
| Power consumption (1900W supply, 100% PoE, 115Vac) | 1430.7W-1441.8W depending on uplink module | Fan modules | 3 field-replaceable fans, N+1 redundant (FAN-T2=) |
| Stacking | StackWise-480, up to 8 members | StackPower | Supported, up to 4 members per ring (8 with XPS-2200) |
| Minimum software release | Cisco IOS XE Release 16.5.1a | Management ports | 10/100/1000 Ethernet management port, RJ-45 console, USB mini-Type B console |
| USB / storage | USB Type A/C (128 MB-256 GB); rear USB 3.0 SSD bay (120 GB/240 GB) | Connectors | RJ-45 (1000BASE-T), LC (SFP/SFP+), dedicated StackWise cable |
| Operating temperature | -5 to 45 degC (up to 1500m) | Storage temperature | -40 to 70 degC |
| Humidity | 5-90% non-condensing | Operating altitude | Up to 10,000 ft |
| Acoustic noise | 45 dB LpA typical / 48 dB LpA max (24 PoE+ ports full load, reference test configuration) | Dimensions | 1.73 x 17.5 x 19.2 in with default supply |
| Weight | 17.03 lb (7.72 kg) | MTBF | 227,410 hours |
| Safety certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1 | EMC certifications | FCC Part 15, EN 55032 Class A, CISPR 32 Class A |
| Environmental compliance | RoHS 5 | Warranty | Cisco Enhanced Limited Lifetime Warranty (E-LLW) |
