Name:

C9300L-24T-4X-M

Detail:

24×1 Gbps data ports, 4×10 Gbps uplinks; Meraki-managed, fixed-uplink data-only switch.

Brand:

 Cisco

Questions

0/mo Solds

Condition:

New Factory Sealed

Availability:

In Stock at Global Warehouses.

Warranty:

3-Year Warranty

Related:

Price:

Original price was: $11,030.00.Current price is: $3,150.00.

Quantity:

Shipping:

Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

24×1 Gbps data ports, 4×10 Gbps uplinks; Meraki-managed, fixed-uplink data-only switch.

C9300L-24T-4X-M Description

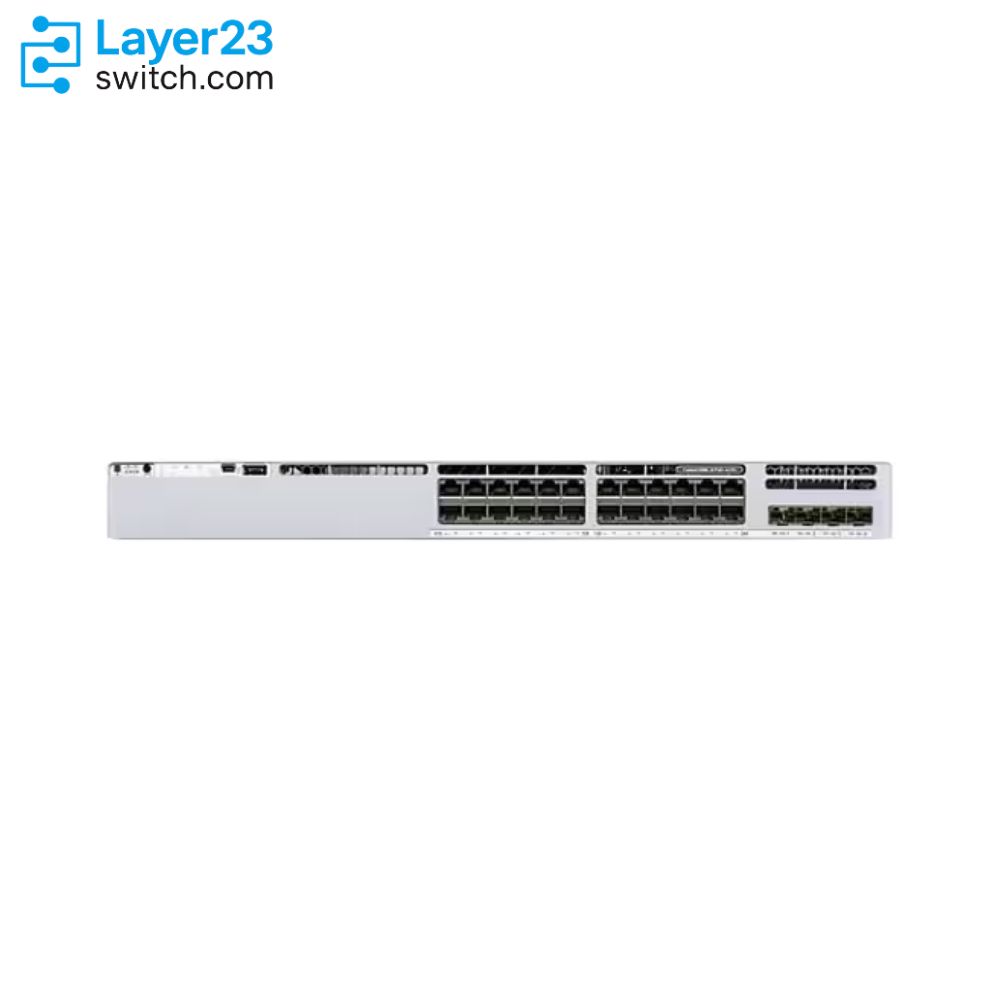

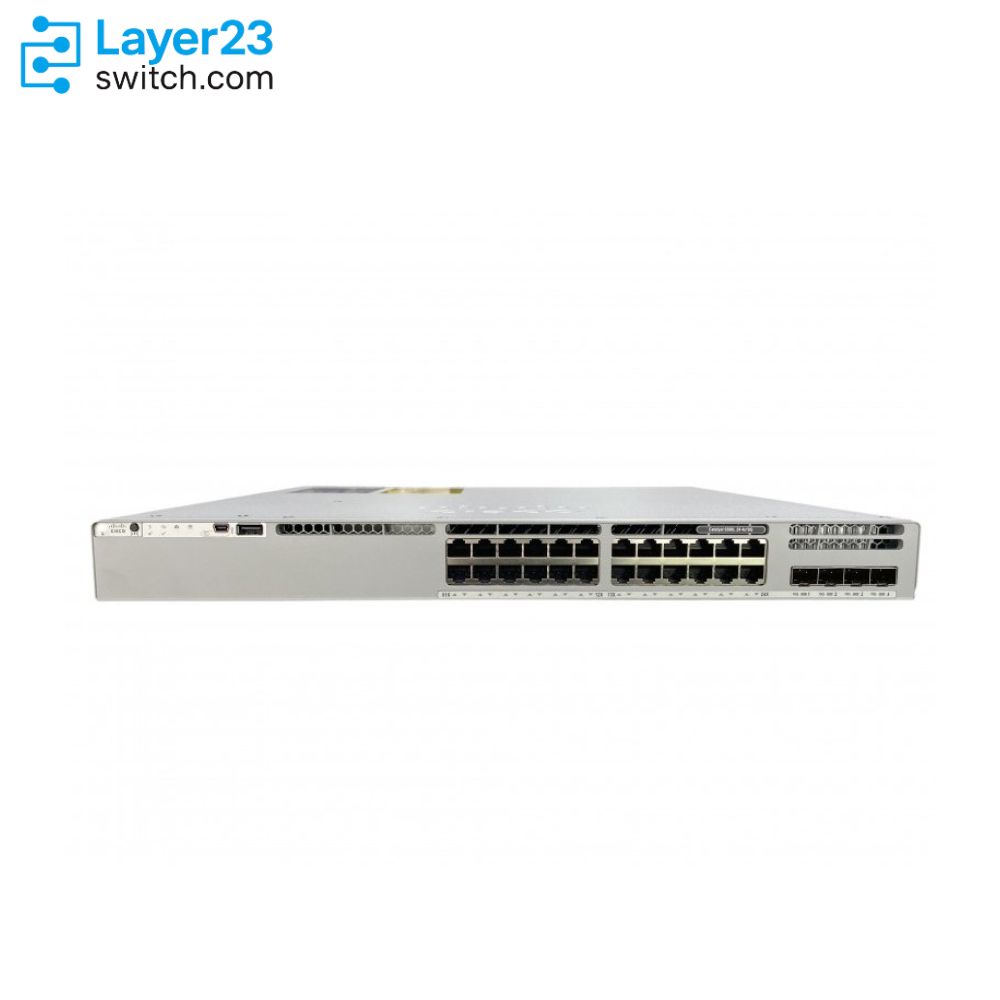

  The Cisco Catalyst C9300L-24T-4X-M is a data-only, fixed-uplink access switch designed for enterprise and campus edge deployments requiring high throughput without PoE. It features 24 1 Gbps RJ-45 data ports and four built-in 10 Gbps SFP+ uplinks to ensure robust connectivity to aggregation layers. Running a Meraki-managed image (-M), it provides zero-touch provisioning, cloud-hosted dashboards, and single-pane-of-glass visibility into device health and traffic analytics. The switch supports StackWise-320, allowing stacking of up to eight members with 320 Gbps per stack link, ensuring seamless scalability and high availability via cross-stack EtherChannel and StackPower redundancy. Its wire-speed, nonblocking architecture delivers 128 Gbps switching capacity and 95.23 Mpps forwarding rate (standalone), which scales to 448 Gbps and 333.33 Mpps when stacked. Ideal for high-density data aggregation, it supports advanced Cisco DNA features—such as MACsec encryption, Encrypted Traffic Analytics (ETA), and model-driven telemetry—facilitating secure, programmable network operations.

Product Performance

Ethernet Ports
Switching Capacity
Forwarding Rate

Model Meaning: Cisco C9300L-24T-4X-M Switch

Segment

Meaning

C

Cisco Catalyst

9300

9300 Series

L

Fixed-uplink model

24

24 downlink ports

T

Data-only (no PoE) ports (1G RJ-45)

4X

Four 10 Gbps/1 Gbps SFP+ fixed uplinks

M

Meraki-managed software image (Advanced or Enterprise licensing)

Quick Specs

Parameter

Specification

Model

C9300L-24T-4X-M

Switching Capacity

128 Gbps standalone / 448 Gbps stacked

Forwarding Rate

95.23 Mpps standalone / 333.33 Mpps stacked

Downlink Ports

24 × 1 Gbps RJ-45 data ports

Uplink Ports

4 × 10 Gbps SFP+ fixed uplinks

Stacking Bandwidth

StackWise-320 (320 Gbps per stack link)

Default Power Supply

350 W AC (PWR-C1-350WAC-P)

DRAM

8 GB

Flash Storage

16 GB

Key Features

128 Gbps Nonblocking Fabric

Delivers wire-speed switching across 24 1 Gbps data ports, ensuring no performance bottlenecks.

Four 10 Gbps SFP+ Uplinks

Provides ample uplink bandwidth for high-throughput aggregation and data-center‐grade connectivity.

StackWise-320

Stack up to eight switches with a combined 448 Gbps switching capacity, simplified management, and cross-stack high availability.

Meraki Cloud Management (-M)

Enables zero-touch provisioning, cloud-hosted monitoring, and automatic firmware updates via Cisco Meraki Dashboard.

Advanced Security

Supports MACsec encryption, Encrypted Traffic Analytics (ETA), Secure Boot, and SUDI for endpoint trust.

Model-Driven Telemetry

Real-time telemetry via gNMI/YANG, flexible NetFlow, and streaming for proactive network assurance.

Applications Scenarios

Campus Aggregation

High-density data aggregation for wiring closets requiring 10 Gbps uplinks to distribution/core without PoE overhead.

Datacenter Top-of-Rack (ToR)

Data-only leaf switch in a small-to-medium rack deployment, feeding 10 Gbps uplinks to spine or core.

Cloud-Managed Branch

Rapid-deploy branch offices benefitting from Meraki’s cloud provisioning, remote firmware updates, and real-time telemetry.

Model Comparison

Parameter

C9300L-24T-4X-M

C9300L-24P-4X-M

C9300L-48T-4X-M

Downlink Ports

24 × 1 Gbps data

24 × 1 Gbps PoE+ (30 W per port)

48 × 1 Gbps data

Uplink Ports

4 × 10 Gbps SFP+ fixed

4 × 10 Gbps SFP+ fixed

4 × 10 Gbps SFP+ fixed

Switching Capacity

128 Gbps / 448 Gbps stack

128 Gbps / 448 Gbps stack

176 Gbps / 496 Gbps stack

Forwarding Rate

95.23 Mpps / 333.33 Mpps stack

95.23 Mpps / 333.33 Mpps stack

130.95 Mpps / 369.05 Mpps stack

Power Supply

350 W AC (no PoE)

715 W AC (505 W PoE budget)

350 W AC (no PoE)

Stacking Bandwidth

320 Gbps (StackWise-320)

320 Gbps (StackWise-320)

320 Gbps (StackWise-320)

License Image

Meraki-Advanced/Enterprise

Meraki-Advanced/Enterprise

Meraki-Advanced/Enterprise

PoE Capability

None

PoE+ up to 30 W per port

None

Accessories

Category

Part Number

Description

Power Supply

PWR-C1-350WAC-P

350 W AC power supply (default, no PoE)

Stacking Kit

C9300L-STACK-KIT2

StackWise-320 stacking module (2 adapters + cable) for C9300L series

Uplink Modules

N/A (fixed uplinks)

Four 10 Gbps SFP+ ports built-in—no external module required

Spare Fans

FAN-T2=

Field-replaceable fan module (N+1 redundancy)

C9300L-24T-4X-M Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1

Ground connectors

7

StackPower connectors

2

USB3.0–SSD port

8

AC OK (input) status LED

3

BEACON LED

9

PS OK (output) status LED

4

CONSOLE (RJ-45 console port)

10

StackWise-480 port connectors

5

MGMT (RJ-45 10/100/1000 management port)

11

Power supply modules

6

Fan modules

–

–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1

Cisco Catalyst 9300 Series switch with optional network module1 (power supply and fan modules not shown)

9

Eight number-8 Phillips flat-head screws

2

AC power cord

10

Cable guide

3

Product documentation and compliance document

11

M4.0 x 20mm Phillips pan-head screw

4

Four rubber mounting feet

12

(Optional) RJ-45 console cable

5

Ground lug screw and ring terminal

13

(Optional) USB console cable

6

Two 19-inch mounting brackets

14

(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)

7

Four number-12 pan-head screws

15

(Optional) StackPower cable (0.3-meter or 1.5-meter)

8

Four number-10 pan-head screws

16

(Optional) StackWise-320 cable

cisco-catalyst-9300-switch-shipping-box

Get More Information

Discover unbeatable prices and fast shipping for the C9300L-24T-4X-M Access the detailed C9300L-24T-4X-M datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

C9300L-24T-4X-M Specifications

Parameter Detail
Model C9300L-24T-4X-M
Form Factor 1 RU rack-mountable switch
Downlink Ports 24 × 1 Gbps RJ-45 data ports (no PoE)
Uplink Ports 4 × 10 Gbps SFP+ fixed
Switching Capacity 128 Gbps standalone / 448 Gbps stacked
Forwarding Rate 95.23 Mpps standalone / 333.33 Mpps stacked
Stacking Bandwidth StackWise-320 (320 Gbps per stack link)
Memory (DRAM) 8 GB
Flash 16 GB
Primary Power Supply PWR-C1-350WAC-P (350 W AC; no PoE) :contentReference[oaicite:30]{index=30}
Fans 3 × field-replaceable fans (N+1 redundancy)
Dimensions (H×W×D) 1.73″ × 17.5″ × 16.1″ (4.4 × 44.5 × 40.9 cm)
Weight (w/ PSU) 14.93 lb (6.78 kg) :contentReference[oaicite:31]{index=31}
MTBF 387,700 hours :contentReference[oaicite:32]{index=32}
Operating Temperature −5 °C to +45 °C at sea level (derate at altitude)
Jumbo Frames Up to 9,198 bytes
Max VLAN IDs 4,094
Max MAC Addresses 32,000
Max IPv4 Routes 32,000 (24,000 direct + 8,000 indirect)
IPv6 Routing 16,000 routes
Security Features MACsec 256-bit, Secure Boot, SUDI, IEEE 802.1X
Telemetry gNMI, model-driven telemetry, flexible NetFlow
License Tier Meraki Advanced/Enterprise
Warranty Limited lifetime hardware warranty

Customer Reviews

Write A Review
0.0
(0 reviews)
5 Stars
0
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Questions & Answers

  • Does C9300L-24T-4X-M support Perpetual PoE during reboots?

    Yes. Perpetual and Fast PoE ensure that connected devices stay powered even while the switch is rebooting or upgrading software.

  • How does C9300L-24T-4X-M secure network access?

    It supports 802.1X, MACsec 256‑bit encryption, TrustSec, and policy‑based segmentation to enforce identity‑driven access control and data privacy.

  • What is the maximum stack bandwidth for C9300L-24T-4X-M?

    All Catalyst 9300 non‑X models, including the C9300L-24T-4X-M, deliver up to 480 Gbps of stack bandwidth; X‑series variants offer up to 1 Tbps.

  • What is the warranty coverage for C9300L-24T-4X-M?

    Cisco provides the C9300L-24T-4X-M with a Limited Lifetime Hardware Warranty, next‑business‑day hardware replacement, and 90‑day Cisco TAC support.

  • Can I stack the C9300L-24T-4X-M with other Catalyst 9300 models?

    Yes. The C9300L-24T-4X-M supports Cisco StackWise technology, letting you combine up to eight Catalyst 9300 family switches into a single logical unit for higher throughput and simplified management.

  • How much PoE power budget does C9300L-24T-4X-M provide?

    The available power budget depends on installed supplies; with dual 715 W supplies the C9300L-24T-4X-M can deliver up to 437 W PoE+ or 384 W UPOE, enough for most access‑point and IP‑phone deployments.

  • Is the C9300L-24T-4X-M UL or CE certified for safety?

    The switch meets UL/CSA 60950‑1/62368‑1, CE Mark, and other global safety standards, making it suitable for worldwide deployment.

  • Can I use the C9300L-24T-4X-M in a distribution‑layer role?

    While primarily an access switch, the C9300L-24T-4X-M's high stacking bandwidth and optional 10/25G uplinks allow it to serve small campus distribution layers where moderate aggregation throughput is sufficient.

  • What typical access‑layer role does C9300L-24T-4X-M serve in enterprise networks?

    The C9300L-24T-4X-M is usually deployed as an access‑layer switch, providing 9300-port Gigabit connectivity with non‑PoE capabilities and optional stacking for campus scalability.

  • Can I field‑replace the fans on C9300L-24T-4X-M without downtime?

    Yes—fan trays are hot‑swappable. You can replace a failed fan while the C9300L-24T-4X-M remains in service.

  • Is C9300L-24T-4X-M manageable through Cisco DNA Center?

    Absolutely. The C9300L-24T-4X-M integrates with Cisco DNA Center for zero‑touch provisioning, policy automation, assurance, and software image management.

  • How do I license additional features on C9300L-24T-4X-M?

    Use Cisco Smart Licensing to activate DNA Advantage or Premier subscriptions; the C9300L-24T-4X-M registers with Cisco Smart Account over the internet or through an on‑premises satellite.

  • Does C9300L-24T-4X-M support Layer 3 routing protocols?

    Yes. With the Network Advantage image, the C9300L-24T-4X-M offers full Layer 3 capabilities, including OSPF, EIGRP, BGP, and advanced features like VRF‑Lite.

  • Does the C9300L-24T-4X-M require a DNA subscription to operate?

    No. The switch operates with its perpetual Network Advantage or Essentials image, but adding a Cisco DNA subscription unlocks advanced automation, assurance, and analytics features.

  • Is there a fanless version of C9300L-24T-4X-M for silent environments?

    No. All Catalyst 9300 family switches, including the C9300L-24T-4X-M, use variable‑speed fans to maintain optimal operating temperatures.

  • What kind of power supplies can C9300L-24T-4X-M accommodate?

    The C9300L-24T-4X-M ships with a field‑replaceable AC power supply and supports redundant secondary units. You can mix AC, DC, or HVAC/HVDC supplies depending on installation needs.

  • Can I upgrade the C9300L-24T-4X-M software in service?

    Cisco ISSU (In‑Service Software Upgrade) allows you to update the C9300L-24T-4X-M's IOS XE image with minimal traffic disruption when configured in a stack.

  • What environmental specs should I consider for C9300L-24T-4X-M?

    Operate the C9300L-24T-4X-M between 0 °C and 45 °C and below 5000 ft altitude for full PoE load; derate operating temperature above that elevation.

  • Does the C9300L-24T-4X-M support redundant supervisors?

    No. Catalyst 9300 switches employ a single CPU architecture; resiliency is achieved through StackWise and dual power supplies.
