C9300L-24P-4X-M Description

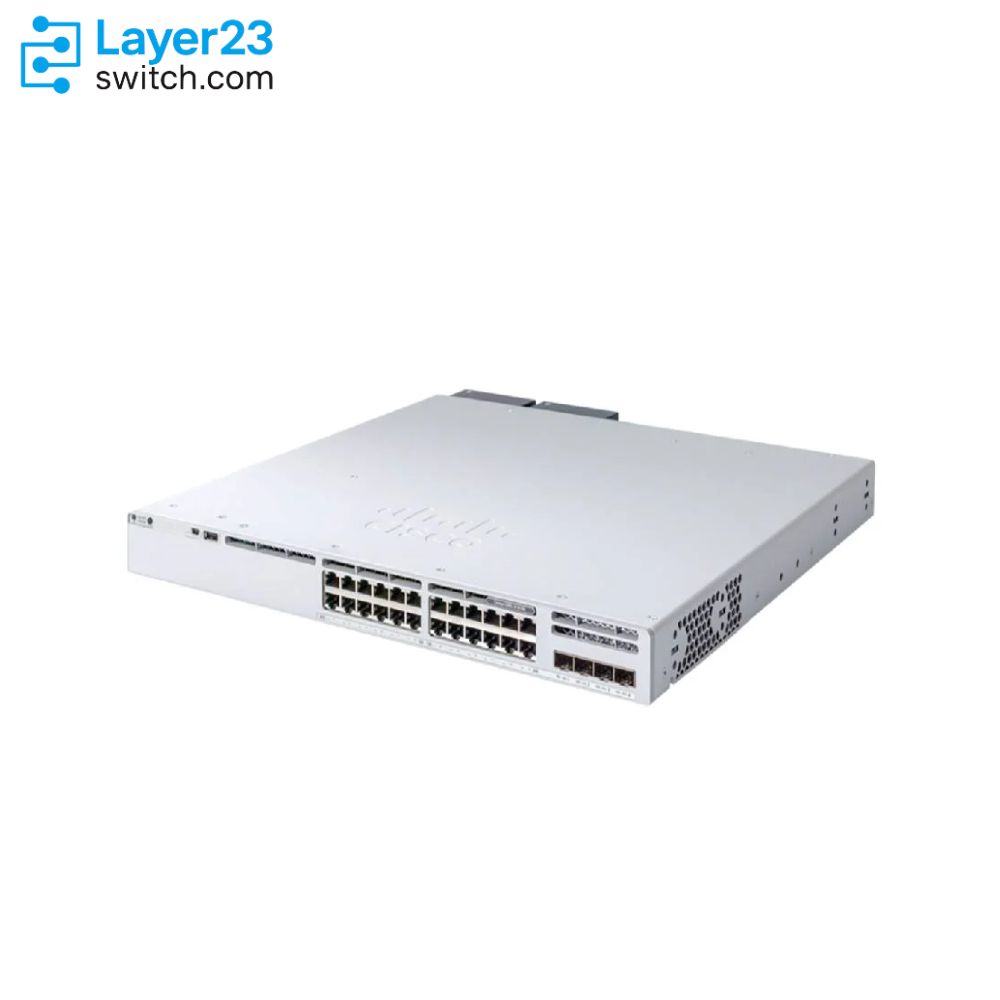

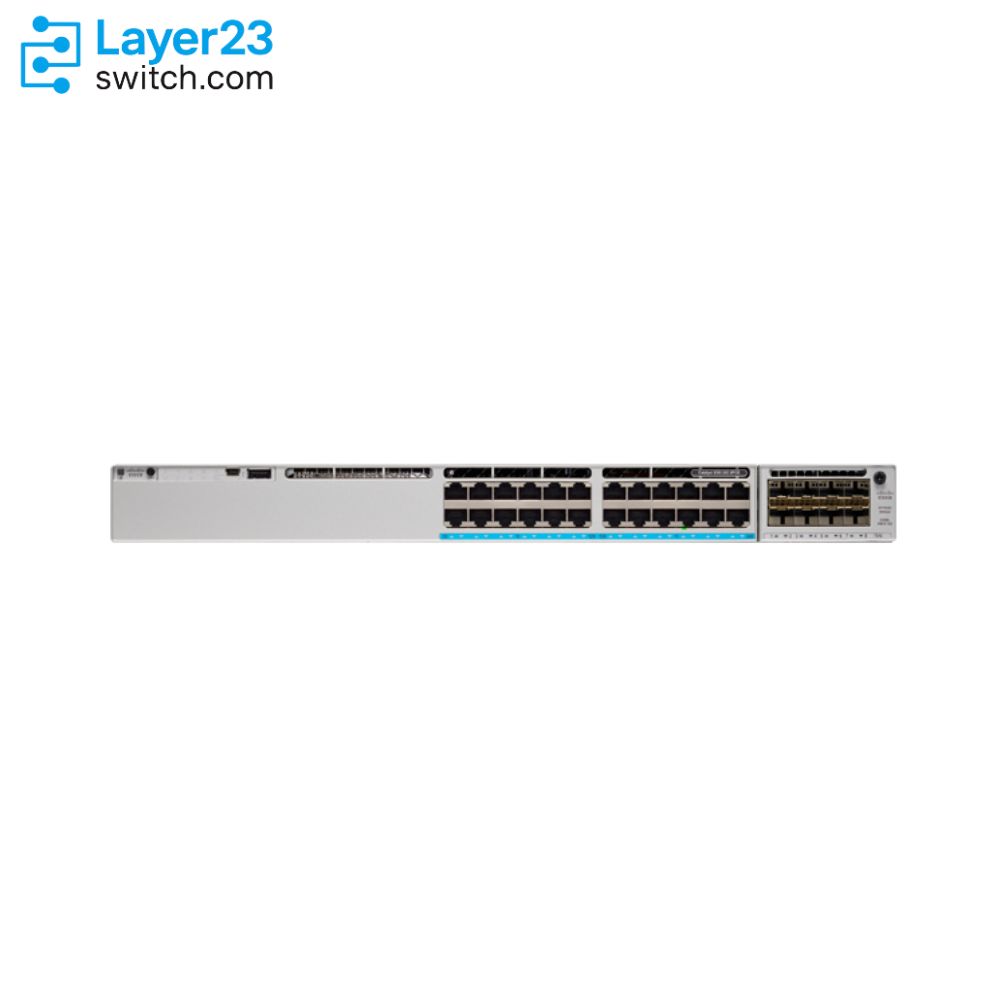

C9300L-24P-4X-M is a Cisco Catalyst 9300L-M fixed-uplink access switch for Meraki-managed campus access deployments. It provides 24 10/100/1000 PoE+ copper access ports, four fixed 10G/1G SFP+ uplinks, a 505W default PoE budget with the 715W AC power-supply class, StackWise-320 stacking, and Meraki Advanced or Enterprise software options for organizations standardizing Catalyst 9300L hardware under Meraki Dashboard operations.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-24P-4X-M |
|
Product type |
Fixed-uplink stackable access switch |
|
Access ports |
24 x 10/100/1000 Mbps PoE+ copper ports |
|
Uplink ports |
4 x 10G/1G SFP+ fixed uplink ports |
|
Software option |
Meraki Advanced or Enterprise |
|
Meraki license term |
1, 3, 5, 7, or 10 years |
|
Default power supply |
PWR-C1-715WAC-P hardware class |
|
Default PoE budget |
505W with 715W AC power supply |
|
Expanded PoE budget |
720W with supported secondary power supply configuration |
|
Stacking architecture |
StackWise-320 |
|
Switching capacity |
128 Gbps standalone; 448 Gbps with stacking |
|
Forwarding rate |
95.23 Mpps standalone; 333.33 Mpps with stacking |
|
Minimum software release |
Cisco IOS XE 16.11.1b or later for C9300L fixed-uplink models |
Product Performance
Key Features
The `-M` suffix moves the order to Meraki Enterprise or Advanced subscription planning instead of a Network Essentials or Network Advantage hardware suffix.
Four 10G/1G SFP+ uplinks are part of the base switch, so the quote should not add a modular C9300 network module for uplink selection.
Cisco identifies the C9300L-24P-4X hardware class as 24 10/100/1000 Mbps PoE+ ports, which fits powered edge devices rather than a data-only access plan.
C9300L fixed-uplink models use StackWise-320, so stack planning should remain within supported C9300L or C9300LM fixed-uplink members at a matching license level.
The default 715W AC power-supply class provides 505W available PoE for C9300L-24P-4X, making endpoint power demand part of the BOM check.
Cisco’s Meraki Catalyst 9300-M page positions the fixed-uplink `-M` models for Dashboard management, remote troubleshooting, topology visibility, and cloud-managed switch operations.
Application Scenarios
C9300L-24P-4X-M fits a branch or campus closet where the access switch must provide 24 PoE+ copper ports and be managed through the Meraki Dashboard.
Choose this SKU when the closet keeps a 24-port powered access footprint but needs 10G/1G SFP+ uplinks instead of the 1G SFP uplinks used by a 4G model.
The model belongs in a BOM where Catalyst 9300L fixed-uplink hardware is acceptable and the license plan is Meraki Enterprise or Advanced rather than Cisco DNA Essentials or Advantage.
Product Comparison
|
Parameter |
C9300L-24P-4X-M | |||
|---|---|---|---|---|
|
Product type |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
Fixed-uplink access switch |
|
Access ports |
24 x 10/100/1000 Mbps PoE+ |
24 x 10/100/1000 Mbps PoE+ |
24 x 10/100/1000 Mbps PoE+ |
24 x 10/100/1000 Mbps data |
|
Uplink ports |
4 x 10G/1G SFP+ fixed |
4 x 10G/1G SFP+ fixed |
4 x 10G/1G SFP+ fixed |
4 x 10G/1G SFP+ fixed |
|
Software option |
Meraki Enterprise or Advanced |
Cisco DNA or Catalyst Essentials |
Cisco DNA or Catalyst Advantage |
Meraki Enterprise or Advanced |
|
Network Stack offer |
Not applicable for `-M` in Cisco ordering guide |
Network Essentials |
Network Advantage |
Not applicable for `-M` in Cisco ordering guide |
|
Default power supply |
715W AC power-supply class |
PWR-C1-715WAC-P |
PWR-C1-715WAC-P |
350W AC power-supply class |
|
Default PoE budget |
505W |
505W |
505W |
No PoE |
|
Stacking architecture |
StackWise-320 |
StackWise-320 |
StackWise-320 |
StackWise-320 |
|
Switching capacity |
128 Gbps standalone; 448 Gbps with stacking |
128 Gbps standalone; 448 Gbps with stacking |
128 Gbps standalone; 448 Gbps with stacking |
128 Gbps standalone; 448 Gbps with stacking |
|
Forwarding rate |
95.23 Mpps standalone; 333.33 Mpps with stacking |
95.23 Mpps standalone; 333.33 Mpps with stacking |
95.23 Mpps standalone; 333.33 Mpps with stacking |
95.23 Mpps standalone; 333.33 Mpps with stacking |
- In a C9300L-24P-4X-M vs C9300L-24P-4X-E comparison, the hardware rows match, while the confirmed ordering difference is Meraki Enterprise or Advanced subscription planning versus Network Essentials with a 3, 5, or 7 year Cisco software term.
- The C9300L-24P-4X-M difference from C9300L-24P-4X-A is the software option: the `-M` SKU follows the Meraki subscription path and the `-A` SKU follows the Network Advantage path.
- For C9300L-24P-4X-M vs C9300L-24T-4X-M, the comparison is powered access versus data-only access; both are Meraki fixed-uplink 4X models, but only the C9300L-24P line provides PoE+ ports and a 505W default PoE budget.
- The which model to choose review should start with Meraki versus Cisco DNA or Catalyst subscription model, then confirm whether the access closet needs PoE+.
Selection Guide
1. Choose it for Meraki-managed PoE access
Select C9300L-24P-4X-M when the BOM requires 24 powered 1G access ports, four fixed SFP+ uplinks, and the Meraki Enterprise or Advanced software option.
2. Use E or A for Cisco DNA licensing
Move to C9300L-24P-4X-E or C9300L-24P-4X-A when the same PoE+ 4X hardware should follow Network Essentials or Network Advantage instead of a Meraki subscription.
3. Keep the T model for data-only access
Use C9300L-24T-4X-M only when the site does not need switch-delivered endpoint power and the 350W data-only power profile is the correct order line.
4. Confirm accessory handling for the Meraki option
Check the stack kit, power-supply redundancy, power cords, optics, and Meraki license term before the quote is released because Cisco ordering guidance treats Meraki-option accessories separately.
PoE Power Planning
|
Planning Item |
Cisco Confirmed Value |
Order Impact |
|---|---|---|
|
PoE access profile |
24 x 10/100/1000 Mbps PoE+ ports |
Size endpoint demand against a 24-port powered access model |
|
Default PoE budget |
505W with the 715W AC power-supply class |
Confirm that attached devices fit the default power plan |
|
All-port PoE+ planning ceiling |
720W limited by 24 PoE+ ports at 30W each |
Add the required power-supply plan when every port must deliver PoE+ |
|
Power accessory check |
Meraki-option accessories are ordered separately in Cisco ordering guidance |
Keep power cords and secondary power supply decisions visible in the BOM |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact SKU suffix |
C9300L-24P-4X-M |
Keeps the order on the Meraki software option rather than Essentials or Advantage |
|
Subscription tier |
Meraki Enterprise or Advanced with the required term |
Matches the hardware suffix to the management and feature entitlement model |
|
Smart Account requirement |
Smart Account is mandated for Catalyst 9300 Series switch ordering |
Keeps software entitlement handling aligned with Cisco ordering rules |
|
PoE budget |
505W default available PoE and all-port PoE+ power requirement |
Prevents powered endpoint demand from exceeding the confirmed supply plan |
|
Uplink optics |
Four 10G/1G SFP+ fixed uplink ports and supported optics |
Keeps the fiber handoff aligned with the fixed 4X uplink SKU |
|
Stack expansion |
StackWise-320 accessory path for C9300L fixed-uplink models |
Keeps stack planning separate from the modular Catalyst 9300 cable path |
Optional Add-ons
|
Model |
Description |
|---|---|
|
Stack kit for Cisco Catalyst 9300L fixed-uplink switch stacking | |
|
50 cm Type 3 stacking cable for Catalyst 9300L StackWise-320 stacking | |
|
1 m Type 3 stacking cable for Catalyst 9300L StackWise-320 stacking | |
|
STACK-T3-3M |
3 m Type 3 stacking cable for Catalyst 9300L StackWise-320 stacking |
|
715W AC Platinum-rated power supply module | |
|
1100W AC Platinum-rated power supply module | |
|
PWR-C1-715WDC |
715W DC power supply module |
C9300L-24P-4X-M Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-24P-4X-M | Product type | Fixed-uplink stackable access switch |
| Software option | Meraki Advanced or Enterprise | Network Stack offer | Not applicable for `-M` in Cisco ordering guide |
| Meraki license term | 1, 3, 5, 7, or 10 years | Minimum software release | Cisco IOS XE 16.11.1b or later for C9300L fixed-uplink models |
| Access ports | 24 x 10/100/1000 Mbps PoE+ copper ports | Uplink ports | 4 x 10G/1G SFP+ fixed uplink ports |
| Modular uplinks | Fixed uplinks built into the SKU | Default power supply | 715W AC power-supply class |
| Default PoE budget | 505W with 715W AC power supply | All-port PoE+ planning limit | 720W limited by 24 PoE+ ports at 30W each |
| Power supply slots | 2 internal power supply module slots | Stacking architecture | StackWise-320 |
| Stack member limit | Up to 8 Catalyst 9300L or 9300LM fixed-uplink members at the same license level | Switching capacity | 128 Gbps standalone |
| Switching capacity with stacking | 448 Gbps | Forwarding rate | 95.23 Mpps standalone |
| Forwarding rate with stacking | 333.33 Mpps | MAC addresses | 32,000 |
| IPv4 routes | 32,000 total with 24,000 direct and 8,000 indirect routes | Packet buffer | 16 MB for C9300L 24- and 48-port Gigabit Ethernet models |
| Flexible NetFlow entries | 64,000 flows on C9300L Gigabit Ethernet models | DRAM | 8 GB |
| Flash | 16 GB | VLAN IDs | 4094 |
| Jumbo frames | 9198 bytes | Management mode | Managed through Cisco Meraki Dashboard |
| Accessory handling | Accessories are ordered separately for Catalyst 9300 switches with the Meraki software option |
