C9300-24P-E – 24×1G PoE+ Ports – Modular Uplink Options – Network Essentials
4/mo Solds
Cisco C9300-24P-E Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9300-24P-E. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.
Optics & Cables Compatible with Cisco C9300-24P-E
-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $1,870.01.$50.00Current price is: $50.00. Condition: New Factory Sealed -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $2,658.11.$71.68Current price is: $71.68. Condition: New Factory Sealed -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $5,342.92.$128.00Current price is: $128.00. Condition: New Factory Sealed -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $10,672.47.$170.00Current price is: $170.00. Condition: New Factory Sealed -
SFP-25G-SR-S
25GBASE-SR SFP28 - 850nm MMF - 100m OM4Original price was: $2,658.11.$314.00Current price is: $314.00. Condition: New Factory Sealed -
SFP-10/25G-LR-S
10/25GBASE-LR SFP28 - 1310nm 10km SMF TransceiverOriginal price was: $5,877.20.$333.50Current price is: $333.50. Condition: New Factory Sealed -
QSFP-40G-SR4
40G SR4 QSFP - MPO-12 MMF - 4x10G BreakoutOriginal price was: $8,001.01.$139.00Current price is: $139.00. Condition: New Factory Sealed -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$89.00Current price is: $89.00. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - EXTOriginal price was: $1,202.16.$51.52Current price is: $51.52. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed
Network Modules Compatible with Cisco C9300-24P-E
-
C9300-NM-2Y
2x25G/10G/1G SFP28 Ports - Catalyst 9300 ModuleOriginal price was: $4,963.08.$1,094.40Current price is: $1,094.40. Condition: New Factory Sealed -
C9300-NM-2Q
2x40G QSFP+ Uplinks - Catalyst 9300 ModuleOriginal price was: $4,941.76.$779.40Current price is: $779.40. Condition: New Factory Sealed -
C9300-NM-4G
4x1GE SFP Ports - Catalyst 9300 ModuleOriginal price was: $1,046.49.$225.90Current price is: $225.90. Condition: New Factory Sealed -
C9300-NM-4M
4x10G/mGig Copper Ports - Catalyst 9300 ModuleOriginal price was: $2,906.92.$610.20Current price is: $610.20. Condition: New Factory Sealed -
C9300-NM-8X
8×10G SFP+ Module - Catalyst 9300 Network ModuleOriginal price was: $4,941.76.$741.60Current price is: $741.60. Condition: New Factory Sealed
Power Supplies & Fans Compatible with Cisco C9300-24P-E
-
PWR-C1-715WAC-P
715W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $1,479.00.$394.00Current price is: $394.00. Condition: New Factory Sealed -
PWR-C1-1100WAC-P
1100W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $2,317.88.$635.40Current price is: $635.40. Condition: New Factory Sealed
Stable Global Supply Chain for Thriving Businesses.
- $3,000,000 Inventory
- Certified Cisco Partner ships
- Collaborating with FedEx, UPS, DHL
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

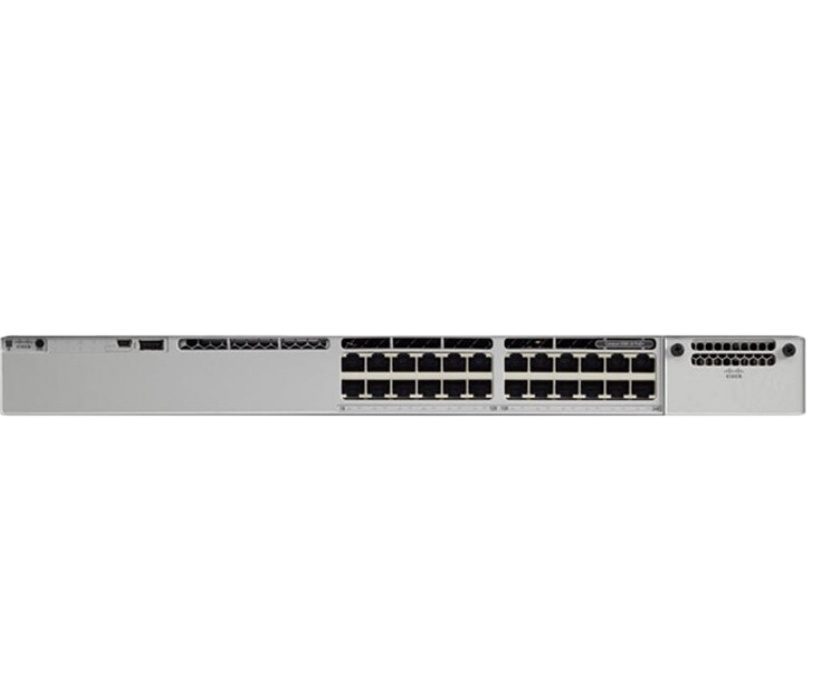

C9300-24P-E Description
The Cisco Catalyst C9300-24P-E is a high-performance, modular enterprise access switch designed for scalability, security, and IoT connectivity. As part of the Catalyst 9300 modular family, it features 24 Gigabit Ethernet PoE+ ports with a 445W power budget and a flexible expansion slot that supports swappable network modules ranging from 1G to 40G. This modularity ensures that the switch can adapt to changing bandwidth requirements, making it a future-proof investment for growing networks.
Powered by the robust UADP 2.0 ASIC and x86 CPU architecture, the C9300-24P-E delivers programmable pipeline capabilities and supports container-based application hosting. It runs on the Network Essentials license, providing foundational Layer 3 routing (OSPF Routed Access) and advanced security via Encrypted Traffic Analytics (ETA). With StackWise-480 technology, it offers an industry-leading 480 Gbps of stacking bandwidth, enabling a highly resilient, unified management domain for critical business applications.
Product Performance
Quick Specs
|
Feature |
Specification |
|---|---|
|
Model SKU |
C9300-24P-E |
|
Downlink Ports |
24x 10/100/1000 PoE+ |
|
Uplink Interface |
Modular (Requires Network Module) |
|
Software License |
Network Essentials |
|
PoE Power Budget |
445 W (Default with 1 PS) |
|
Switching Capacity |
208 Gbps (Standalone) / 688 Gbps (Stacked) |
|
Forwarding Rate |
154.76 Mpps |
|
Stacking Bandwidth |
480 Gbps (StackWise-480) |
|
Routing Protocols |
OSPF Routed Access, Static, RIP |
|
Power Supply |
Dual Modular (715W Default) |
Key Features
Investment Protection. The defining feature of the C9300 series is its modular uplink slot. Unlike fixed switches, you can easily swap the network module to upgrade from 1G uplinks to 10G, 25G, or 40G as your network traffic increases. This allows you to extend the lifespan of the switch chassis significantly.
Digital Workspace Ready. With a default power budget of 445W distributed across 24 ports, this switch enables the deployment of high-power devices such as Wi-Fi 6 Access Points, IP phones, and security cameras. It supports Persistent PoE, ensuring devices stay powered even during a switch reboot.
Digital Workspace Ready. With a default power budget of 445W distributed across 24 ports, this switch enables the deployment of high-power devices such as Wi-Fi 6 Access Points, IP phones, and security cameras. It supports Persistent PoE, ensuring devices stay powered even during a switch reboot.
Proactive Threat Defense. Capable of Encrypted Traffic Analytics (ETA), the switch uses machine learning to identify malware signatures in encrypted traffic without decryption. It also features Trustworthy Systems (Secure Boot, Image Signing) to protect the hardware from tampering and counterfeiting.
Network Essentials. Includes the Network Essentials license, which provides key routing features such as Static Routing, RIP, and OSPF Routed Access. This enables the switch to handle local traffic routing between VLANs, improving network efficiency and reducing the load on upstream routers.
Edge Computing. The powerful x86 CPU allows the switch to host third-party applications in Docker containers. This capability enables IT teams to run network monitoring tools (like ThousandEyes agents) or security sensors directly on the switch, providing deep visibility without extra server hardware.
Application Scenarios
Wireless Backhaul. The perfect switch for connecting a cluster of next-generation Wi-Fi 6 Access Points. The modular uplinks allow you to upgrade to 10G or 25G connectivity to the core, preventing bottlenecks as wireless speeds increase, while the PoE+ budget powers the APs reliably.
Resilient Access. Ideal for branch offices where uptime is non-negotiable. The dual redundant power supplies and StackWise-480 technology ensure that a single component failure does not disrupt business operations, maintaining connectivity for VoIP and critical apps.
Automated Security. Perfect for connecting IoT devices like security cameras and building sensors. The advanced security features like MACsec and TrustSec segmentation ensure that IoT devices are authenticated and isolated from critical corporate data traffic.
Product Comparison
|
Feature |
Cisco C9300-24P-E (Current Model) | ||
|---|---|---|---|
|
Uplink Flexibility |
Modular (1G/10G/25G/40G) |
Modular (1G/10G/25G/40G) |
Fixed (4x 10G SFP+) |
|
Stacking Bandwidth |
480 Gbps (StackWise-480) |
480 Gbps (StackWise-480) |
320 Gbps (StackWise-320) |
|
Software License |
Network Essentials |
Network Advantage |
Network Essentials |
|
Layer 3 Routing |
Limited (OSPF Access, Static) |
Full (BGP, MPLS, VRF) |
Limited (OSPF Access, Static) |
|
Switching Capacity |
208 Gbps |
208 Gbps |
128 Gbps |
|
Forwarding Rate |
154.76 Mpps |
154.76 Mpps |
95.23 Mpps |
|
Buffer Size |
32 MB |
32 MB |
16 MB |
|
Chassis Depth |
17.5 inches (Deep) |
17.5 inches (Deep) |
11.3 inches (Shallow) |
|
App Hosting |
Yes (Container) |
Yes (Container) |
Yes (Container) |
|
Price Positioning |
High-Performance |
Premium |
Mid-Range |
Selection Guide
- Engineering Requirement for Modular Uplinks
Choose this C9300 modular model over the C9300L fixed model if you anticipate bandwidth growth. The ability to swap the uplink module allows you to migrate from 1G to 10G, 25G, or 40G without replacing the switch, protecting your investment. - Essentials License Fit
Choose this Essentials model if your network design utilizes a standard Layer 2 Access model or basic static routing. It provides all the necessary management and security features for a robust access network without the added cost of advanced core routing licenses (BGP/MPLS). - High-Density Stacking Needs
If you are building a large stack of switches (e.g., 6-8 units), this model’s StackWise-480 technology provides significantly higher backplane throughput (480 Gbps) than the C9300L series, preventing congestion in high-traffic aggregation scenarios. - Reliable PoE+ Delivery
With a 445W budget, this switch is perfect for standard deployments of IP phones and APs. If you need higher power density (e.g., UPOE for lighting or high-power turrets), consider upgrading to the C9300-24U models.
Optional Add-ons
|
Model Number |
Description |
|---|---|
|
Catalyst 9300 8 x 10GE Network Module | |
|
Catalyst 9300 2 x 40GE Network Module | |
|
Catalyst 9300 4 x 1GE Network Module | |
|
STACK-T1-50CM |
Cisco StackWise-480 50cm Stacking Cable |
|
Cisco 715W AC Power Supply (Secondary/Spare) | |
|
GLC-LH-SMD |
Cisco 1000BASE-LX/LH SFP Transceiver Module, SMF |
Specifications
Packaging weight and dimensions included:| Weight | 17.78 kg |
|---|---|
| Dimensions | 56 × 54 × 23 cm |
| Parameter | Details | Parameter | Details |
|---|---|---|---|
| Model SKU | C9300-24P-E | Series Family | Cisco Catalyst 9300 |
| Software License | Network Essentials | Uplink Ports | Modular (Network Module Required) |
| Downlink Ports | 24 x 10/100/1000 PoE+ | PoE Standard | IEEE 802.3at (PoE+) |
| Default PoE Budget | 445 W (with 1 PSU) | Max PoE Budget | 720 W (with 2x 715W PSU) |
| Switching Capacity | 208 Gbps | Forwarding Rate | 154.76 Mpps |
| Stacking Technology | StackWise-480 | Stacking Bandwidth | 480 Gbps |
| Stacking Members | Up to 8 Units | MAC Address Table | 32,000 Entries |
| Total IPv4 Routes | 32,000 (24,000 direct + 8,000 indirect) | Total IPv6 Routes | 16,000 (8,000 direct + 8,000 indirect) |
| Multicast Groups | 8,000 | QoS Scale Entries | 5,120 |
| ACL Scale Entries | 5,120 | Packet Buffer | 32 MB |
| Flexible NetFlow | 64,000 flows | VLAN IDs | 4,096 |
| Max SVIs | 1,000 | Jumbo Frames | 9198 bytes |
| Routing Protocols | OSPF Routed Access, Static, RIP | Wireless Controller | Embedded (Up to 200 APs / 4000 Clients) |
| DRAM | 8 GB | Flash Memory | 16 GB |
| Power Supply Type | PWR-C1-715WAC (Default) | Power Redundancy | Dual Modular (Field Replaceable) |
| Max Power Consumption | ~95W (Traffic Dependent, no PoE) | Heat Dissipation | 315 BTU/hr (Typical) |
| Fan System | 3 Field-Replaceable Fans | MTBF (Hours) | 340,710 |
| Height | 1.73 in (4.4 cm) | Width | 17.5 in (44.5 cm) |
| Depth | 17.5 in (44.5 cm) | Weight | 16.03 lb (7.27 kg) |
| Operating Temperature | 23°F to 113°F (-5°C to 45°C) | Acoustic Noise | 45 dBA (Typical) |
| Safety Certifications | UL 60950-1, IEC 60950-1, CAN/CSA C22.2 | EMC Certifications | FCC Part 15 Class A, EN 55032 Class A |
