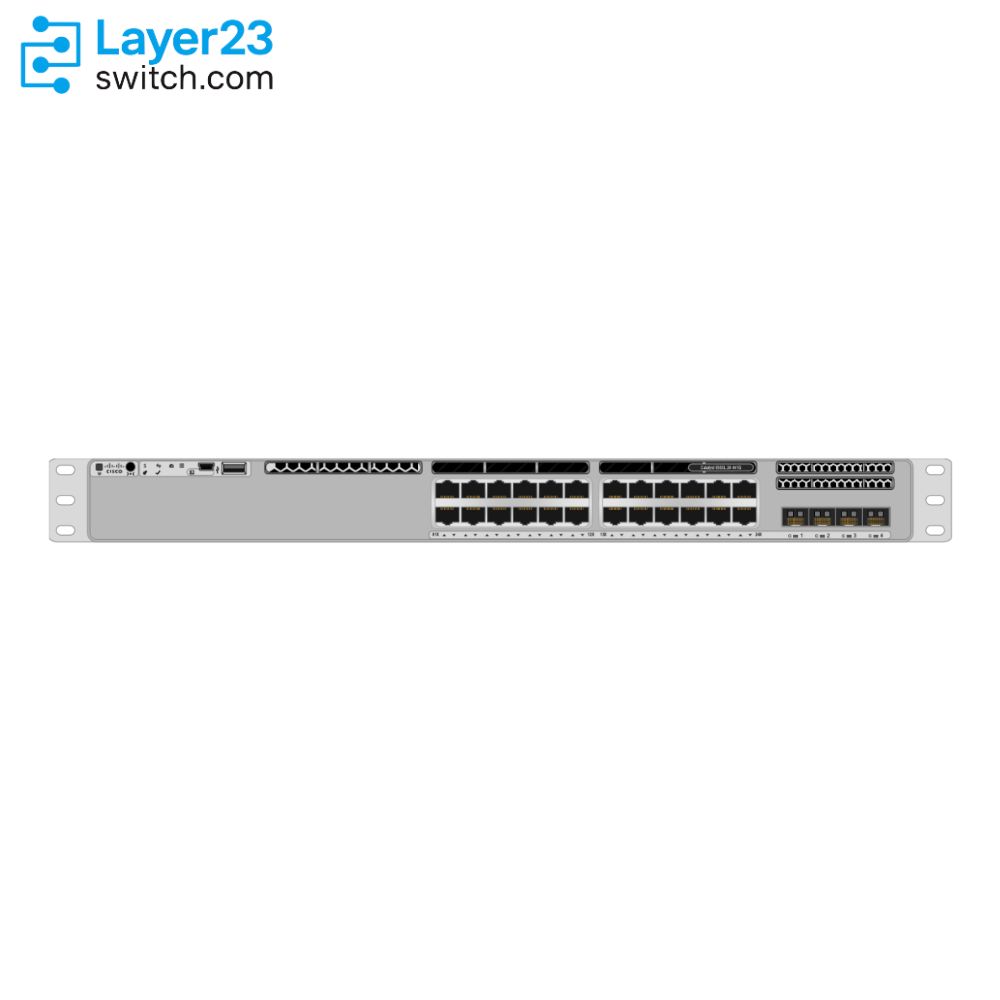

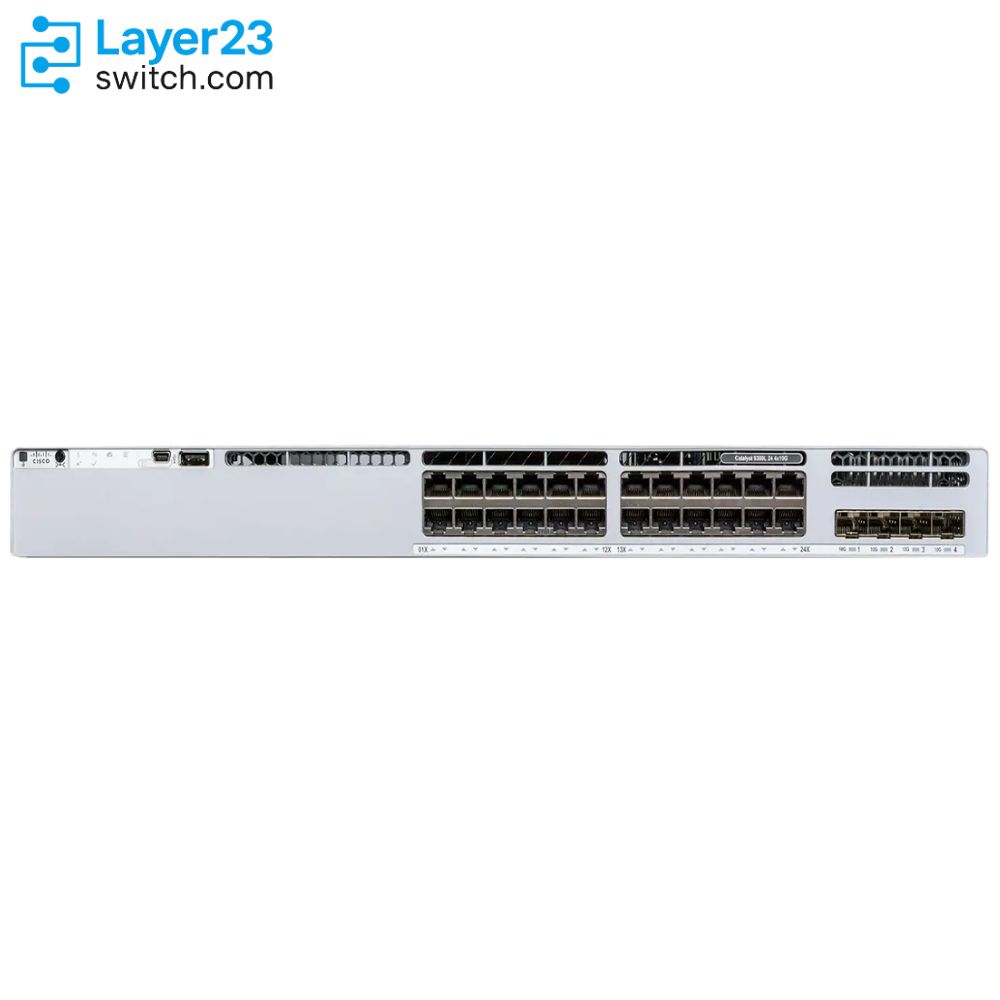

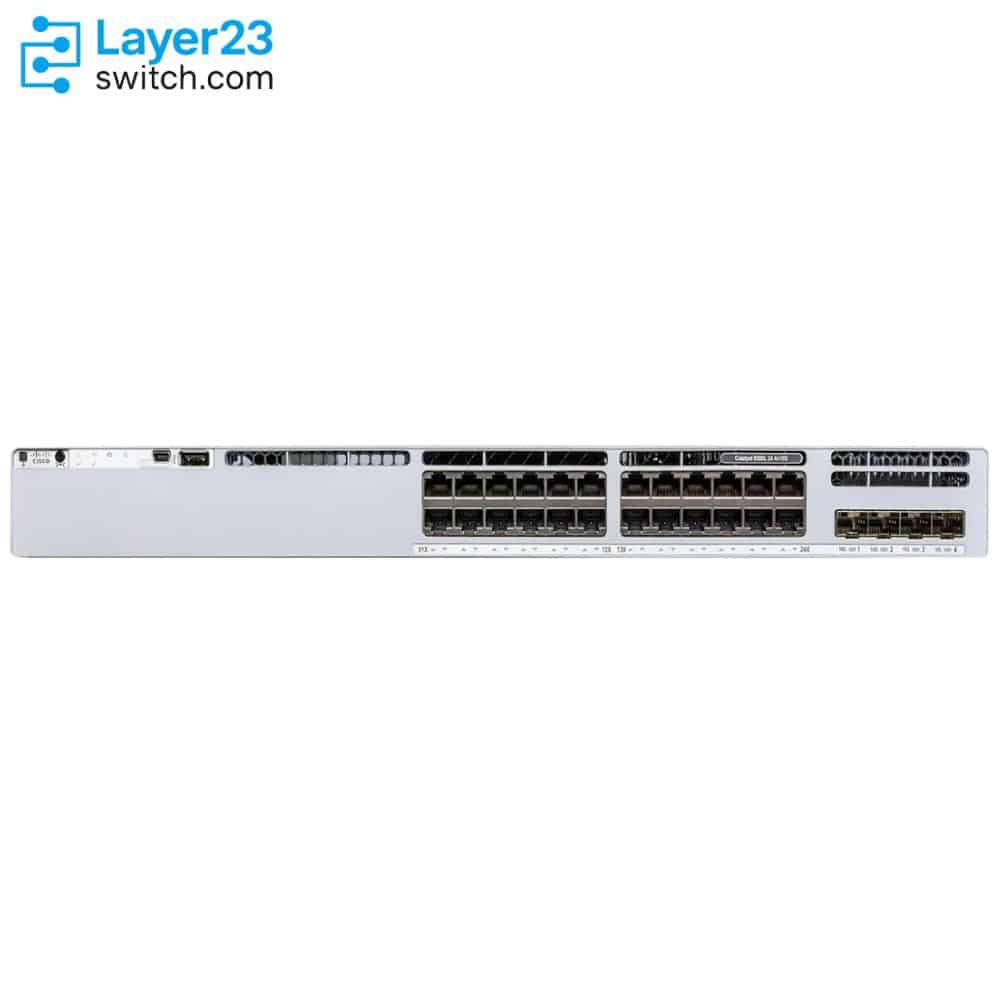

C9300L-24T-4G-A Description
The C9300L-24T-4G-A is a Cisco Catalyst 9300L fixed-uplink stackable access switch for campus wiring closets that serve data-only endpoints over copper. The switch has 24 Gigabit copper ports, four fixed 1G SFP uplinks and 56 Gbps of switching capacity, and its Network Advantage license includes BGP, VXLAN, MPLS and OSPF without a route limit. The 350W default supply carries no PoE, and StackWise-320 stacks only with Catalyst 9300L and 9300LM switches at the same license level.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-24T-4G-A |
|
Product type |
Fixed-uplink stackable access switch |
|
Downlink ports |
24 x 10/100/1000 Mbps data copper ports |
|
Uplink ports |
4 x 1G SFP fixed uplink ports |
|
Network license |
Network Advantage |
|
Default power supply |
PWR-C1-350WAC-P |
|
PoE support |
No PoE |
|
Stacking architecture |
StackWise-320 |
|
Switching capacity |
56 Gbps standalone; 376 Gbps with stacking |
|
Forwarding rate |
41.66 Mpps standalone; 279.76 Mpps with stacking |
|
Introductory software release |
Cisco IOS XE Gibraltar 16.11.1c |
Product Performance
Key Features
The 24 10/100/1000 copper ports carry data only, with no PoE output, so they suit desktops, printers and devices powered locally.
Four 1G SFP ports are built into the chassis and take fiber or copper SFP modules toward the aggregation switch. The uplink speed is set by the hardware and does not change with a module swap.
The license adds BGP, EIGRP, IS-IS and OSPF without a route limit, together with VRF, VXLAN, LISP, TrustSec and MPLS. Routed access and segmentation can sit at the closet instead of further upstream.
Up to eight switches join one StackWise-320 stack at 320 Gbps of stacking bandwidth. Members must be Catalyst 9300L or 9300LM switches at the same license level, and fixed-uplink models do not stack with modular-uplink Catalyst 9300 or Catalyst 3850 and 3650 switches.
The 350W AC supply is the default, and the chassis has two internal supply slots. A second 350W, 715W or 1100W supply can be added, and there is no PoE output to budget for.
The uplinks are part of the chassis, so there is no network-module slot, and Cisco StackPower is not supported on C9300L fixed-uplink models.
Application Scenarios
In an office floor closet, the switch connects desktops, printers and locally powered devices over its Gigabit copper ports and carries their traffic to the distribution layer on 1G SFP uplinks.
A campus network that segments departments with VRFs or VXLAN can run those functions at the access edge, because the Network Advantage license supports them on this switch.
When a closet needs more data ports, the switch joins an existing Catalyst 9300L stack at the same license level and shares one management plane with its neighbors.
Product Comparison
|
Parameter |
C9300L-24T-4G-A | |||
|---|---|---|---|---|
|
Total 10/100/1000, Multigigabit copper or SFP fiber |
24 x 10/100/1000 data |
24 x 10/100/1000 data |
24 x 10/100/1000 data |
24 x 10/100/1000 PoE+ |
|
Uplink configuration |
4 x 1G SFP fixed |
4 x 1G SFP fixed |
4 x 10G/1G SFP+ fixed |
4 x 1G SFP fixed |
|
Network license |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
Default AC power supply |
PWR-C1-350WAC-P |
PWR-C1-350WAC-P |
PWR-C1-350WAC-P |
PWR-C1-715WAC-P |
|
Available PoE power |
No PoE |
No PoE |
No PoE |
505W |
|
Stack bandwidth |
320 Gbps |
320 Gbps |
320 Gbps |
320 Gbps |
|
Switching capacity |
56 Gbps |
56 Gbps |
128 Gbps |
56 Gbps |
|
Switching capacity with stacking |
376 Gbps |
376 Gbps |
448 Gbps |
376 Gbps |
C9300L-24T-4G-A is the Network Advantage version of C9300L-24T-4G-E: both have 24 data-only 1G ports, four fixed 1G SFP uplinks and the 350W PWR-C1-350WAC-P supply, so the license tier is the only difference, and a site that needs only Network Essentials orders C9300L-24T-4G-E instead. Powered endpoints change the model: C9300L-24P-4G-A gives PoE+ with 505W of default available PoE on a 715W PWR-C1-715WAC-P. Uplinks faster than 1G call for C9300L-24T-4X-A, whose four fixed 10G/1G SFP+ ports raise standalone switching capacity from 56 Gbps to 128 Gbps. Members of one stack must share the same license tier.
Ordering Checklist
- Subscription: Order a 24-port Advantage term such as C9300L-DNA-A-24-5Y, or the Catalyst equivalent C9300L-DNX-A-24-5Y; terms run 3, 5 or 7 years. New orders need a subscription of the same tier as the Network Advantage license on the switch.
- Second power supply: A second supply matching PWR-C1-350WAC-P is selected by default; choose C9300L-SPS-NONE to remove it. The configurator adds it unless removed, so the order may carry a supply the site does not want.
- Stack kit: C9300L-STACK-KIT is selected by default with a 50 cm cable; 1 m and 3 m cables are options. A stack needs a cable long enough to reach the neighbouring member, and fixed-uplink switches use the C9300L kit rather than the modular C9300 cables.
- Power cords: Two power cords ship, defaulting to North America; select the cord type for the destination country. The default cord will not match outlets outside North America.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Stack kit for Cisco Catalyst 9300L fixed-uplink switch stacking | |
|
C9300L-STACK-KIT2 |
Stack kit option for Catalyst 9300L and C9300LM StackWise-320 stacking |
|
50 cm StackWise-320 data stack cable for Catalyst 9300L stacking | |
|
1 m StackWise-320 data stack cable for Catalyst 9300L stacking | |
|
STACK-T3-3M |
3 m StackWise-320 data stack cable for Catalyst 9300L stacking |
|
350W AC Platinum-rated default power supply module for the C9300L-24T-4G-A model | |
|
715W AC Platinum-rated power supply module supported in the C9300L Series | |
|
1100W AC Platinum-rated power supply module supported in the C9300L Series | |
|
PWR-C1-715WDC |
715W DC power supply module supported in the C9300L Series |
|
C9300L Cisco DNA Advantage 24-port 3-year term license | |
|
C9300L-DNA-A-24-5Y |
C9300L Cisco DNA Advantage 24-port 5-year term license |
|
C9300L-DNA-A-24-7Y |
C9300L Cisco DNA Advantage 24-port 7-year term license |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-24T-4G-A | Product type | Fixed-uplink stackable access switch |
| Network license | Network Advantage | Minimum software release | Cisco IOS XE Gibraltar 16.11.1c |
| Downlink ports | 24 x 10/100/1000 Mbps data copper ports | Uplink ports | 4 x 1G SFP fixed uplink ports |
| Switching capacity | 56 Gbps | Forwarding rate | 41.66 Mpps |
| Switching capacity with stacking | 376 Gbps | Forwarding rate with stacking | 279.76 Mpps |
| Packet buffer | 16 MB | DRAM | 8 GB |
| Flash | 16 GB | MAC addresses | 32,000 |
| VLAN IDs | 4,094 | IPv4 routes | 32,000 total with 24,000 direct and 8,000 indirect routes |
| Flexible NetFlow entries | 64,000 flows | Jumbo frames | 9,198 bytes |
| Stacking | StackWise-320 | Stack bandwidth | 320 Gbps |
| Stack mixing | Catalyst 9300L and C9300LM models with the same license level | Stacking kit | C9300L-STACK-KIT or C9300L-STACK-KIT2 |
| StackPower | Not supported | Default power supply | PWR-C1-350WAC-P |
| Power supply slots | 2 internal power supply module slots |
Quality Certifications
Customer Reviews
Questions & Answers
-
Can C9300L-24T-4G-A be stacked?
-
What does Network Advantage on C9300L-24T-4G-A include?
-
Which MACsec key length can C9300L-24T-4G-A use?
-
What VXLAN BGP EVPN functions can C9300L-24T-4G-A perform under Network Advantage?
-
Is a 1900W AC supply listed for C9300L-24T-4G-A?
-
How does C9300L-24T-4G-A build its StackWise-320 bandwidth?
-
What are the MAC and route table limits of C9300L-24T-4G-A?
-
Can the fans of C9300L-24T-4G-A be replaced in the field?
-
Which IOS XE baseline does the datasheet give for C9300L-24T-4G-A?
