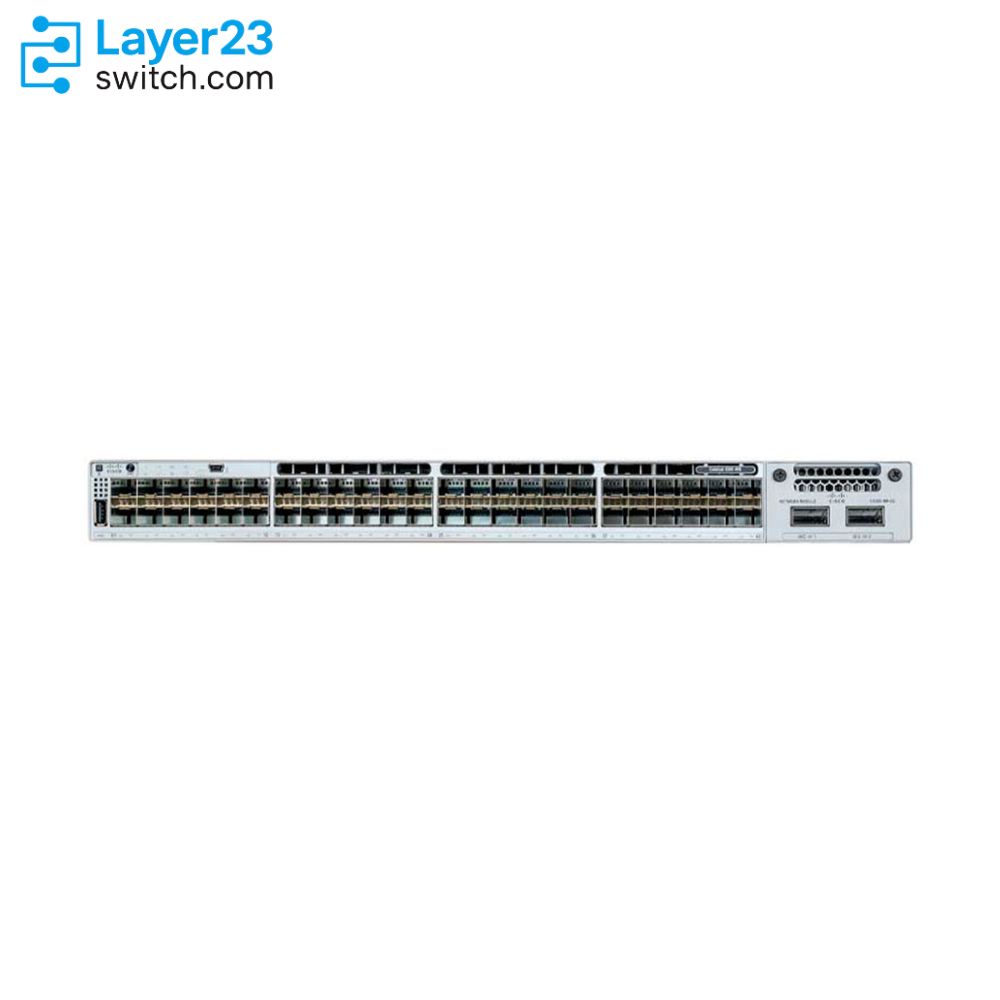

C9300L-48UXG-2Q-E – 36x1G + 12xmGig UPOE Ports – 2x40G QSFP+ Uplinks – 675W PoE Budget
Shop Expert-Recommended Accessories for the C9300L-48UXG-2Q-E
Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.-
Original price was: $2,061.70.$391.00Current price is: $391.00. -
Original price was: $3,653.72.$126.00Current price is: $126.00.
-
Original price was: $2,925.26.$120.00Current price is: $120.00.
-
Original price was: $2,317.88.$689.00Current price is: $689.00.
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.
C9300L-48UXG-2Q-E Description
The C9300L-48UXG-2Q-E is a Cisco Catalyst 9300L fixed-uplink UPOE access switch for campus wiring closets that connect Multigigabit Wi-Fi access points. It has 12 Multigigabit and 36 Gigabit Cisco UPOE ports, two fixed 40G QSFP+ uplinks, a 675W default PoE budget and 472 Gbps of switching capacity under Network Essentials. The switch has no network module slot, and its StackWise-320 stack accepts only Catalyst 9300L and 9300LM members at the same license level.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-48UXG-2Q-E |
|
Product type |
Fixed-uplink stackable access switch |
|
Network license |
Network Essentials |
|
Downlink ports |
36 x 10/100/1000 Mbps copper plus 12 x 100M/1G/2.5G/5G/10G mGig UPOE |
|
Fixed uplinks |
2 x 40G QSFP+ |
|
Default power supply |
PWR-C1-1100WAC-P |
|
Default PoE budget |
675W |
|
Expanded PoE budget |
1775W with supported secondary power supply configuration |
|
Stacking architecture |
StackWise-320 |
|
Switching capacity |
472 Gbps standalone; 792 Gbps with stacking |
|
Forwarding rate |
351.19 Mpps standalone; 589.28 Mpps with stacking |
|
Physical weight |
7.65 kg (16.86 lb) |
Product Performance
Key Features
The two QSFP+ ports are built in and carry 80 Gbps toward the distribution layer. With no network module slot, uplink speed stays at 40G for the life of the switch.
Twelve ports negotiate 100M, 1G, 2.5G, 5G or 10G, and the other 36 run at 10/100/1000 Mbps. Cat5e carries Multigigabit runs up to 5G, Cat6 reaches 10G within 55 m, and Cat6A holds 10G over the full 100 m.
Cisco UPOE reaches all 48 ports, but the default PWR-C1-1100WAC-P supply provides 675W. A second supply raises the budget to 1025W with a 350W unit, 1390W with a 715W unit and 1775W with a second 1100W unit, and 60W on up to 30 ports needs two 1100W supplies.
Every port forwards at line rate for IPv4 and IPv6 at 351.19 Mpps with 64-byte packets. Switching capacity counts as 792 Gbps when the switch is part of a stack.
Up to eight Catalyst 9300L or 9300LM switches stack over StackWise-320 at 320 Gbps. Modular-uplink Catalyst 9300 and 9300X switches cannot join, and with no StackPower every member runs on its own supplies.
Network Essentials includes Layer 2, routed access with RIP, EIGRP Stub and OSPF up to 1,000 routes, 802.1X and MACsec-128. BGP, IS-IS, VRF, VXLAN and Cisco TrustSec are part of Network Advantage, and C9300L-LIC= adds that tier later.
Application Scenarios
On an office floor with Wi-Fi 6 access points that uplink at 2.5G or 5G, the switch powers them from its Multigigabit UPOE ports and sends the aggregate to the distribution layer over two 40G QSFP+ links.
A school or mid-size office that routes at the access edge can run the closet as an OSPF area member, provided the campus routing table stays under 1,000 routes.
Virtual desktop terminals, building management gateways and LED fixtures plug into the Gigabit UPOE ports of an open-plan floor, and each device authenticates through 802.1X before it reaches its VLAN.
Product Comparison
|
Parameter |
C9300L-48UXG-2Q-E | |||
|---|---|---|---|---|
|
Network stack |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Switch fundamentals |
Routed Access (RIP, EIGRP Stub, OSPF – 1,000 routes) |
Routed Access (RIP, EIGRP Stub, OSPF) |
Routed Access (RIP, EIGRP Stub, OSPF – 1,000 routes) |
Routed Access (RIP, EIGRP Stub, OSPF – 1,000 routes) |
|
Advanced switch capabilities and scale |
Not included |
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR, IP SLA, OSPF |
Not included |
Not included |
|
Network segmentation |
Not included |
VRF, VXLAN, LISP, Cisco TrustSec, SGT, MPLS, mVPN |
Not included |
Not included |
|
Total 10/100/1000, Multigigabit copper or SFP fiber |
48 ports Cisco UPOE: 12 Multigigabit + 36 x 1G |
48 ports Cisco UPOE: 12 Multigigabit + 36 x 1G |
48 ports Cisco UPOE: 12 Multigigabit + 36 x 1G |
24 ports Cisco UPOE: 8 Multigigabit + 16 x 1G |
|
Uplink configuration |
2 x 40G fixed uplinks |
2 x 40G fixed uplinks |
4 x 10G/1G fixed uplinks |
2 x 40G fixed uplinks |
|
Available PoE power, default supply |
675W |
675W |
675W |
722W |
|
Available PoE power with 1100W secondary PS |
1775W |
1775W |
1775W |
1440W |
|
Switching capacity |
472 Gbps |
472 Gbps |
392 Gbps |
352 Gbps |
C9300L-48UXG-2Q-E and C9300L-48UXG-4X-E share the same 48 UPOE ports and 675W default budget, but this model ends in two fixed 40G QSFP+ uplinks and switches 472 Gbps against 392 Gbps, so a distribution layer that hands off at 40G needs it, while 10G SFP+ handoffs can use C9300L-48UXG-4X-E. Network Essentials limits OSPF to 1,000 routes and omits BGP, VRF and VXLAN; sites that need them on day one order C9300L-48UXG-2Q-A, or upgrade later with a C9300L-48-E-A term license under C9300L-LIC=, which cannot be placed on the switch order. Closets with 24 or fewer drops start at 722W on C9300L-24UXG-2Q-E, with eight mGig UPOE ports in place of twelve.
PoE Power Planning
|
Planning Item |
Confirmed Cisco Fact |
Buyer Check |
|---|---|---|
|
Default PoE budget |
675W with PWR-C1-1100WAC-P |
Confirm the attached endpoint count fits the default budget |
|
Secondary power planning |
Cisco lists higher PoE budgets with secondary power supply options |
Align the secondary PSU choice with the required PoE headroom |
|
UPOE standards role |
C9300L-48UXG-2Q-E is listed among Cisco IEEE 802.3bt Type 3 UPOE switches |
Match endpoint power classes before reserving switch ports |
|
Power cord selection |
Catalyst 9300 ordering requires a region-specific power cable selection |
Confirm destination country and plug type before releasing the order |
Ordering Checklist
- Subscription tier: Order a 48-port Essentials term of 3, 5 or 7 years, such as C9300L-DNA-E-48-5Y for Cisco DNA or C9300L-DNX-E-48-5Y for Cisco Catalyst. New orders need the subscription at the same tier as the Network Essentials license.
- Second power supply: The configurator adds a second PWR-C1-1100WAC-P by default and C9300L-SPS-NONE removes it. With the second supply the PoE budget is 1775W; without it, 675W.
- Stack kit: C9300L-STACK-KIT with a 50 cm cable is added by default; Catalyst 9300LM members take only C9300L-STACK-KIT2. A stack that includes 9300LM switches needs Kit 2 adapters.
- Power cords: Select the cord type for the destination country; two cords ship with the default configuration. The configurator defaults to North America cords.
Optional Add-ons
|
Model |
Description |
|---|---|
|
C9300L-DNX-E-48-3Y |
Cisco Catalyst Essentials 48-port term subscription for C9300L and C9300LM models |
|
C9300L-DNX-E-48-5Y |
Cisco Catalyst Essentials 48-port term subscription for C9300L and C9300LM models |
|
C9300L-DNX-E-48-7Y |
Cisco Catalyst Essentials 48-port term subscription for C9300L and C9300LM models |
|
Catalyst 9300L StackWise kit option listed for C9300L SKUs | |
|
C9300L-STACK-KIT2 |
Catalyst 9300L StackWise kit option listed for C9300L SKUs |
|
Secondary AC power supply option reflected in Cisco PoE budget tables | |
|
Default 1100W AC power supply and secondary power supply option for higher PoE budgets |
C9300L-48UXG-2Q-E Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-48UXG-2Q-E | Product type | Fixed-uplink stackable access switch |
| Network license | Network Essentials | Downlink ports | 36 x 10/100/1000 Mbps copper and 12 x 100M/1G/2.5G/5G/10G mGig UPOE |
| Fixed uplinks | 2 x 40G QSFP+ | Default power supply | PWR-C1-1100WAC-P |
| Default PoE budget | 675W | PoE with secondary 350W PSU | 1025W |
| PoE with secondary 715W PSU | 1390W | PoE with secondary 1100W PSU | 1775W |
| Stacking architecture | StackWise-320 | Stack bandwidth | 320 Gbps |
| Stack size | Up to 8 members | Switching capacity | 472 Gbps standalone |
| Switching capacity with stacking | 792 Gbps | Forwarding rate | 351.19 Mpps standalone |
| Forwarding rate with stacking | 589.28 Mpps | Weight | 7.65 kg (16.86 lb) |
| Uplink connector class | QSFP+ fixed uplink ports | Power cord | Region-specific power cable selected during ordering |
| License upgrade path | C9300L-LIC= for Catalyst 9300L fixed-uplink models |
