C9300L-STACK-KIT – C9300L Stack Kit – 2 Stack Adapters – 50cm Type 3 Cable
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9300L-STACK-KIT Description

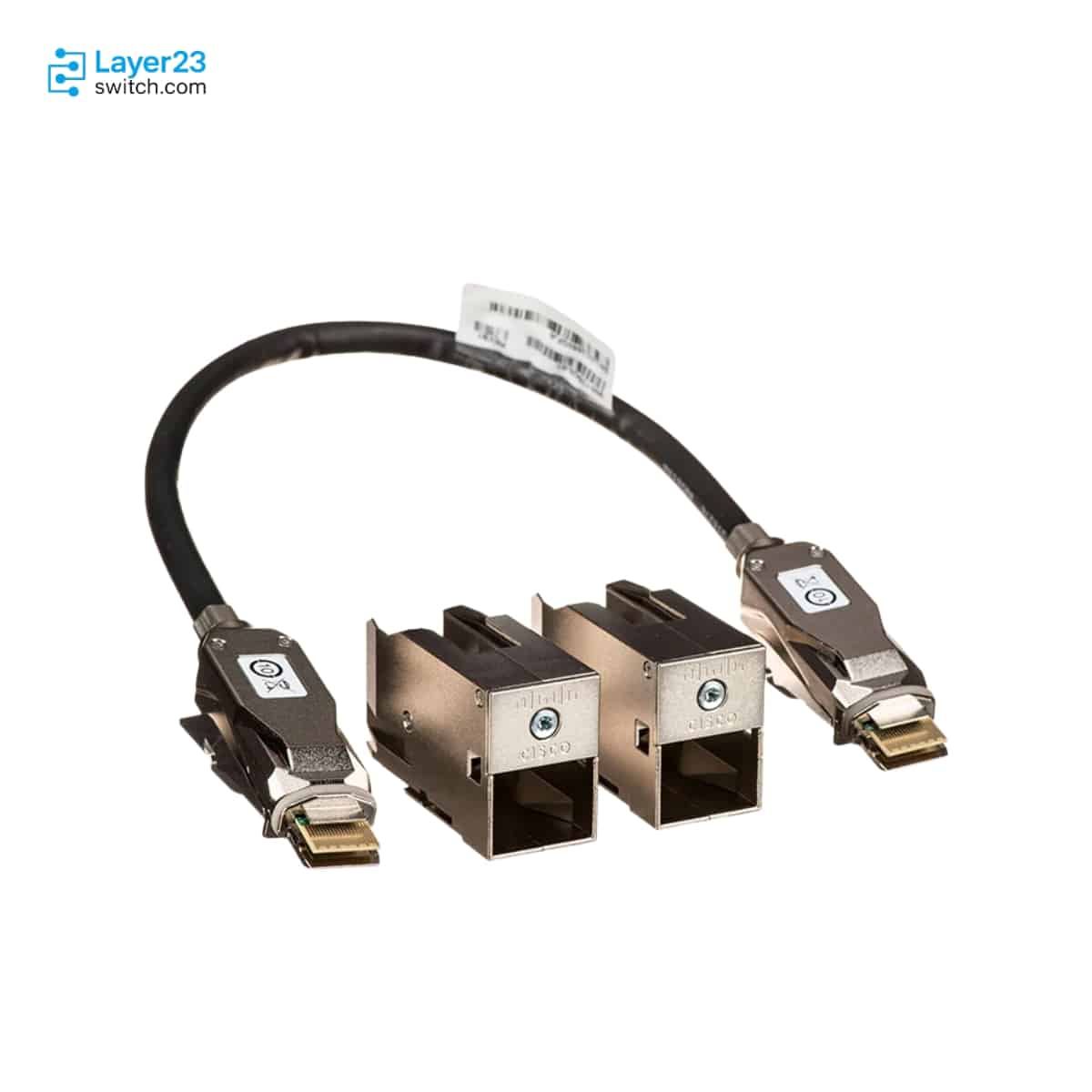

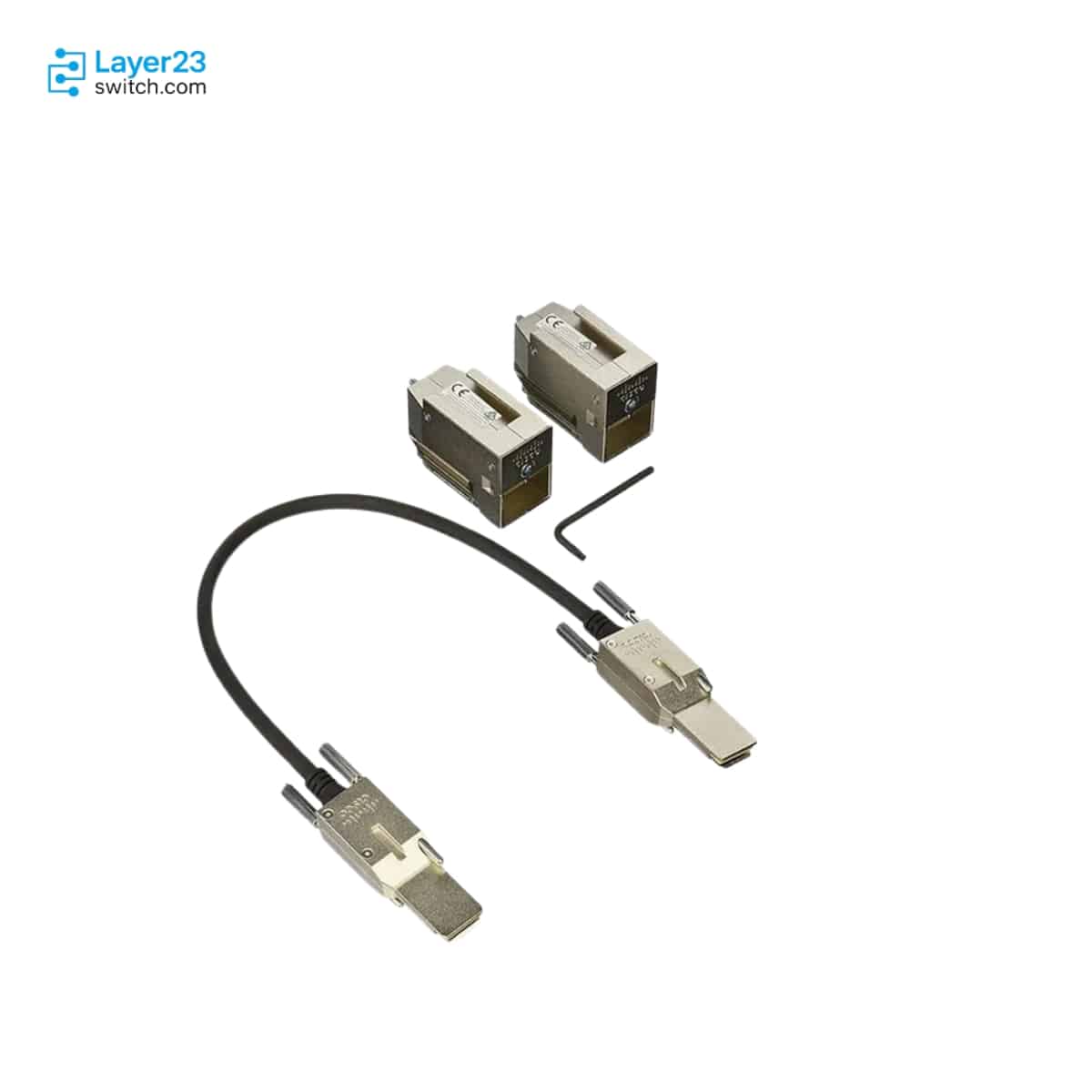

C9300L-STACK-KIT is the Cisco StackWise-320 stack kit for Catalyst 9300L fixed-uplink switches, used to build a physical data stack for C9300L switch deployments. Cisco identifies the kit as a separately ordered stacking accessory that includes two C9300L-STACK adapters and one STACK-T3-50CM Type 3 stacking cable, with the C9300L platform supporting StackWise-320 operation for stacks of up to eight switches when stack members use the same license level.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-STACK-KIT |
|
Product type |
StackWise-320 stack kit |
|
Compatible platform |
Cisco Catalyst 9300L Series fixed-uplink switches |
|
Included components |
Two stack adapters and one data stack cable |
|
Adapter and cable family |
C9300L-STACK adapter with STACK-T3 type cables |
|
Default cable |
STACK-T3-50CM Type 3 stacking cable |
|
Default cable length |
50 cm / 0.5 meter / 1.64 feet |
|
Alternate Type 3 cable lengths |
1 m and 3 m |
|
StackWise technology |
Cisco StackWise-320 |
|
Stack scale for C9300L platform |
Up to 8 switches |
|
Adapter family |
C9300L-STACK with STACK-T3 type cables |
|
Alternate Type 3 lengths |
1 m and 3 m |
|
Stack member rule |
Same license level for Catalyst 9300L stack members |
Application Scenarios
Use C9300L-STACK-KIT when a Catalyst 9300L fixed-uplink switch order needs the physical StackWise-320 adapters and default short data stack cable.
Select this kit when adding another C9300L member to a documented StackWise-320 plan and the stack can use the default 50 cm Type 3 cable path.
Check the carton label against STACK-T3-50CM and C9300L-STACK-KIT2 because the current SKU is a complete kit, while the cable-only and Kit2 lines serve different ordering roles.
Product Comparison
|
Parameter |
C9300L-STACK-KIT |
C9300L-STACK-KIT2 | |
|---|---|---|---|
|
Product type |
StackWise-320 stack kit |
StackWise-320 Stack Kit 2 |
Type 3 stacking cable |
|
Compatible platform |
Catalyst 9300L fixed-uplink switches |
Catalyst 9300L and 9300LM fixed-uplink switches |
Catalyst 9300L fixed-uplink switches |
|
Included components |
2 stack adapters and 1 stack cable |
2 stack adapters and 1 stack cable |
1 stacking cable only |
|
Adapter or cable family |
C9300L-STACK with STACK-T3 cables |
C9300L-STACK-A with STACK-T3A cables |
STACK-T3 cable family |
|
Default or listed cable |
STACK-T3-50CM included by default |
STACK-T3A-50CM included by default |
50 cm Type 3 cable |
|
StackWise technology |
StackWise-320 |
StackWise-320 |
StackWise-320 |
|
Cisco ordering form |
Base product ID |
Base product ID for Kit2 |
Cable product ID |
|
Main order boundary |
C9300L Type 3 kit |
C9300L or C9300LM Type 3A kit |
Replacement or cable option only |
- In a C9300L-STACK-KIT vs C9300L-STACK-KIT2 comparison, both are StackWise-320 kits with two adapters and one cable, but Kit2 uses the Type 3A path and covers C9300L plus C9300LM.
- The C9300L-STACK-KIT vs STACK-T3-50CM difference is kit scope. C9300L-STACK-KIT includes adapters and a cable, while STACK-T3-50CM is only the 50 cm Type 3 cable.
- For C9300L-STACK-KIT vs C9300L-STACK-KIT=, the confirmed difference is ordering form: the current SKU is the base kit and the equals-suffix PID is the spare kit.
- Buyers deciding which model to choose should confirm platform family, Type 3 or Type 3A accessory path, whether adapters are needed, and whether procurement requires the base or spare product ID.
Selection Guide
1. Match the kit to C9300L Type 3 stacking
Choose C9300L-STACK-KIT when the stack is built from Catalyst 9300L fixed-uplink switches and the bill of materials requires the Type 3 adapter and cable family.
2. Move to Kit2 for Type 3A or C9300LM plans
Select C9300L-STACK-KIT2 when the order needs the C9300L-STACK-A adapter path, Type 3A cables, or a C9300LM-compatible accessory set.
3. Do not use a cable-only PID when adapters are missing
Use STACK-T3-50CM only when the adapters are already covered and the request is for the 50 cm Type 3 cable by itself.
4. Verify base versus spare ordering
Keep C9300L-STACK-KIT on the order for the base kit and switch to C9300L-STACK-KIT= only when the procurement request specifies a spare product ID.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact product ID |
C9300L-STACK-KIT or C9300L-STACK-KIT= |
Separates the base kit from the spare PID |
|
Switch family |
Catalyst 9300L fixed-uplink switches |
Keeps the order inside Cisco’s documented Type 3 C9300L accessory path |
|
Stack architecture |
StackWise-320 |
Confirms this is the fixed-uplink Catalyst 9300 stacking kit rather than a modular-uplink cable plan |
|
Included materials |
Two stack adapters and one data stack cable |
Avoids ordering only a cable when the switch still needs adapters |
|
Default cable |
STACK-T3-50CM at 50 cm |
Confirms the supplied cable length can reach the planned rear-panel route |
|
Longer cable requirement |
STACK-T3-1M or STACK-T3-3M if needed |
Prevents using the default short cable when rack spacing requires a longer Type 3 cable |
|
C9300LM or Type 3A requirement |
C9300L-STACK-KIT2 and STACK-T3A cables |
Prevents substituting the Type 3 kit into a Type 3A accessory plan |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-STACK-KIT | Product type | StackWise-320 stack kit |
| Compatible platform | Catalyst 9300L fixed-uplink switches | StackWise technology | Cisco StackWise-320 |
| Included components | Two stack adapters and one data stack cable | Adapter family | C9300L-STACK with STACK-T3 type cables |
| Default cable | STACK-T3-50CM Type 3 stacking cable | Default cable length | 50 cm / 0.5 meter / 1.64 feet |
| Alternate Type 3 lengths | 1 m and 3 m | Stack scale for C9300L platform | Up to 8 switches |
| Stack member rule | Same license level for Catalyst 9300L stack members | C9300LM accessory boundary | Use C9300L-STACK-KIT2 with Type 3A cable path |
| Spare product ID | C9300L-STACK-KIT= |
