STACK-T3-1M – 1M Type 3 StackWise Cable – C9300L StackWise-320
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

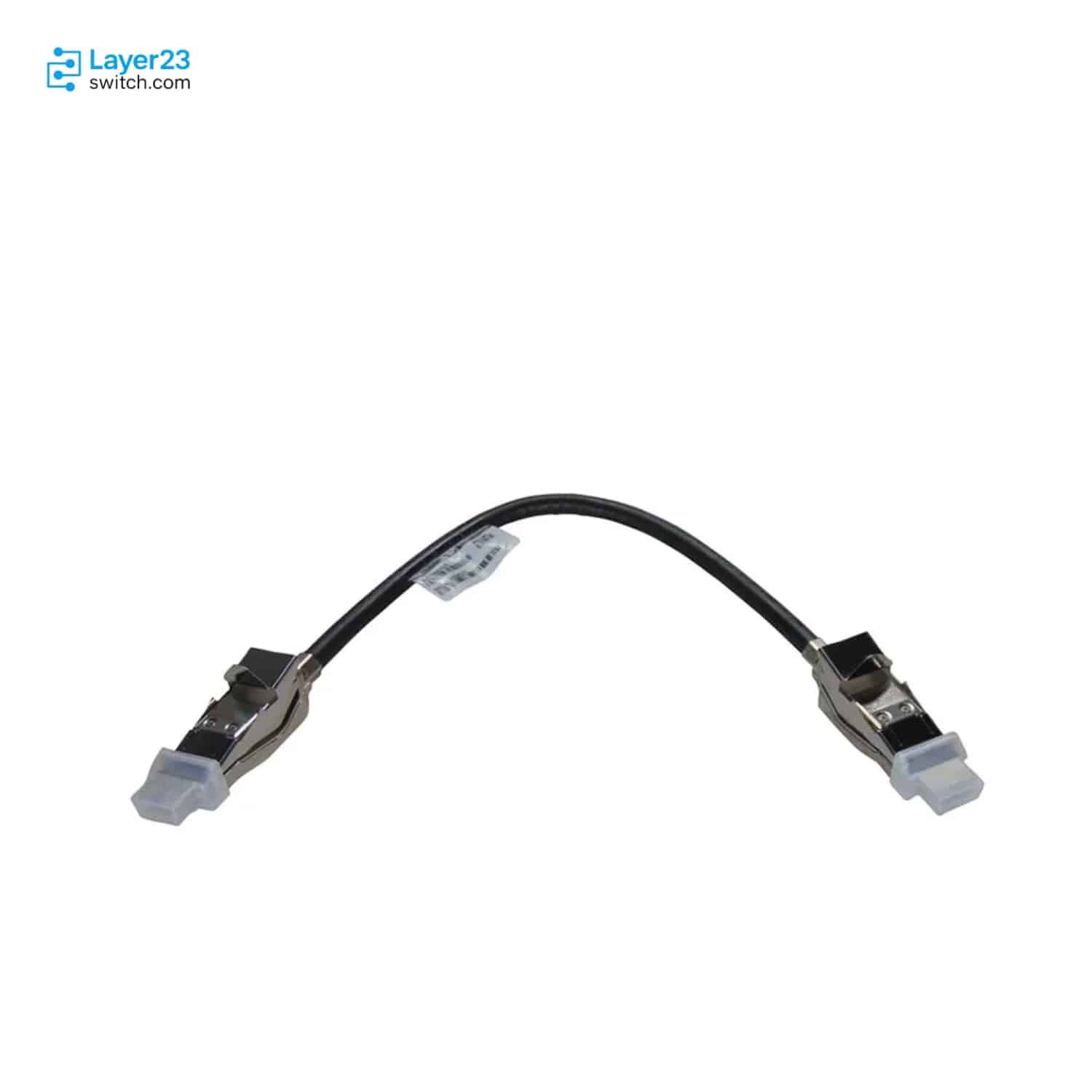

STACK-T3-1M Description
STACK-T3-1M is a Cisco Type 3 StackWise data stacking cable for Cisco Catalyst 9300L Series switch stacks. It is a 1 m cable for C9300L-STACK adapter use with STACK-T3 cable types, tied to Catalyst 9300L StackWise-320 stacking, with a 1.6 in. minimum bend radius, 5.20 in. minimum coiled diameter, and halogen-free stack-cable construction. The cable fits Catalyst 9300L stacking bills of material that need a longer Type 3 stack link than the default short cable option.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
STACK-T3-1M |
|
Product type |
Type 3 StackWise data stacking cable |
|
Compatible platform |
Cisco Catalyst 9300L Series switches |
|
Adapter family |
C9300L-STACK adapter with STACK-T3 type cables |
|
StackWise technology |
Cisco StackWise-320 |
|
Cable length |
1 meter / 3.28 feet |
|
Minimum bend radius |
1.6 in. / 41 mm |
|
Minimum coiled diameter |
5.20 in. / 132 mm |
|
Cable material note |
Cisco stack cables are halogen-free |
|
Ordering guide description |
1M Type 3 Stacking Cable for C9300L SKUs |
|
Type 3A boundary |
Use C9300L-STACK-A with STACK-T3A cables for C9300L and C9300LM plans |
|
C9300LM boundary |
C9300LM Series switches use only T3A type stacking cables |
Application Scenarios
Use STACK-T3-1M when two Catalyst 9300L fixed-uplink switches need more rear-panel reach than the 50 cm Type 3 cable provides, while the physical layout does not require the 3 m cable.
Select this cable for a C9300L StackWise-320 build where the adapters are already covered and the replacement line must stay in the STACK-T3 cable family.
Inspect the label before installation because STACK-T3-1M and STACK-T3A-1M share the 1 m length but belong to different adapter paths and platform boundaries.
Product Comparison
|
Parameter |
STACK-T3-1M |
STACK-T3-3M | ||
|---|---|---|---|---|
|
Product type |
1 m Type 3 stacking cable |
50 cm Type 3 stacking cable |
3 m Type 3 stacking cable |
1 m Type 3A stacking cable |
|
Compatible platform |
Cisco Catalyst 9300L Series switches |
Cisco Catalyst 9300L Series switches |
Cisco Catalyst 9300L Series switches |
Cisco Catalyst 9300L and 9300LM Series switches |
|
Adapter family |
C9300L-STACK with STACK-T3 cables |
C9300L-STACK with STACK-T3 cables |
C9300L-STACK with STACK-T3 cables |
C9300L-STACK-A with STACK-T3A cables |
|
StackWise technology |
StackWise-320 |
StackWise-320 |
StackWise-320 |
StackWise-320 |
|
Cable length |
1 m / 3.28 ft |
0.5 m / 1.64 ft |
3 m / 9.84 ft |
1 m / 3.28 ft |
|
Minimum bend radius |
1.6 in. / 41 mm |
1.6 in. / 41 mm |
3.2 in. / 82 mm |
1.6 in. / 41 mm |
|
Minimum coiled diameter |
5.20 in. / 132 mm |
Not applicable for 0.5 m cable per Cisco note |
7.17 in. / 182 mm |
5.20 in. / 132 mm |
|
Spare product ID |
STACK-T3-1M= |
STACK-T3-50CM= |
STACK-T3-3M= |
STACK-T3A-1M= |
- In a STACK-T3-1M vs STACK-T3-50CM comparison, both are Type 3 C9300L stack cables, but STACK-T3-1M gives the 1 m route instead of the default short 50 cm route.
- The STACK-T3-1M vs STACK-T3-3M difference is cable length and handling clearance; the 3 m cable has the larger Cisco-listed bend radius and coiled diameter.
- For STACK-T3-1M vs STACK-T3A-1M, the key comparison is adapter family and platform scope. STACK-T3-1M is tied to the C9300L-STACK Type 3 path, while STACK-T3A-1M is tied to the C9300L-STACK-A Type 3A path for C9300L and C9300LM.
- Buyers deciding which model to choose should start with the switch family and adapter path, then match the measured rear-stack cable route to the 50 cm, 1 m, or 3 m option.
Selection Guide
1. Keep Type 3 on C9300L-only stacks
Choose STACK-T3-1M when the documented accessory path is C9300L-STACK with STACK-T3 cables and the switches are Catalyst 9300L fixed-uplink models.
2. Use the 1 m route when 50 cm is tight
Select this SKU when cable management needs more slack than STACK-T3-50CM but does not need the longer STACK-T3-3M run.
3. Move to Type 3A for C9300LM involvement
Use STACK-T3A-1M instead when the stack plan includes the C9300L-STACK-A adapter path or C9300LM Series switches.
4. Verify handling clearance before release
Check the 1.6 in. bend radius and 5.20 in. coiled diameter before finalizing the order because the 1 m cable has routing requirements that do not match the 50 cm cable note.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact product ID |
STACK-T3-1M or STACK-T3-1M= |
Separates the base 1 m cable from the spare PID |
|
Switch platform |
Cisco Catalyst 9300L Series switches |
Keeps the order inside Cisco’s documented Type 3 C9300L accessory family |
|
Adapter path |
C9300L-STACK with STACK-T3 type cables |
Prevents mixing Type 3 cables with the Type 3A adapter family |
|
Cable length |
1 meter / 3.28 feet |
Confirms the cable can bridge the planned rear-stack path |
|
Bend handling |
1.6 in. / 41 mm minimum bend radius |
Protects the route from tighter bends than Cisco lists |
|
Coiled clearance |
5.20 in. / 132 mm minimum coiled diameter |
Helps installers plan service loops without exceeding the cable handling limit |
|
Type 3A boundary |
Use STACK-T3A-1M for the C9300L-STACK-A or C9300LM path |
Avoids substituting this Type 3 cable into a Type 3A BOM |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | STACK-T3-1M | Product type | Type 3 StackWise data stacking cable |
| Compatible platform | Cisco Catalyst 9300L Series switches | Adapter family | C9300L-STACK with STACK-T3 type cables |
| StackWise technology | Cisco StackWise-320 | Cable length | 1 meter / 3.28 feet |
| Minimum bend radius | 1.6 in. / 41 mm | Minimum coiled diameter | 5.20 in. / 132 mm |
| Cable material note | Cisco stack cables are halogen-free | Ordering guide description | 1M Type 3 Stacking Cable for C9300L SKUs |
| Spare product ID | STACK-T3-1M= | Type 3A boundary | Use C9300L-STACK-A with STACK-T3A cables for C9300L and C9300LM plans |
| C9300LM boundary | C9300LM Series switches use only T3A type stacking cables |
Get More Information
Need pricing, stock, or shipping details for the STACK-T3-1M ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What type of StackWise-320 cable is STACK-T3-1M?
-
Which handling values apply to STACK-T3-1M on the Type 3 path?
-
Which adapter and switch family must match STACK-T3-1M?
-
How does STACK-T3-1M compare with STACK-T3A-1M?
-
Can STACK-T3-1M be used with Catalyst 9300LM?
