STACK-T3-50CM – 50cm Type 3 StackWise Cable – C9300L Stack Kit – StackWise-320
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
STACK-T3-50CM Description

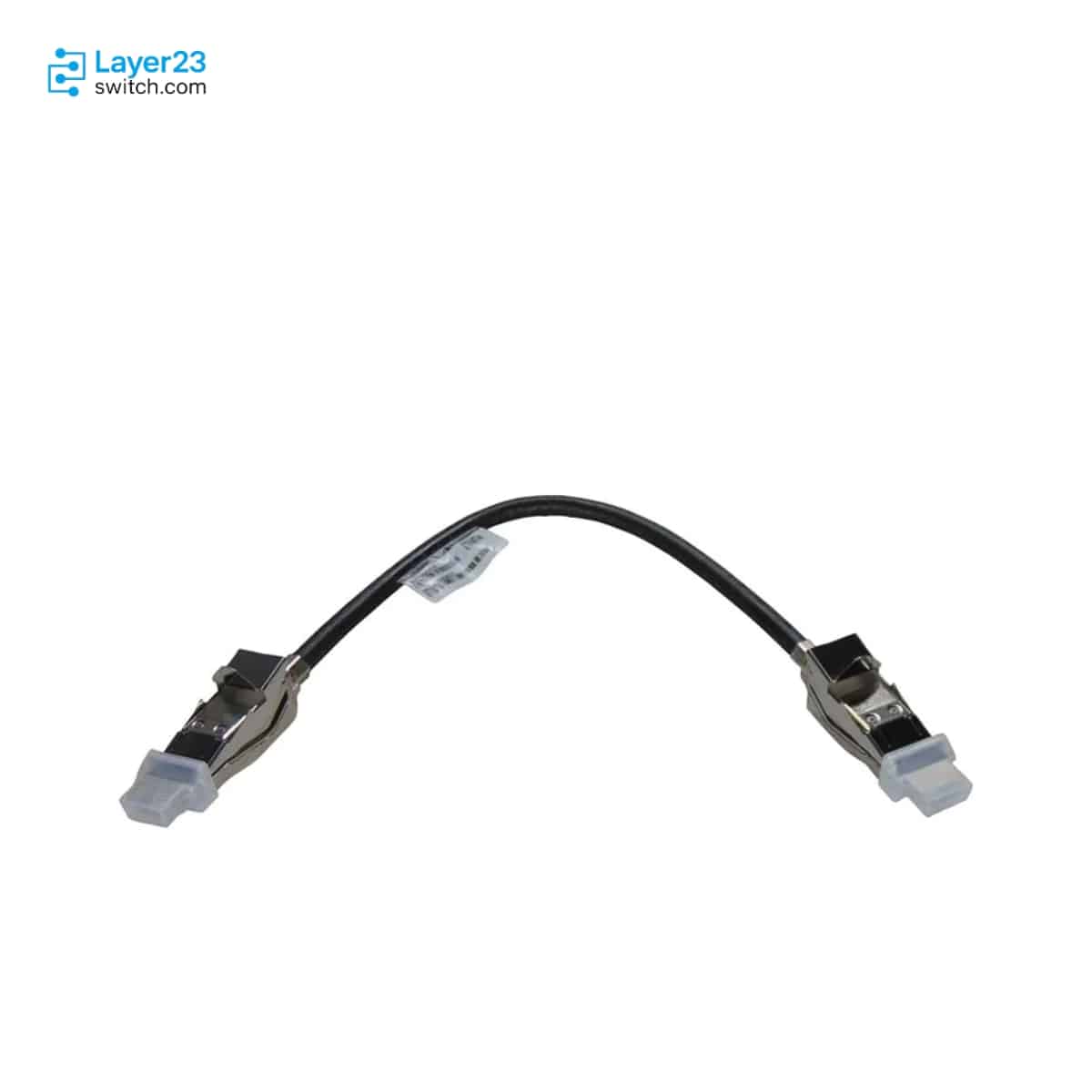

STACK-T3-50CM is a Cisco Type 3 StackWise data stacking cable for Catalyst 9300L fixed-uplink switch stacks. It provides the 50 cm cable option used with the C9300L-STACK adapter and C9300L StackWise-320 stack kits, giving adjacent Catalyst 9300L members a short rear-stack cable path for compact rack builds. Cisco documentation identifies the cable length as 0.5 m / 1.64 ft, lists a 41 mm / 1.6 in. minimum bend radius, and separates this Type 3 C9300L cable from the Type 3A STACK-T3A cables used across C9300L and C9300LM boundaries.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
STACK-T3-50CM |
|
Product type |
Type 3 StackWise data stacking cable |
|
Compatible platform |
Cisco Catalyst 9300L Series switches |
|
Stack adapter |
C9300L-STACK |
|
Stack kit association |
C9300L-STACK-KIT default cable |
|
StackWise technology |
Cisco StackWise-320 |
|
Cable length |
50 cm / 0.5 meter / 1.64 feet |
|
Supported stack scale |
Up to 8 Catalyst 9300L stack members |
|
Stack member rule |
Catalyst 9300L members with the same license level |
|
Minimum bend radius |
1.6 in. / 41 mm |
|
Minimum coiled diameter |
Not applicable for 0.5 m cable per Cisco note |
|
Ordering guide description |
50CM type 3 stacking cable |
|
Cable material note |
Cisco stack cables are halogen-free |
Application Scenarios
Use STACK-T3-50CM when two Catalyst 9300L fixed-uplink switches are close enough for a 0.5 m Type 3 cable between rear stack ports.
Select this SKU when the stack adapters are already present and the bill of materials needs only the default-length Type 3 cable from the C9300L stack kit accessory set.
Inspect the label before installation because STACK-T3-50CM and STACK-T3A-50CM have the same length but different adapter and platform boundaries.
Product Comparison
|
Parameter |
STACK-T3-50CM |
STACK-T3-1M |
STACK-T3-3M | |
|---|---|---|---|---|
|
Product type |
50 cm Type 3 stacking cable |
1 m Type 3 stacking cable |
3 m Type 3 stacking cable |
50 cm Type 3A stacking cable |
|
Compatible platform |
Catalyst 9300L Series switches |
Catalyst 9300L Series switches |
Catalyst 9300L Series switches |
Catalyst 9300L and Catalyst 9300LM Series switches |
|
Stack adapter |
C9300L-STACK |
C9300L-STACK |
C9300L-STACK |
C9300L-STACK-A |
|
Stack kit association |
C9300L-STACK-KIT default cable |
C9300L-STACK-KIT cable option |
C9300L-STACK-KIT cable option |
C9300L-STACK-KIT2 default cable |
|
StackWise technology |
StackWise-320 |
StackWise-320 |
StackWise-320 |
StackWise-320 |
|
Cable length |
0.5 m / 1.64 ft |
1 m / 3.28 ft |
3 m / 9.84 ft |
0.5 m / 1.64 ft |
|
Minimum bend radius |
1.6 in. / 41 mm |
1.6 in. / 41 mm |
3.2 in. / 82 mm |
1.6 in. / 41 mm |
|
Minimum coiled diameter |
Not applicable for the 0.5 m cable per Cisco note |
5.20 in. / 132 mm |
7.17 in. / 182 mm |
Not applicable for the 0.5 m cable per Cisco note |
|
Spare product ID |
STACK-T3-50CM= |
STACK-T3-1M= |
STACK-T3-3M= |
STACK-T3A-50CM= |
- In a STACK-T3-50CM vs STACK-T3-1M comparison, both stay in the Type 3 C9300L accessory family; the difference is the short 0.5 m cable route versus a 1 m route.
- The STACK-T3-50CM vs STACK-T3-3M difference is cable reach and handling space, because the 3 m cable has the larger Cisco-listed bend radius and coiled diameter.
- For STACK-T3-50CM vs STACK-T3A-50CM, the comparison is adapter family and platform scope. STACK-T3-50CM pairs with C9300L-STACK for C9300L switches, while STACK-T3A-50CM pairs with C9300L-STACK-A and also covers C9300LM.
- Buyers deciding which model to choose should confirm the stack adapter first, then match the measured cable path and base or spare PID.
Selection Guide
1. Keep the order on the Type 3 C9300L path
Choose STACK-T3-50CM when the stack uses Catalyst 9300L switches with the C9300L-STACK adapter and the order requires the Type 3 cable family.
2. Use this cable only for the shortest route
Select the 50 cm line when adjacent stack members can be cabled without exceeding the 1.6 in. minimum bend radius or forcing the cable into a coil.
3. Move to another T3 length for wider spacing
Use STACK-T3-1M or STACK-T3-3M when the same C9300L Type 3 accessory plan needs a longer rear-panel path.
4. Switch to T3A for C9300LM involvement
Move to STACK-T3A-50CM when the stack includes Catalyst 9300LM or uses C9300L-STACK-A, because Cisco lists C9300LM switches under the T3A cable family.
Ordering Checklist
|
Verification Point |
Required Match |
Procurement Risk |
|---|---|---|
|
Exact order line |
STACK-T3-50CM for the base cable or STACK-T3-50CM= for spare ordering |
Prevents confusion between the cable option and the spare PID |
|
Switch platform |
Catalyst 9300L Series |
Keeps the cable inside Cisco’s Type 3 StackWise-320 accessory scope |
|
Stack adapter |
C9300L-STACK |
Separates this cable from Type 3A lines that use C9300L-STACK-A |
|
Stack kit context |
C9300L-STACK-KIT default 50 cm cable |
Confirms the adapters are already covered if only the cable is being ordered |
|
Cable path |
50 cm / 0.5 meter / 1.64 feet |
Identifies orders that should move to the 1 m or 3 m Type 3 cable instead |
|
Bend limit |
1.6 in. / 41 mm minimum bend radius |
Helps prevent rack routes that bend the short stack cable too tightly |
|
C9300LM boundary |
Use Type 3A instead of Type 3 |
Avoids substituting STACK-T3-50CM into a C9300LM stack plan |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | STACK-T3-50CM | Product type | Type 3 StackWise data stacking cable |
| Compatible platform | Cisco Catalyst 9300L Series switches | Stack adapter | C9300L-STACK |
| Stack kit association | C9300L-STACK-KIT default cable | StackWise technology | Cisco StackWise-320 |
| Supported stack scale | Up to 8 Catalyst 9300L stack members | Stack member rule | Catalyst 9300L members with the same license level |
| Cable length | 50 cm / 0.5 meter / 1.64 feet | Minimum bend radius | 1.6 in. / 41 mm |
| Minimum coiled diameter | Not applicable for 0.5 m cable per Cisco note | Ordering guide description | 50CM type 3 stacking cable |
| Spare product ID | STACK-T3-50CM= | Cable material note | Cisco stack cables are halogen-free |
| C9300LM boundary | C9300LM Series switches use T3A type stacking cables |
