C9200L-STACK-KIT – StackWise-80 Bandwidth – 2 Adapters and Cable – Catalyst 9200L Stack Kit
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9200L-STACK-KIT Description

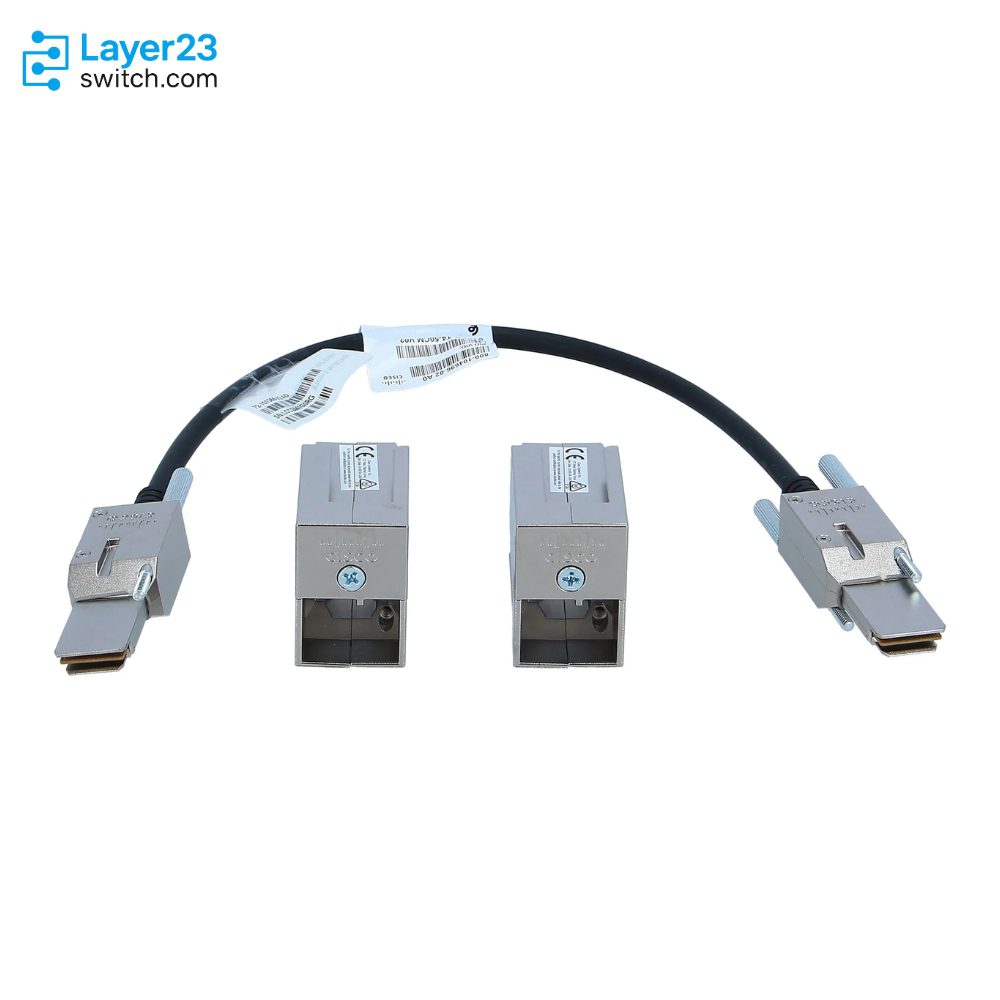

The C9200L-STACK-KIT is a Cisco Catalyst 9200L Series stacking accessory kit that adds StackWise-80 stacking capability, at 80 Gbps of stack bandwidth, to Catalyst 9200L fixed-uplink switches. Each kit contains two data stack adapters and one data stack cable, with the cable shipping as the 50 cm STACK-T4-50CM by default and 1 m or 3 m cable options available for wider rack spacing. It installs on the two identical chassis stacking ports of a Catalyst 9200L switch, joining up to eight switches of the same Network Essentials or Network Advantage license tier into a single stacked logical switch. Cisco documents this kit for Catalyst 9200L SKUs only: it is not interchangeable with the C9200-STACK-KIT used on Catalyst 9200 (modular-uplink) switches, since the two platforms run different StackWise bandwidth classes and cannot mix-stack with each other.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9200L-STACK-KIT |
|
Cisco ordering description |
Stack kit for C9200L SKUs only: two data stack adapters and one data stack cable |
|
Compatible platform |
Catalyst 9200L (fixed-uplink) switches only |
|
Platform boundary |
Not compatible with Catalyst 9200 (modular-uplink) switches, which use C9200-STACK-KIT |
|
Stacking architecture |
StackWise-80, 80 Gbps stack bandwidth |
|
Kit contents |
2x data stack adapters, 1x data stack cable |
|
Default stack cable |
STACK-T4-50CM (50 cm Type 3), STACK-T4-1M or STACK-T4-3M optional |
|
Maximum stack size |
Up to 8 Catalyst 9200L switches per stack |
|
License mixing rule |
All stack members must share the same Network Essentials or Network Advantage tier |
|
Spare PID |
C9200L-STACK-KIT= |
Application Scenarios
Added to a set of Catalyst 9200L switches in a wiring closet to join them into a single StackWise-80 logical switch instead of managing each unit separately.
Used to add an additional Catalyst 9200L switch to an existing stack, up to the documented 8-member limit, when access-layer port count needs to grow without adding a second management point.
Ordered with the 1 m or 3 m stacking cable option instead of the default 50 cm cable when stacked Catalyst 9200L switches are mounted with wider rack spacing between units.
Related Ordering Boundary
Not Interchangeable With C9200-STACK-KIT
C9200L-STACK-KIT is documented for Catalyst 9200L (fixed-uplink) switches only; Catalyst 9200 (modular-uplink) switches use the separate C9200-STACK-KIT for StackWise-160 at 160 Gbps, and Cisco does not document either kit as usable on the other platform.
No Cross-Platform Stacking Even With Both Kits On Hand
Because Catalyst 9200 and Catalyst 9200L run different StackWise bandwidth classes, having both C9200L-STACK-KIT and C9200-STACK-KIT available does not let a Catalyst 9200 switch and a Catalyst 9200L switch join the same stack.
Selection Guide
1. Sizing The Order Around Stack Growth Plans
Ordering one kit per switch covers only the members needed at deployment time; a design that expects to add Catalyst 9200L switches to the stack later within the 8-member limit should plan a kit purchase for each future member rather than assuming the kit scales automatically with the stack.
2. Confirming The License Tier Across Stack Members
Cisco documentation requires every Catalyst 9200L switch in the same stack to carry the same Network Essentials or Network Advantage tier; a plan to stack a mixed set of -E and -A switches needs a license alignment step before the stack forms, or the mismatched member should be moved to a separate stack.
3. Sizing The Stack Cable For Rack Layout
The kit ships with a 50 cm stacking cable by default, which fits switches mounted directly adjacent in the same rack; a design that spaces stacked Catalyst 9200L switches further apart, such as across rack units or between racks, should order the 1 m or 3 m cable option instead of relying on the default length.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact kit PID |
C9200L-STACK-KIT for new-build ordering or C9200L-STACK-KIT= for spare/replacement ordering |
Keeps the PID aligned with the intended ordering path |
|
Switch platform |
Target switches are Catalyst 9200L (fixed-uplink) models, not Catalyst 9200 (modular-uplink) models |
C9200-STACK-KIT is required instead for Catalyst 9200 switches, and the two kits are not interchangeable |
|
Stack cable length |
Whether the default STACK-T4-50CM cable fits the rack layout, or STACK-T4-1M/STACK-T4-3M is needed |
An undersized cable cannot physically reach between switches mounted further apart |
|
License tier alignment |
All switches planned for the same stack carry the same Network Essentials or Network Advantage tier |
Cisco documents stacking as valid only between same-tier Catalyst 9200L switches |
|
Stack size |
Total planned stack members do not exceed 8 Catalyst 9200L switches |
Cisco documents 8 switches as the maximum members in a single stack |
|
Kit quantity per stack |
One stack kit ordered per switch joining the stack, since the kit is not included by default with the switch |
An order that omits the kit line leaves the switch without stacking adapters or a stacking cable |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9200L-STACK-KIT | Spare PID | C9200L-STACK-KIT= |
| Cisco ordering description | Stack kit for C9200L SKUs only: two data stack adapters and one data stack cable | Compatible platform | Catalyst 9200L (fixed-uplink) switches only |
| Platform boundary | Not compatible with Catalyst 9200 (modular-uplink) switches; those use C9200-STACK-KIT | Stacking architecture | StackWise-80 |
| Stack bandwidth | 80 Gbps full-ring throughput with Spatial Reuse Protocol active; 40 Gbps without SRP | Stacking rings | 4 internal rings at 20 Gbps each |
| Kit contents | 2x data stack adapters, 1x data stack cable | Default stack cable | STACK-T4-50CM (50 cm Type 3) |
| Optional stack cables | STACK-T4-1M, STACK-T4-3M | Stack cable compatibility | Not backward compatible with Catalyst 2960-X series stacking cables |
| Stacking ports | Two identical chassis stacking ports per switch; either cable end fits either port | Maximum stack size | Up to 8 Catalyst 9200L switches |
| License mixing rule | All stack members must share the same Network Essentials or Network Advantage tier | Cross-platform stacking | Cannot stack with Catalyst 9200 or other Catalyst switch series |
| Stateful switchover | SSO automatically enabled in StackWise-80 mode, no extra configuration required | Default order status | Not included by default with the switch; ordered as a separate line item |
