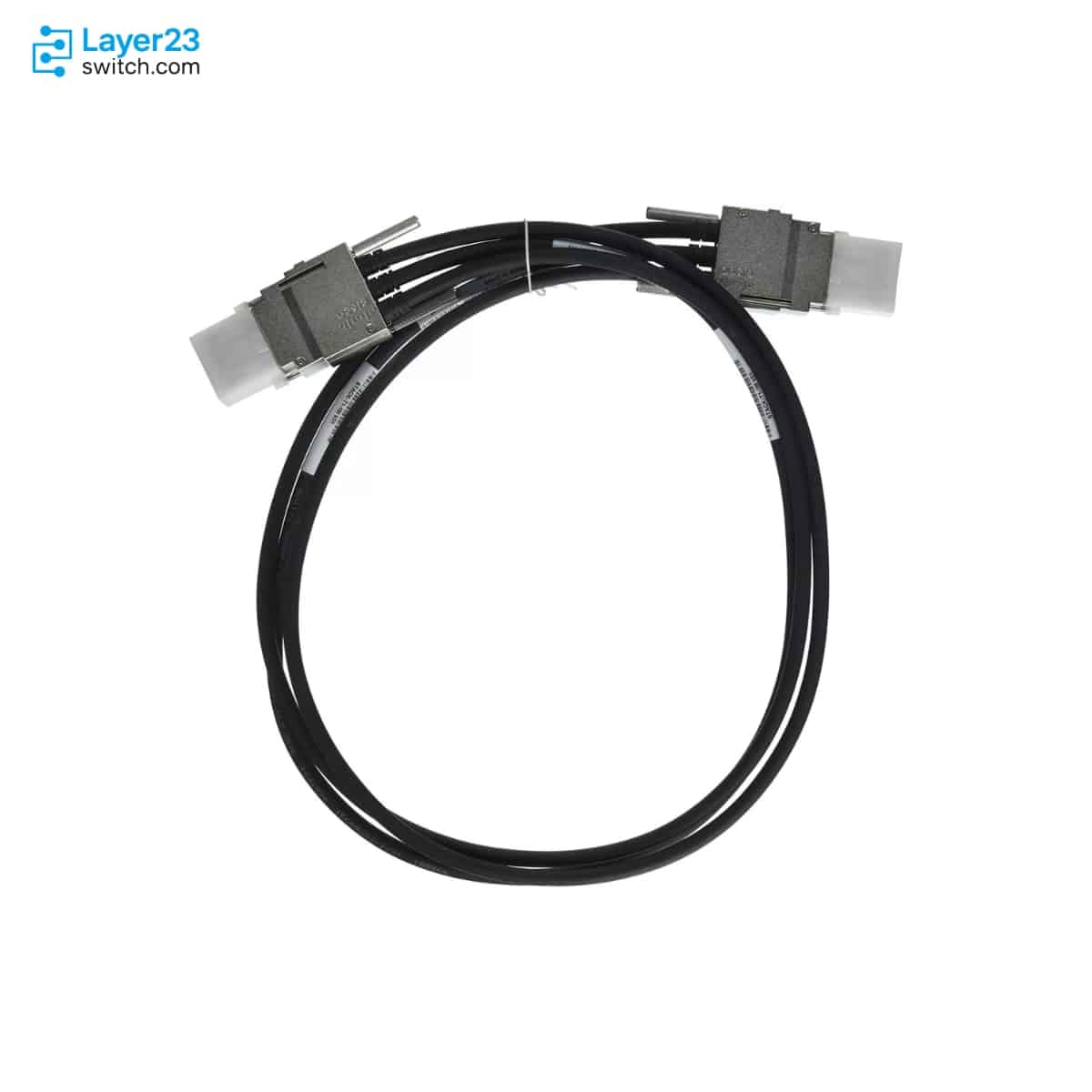

STACK-T1-1M – 1m Type 1 StackWise Cable – C9300/C9300X Data Stack – 480G/1T
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
STACK-T1-1M Description
STACK-T1-1M is a Cisco Type 1 StackWise data stacking cable for Cisco Catalyst 9300 and Catalyst 9300X modular uplink switches, used to build StackWise-480 or StackWise-1T switch stacks when a 1-meter interconnect fits the rack path. Cisco lists this SKU as the 1 m cable option for those C9300 and C9300X platforms, identifies the spare PID as STACK-T1-1M=, and specifies a 1.6 in. (41 mm) minimum bend radius with a 5.2 in. (132 mm) minimum coiled diameter, while the Catalyst 9300 hardware guide also notes that Cisco StackWise cables are halogen-free.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
STACK-T1-1M |
|
Brand |
Cisco |
|
Product family |
Cisco StackWise-480 and StackWise-1T accessories |
|
Product type |
Type 1 StackWise data stacking cable |
|
Cable length |
1 meter / 3.28 feet |
|
Supported switch group |
Cisco Catalyst 9300 and Catalyst 9300X modular uplink models |
|
Supported StackWise technologies |
Cisco StackWise-480 and Cisco StackWise-1T |
|
Cable family lengths |
0.5 m, 1 m, and 3 m Type 1 StackWise cables |
|
Minimum bend radius |
1.6 in. / 41 mm |
|
Minimum coiled diameter |
5.2 in. / 132 mm |
|
Spare product ID |
STACK-T1-1M= |
|
Cable material note |
Cisco stack cables are halogen-free |
Application Scenarios
Use STACK-T1-1M when a Cisco Catalyst 9300 modular uplink switch stack needs a Type 1 data stacking cable and the measured rack path fits a 1-meter cable.
Select this SKU for C9300X modular uplink stacks when the BOM requires the Type 1 cable family used for Cisco StackWise-1T rather than the Type 3 or Type 3A cables used with fixed-uplink StackWise-320 kits.
Keep STACK-T1-1M separate from STACK-T1-50CM, STACK-T1-3M, and STACK-T1-1M= during purchasing. The first two change cable length, while the equals-suffix line is the spare product ID listed in Cisco ordering information.
Product Comparison
|
Parameter |
STACK-T1-1M |
STACK-T3-1M | ||
|---|---|---|---|---|
|
Product family |
Cisco StackWise-480 and StackWise-1T accessories |
Cisco StackWise-480 and StackWise-1T accessories |
Cisco StackWise-480 and StackWise-1T accessories |
Cisco StackWise-320 accessories |
|
Product type |
1 m Type 1 stacking cable |
50 cm Type 1 stacking cable |
3 m Type 1 stacking cable |
1 m Type 3 stacking cable |
|
Intended switch group |
C9300 and C9300X modular uplink models |
C9300 and C9300X modular uplink models |
C9300 and C9300X modular uplink models |
C9300L fixed uplink models |
|
StackWise technology |
StackWise-480 and StackWise-1T |
StackWise-480 and StackWise-1T |
StackWise-480 and StackWise-1T |
StackWise-320 |
|
Cable length |
1 m / 3.28 ft |
0.5 m / 1.64 ft |
3 m / 9.84 ft |
1 m / 3.28 ft |
|
Minimum bend radius |
1.6 in. / 41 mm |
1.6 in. / 41 mm |
3.2 in. / 82 mm |
1.6 in. / 41 mm |
|
Minimum coiled diameter |
5.2 in. / 132 mm |
Cisco note says the 0.5 m cable cannot be physically coiled without exceeding the bending limit |
7.17 in. / 182 mm |
5.20 in. / 132 mm |
|
Ordering guide description |
1M type 1 stacking cable |
50CM type 1 stacking cable |
3M type 1 stacking cable |
1M type 3 stacking cable |
|
Spare product ID |
STACK-T1-1M= |
STACK-T1-50CM= |
STACK-T1-3M= |
STACK-T3-1M= |
- In a STACK-T1-1M vs STACK-T1-50CM comparison, the difference is the 1-meter cable length versus the shorter 0.5-meter Type 1 option for the same C9300 and C9300X StackWise-480/1T cable family.
- The STACK-T1-1M vs STACK-T1-3M difference is cable reach and handling space: the 3-meter model has a larger Cisco-listed bend radius and coiled diameter.
- For buyers comparing STACK-T1-1M vs STACK-T3-1M, the key difference is platform family. STACK-T1-1M is Type 1 for C9300/C9300X modular uplink models, while STACK-T3-1M is Type 3 for C9300L fixed-uplink StackWise-320 use.
- The which model to order decision should start with switch family and then cable route length, because a 1-meter cable from the wrong StackWise accessory family is still the wrong line item.
Selection Guide
1. Match the cable to C9300 or C9300X modular uplink models
Choose STACK-T1-1M when the stack uses Cisco Catalyst 9300 or Catalyst 9300X modular uplink switches and the design calls for the Type 1 StackWise cable family.
2. Use the measured rack route to choose length
Select STACK-T1-50CM only when the switches are close enough for the short cable, and select STACK-T1-3M only when the 3-meter route and larger handling space are required.
3. Keep fixed-uplink StackWise-320 accessories separate
Do not substitute STACK-T1-1M for a C9300L or C9300LM fixed-uplink stack. Cisco documents those models under StackWise-320 accessories using Type 3 or Type 3A cable families.
4. Check the spare suffix before ordering
Use STACK-T1-1M for the non-spare cable option and STACK-T1-1M= when the quote requires the Cisco spare product ID. Confirm the suffix before receiving or replacement planning.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Exact product ID |
STACK-T1-1M |
Separates the selected cable option from the spare SKU STACK-T1-1M= |
|
Switch family |
C9300 or C9300X modular uplink model |
Confirms this is the Type 1 StackWise accessory family |
|
StackWise technology |
StackWise-480 or StackWise-1T |
Keeps the cable tied to the documented C9300/C9300X stack type |
|
Cable length |
1 meter / 3.28 feet |
Avoids ordering the shorter 50 cm cable or longer 3 m cable by mistake |
|
Cable handling |
1.6 in. bend radius and 5.2 in. coiled diameter |
Helps verify the rack path and storage clearance before shipment |
|
Fixed-uplink exclusion |
C9300L and C9300LM need StackWise-320 accessories |
Prevents mixing Type 1 cables with Type 3 or Type 3A fixed-uplink stack kits |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | STACK-T1-1M | Brand | Cisco |
| Product family | Cisco StackWise-480 and StackWise-1T accessories | Product type | Type 1 StackWise data stacking cable |
| Cable length | 1 meter / 3.28 feet | Supported switch group | Cisco Catalyst 9300 and Catalyst 9300X modular uplink models |
| Supported StackWise technologies | Cisco StackWise-480 and Cisco StackWise-1T | Cable family lengths | 0.5 m, 1 m, and 3 m Type 1 StackWise cables |
| Minimum bend radius | 1.6 in. / 41 mm | Minimum coiled diameter | 5.2 in. / 132 mm |
| Ordering guide description | 1M type 1 stacking cable | Spare product ID | STACK-T1-1M= |
| Adjacent Type 1 cable IDs | STACK-T1-50CM and STACK-T1-3M | Cable material note | Cisco stack cables are halogen-free |
