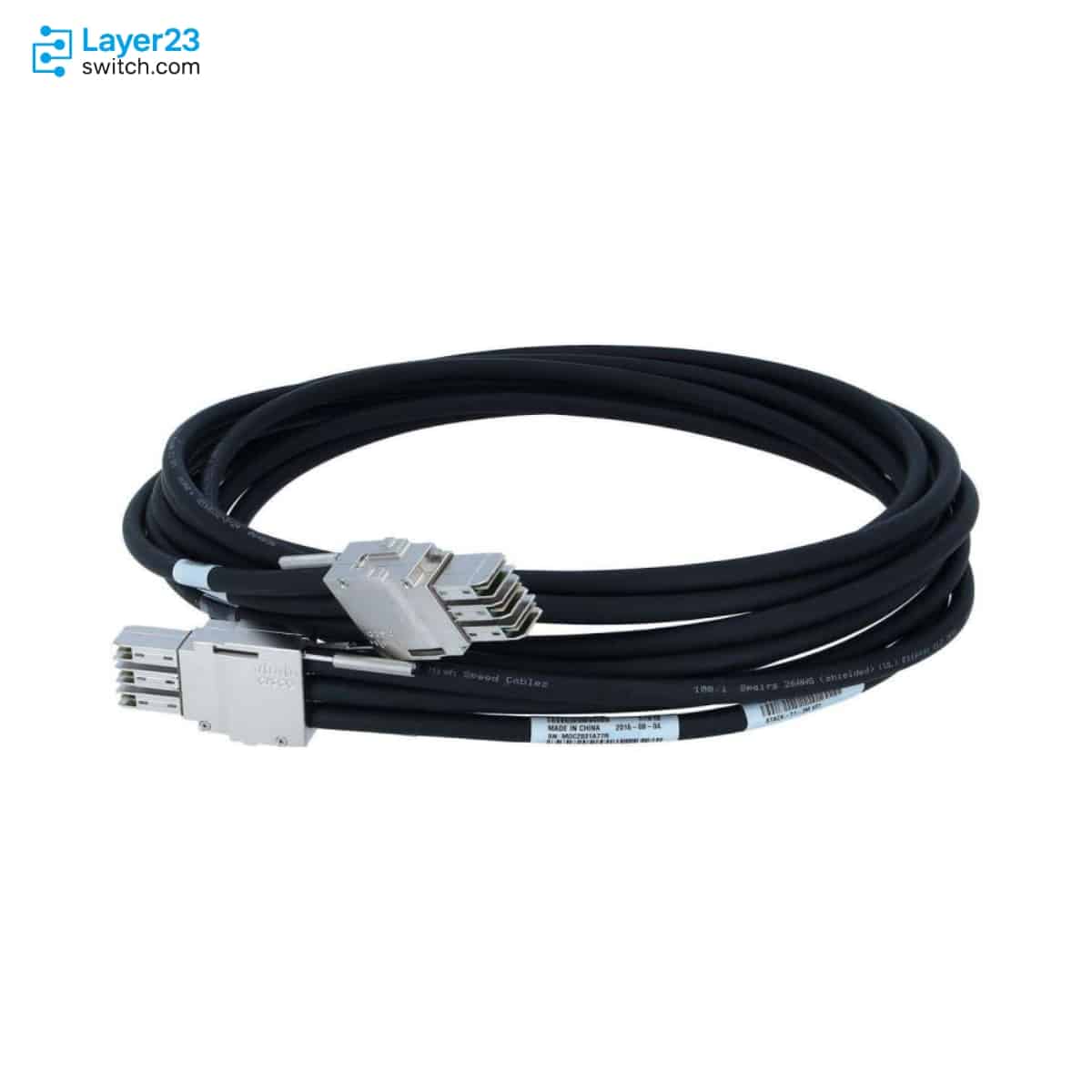

STACK-T1A-3M – 3m Type 1A StackWise Cable – C9350 Data Stack – 1.6T
0/mo Solds
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
STACK-T1A-3M Description
STACK-T1A-3M is a Cisco Type 1A StackWise-1.6T data stacking cable for Cisco C9350 Series Smart Switches, used when adjacent or rack-separated C9350 switches need a longer 3 m stack link in a campus access deployment. Cisco documentation identifies it as the 3 m member of the approved C9350 StackWise cable set, confirms support for StackWise-1.6T stacking across up to eight C9350 switches, lists a 9.84 ft (3.0 m) cable length with a 3.2 in. minimum bend radius and 7.17 in. minimum coiled diameter, and states that C9350 switches must use these C9350-only StackWise cables rather than Catalyst 9300 or earlier-generation stacking cables.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
STACK-T1A-3M |
|
Brand |
Cisco |
|
Product family |
Cisco C9350 StackWise-1.6T accessories |
|
Product type |
Type 1A StackWise data stacking cable |
|
Compatible platform |
Cisco C9350 Series Smart Switches |
|
StackWise technology |
Cisco StackWise-1.6T |
|
Cable length |
3 meters / 9.84 feet |
|
Supported stack scale |
Up to 8 Cisco C9350 switches |
|
Supported stack members |
Other Cisco C9350 models at StackWise-1.6T speeds with the same license level |
|
Minimum bend radius |
3.2 in. / 82 mm |
|
Minimum coiled diameter |
7.17 in. / 182 mm |
|
Adjacent Type 1A cable lengths |
0.5 m and 1 m |
|
Spare product ID |
STACK-T1A-3M= |
Application Scenarios
Use STACK-T1A-3M when C9350 switches are placed far enough apart that a 50 cm or 1 m Type 1A cable does not cover the measured rear-panel path.
Add this cable to a C9350 StackWise-1.6T bill of materials when the planned data stack remains within Cisco’s eight-switch scale and same-license-level stack member rule.
Keep this SKU separate from STACK-T1-3M and other previous-generation stack cables during receiving. Cisco documents the C9350 cable list as exclusive to C9350 switches, not Catalyst 9300 Series or older stacking cables.
Product Comparison
|
Parameter |
STACK-T1A-3M | |||
|---|---|---|---|---|
|
Product family |
Cisco C9350 StackWise-1.6T accessories |
Cisco C9350 StackWise-1.6T accessories |
Cisco C9350 StackWise-1.6T accessories |
Cisco Catalyst 9300 StackWise-480/1T accessories |
|
Product type |
3 m Type 1A stacking cable |
1 m Type 1A stacking cable |
50 cm Type 1A stacking cable |
3 m Type 1 stacking cable |
|
Compatible platform |
Cisco C9350 Series Smart Switches |
Cisco C9350 Series Smart Switches |
Cisco C9350 Series Smart Switches |
Cisco Catalyst 9300 and Catalyst 9300X modular uplink models |
|
StackWise technology |
StackWise-1.6T |
StackWise-1.6T |
StackWise-1.6T |
StackWise-480 and StackWise-1T |
|
Cable length |
3 m / 9.84 ft |
1 m / 3.28 ft |
0.5 m / 1.64 ft |
3 m / 9.84 ft |
|
Minimum bend radius |
3.2 in. / 82 mm |
1.6 in. / 41 mm |
1.6 in. / 41 mm |
3.2 in. / 82 mm |
|
Minimum coiled diameter |
7.17 in. / 182 mm |
5.2 in. / 132 mm |
Not applicable for the 0.5 m cable per Cisco note |
7.17 in. / 182 mm |
|
Spare product ID |
STACK-T1A-3M= |
STACK-T1A-1M= |
STACK-T1A-50CM= |
STACK-T1-3M= |
|
Compatibility boundary |
C9350-only StackWise-1.6T cable family |
C9350-only StackWise-1.6T cable family |
C9350-only StackWise-1.6T cable family |
Catalyst 9300 Series cable family, not the C9350 Type 1A line |
- In a STACK-T1A-3M vs STACK-T1A-1M comparison, both SKUs stay in the C9350 Type 1A StackWise-1.6T family; the difference is cable length and the larger bend and coiling clearance on the 3 m cable.
- The STACK-T1A-3M vs STACK-T1A-50CM difference is the longest listed Type 1A C9350 cable versus the shortest one, so the measured rear-panel path decides which model to choose.
- For STACK-T1A-3M vs STACK-T1-3M, the comparison is platform generation rather than length. STACK-T1A-3M is for C9350 StackWise-1.6T, while STACK-T1-3M belongs to the Catalyst 9300 and Catalyst 9300X Type 1 StackWise cable family.
- The which SKU to order check should start with the switch family, then confirm length, bend radius, coiled diameter, and whether the quote requires the equals-suffix spare PID.
Selection Guide
1. Lock the platform before checking length
Choose STACK-T1A-3M only when the stack uses Cisco C9350 Series Smart Switches and the BOM calls for Type 1A StackWise-1.6T cabling.
2. Use 3 meters for the longest Type 1A route
Select the 3 m cable when the planned C9350 stack path exceeds the reach of the 50 cm and 1 m Type 1A alternatives.
3. Keep same-length older cables out of the order
Do not treat STACK-T1-3M as a substitute for STACK-T1A-3M. Both are 3 m stack cables, but Cisco assigns them to different switch generations and StackWise technologies.
4. Check physical handling before shipment
Verify the 3.2 in. bend radius and 7.17 in. coiled diameter against the rack route, then confirm whether procurement needs STACK-T1A-3M or STACK-T1A-3M=.
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Order code basis |
Base line STACK-T1A-3M or spare line STACK-T1A-3M= |
Keeps the quote from mixing the cable option with the spare PID |
|
Installed platform |
Cisco C9350 Series Smart Switches |
Places the cable in the documented Type 1A StackWise-1.6T group |
|
Data-stack architecture |
StackWise-1.6T |
Matches the cable to the C9350 rear-panel StackWise design |
|
Member eligibility |
Other C9350 models at the same license level |
Screens out unsupported stack combinations before the BOM is released |
|
Measured path length |
3 meters / 9.84 feet |
Confirms the layout really needs the longest C9350 Type 1A cable |
|
Bend and storage clearance |
3.2 in. bend radius and 7.17 in. coiled diameter |
Protects the cable route from being planned tighter than Cisco lists |
|
Legacy cable screen |
No Catalyst 9300 Series or previous-generation stack cable substitution |
Stops a same-length Type 1 cable from being received for a C9350 stack |
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | STACK-T1A-3M | Brand | Cisco |
| Product family | Cisco C9350 StackWise-1.6T accessories | Product type | Type 1A StackWise data stacking cable |
| Compatible platform | Cisco C9350 Series Smart Switches | StackWise technology | Cisco StackWise-1.6T |
| Cable length | 3 meters / 9.84 feet | Supported stack scale | Up to 8 Cisco C9350 switches |
| Supported stack members | Other Cisco C9350 models at StackWise-1.6T speeds with the same license level | Adjacent Type 1A cable lengths | 0.5 m and 1 m |
| Minimum bend radius | 3.2 in. / 82 mm | Minimum coiled diameter | 7.17 in. / 182 mm |
| Ordering guide description | 3m Type 1A Stacking cable | Spare product ID | STACK-T1A-3M= |
| Cable material note | Cisco stack cables are halogen-free | Compatibility boundary | Not compatible with Catalyst 9300 Series or previous-generation stacking cables |
