STACK-T3A-50CM – 50cm Type 3A StackWise Cable – C9300L/LM Stack Kit2 – StackWise-320
Why Layer23-Switch
Stocked, Shipped and Supported by One Team
Ships in 1 Business Day
In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.
LSCare Warranty
3years on enterprise equipment
Free CCIE Support
Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.
Verify Before You Pay
100%factory-sealed
Get label and serial photos before shipment, and check every serial number with Cisco.

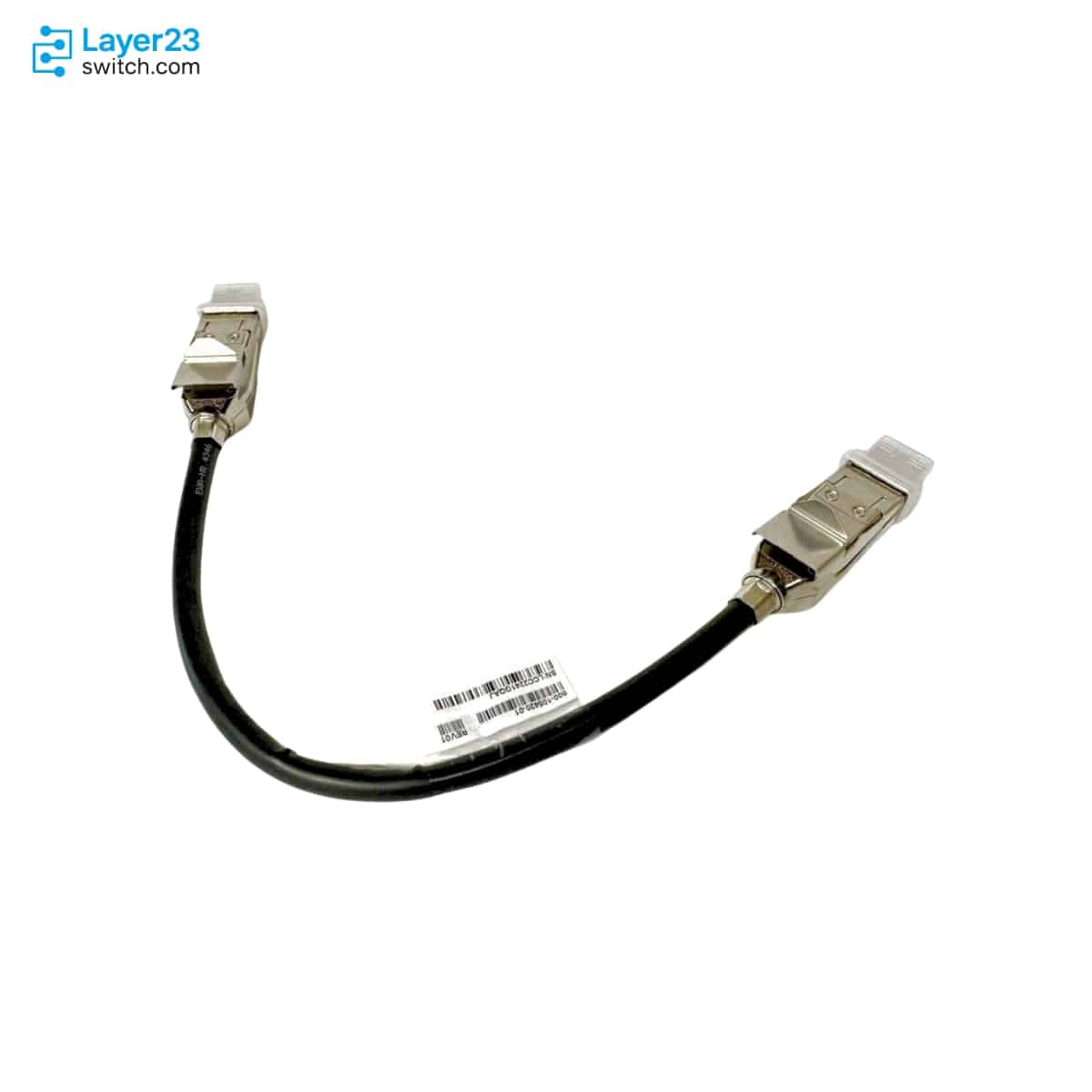

STACK-T3A-50CM Description
The STACK-T3A-50CM is a Cisco Catalyst 9300L and 9300LM Series Type 3A StackWise-320 stacking cable for data stack links between adjacent fixed-uplink switches. The cable is 0.5 m long, has a 1.6 in. minimum bend radius and joins stacks of up to eight switches through the C9300L-STACK-A adapter. The cable pairs only with Type 3A adapters on Catalyst 9300L and 9300LM, and support starts with Cisco IOS XE Cupertino release 17.9.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
STACK-T3A-50CM |
|
Product type |
Type 3A StackWise data stacking cable |
|
Compatible platform |
Cisco Catalyst 9300L and Catalyst 9300LM Series switches |
|
Stack adapter |
C9300L-STACK-A |
|
Stack kit association |
C9300L-STACK-KIT2 default cable |
|
StackWise technology |
Cisco StackWise-320 |
|
Cable length |
50 cm / 1.64 feet / 0.5 meter |
|
Supported stack scale |
Up to 8 Catalyst 9300L or 9300LM switches |
|
Minimum bend radius |
1.6 in. / 41 mm |
|
Minimum coiled diameter |
Not applicable for 0.5 m cable per Cisco note |
|
Spare product ID |
STACK-T3A-50CM= |
Application Scenarios
In a wiring closet with two Catalyst 9300L or 9300LM switches mounted one above the other, the cable links their C9300L-STACK-A adapters between the stack ports without leaving extra slack behind the rack.
A stack that combines Catalyst 9300L and 9300LM members uses the cable as the Type 3A link, because Catalyst 9300LM switches stack only over Type 3A cabling at StackWise-320.
Product Comparison
|
Parameter |
STACK-T3A-50CM | |||
|---|---|---|---|---|
|
Compatible platform |
Catalyst 9300L and Catalyst 9300LM Series switches |
Catalyst 9300L and Catalyst 9300LM Series switches |
Catalyst 9300L and Catalyst 9300LM Series switches |
Catalyst 9300L Series switches |
|
Stack adapter |
C9300L-STACK-A |
C9300L-STACK-A |
C9300L-STACK-A |
C9300L-STACK-KIT |
|
Stack kit |
C9300L-STACK-KIT2 default cable |
C9300L-STACK-KIT2 cable option |
C9300L-STACK-KIT2 cable option |
C9300L-STACK-KIT default cable |
|
Cable length |
0.5 m / 1.64 ft |
1 m / 3.28 ft |
3 m / 9.84 ft |
0.5 m / 1.64 ft |
|
Minimum bend radius |
1.6 in. / 41 mm |
1.6 in. / 41 mm |
3.2 in. / 82 mm |
1.6 in. / 41 mm |
|
Minimum coiled diameter |
Not applicable for 0.5 m cable |
5.20 in. / 132 mm |
7.17 in. / 182 mm |
Not applicable for 0.5 m cable |
STACK-T3A-50CM is the default 0.5 m cable in C9300L-STACK-KIT2 and covers both Catalyst 9300L and Catalyst 9300LM, while STACK-T3-50CM is the default cable in C9300L-STACK-KIT and is listed for Catalyst 9300L only. Racks where members are not adjacent move to STACK-T3A-1M at 1 m or STACK-T3A-3M at 3 m, and STACK-T3A-3M needs a 3.2 in. / 82 mm bend radius against 1.6 in. / 41 mm on this cable. A stack with any Catalyst 9300LM member must stay on the Type 3A family, so STACK-T3-50CM is not an alternative there.
Ordering Checklist
- Catalyst 9300L hosts: Order for Catalyst 9300L fixed-uplink switches, such as C9300L-24T-4X-E and C9300L-48P-4X-A. Catalyst 9300L models stack only through the C9300L-STACK-KIT or C9300L-STACK-KIT2 path; Catalyst 9300 modular-uplink switches use STACK-T1 cables instead.
- Catalyst 9300LM hosts: Order for Catalyst 9300LM fixed-uplink switches, such as C9300LM-24U-4Y-E, which stack through C9300L-STACK-KIT2. A Catalyst 9300LM order needs Type 3A cabling from C9300L-STACK-KIT2 rather than Type 3 cabling.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | STACK-T3A-50CM | Product type | Type 3A StackWise data stacking cable |
| Compatible platform | Cisco Catalyst 9300L and Catalyst 9300LM Series switches | Stack adapter | C9300L-STACK-A |
| Stack kit association | C9300L-STACK-KIT2 default cable | StackWise technology | Cisco StackWise-320 |
| Supported stack scale | Up to 8 Catalyst 9300L or 9300LM switches | Supported stack members | Other Catalyst 9300L and 9300LM models with the same license level |
| Cable length | 50 cm / 1.64 feet / 0.5 meter | Minimum bend radius | 1.6 in. / 41 mm |
| Minimum coiled diameter | Not applicable for 0.5 m cable per Cisco note | Ordering guide description | 50CM type 3A stacking cable |
| Spare product ID | STACK-T3A-50CM= | Cable material note | Cisco stack cables are halogen-free |
| Software support note | STACK-T3A cable and C9300L-STACK-A support was introduced in Cisco IOS XE Cupertino 17.9.x | Adjacent type 3A lengths | 1 m and 3 m |
Get More Information
Need pricing, stock, or shipping details for the STACK-T3A-50CM ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email [email protected] for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
Can STACK-T3A-50CM be used to stack C9350 Series Smart Switches?
-
Can STACK-T3A-50CM be coiled?
-
From which IOS XE release is STACK-T3A-50CM supported?
-
Which spare PID orders a replacement STACK-T3A-50CM?
