C9300L-48UXG-4X-A Description

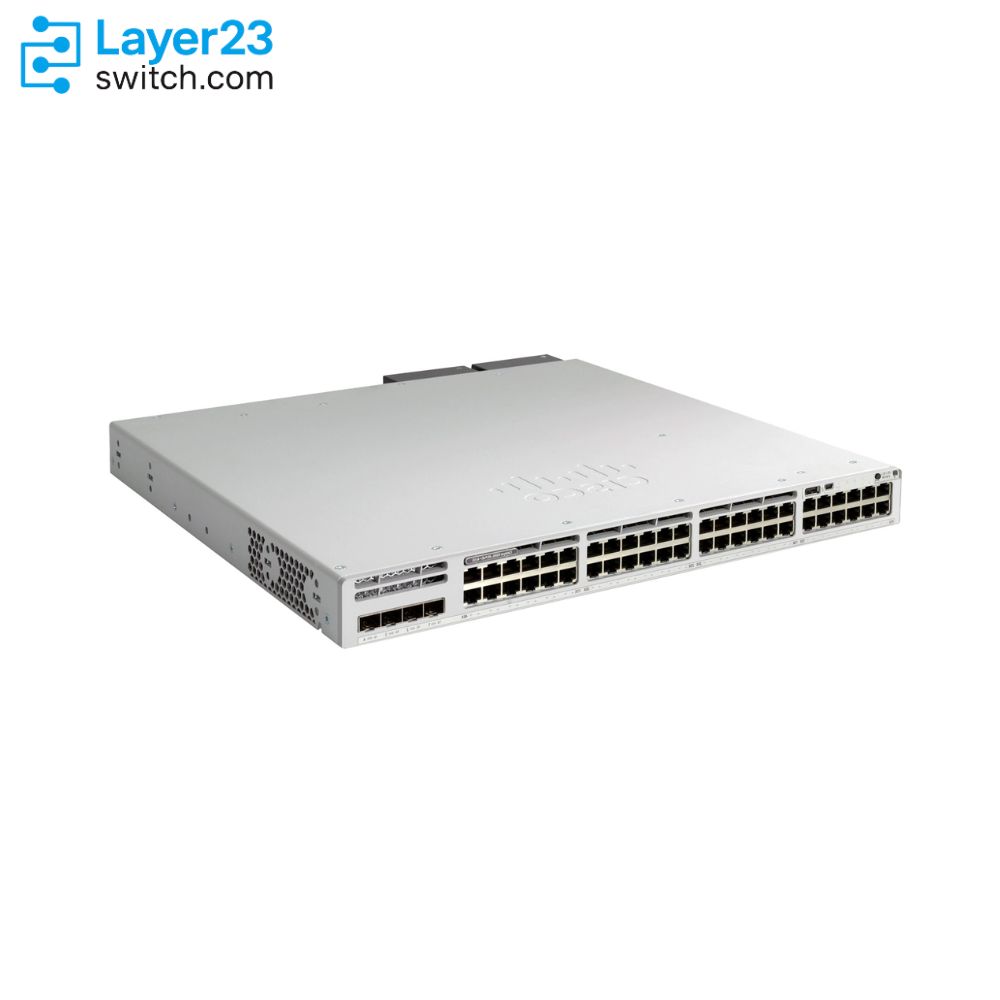

The C9300L-48UXG-4X-A is a Cisco Catalyst 9300L fixed-uplink UPOE access switch for wiring closets that route and segment traffic under Network Advantage. All 48 RJ-45 ports carry Cisco UPOE, 12 of them Multigigabit up to 10G and 36 at 10/100/1000 Mbps, alongside four fixed 10G/1G SFP+ uplinks and 392 Gbps of switching capacity. The default 1100W supply gives a 675W PoE budget, and the switch stacks over StackWise-320 only with Catalyst 9300L and 9300LM models at the same license level.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-48UXG-4X-A |
|
Network license |
Network Advantage |
|
Downlink ports |
12 x Multigigabit (100M/1G/2.5G/5G/10G) + 36 x 10/100/1000 Mbps RJ-45 |
|
PoE |
Cisco UPOE, up to 60W per port |
|
Default PoE budget |
675W |
|
PoE budget with second 1100W supply |
1775W |
|
Default power supply |
PWR-C1-1100WAC-P (1100W AC) |
|
Uplinks |
4 x 10G/1G SFP+, fixed |
|
Switching capacity |
392 Gbps (712 Gbps with stacking) |
|
Forwarding rate |
291.66 Mpps (529.76 Mpps with stacking) |
|
Stacking |
StackWise-320 at 320 Gbps, up to 8 members |
|
Minimum software release |
Cisco IOS XE Gibraltar 16.12.2 |
Product Performance
Key Features
Network Advantage removes the 1,000-route OSPF ceiling of Network Essentials and adds BGP, IS-IS, HSRP and full EIGRP. Segmentation comes with it too: VRF, VXLAN, LISP and Cisco TrustSec with SGT tags, plus NETCONF, RESTCONF and gRPC for model-driven configuration.
Twelve ports negotiate 100M, 1G, 2.5G, 5G or 10G, and the other 36 stay at 10/100/1000 Mbps. The cable decides how fast a Multigigabit run goes: Cat5e is rated to 5G, Cat6 reaches 10G within 55 m, and Cat6A holds 10G over the full 100 m.
The 392 Gbps of switching capacity equals all ports running at once in both directions: 12 x 10G plus 36 x 1G plus 4 x 10G is 196 Gbps each way. Forwarding stays nonblocking for IPv4 and IPv6 at 291.66 Mpps with 64-byte packets.
The four uplinks take 1G SFP or 10G SFP+ optics, and with no network module slot their count and speed cannot change later. When every access port runs flat out, 156 Gbps of downlink traffic shares 40 Gbps of uplink, a 3.9:1 ratio.
StackWise-320 joins up to eight Catalyst 9300L or 9300LM switches at 320 Gbps, and switching capacity counts as 712 Gbps with stacking. StackPower is not part of this line, and each member runs on its own supplies.
Cisco IOS XE Gibraltar 16.12.2 is the first release that supports this model. The general floor for the Catalyst 9300L line is 16.11.1b, so an image chosen for older members of a stack can be too early for this switch.
Application Scenarios
In an SD-Access campus, the switch acts as the fabric edge on floors where Wi-Fi 6 and 6E access points connect at Multigigabit speeds and phones, desktops and cameras fill the Gigabit ports.
Building management gateways, UPOE-powered LED lighting and security cameras share the closet switch with office users, while a dedicated VRF keeps their routes apart from the corporate network.
Network teams that build and audit configuration through NETCONF, RESTCONF or gRPC tooling bring this access layer under the same pipelines they use for the core.
Product Comparison
|
Parameter |
C9300L-48UXG-4X-A | |||
|---|---|---|---|---|
|
Network stack |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
Switch fundamentals |
Routed Access (RIP, EIGRP Stub, OSPF) |
Routed Access (RIP, EIGRP Stub, OSPF – 1,000 routes) |
Routed Access (RIP, EIGRP Stub, OSPF) |
Routed Access (RIP, EIGRP Stub, OSPF) |
|
Advanced switch capabilities and scale |
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR, IP SLA, OSPF |
Not included |
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR, IP SLA, OSPF |
BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR, IP SLA, OSPF |
|
Network segmentation |
VRF, VXLAN, LISP, Cisco TrustSec, SGT, MPLS, mVPN |
Not included |
VRF, VXLAN, LISP, Cisco TrustSec, SGT, MPLS, mVPN |
VRF, VXLAN, LISP, Cisco TrustSec, SGT, MPLS, mVPN |
|
Total 10/100/1000, Multigigabit copper or SFP fiber |
48 ports Cisco UPOE: 12 Multigigabit + 36 x 1G |
48 ports Cisco UPOE: 12 Multigigabit + 36 x 1G |
48 ports Cisco UPOE: 12 Multigigabit + 36 x 1G |
24 ports Cisco UPOE: 8 Multigigabit + 16 x 1G |
|
Uplink configuration |
4 x 10G/1G fixed uplinks |
4 x 10G/1G fixed uplinks |
2 x 40G fixed uplinks |
4 x 10G/1G fixed uplinks |
|
Available PoE power, default supply |
675W |
675W |
675W |
880W |
|
Available PoE power with 1100W secondary PS |
1775W |
1775W |
1775W |
1440W |
|
Switching capacity |
392 Gbps |
392 Gbps |
472 Gbps |
272 Gbps |
C9300L-48UXG-4X-A and C9300L-48UXG-4X-E share the same 48 UPOE ports, 4 x 10G/1G SFP+ uplinks and 675W default budget; Network Advantage adds BGP, IS-IS, VRF, VXLAN and OSPF without a route limit, where C9300L-48UXG-4X-E stops at 1,000 OSPF routes and moves up later only through C9300L-LIC=. A site that runs only Layer 2 and basic routed access can drop to Essentials and give up those features. Distribution layers that terminate 40G need C9300L-48UXG-2Q-A, which swaps the four SFP+ uplinks for two 40G QSFP+ and reaches 472 Gbps against 392 Gbps. C9300L-24UXG-4X-A suits closets of 24 or fewer drops, with eight Multigigabit ports and an 880W default budget against 675W.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Port power class |
Cisco UPOE, up to 60W per port, on all 48 ports |
|
Default PoE budget |
675W on the PWR-C1-1100WAC-P supply |
|
Budget with a 350W second supply |
1025W |
|
Budget with a 715W second supply |
1390W |
|
Budget with an 1100W second supply |
1775W |
|
Full 60W endpoints on the default budget |
11 ports (660W) |
|
Full 30W PoE+ endpoints on the default budget |
22 ports (660W) |
|
Full 60W endpoints with two 1100W supplies |
29 ports (1740W); 48 ports at 60W would need 2880W |
|
Average per port with all 48 drawing |
About 14W at 675W, about 37W at 1775W |
|
Empty second bay |
A blank module fills the bay whenever no second supply is installed |
|
Endpoint check |
Add the maximum class draw of the planned access points, cameras and lighting before choosing the supply pair |
Ordering Checklist
- Subscription tier: Order a 48-port Advantage term of 3, 5 or 7 years, such as C9300L-DNA-A-48-5Y for Cisco DNA or C9300L-DNX-A-48-5Y for Cisco Catalyst. New orders need the subscription at the same tier as the Network Advantage license.
- Second power supply: The configurator adds a second PWR-C1-1100WAC-P by default and C9300L-SPS-NONE removes it. With the second supply the PoE budget is 1775W; without it, 675W.
- Stack kit: C9300L-STACK-KIT with a 50 cm cable is added by default; Catalyst 9300LM members take only C9300L-STACK-KIT2. A stack that includes 9300LM switches needs Kit 2 adapters.
- Power cords: Select the cord type for the destination country; two cords ship with the default configuration. The configurator defaults to North America cords.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Spare 1100W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 1775W | |
|
Spare 715W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 1390W | |
|
Spare 350W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 1025W | |
|
StackWise-320 kit with two stack adapters and a 50 cm STACK-T3 cable | |
|
C9300L-STACK-KIT2 |
StackWise-320 kit with two stack adapters and a 50 cm STACK-T3A cable; used with Catalyst 9300LM members |
|
1 m Type 3 stacking cable for the C9300L stack kit | |
|
STACK-T3-3M |
3 m Type 3 stacking cable for the C9300L stack kit |
|
FAN-T2= |
Spare fan module |
|
SSD-120G |
Pluggable USB 3.0 120 GB SSD for the rear SSD port |
|
Pluggable USB 3.0 240 GB SSD for the rear SSD port |
C9300L-48UXG-4X-A Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-48UXG-4X-A | Network license | Network Advantage, perpetual and included with the hardware |
| Network Advantage feature set | BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR, IP SLA, OSPF without route limit; VRF, VXLAN, LISP, Cisco TrustSec, SGT; NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP, GuestShell | Downlink ports | 12 x Multigigabit (100M/1G/2.5G/5G/10G) + 36 x 10/100/1000 Mbps RJ-45 |
| PoE | Cisco UPOE, up to 60W per port; PoE+ and PoE | Uplinks | 4 x 10G/1G SFP+, fixed; no network module slot |
| Default power supply | PWR-C1-1100WAC-P (1100W AC, Platinum-rated) | Default PoE budget | 675W |
| PoE budget with 350W second supply | 1025W | PoE budget with 715W second supply | 1390W |
| PoE budget with 1100W second supply | 1775W | Power supply slots | 2; one supply installed, blank in the second bay |
| Power supply input | 115-240 VAC, 50-60 Hz, 12-6 A (PWR-C1-1100WAC-P) | Power supply heat dissipation | 3,754 BTU/hr output (PWR-C1-1100WAC-P) |
| Measured power, full port traffic | 163.14W (1100W supply, 115 VAC) | Measured power, weighted average | 152.09W (1100W supply, 115 VAC) |
| Measured power, 100% PoE load | 918.4W (1100W supply, 115 VAC) | Switching capacity | 392 Gbps |
| Switching capacity with stacking | 712 Gbps | Forwarding rate | 291.66 Mpps (64-byte IPv4 packets) |
| Forwarding rate with stacking | 529.76 Mpps | DRAM | 8 GB |
| Flash | 16 GB | MAC addresses | 32,000 |
| IPv4 routes | 32,000 (24,000 direct routes, 8,000 indirect routes) | IPv6 routes | 16,000 |
| Multicast routes | 8,000 | QoS entries | 5,120 |
| ACL entries | 5,120 | VLAN IDs | 4094 |
| PVST instances | 300 | STP virtual ports for PVST | 13,000 |
| STP virtual ports for MST | 13,000 | Switched virtual interfaces | 1,000 |
| Jumbo frames | 9198 bytes | Total routed ports per stack | 416 |
| Stacking | StackWise-320, 320 Gbps, up to 8 members | Stack membership | Catalyst 9300L and 9300LM switches at the same license level; no stacking with modular-uplink Catalyst 9300 or 9300X |
| Stacking hardware | Optional C9300L-STACK-KIT or C9300L-STACK-KIT2: two stack adapters and one cable (0.5 m default; 1 m and 3 m options) | Management port | 10/100/1000 RJ-45 |
| Console port | RJ-45 console port and USB mini-Type B console port | USB port | USB Type A, USB 3.0, 900 mA at 5 V; 128 MB to 8 GB flash drives |
| SSD storage | Rear USB 3.0 SSD port for a 120 GB or 240 GB SSD module | Multigigabit cabling | 100M to 5G on Cat5e; 10G on Cat6 up to 55 m or Cat6A up to 100 m; full duplex only |
| Copper port cabling | RJ-45, 4-pair Cat 5E UTP (1000BASE-T); Cat 5E/6/6A UTP (Multigigabit) | Fan modules | 3 hot-swappable FAN-T2= fan modules with N+1 redundancy |
| Airflow | Front-to-rear and side-to-rear | Fan module airflow | 20 cfm |
| Operating temperature | -5°C to +45°C up to 5000 ft (1500 m); -5°C to +40°C up to 10,000 ft (3000 m) | Storage temperature | -40°C to +70°C |
| Operating humidity | 5% to 90%, noncondensing | Operating altitude | Up to 10,000 ft (3000 m) |
| Storage altitude | Up to 15,000 ft (4500 m) | Acoustic noise | LpA 44 dB typical, 47 dB max; LwA 5.5B typical, 5.8B max (C9300L, AC supply, half the PoE+ ports loaded, 25°C) |
| Dimensions, chassis only (H x W x D) | 4.4 x 44.5 x 40.9 cm | Dimensions with default power supply (H x W x D) | 1.73 x 17.5 x 19.2 in (4.4 x 44.5 x 48.8 cm) |
| Weight | 7.65 kg (16.86 lb) | MTBF | 273,820 hours |
| Safety certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1 | EMC certifications | 47 CFR Part 15, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, EN 300 386, ICES-003 Class A, VCCI-CISPR 32 Class A, KN32, KN35, CNS13438, QCVN 118:2018/BTTTT |
| Environmental compliance | RoHS 5 | IEEE standards | 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3ae, 802.3af, 802.3at, 802.3an, 802.3bz |
| Management standards | SNMPv1, SNMPv2c, SNMPv3, RMON I and II | Minimum software release | Cisco IOS XE Gibraltar 16.12.2 |
