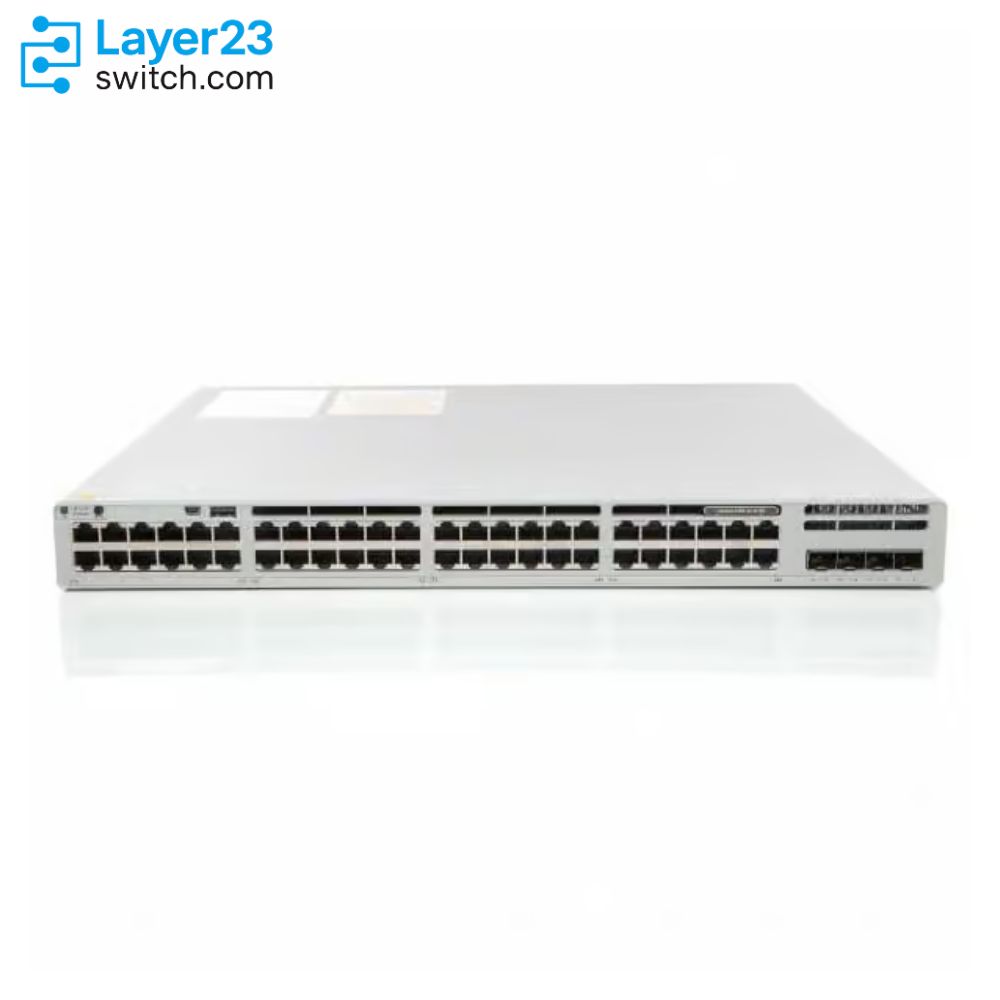

Name:

C9300L-48P-4X-M

Detail:

48×1 Gbps PoE+ ports with 4×10 Gbps uplinks; Meraki-managed, high-capacity stackable access switch.

Brand:

 Cisco

Questions

0/mo Solds

Condition:

New Factory Sealed

Availability:

In Stock at Global Warehouses.

Warranty:

3-Year Warranty

Related:

Price:

Original price was: $11,030.00.Current price is: $3,150.00.

Quantity:

Shipping:

Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

48×1 Gbps PoE+ ports with 4×10 Gbps uplinks; Meraki-managed, high-capacity stackable access switch.

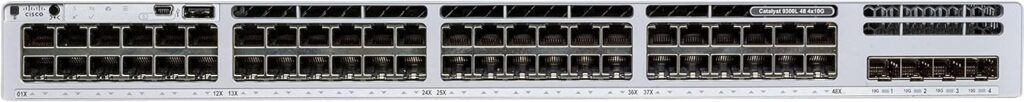

C9300L-48P-4X-M Description

  The Cisco Catalyst C9300L-48P-4X-M is a fixed-uplink access switch engineered for enterprise edge deployments demanding robust power delivery and high throughput. It provides 48 downlink ports, each supporting IEEE 802.3at PoE+ up to 30 W, fed by a default 715 W AC power supply that yields a 505 W PoE budget; an optional secondary 715 W PSU can expand PoE budget to 720 W. Four built-in 10 Gbps SFP+ uplinks ensure ample bandwidth to distribution or core layers. The nonblocking architecture delivers 176 Gbps of switching capacity and forwards up to 130.95 Mpps in standalone mode; when stacked via StackWise-320 (up to eight members), capacity scales to 496 Gbps and forwarding to 369.05 Mpps.

Product Performance

Ethernet Ports
Switching Capacity
Forwarding Rate

Model Meaning: Cisco C9300L-48P-4X-M Switch

Segment

Meaning

C

Cisco Catalyst

9300

9300 Series

L

Fixed-uplink model

48

48 downlink ports

P

PoE+ capable (up to 30 W per port)

4X

Four 10 Gbps SFP+ fixed uplinks

M

Meraki-managed software image (Advanced or Enterprise licensing)

Quick Specs

Parameter

Specification

Model

C9300L-48P-4X-M

Switching Capacity

176 Gbps standalone / 496 Gbps stacked

Forwarding Rate

130.95 Mpps standalone / 369.05 Mpps stacked

Downlink Ports

48 × 1 Gbps PoE+ (30 W per port)

Uplink Ports

4 × 10 Gbps SFP+ fixed

Stacking Bandwidth

StackWise-320 (320 Gbps per stack link)

Default PoE Budget

505 W (PWR-C1-715WAC-P) (port-sharing to 48 ports)

Power Supply

1 × 715 W AC (optional second 715 W AC)

Key Features

48 PoE+ Ports (30 W Each)

Supplies up to 505 W PoE budget; expandable to 720 W with second PSU.

StackWise-320 Technology

Stack up to eight switches with 496 Gbps stacked switching capacity and cross-stack EtherChannel/StackPower.

Meraki-Managed Software (-M)

Cloud-hosted configuration, real-time analytics, automated firmware updates, and centralized policy enforcement.

Advanced Security

MACsec encryption, Encrypted Traffic Analytics (ETA), Secure Boot, and Secure Unique Device Identifier (SUDI) for a robust access layer.

High-Performance Fabric

Nonblocking design delivers 176 Gbps switching and 130.95 Mpps forwarding; scales to 496 Gbps/369.05 Mpps when stacked.

Telemetry & Analytics

Model-driven telemetry (gNMI/YANG) and flexible NetFlow for proactive, real-time network monitoring.

Applications Scenarios

Campus Edge Access

Power and connect IP phones, wireless access points, and security cameras across high-density wiring closets.

Video Surveillance & IoT

Deliver PoE+ power and bandwidth to mission-critical cameras and sensors, while maintaining secure, monitored operations.

Cloud-Managed Branch

Enable zero-touch deployments for remote offices with Meraki Dashboard for unified policy and troubleshooting.

Model Comparison

Parameter

C9300L-48P-4X-M

C9300L-24P-4X-M

C9300L-48T-4X-M

Downlink Ports

48 × 1 Gbps PoE+ (30 W)

24 × 1 Gbps PoE+ (30 W)

48 × 1 Gbps data

Uplink Ports

4 × 10 Gbps SFP+

4 × 10 Gbps SFP+

4 × 10 Gbps SFP+

Switching Capacity

176 Gbps / 496 Gbps stacked

128 Gbps / 448 Gbps stacked

128 Gbps / 448 Gbps stacked

Forwarding Rate

130.95 Mpps / 369.05 Mpps stacked

95.23 Mpps / 333.33 Mpps stacked

95.23 Mpps / 333.33 Mpps stacked

Default PoE Budget

505 W (715 W AC)

505 W (715 W AC)

N/A (non-PoE)

Stacking Bandwidth

320 Gbps (StackWise-320)

320 Gbps (StackWise-320)

320 Gbps (StackWise-320)

License Image

Meraki Advanced/Enterprise

Meraki Advanced/Enterprise

Meraki Advanced/Enterprise

PoE Capability

PoE+ (up to 30 W/port)

PoE+ (up to 30 W/port)

Data-only (no PoE)

Accessories

Category

Part Number

Description

Power Supply

PWR-C1-715WAC-P

715 W AC power supply (default) – 505 W PoE budget

Secondary PSU

PWR-C1-715WAC-P

715 W AC (added) – expands PoE budget to 720 W

Stacking Kit

C9300L-STACK-KIT2

StackWise-320 module and cable (supports up to eight switches)

Spare Fans

FAN-T2=

Field-replaceable fan module (N+1 redundancy)

Uplink Modules

N/A (fixed uplinks)

Four fixed 10 Gbps SFP+ ports – no additional uplink module required

C9300L-48P-4X-M Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1

Ground connectors

7

StackPower connectors

2

USB3.0–SSD port

8

AC OK (input) status LED

3

BEACON LED

9

PS OK (output) status LED

4

CONSOLE (RJ-45 console port)

10

StackWise-480 port connectors

5

MGMT (RJ-45 10/100/1000 management port)

11

Power supply modules

6

Fan modules

–

–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1

Cisco Catalyst 9300 Series switch with optional network module1 (power supply and fan modules not shown)

9

Eight number-8 Phillips flat-head screws

2

AC power cord

10

Cable guide

3

Product documentation and compliance document

11

M4.0 x 20mm Phillips pan-head screw

4

Four rubber mounting feet

12

(Optional) RJ-45 console cable

5

Ground lug screw and ring terminal

13

(Optional) USB console cable

6

Two 19-inch mounting brackets

14

(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)

7

Four number-12 pan-head screws

15

(Optional) StackPower cable (0.3-meter or 1.5-meter)

8

Four number-10 pan-head screws

16

(Optional) StackWise-320 cable

cisco-catalyst-9300-switch-shipping-box

Get More Information

Discover unbeatable prices and fast shipping for the C9300L-48P-4X-M Access the detailed C9300L-48P-4X-M datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

C9300L-48P-4X-M Specifications

Parameter Detail
Model C9300L-48P-4X-M
Form Factor 1 RU rack-mountable switch
Downlink Ports 48 × 1 Gbps RJ-45 PoE+ (30 W per port)
Uplink Ports 4 × 10 Gbps SFP+ fixed
Switching Capacity 176 Gbps standalone / 496 Gbps stacked
Forwarding Rate 130.95 Mpps standalone / 369.05 Mpps stacked
Stacking Bandwidth StackWise-320 (320 Gbps per stack link)
Stack Members Up to 8 switches
Memory (DRAM) 8 GB
Flash Storage 16 GB
Power Supply 1 × 715 W AC (default); 2nd 715 W optional; 505 W PoE budget (720 W max) :contentReference[oaicite:31]{index=31}
Fans 3 × field-replaceable fans (N+1 redundancy)
Dimensions (H×W×D) 1.73″ × 17.5″ × 16.1″ (4.4 × 44.5 × 40.9 cm) w/ default PSU :contentReference[oaicite:32]{index=32}
Weight (w/ PSU) 15.46 lb (7.03 kg) :contentReference[oaicite:33]{index=33}
Mean Time Between Failures 309,020 hours :contentReference[oaicite:34]{index=34}
Operating Temperature −5 °C to + 45 °C at sea level (derate at altitude)
Jumbo Frames Up to 9,198 bytes
Max VLAN IDs 4,094
Max MAC Addresses 32,000
Max IPv4 Routes 32,000 (24,000 direct + 8,000 indirect)
Max IPv6 Routes 16,000
PoE Class IEEE 802.3at (PoE+) – up to 30 W per port
Security Features MACsec-256 encryption, Encrypted Traffic Analytics (ETA), Secure Boot, SUDI, IEEE 802.1X
Telemetry Model-driven telemetry (gNMI/YANG), flexible NetFlow
Software Image Meraki-managed (“-M”) for cloud provisioning
License Tier Meraki Advanced/Enterprise
Warranty Limited lifetime hardware warranty

Customer Reviews

Write A Review
0.0
(0 reviews)
5 Stars
0
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Questions & Answers

  • What SD‑Access features does C9300L-48P-4X-M enable?

    Integrated hardware support for VXLAN, LISP, and TrustSec lets the C9300L-48P-4X-M function as an SD‑Access fabric edge or border node.

  • Can I stack the C9300L-48P-4X-M with other Catalyst 9300 models?

    Yes. The C9300L-48P-4X-M supports Cisco StackWise technology, letting you combine up to eight Catalyst 9300 family switches into a single logical unit for higher throughput and simplified management.

  • How do I license additional features on C9300L-48P-4X-M?

    Use Cisco Smart Licensing to activate DNA Advantage or Premier subscriptions; the C9300L-48P-4X-M registers with Cisco Smart Account over the internet or through an on‑premises satellite.

  • Is IPv6 fully supported on C9300L-48P-4X-M?

    Yes. The C9300L-48P-4X-M hardware and software include IPv6 First Hop Security, RA guard, DHCPv6 snooping, and comprehensive routing support.

  • Is there a fanless version of C9300L-48P-4X-M for silent environments?

    No. All Catalyst 9300 family switches, including the C9300L-48P-4X-M, use variable‑speed fans to maintain optimal operating temperatures.

  • Can I use the C9300L-48P-4X-M in a distribution‑layer role?

    While primarily an access switch, the C9300L-48P-4X-M's high stacking bandwidth and optional 10/25G uplinks allow it to serve small campus distribution layers where moderate aggregation throughput is sufficient.

  • Is C9300L-48P-4X-M manageable through Cisco DNA Center?

    Absolutely. The C9300L-48P-4X-M integrates with Cisco DNA Center for zero‑touch provisioning, policy automation, assurance, and software image management.

  • What environmental specs should I consider for C9300L-48P-4X-M?

    Operate the C9300L-48P-4X-M between 0 °C and 45 °C and below 5000 ft altitude for full PoE load; derate operating temperature above that elevation.

  • Can C9300L-48P-4X-M terminate network‑level encryption like MACsec?

    Yes. Line‑rate 256‑bit MACsec encryption is available on all downlink and uplink ports of the C9300L-48P-4X-M with the appropriate license.

  • How much PoE power budget does C9300L-48P-4X-M provide?

    The available power budget depends on installed supplies; with dual 715 W supplies the C9300L-48P-4X-M can deliver up to 437 W PoE+ or 384 W UPOE, enough for most access‑point and IP‑phone deployments.

  • What kind of power supplies can C9300L-48P-4X-M accommodate?

    The C9300L-48P-4X-M ships with a field‑replaceable AC power supply and supports redundant secondary units. You can mix AC, DC, or HVAC/HVDC supplies depending on installation needs.

  • Does C9300L-48P-4X-M support Layer 3 routing protocols?

    Yes. With the Network Advantage image, the C9300L-48P-4X-M offers full Layer 3 capabilities, including OSPF, EIGRP, BGP, and advanced features like VRF‑Lite.

  • How does C9300L-48P-4X-M perform in high‑density Wi‑Fi 6 deployments?

    Combined 10/25 Gbps uplinks, mGig access ports on certain variants, and advanced QoS make the C9300L-48P-4X-M ideal for aggregating Wi‑Fi 6/6E access‑point traffic.

  • Does the C9300L-48P-4X-M support redundant supervisors?

    No. Catalyst 9300 switches employ a single CPU architecture; resiliency is achieved through StackWise and dual power supplies.

  • What is the typical boot time for C9300L-48P-4X-M?

    From cold start to forwarding state, the C9300L-48P-4X-M takes roughly 2 ½ minutes, depending on installed modules and PoE negotiation.

  • Can I field‑replace the fans on C9300L-48P-4X-M without downtime?

    Yes—fan trays are hot‑swappable. You can replace a failed fan while the C9300L-48P-4X-M remains in service.

  • What is the maximum stack bandwidth for C9300L-48P-4X-M?

    All Catalyst 9300 non‑X models, including the C9300L-48P-4X-M, deliver up to 480 Gbps of stack bandwidth; X‑series variants offer up to 1 Tbps.

  • Can I upgrade the C9300L-48P-4X-M software in service?

    Cisco ISSU (In‑Service Software Upgrade) allows you to update the C9300L-48P-4X-M's IOS XE image with minimal traffic disruption when configured in a stack.
