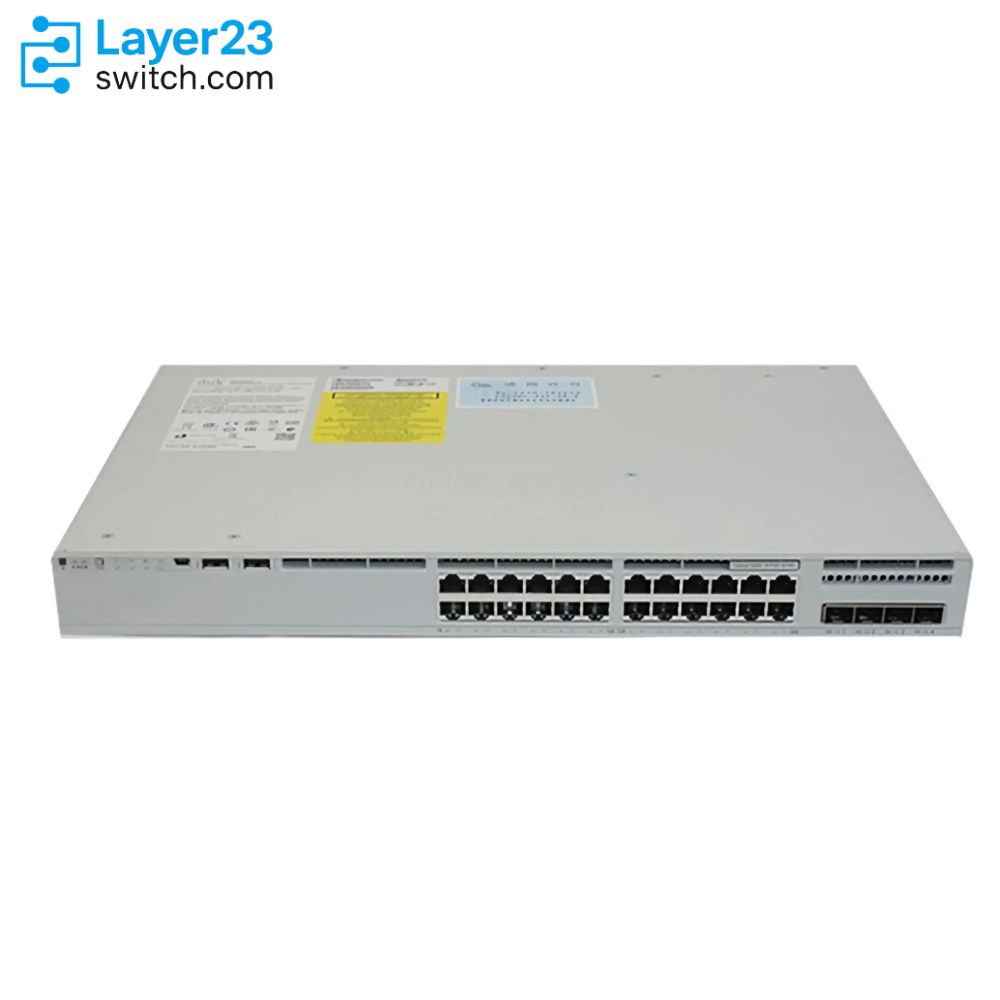

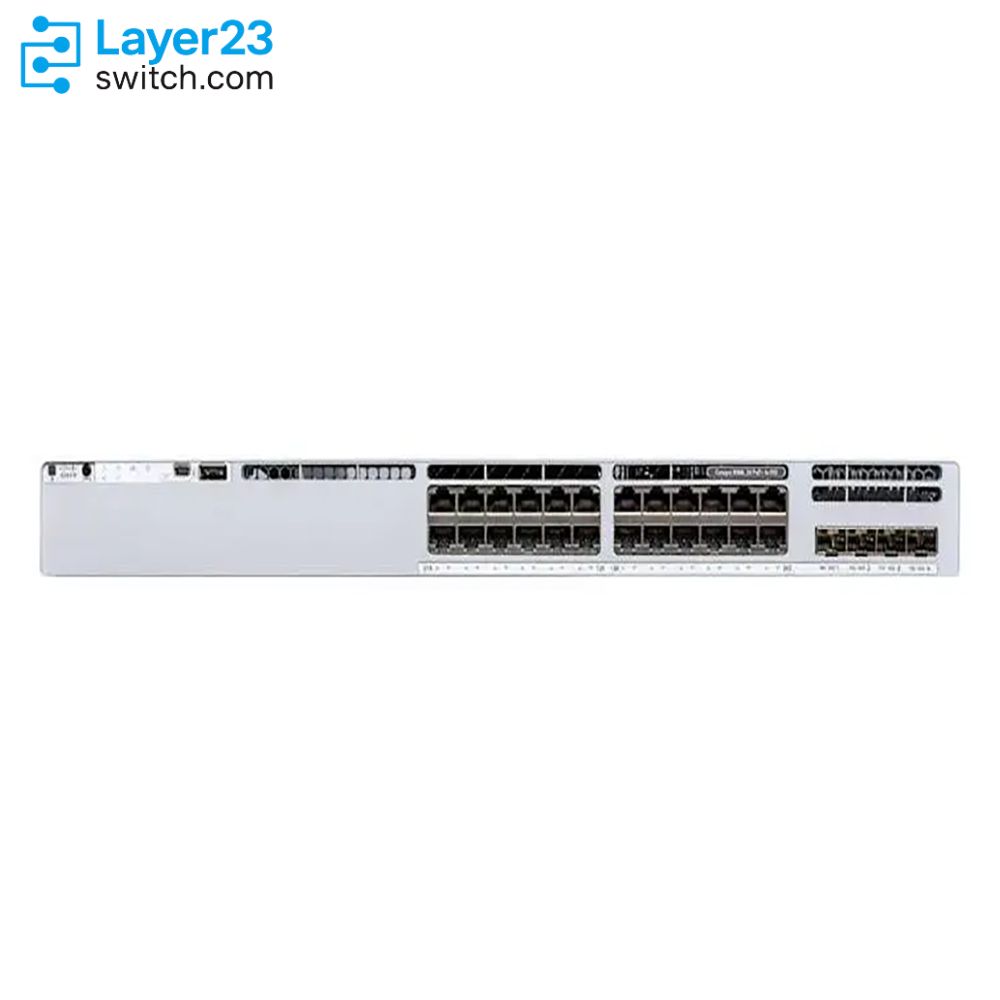

C9300LM-24U-4Y-E – 24x1G UPOE Ports – Fixed 4x25G Uplinks – 420W PoE Budget

Brand: Cisco Category: Catalyst 9300 Switches Availability:
In Stock
Model: C9300LM-24U-4Y-E
Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policy
4.910 reviews8 Questions
List Price: $18,049.04 75% OFF
$4,528.96
Price Alert
Condition
Related
Subscription C9300-DNA-E + $550.20 This item requires a mandatory DNA. Subtotal Price $5,079.16
Quantity
Shipping Express Shipping 2-6 Business Days, via UPS, FedEx, DHL and more
Trusted & Secure Payments

Cisco C9300LM-24U-4Y-E Compatible Accessories, Modules & Spare Parts

Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9300LM-24U-4Y-E. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.
  • SFP-10G-SR SFP-10G-SR

    SFP-10G-SR

    10GBASE-SR SFP+ - 850nm MMF - 400m OM4
    Original price was: $2,658.11.Current price is: $71.68. Condition: New Factory Sealed
  • SFP-10G-LR SFP-10G-LR

    SFP-10G-LR

    10GBASE-LR SFP+ - 1310nm SMF - 10km Reach
    Original price was: $10,672.47.Current price is: $170.00. Condition: New Factory Sealed
  • SFP-25G-SR-S SFP-25G-SR-S

    SFP-25G-SR-S

    25GBASE-SR SFP28 - 850nm MMF - 100m OM4
    Original price was: $2,658.11.Current price is: $310.00. Condition: New Factory Sealed
  • SFP-25G-SL

    SFP-25G-SL

    25GBASE-SR/SL SFP28 - 850nm 30m MMF Transceiver
    Original price was: $1,588.80.Current price is: $450.00. Condition: New Factory Sealed
  • SFP-10/25G-CSR-S SFP-10/25G-CSR-S

    SFP-10/25G-CSR-S

    10/25GBASE-CSR SFP28 - 850nm 400m MMF Transceiver
    Original price was: $2,925.26.Current price is: $95.30. Condition: New Factory Sealed
  • SFP-10/25G-LR-S SFP-10/25G-LR-S

    SFP-10/25G-LR-S

    10/25GBASE-LR SFP28 - 1310nm 10km SMF Transceiver
    Original price was: $5,877.20.Current price is: $431.00. Condition: New Factory Sealed
  • SFP-10/25G-LR-I SFP-10/25G-LR-I

    SFP-10/25G-LR-I

    10/25GBASE-LR SFP28 - Industrial Temp 1310nm 10km SMF
    Original price was: $6,812.22.Current price is: $518.00. Condition: New Factory Sealed
  • SFP-25G-ER-I

    SFP-25G-ER-I

    25GBASE-ER SFP28 - 40km SMF - Industrial Temp
    Original price was: $28,050.28.Current price is: $6,354.00. Condition: New Factory Sealed
  • GLC-LH-SMD GLC-LH-SMD

    GLC-LH-SMD

    1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
    Original price was: $2,658.11.Current price is: $95.80. Condition: New Factory Sealed
  • GLC-SX-MMD GLC-SX-MMD

    GLC-SX-MMD

    1000BASE-SX SFP - MMF 850nm - DOM
    Original price was: $1,335.73.Current price is: $57.00. Condition: New Factory Sealed

Stable Global Supply Chain for Thriving Businesses.

  • $8,000,000 Inventory
  • Certified Cisco Partner ships
  • Collaborating with FedEx, UPS, DHL
Play

Free Expert Support from Planning to Deployment

  • Assistance with product selection and network solution design
  • Configuration guidance and best-practice recommendations
  • Troubleshooting support provided by CCIE-level technical experts

Established Global IT Distributor

With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.

C9300LM-24U-4Y-E Description

The C9300LM-24U-4Y-E is a Cisco Catalyst 9300LM mini fixed-uplink access switch, built on the reduced-depth 9300LM chassis with 24 Cisco UPOE copper ports, 4x 25G SFP28 fixed uplinks, and a Network Essentials license. The 9300LM sub-line runs on its own PWR-C6 power series, and here the default PWR-C6-600WAC supply gives 420W of PoE without a second supply, extending to 1420W with a PWR-C6-1KWAC secondary supply. Network Essentials on this hardware covers Layer 2 switching, routed access with up to 1000 OSPF routes, PIM stub multicast, VRRP, 802.1X, and MACsec-128, which matches straightforward access-layer designs that do not need the routing scale or segmentation features gated behind Network Advantage. Stacking uses StackWise-320 and can mix with Catalyst 9300L members holding the same license tier, keeping this SKU inside the shallow-chassis fixed-uplink hardware line rather than the modular-uplink Catalyst 9300 or 9300X platforms.

Quick Specs

Parameter

Specification

Product ID

C9300LM-24U-4Y-E

Product type

Stackable mini access switch with fixed uplinks

Access ports

24 x 10/100/1000 Mbps Cisco UPOE copper ports

Fixed uplinks

4 x 25G SFP28

Network license

Network Essentials

Default power supply

PWR-C6-600WAC

Default PoE budget

420W

Expanded PoE budget

Up to 1440W with PWR-C6-1KWAC primary or secondary supply

Stacking architecture

StackWise-320 (mixes with Catalyst 9300L at matching license tier)

Chassis depth

13.03 in chassis only; low-depth mini form factor

Switching and forwarding

248 Gbps standalone switching; 184.51 Mpps standalone forwarding

Weight

11.5 lb (5.21 kg)

Product Performance

Standalone Switching Capacity
Standalone Forwarding Rate
Default PoE Budget

Key Features

Layer 2 access on a mini chassis

The 13.03 in chassis-only depth of the Catalyst 9300LM line brings Network Essentials access switching into shallow racks that reject full-depth Catalyst 9300 hardware.

PWR-C6-only power planning

Second-supply and spare-parts orders stay inside the PWR-C6-600WAC/PWR-C6-1KWAC pair, since this chassis rejects every PWR-C1 supply used elsewhere in the Catalyst 9300 family.

420W PoE ceiling without upgrade

The default PWR-C6-600WAC supply caps available Cisco UPOE power at 420W until a second or upgraded PWR-C6-1KWAC supply is added, a fixed planning number for closets that stay on the default supply.

Network Essentials feature set

This SKU carries Layer 2 switching, routed access up to 1000 OSPF routes, PIM stub multicast, VRRP, 802.1X, and MACsec-128, covering standard access-layer designs without the VRF, VXLAN, or MACsec-256 entitlements reserved for Network Advantage.

StackWise-320 mini-line stacking

StackWise-320 lets this switch stack with other Catalyst 9300L or 9300LM members at a matching license tier, so an Essentials-only stack plan stays consistent across the fixed-uplink hardware line.

RJ-45 management plane with USB console priority

Out-of-band management runs through a 10/100/1000 RJ-45 Ethernet management port plus an RJ-45 console port, and when a USB mini-Type B console cable is also connected, the USB console takes priority automatically, so a technician does not need to physically disconnect the RJ-45 console cable to switch to USB for local access.

Application Scenarios

Shallow-Depth Access Closet

Installed in shallow wall-mount cabinets or low-depth enclosures where a full-depth Catalyst 9300 chassis will not fit, while still delivering Cisco UPOE power to access endpoints.

Layer 2 Edge With Basic Routed Access

Deployed at branch or edge access points that only need Layer 2 switching, limited-route OSPF, or PIM stub multicast, without the VRF or VXLAN segmentation gated behind Network Advantage.

Essentials-Tier Stack Expansion

Added to an existing StackWise-320 ring of Catalyst 9300L or 9300LM members that already standardizes on Network Essentials, extending UPOE and 25G uplink capacity without changing the stack’s license tier.

Product Comparison

Parameter

C9300LM-24U-4Y-E

C9300LM-24U-4Y-A

C9300L-24UXG-4X-E

Access ports

24 x 10/100/1000 Mbps Cisco UPOE

24 x 10/100/1000 Mbps Cisco UPOE

24 x UPOE (8 Multigigabit + 16 x 10/100/1000 Mbps)

Fixed uplinks

4 x 25G SFP28

4 x 25G SFP28

4 x 10G/1G SFP+

Network license

Network Essentials

Network Advantage

Network Essentials

Chassis depth class

Mini (low-depth)

Mini (low-depth)

Standard Catalyst 9300L depth

Default power supply

PWR-C6-600WAC

PWR-C6-600WAC

PWR-C1-1100WAC-P

Default PoE budget

420W

420W

880W

Expanded PoE budget

Up to 1440W with PWR-C6-1KWAC supply

Up to 1440W with PWR-C6-1KWAC supply

Up to 1440W with second 1100W supply

Stacking architecture

StackWise-320

StackWise-320

StackWise-320

Switching capacity

248 Gbps standalone; 568 Gbps stacked

248 Gbps standalone; 568 Gbps stacked

272 Gbps standalone; 592 Gbps stacked

Forwarding rate

184.51 Mpps standalone; 422.59 Mpps stacked

184.51 Mpps standalone; 422.59 Mpps stacked

202.38 Mpps standalone; 440.47 Mpps stacked

  • C9300LM-24U-4Y-E and C9300LM-24U-4Y-A share identical hardware, so the choice between them is a license question, not a port or power question: both hold the same 420W default PoE budget, 4x 25G fixed uplinks, and 248 Gbps switching capacity, and only the Network Advantage feature set of VRF, VXLAN, Cisco TrustSec, and MACsec-256 separates the two SKUs.
  • Moving from this SKU to C9300L-24UXG-4X-E gives up the mini chassis depth in exchange for more PoE headroom and Multigigabit access, since the C9300L-24UXG-4X-E default supply budgets 880W against 420W here and adds 8 Multigigabit ports; a design that needs that PoE ceiling or Multigigabit endpoint speed has to move to the deeper hardware regardless of license tier.
  • For deciding which SKU to order in this group, confirm the routing and segmentation requirement first: if VRF, VXLAN, or MACsec-256 is required, C9300LM-24U-4Y-A is the only option in this table that adds it without changing chassis depth, and if that requirement is absent, this Essentials SKU keeps the identical hardware at the lower license tier.

Selection Guide

1. Essentials Covers Layer 2 And Limited Routing

C9300LM-24U-4Y-E carries Network Essentials, which is enough when the deployment needs only Layer 2 switching, up to 1000 OSPF routes, PIM stub multicast, or VRRP on the mini fixed-uplink hardware, avoiding the Network Advantage premium for features the design does not use.

2. Upgrade Path When Segmentation Is Added Later

Cisco’s ordering guide ties Network Essentials and Network Advantage to separate orderable PIDs; there is no in-place upgrade PID from C9300LM-24U-4Y-E to C9300LM-24U-4Y-A, so a design that expects to add VRF, VXLAN, or MACsec-256 within the hardware’s service life should order C9300LM-24U-4Y-A up front instead of planning a later license swap.

3. Mini Depth Before Higher PoE Draw

The 420W default PoE budget on this mini chassis sits well below the 880W on C9300L-24UXG-4X-E; an access design with heavier Multigigabit or high-draw UPOE endpoints needs the deeper C9300L-24UXG-4X-E hardware rather than a license change on this SKU.

4. License Tier Must Match Across Stack Members

When this switch stacks with Catalyst 9300L members over StackWise-320, every member’s Network Stack license tier must match Network Essentials; a stack partner already running Network Advantage requires aligning the whole ring to one tier before the stack forms correctly.

PoE Power Planning

Planning Item

Value or Check

Default PoE budget

420W available with the single default PWR-C6-600WAC supply

Expanded PoE budget

Up to 1420W when a PWR-C6-1KWAC secondary supply is added, or 820W-1440W when PWR-C6-1KWAC replaces the primary supply

Design ceiling

PoE budget is capped at 1440W, matching 24 ports at the 60W UPOE class

Power supply compatibility

Confirm only PWR-C6-600WAC or PWR-C6-1KWAC is specified; no PWR-C1 supply is compatible with this chassis

Peak power draw

990.9W measured at 100% PoE load on 115Vac

Ordering Checklist

Check Item

What to Confirm

Why It Matters

License suffix

Confirm the order specifies C9300LM-24U-4Y-E and not the C9300LM-24U-4Y-A Advantage PID.

Ordering the wrong suffix pays for entitlements the Essentials-tier design does not use.

Power supply family

Confirm only PWR-C6-600WAC or PWR-C6-1KWAC appears on the bill of materials.

PWR-C1 supplies used elsewhere in the Catalyst 9300 family are not compatible with this chassis.

Second power bay

Confirm a blank module or a second PWR-C6 supply is specified for the empty bay.

An empty bay without a blank module can affect airflow and fan noise levels.

Smart Account binding

Confirm the target Smart Account and Virtual Account before the order is placed.

The Network Stack license and software subscription are tied to Smart Licensing and cannot activate without a bound account.

Subscription tier match

Confirm the Cisco Catalyst, Cisco DNA, or Meraki subscription selected is the Essentials tier, matching the hardware license.

A Network Advantage hardware SKU paired with an Essentials subscription is only permitted at renewal, not on a new order, and a mismatch on this SKU can misalign future upgrade planning.

Stack partner license tier

Confirm any Catalyst 9300L stack partner also runs Network Essentials.

StackWise-320 mixing between C9300L and C9300LM requires a matching license tier across members.

Optional Add-ons

Model

Description

PWR-C6-600WAC=

Cisco 600W AC power supply spare for Catalyst 9300LM

PWR-C6-1KWAC=

Cisco 1000W AC power supply spare for Catalyst 9300LM

C9300L-STACK-KIT2

StackWise-320 stacking kit required for Catalyst 9300LM stacking

STACK-T3A-50CM

50cm Type 3A stacking cable for Catalyst 9300LM/9300L stack kits

STACK-T3A-1M

1m Type 3A stacking cable for Catalyst 9300LM/9300L stack kits

STACK-T3A-3M

3m Type 3A stacking cable for Catalyst 9300LM/9300L stack kits

C9300LM-24U-4Y-E Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1

Ground connectors

7

StackPower connectors

2

USB3.0–SSD port

8

AC OK (input) status LED

3

BEACON LED

9

PS OK (output) status LED

4

CONSOLE (RJ-45 console port)

10

StackWise-480 port connectors

5

MGMT (RJ-45 10/100/1000 management port)

11

Power supply modules

6

Fan modules

–

–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1

Cisco Catalyst 9300 Series switch with optional network module1 (power supply and fan modules not shown)

9

Eight number-8 Phillips flat-head screws

2

AC power cord

10

Cable guide

3

Product documentation and compliance document

11

M4.0 x 20mm Phillips pan-head screw

4

Four rubber mounting feet

12

(Optional) RJ-45 console cable

5

Ground lug screw and ring terminal

13

(Optional) USB console cable

6

Two 19-inch mounting brackets

14

(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)

7

Four number-12 pan-head screws

15

(Optional) StackPower cable (0.3-meter or 1.5-meter)

8

Four number-10 pan-head screws

16

(Optional) StackWise-320 cable

cisco-catalyst-9300-switch-shipping-box

Specifications

Parameter Specification Parameter Specification
Product ID C9300LM-24U-4Y-E Product type Stackable mini access switch with fixed uplinks
Network license Network Essentials Access ports 24 x 10/100/1000 Mbps Cisco UPOE copper ports
Fixed uplinks 4 x 25G SFP28 Chassis depth class Mini (low-depth) Catalyst 9300LM chassis
Default power supply PWR-C6-600WAC Default PoE budget 420W
Expanded PoE budget Up to 1440W with PWR-C6-1KWAC as primary or secondary supply PWR-C6-600WAC electrical rating 100-240VAC auto-ranging, 7-2.8A input, 54V @ 11.1A output
PWR-C6-1KWAC electrical rating 100-240VAC auto-ranging, 12-6A input, 54V @ 18.5A output Power supply BTU (600WAC) 2327 BTU/hr input, 2047.3 BTU/hr output at 100VAC
Power supply BTU (1KWAC) 3876 BTU/hr input, 3412 BTU/hr output at 100VAC Peak power draw 990.9W at 100% PoE load, 115Vac
Power supply slots Two internal bays; blank module required in an unused bay Power supply compatibility PWR-C6 series only; not compatible with any PWR-C1 supply
Fan modules Three internal field-replaceable fans with N+1 redundancy Fan airflow 20 cfm per fan module
Stacking architecture StackWise-320 via C9300L-STACK-KIT2, up to 8 members Stack mixing Mixes with Catalyst 9300L members at matching license tier
StackPower Not supported Hardware IPsec Not supported
Switching capacity 248 Gbps standalone Switching capacity with stacking 568 Gbps
Forwarding rate 184.51 Mpps standalone Forwarding rate with stacking 422.59 Mpps
Management interfaces 10/100/1000 Ethernet management port, RJ-45 console, USB mini-Type B console Asset tracking Passive UHF RFID tag (GS1 EPC Global Gen2 / ISO 18000-6C)
Physical dimensions (chassis only) 1.73 x 17.50 x 13.03 in Physical dimensions (with default AC supply) 1.73 x 17.50 x 13.17 in
Weight 11.5 lb (5.21 kg) MTBF 357,350 hours
Operating temperature -5C to 45C below 5000 ft (1500m) Storage temperature -40C to 70C (-40F to 158F)
Operating altitude Up to 10,000 ft (3000m) Storage altitude Up to 15,000 ft (4500m)
Relative humidity 5%-90% non-condensing Connector standards RJ-45 (1000BASE-T), LC fiber (SFP28 uplinks), Cisco StackWise cable
Safety and EMC compliance UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3, 47 CFR Part 15, EN 55032 Class A, CISPR 32 Class A, ICES-003 Class A Environmental compliance RoHS
Warranty Cisco Enhanced Limited Lifetime Hardware Warranty (E-LLW)

Get More Information

Need pricing, stock, or shipping details for the C9300LM-24U-4Y-E ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.

Quality Certifications

Customer Reviews

Write A Review
4.9
(10 reviews)
5 Stars
9
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0
    Bradley Sullivan
    Posted on 24/01/2026
    Verified Buyer
    5.0

    Three orders this year already. All went smoothly.

    Robert Hall
    Posted on 09/01/2026
    Verified Buyer
    5.0

    Pre-sales actually advised against an upgrade we didn’t need. That kind of honesty earns loyalty.

    Gregory Ross
    Posted on 21/12/2025
    Verified Buyer
    4.0

    If you’re hesitating, don’t. Layer23 is the real deal.

    Emma Frost
    Posted on 30/08/2025
    Verified Buyer
    5.0

    Impeccable service. A diamond standard.

    Alex Summers
    Posted on 10/05/2025
    Verified Buyer
    5.0

    Solid service. No issues.

Questions & Answers

  • Can C9300LM-24U-4Y-E power Wi-Fi 6 access points without a separate injector?

    C9300LM-24U-4Y-E has 24 1G copper UPOE ports, so access points that fit Cisco UPOE power draw can run from the switch within the available power budget.

  • Why would C9300LM-24U-4Y-E be chosen for a shallow rack?

    C9300LM-24U-4Y-E is an LM mini, shallow-depth Catalyst 9300 model, useful where a 24-port UPOE access switch has to fit a tight cabinet or wall rack.

  • Are the four uplinks on C9300LM-24U-4Y-E replaceable modules?

    C9300LM-24U-4Y-E uses four fixed 25G SFP28 uplinks; it does not take C9300 network modules, so uplink speed planning happens before purchase.

  • What does the E suffix change on C9300LM-24U-4Y-E?

    The E suffix maps C9300LM-24U-4Y-E to Network Essentials, while the hardware remains 24 UPOE ports, four 25G fixed uplinks, and StackWise-320.

  • Can C9300LM-24U-4Y-E use 1G copper SFP transceivers in the uplinks?

    C9300LM-24U-4Y-E SFP28 uplinks need transceiver and IOS XE checks; a Cisco Community case reported GLC-TE link issues on 17.09.03 that were fixed in 17.09.05.

  • What power-supply detail is easy to miss on C9300LM-24U-4Y-E?

    C9300LM-24U-4Y-E ships with a 600W AC class supply, and Cisco notes C9300LM models use different power supplies from C9300, C9300X, and C9300L models.

  • How does C9300LM-24U-4Y-E stack with other Catalyst 9300 models?

    C9300LM-24U-4Y-E belongs to the fixed-uplink LM family with StackWise-320, so mixed-stack planning needs bandwidth, software, license, and hardware checks.

  • Which ordering mistake affects C9300LM-24U-4Y-E most often?

    C9300LM-24U-4Y-E orders go wrong when teams expect modular uplinks, mGig downlinks, or Network Advantage features; this SKU is fixed-uplink, 1G UPOE, Network Essentials.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

EOL EOSL checker
Check lifecycle dates
FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

cisco sn check tool

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

Standard Services

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F3 Team Support

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Shipping

DataSheet Downloads

  • C9300LM-24U-4Y-E Datasheet

  • Cisco Catalyst 9300 Switch Datasheet

Related Searches of Catalyst 9300 Switches
