C9300-24UX-E Description
The C9300-24UX-E is a Cisco Catalyst 9300 Series stackable access switch for wiring closets that power Wi-Fi 6E access points and cameras over multigigabit copper. The switch has 24 multigigabit UPOE ports from 100 Mbps to 10G, a modular uplink slot, 640 Gbps of switching capacity and a 560W PoE budget on the default 1100W supply, and the license tier is Network Essentials. The -E suffix covers Layer 2 and OSPF routing up to 1,000 routes but not VRF, VXLAN, TrustSec, BGP or MACsec-256.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300-24UX-E |
|
Product type |
Stackable access switch with modular uplinks |
|
Downlink ports |
24 x 10G/5G/2.5G/1G/100M multigigabit Cisco UPOE copper ports |
|
Network license |
Network Essentials |
|
Uplink architecture |
Modular uplink slot for Cisco Catalyst 9300 network modules |
|
Default power supply |
PWR-C1-1100WAC-P |
|
Default PoE budget |
560W |
|
PoE class |
Cisco UPOE up to 60W per port |
|
Expanded PoE budget |
1440W with supported secondary power supply configuration |
|
Stacking architecture |
StackWise-480 |
|
Minimum software release |
Cisco IOS XE Everest 16.6.1 |
|
Switching capacity |
640 Gbps standalone; 1,120 Gbps with stacking |
|
Forwarding rate |
476.19 Mpps standalone; 833.33 Mpps with stacking |
Product Performance
Key Features
Every one of the 24 copper ports runs 100M, 1G, 2.5G, 5G or 10G, so the switch is not a mixed 1G and multigigabit unit.
Each port supplies up to 60W for devices such as PTZ cameras and high-draw access points, within the shared PoE budget.
Layer 2 switching and OSPF routing up to 1,000 routes are included, while VRF, VXLAN, TrustSec, BGP and MACsec-256 need Network Advantage.
The modular slot takes Catalyst 9300 network modules, so uplink media is chosen separately from the 24 access ports.
The default 1100W supply leaves 560W for PoE, and a supported second supply raises that to 1440W for denser powered endpoints.
StackWise-480 cables form the data stack and StackPower cables pool power, so the two are cabled independently.
Application Scenarios
In a floor wiring closet, the switch connects Wi-Fi 6E access points to multigigabit UPOE ports and sends their traffic upstream through the uplink module.
A building that runs PTZ cameras and other high-draw endpoints can power them directly from the UPOE ports, adding a second supply when the 560W default budget is not enough.
A campus access layer that needs Layer 2 switching and OSPF routed access, but no VRF or VXLAN, can run on Network Essentials at the edge.
Product Comparison
|
Parameter |
C9300-24UX-E | |||
|---|---|---|---|---|
|
Downlink ports |
24 x 100M/1G/2.5G/5G/10G |
24 x 100M/1G/2.5G/5G/10G |
24 x 10/100/1000 |
24 x 10/100/1000 |
|
PoE type |
Cisco UPOE |
Cisco UPOE |
Cisco UPOE |
Cisco UPOE+ |
|
Available PoE power (default) |
560W |
560W |
830W |
830W |
|
Available PoE power (maximum) |
1440W |
1440W |
1440W |
2160W |
|
Network module uplinks |
Modular |
Modular |
Modular |
Modular |
|
Network license |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Stack bandwidth |
480 Gbps |
480 Gbps |
480 Gbps |
480 Gbps |
|
Switching capacity |
640 Gbps |
640 Gbps |
208 Gbps |
208 Gbps |
|
Forwarding rate |
476.19 Mpps |
476.19 Mpps |
154.76 Mpps |
154.76 Mpps |
C9300-24UX-E is the Network Essentials version of the 24-port 10G Multigigabit UPOE hardware that is also sold as C9300-24UX-A, and the license tier is the only difference. Essentials covers Layer 2 and routed access with OSPF up to 1,000 routes; a design that needs VRF, VXLAN, TrustSec, BGP or MACsec-256 on day one must order C9300-24UX-A, and an installed switch is upgraded later with a C9300-24-E-A-3, -5 or -7 term, which cannot be bought on the same order as the hardware. Gigabit access with 830W of default PoE moves to C9300-24U-E, or to C9300-24H-E when UPOE+ endpoints are planned.
PoE Power Planning
|
Planning Item |
Cisco Confirmed Value |
Order Impact |
|---|---|---|
|
UPOE port class |
Cisco UPOE supports Type 1, Type 2, Type 3, and Cisco UPOE powered devices up to 60W per port |
Check endpoint power class before replacing this SKU with PoE+ or data-only hardware |
|
Default PoE budget |
C9300-24UX-E is listed with 560W available PoE on the default PWR-C1-1100WAC-P supply |
Match the AP or endpoint count to the default power budget before finalizing the power plan |
|
Higher PoE budget |
C9300-24UX-E reaches 1275W with a 715W secondary supply and 1440W with an 1100W secondary supply |
Add the secondary power supply when the powered device plan exceeds the default budget |
|
Full 60W planning |
Cisco lists two 1100W power supplies for 48- and 24-port Multigigabit UPOE designs requiring Type 3 power on all ports |
Confirm whether every downlink needs the 60W class or only selected ports do |
Ordering Checklist
- Software subscription: Order a 24-port Essentials term: C9300-DNA-E-24-3Y, C9300-DNA-E-24-5Y or C9300-DNA-E-24-7Y. The configurator defaults to Cisco DNA Advantage with a 5-year term, which does not match a Network Essentials switch.
- Uplink module: Keep the default C9300-NM-8X, pick C9300-NM-4G, C9300-NM-4M, C9300-NM-2Q or C9300-NM-2Y, or select C9300-NM-NONE. The uplink slot takes Catalyst 9300 modules only; C9300X modules do not fit.
- Second power supply: A second PWR-C1-1100WAC-P is selected by default and C9300-SPS-NONE removes it. A single supply leaves the PoE budget at 560W.
- Stacking cables: The default 50 cm StackWise cable and 30 cm StackPower cable ship unless C9300-STACK-NONE and C9300-SPWR-NONE remove them. A stack with members in different rows needs longer cables, which the 50 cm default does not cover.
- Power cords: Select the cord type for the destination country; two cords ship with the switch. The configurator defaults to North America cords.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Catalyst 9300 Series 4x 1G network module | |
|
Catalyst 9300 Series 4x Multigigabit network module | |
|
Catalyst 9300 Series 8x 10G/1G network module | |
|
Catalyst 9300 Series 2x 40G network module | |
|
Catalyst 9300 Series 2x 25G/10G/1G network module | |
|
C9300-NM-BLANK |
Catalyst 9300 network module blank for airflow when no uplink module is installed |
|
C9300-DNA-E-24 |
Cisco DNA Essentials 24-port term licenses for Catalyst 9300 copper modular-uplink switches |
|
1100W AC Platinum-rated power supply | |
|
Cisco StackWise-480/1T 50cm stacking cable | |
|
Cisco StackWise-480/1T 1m stacking cable | |
|
CAB-SPWR-30CM |
Cisco Catalyst StackPower cable 30cm |
|
CAB-SPWR-150CM |
Cisco Catalyst StackPower cable 150cm |

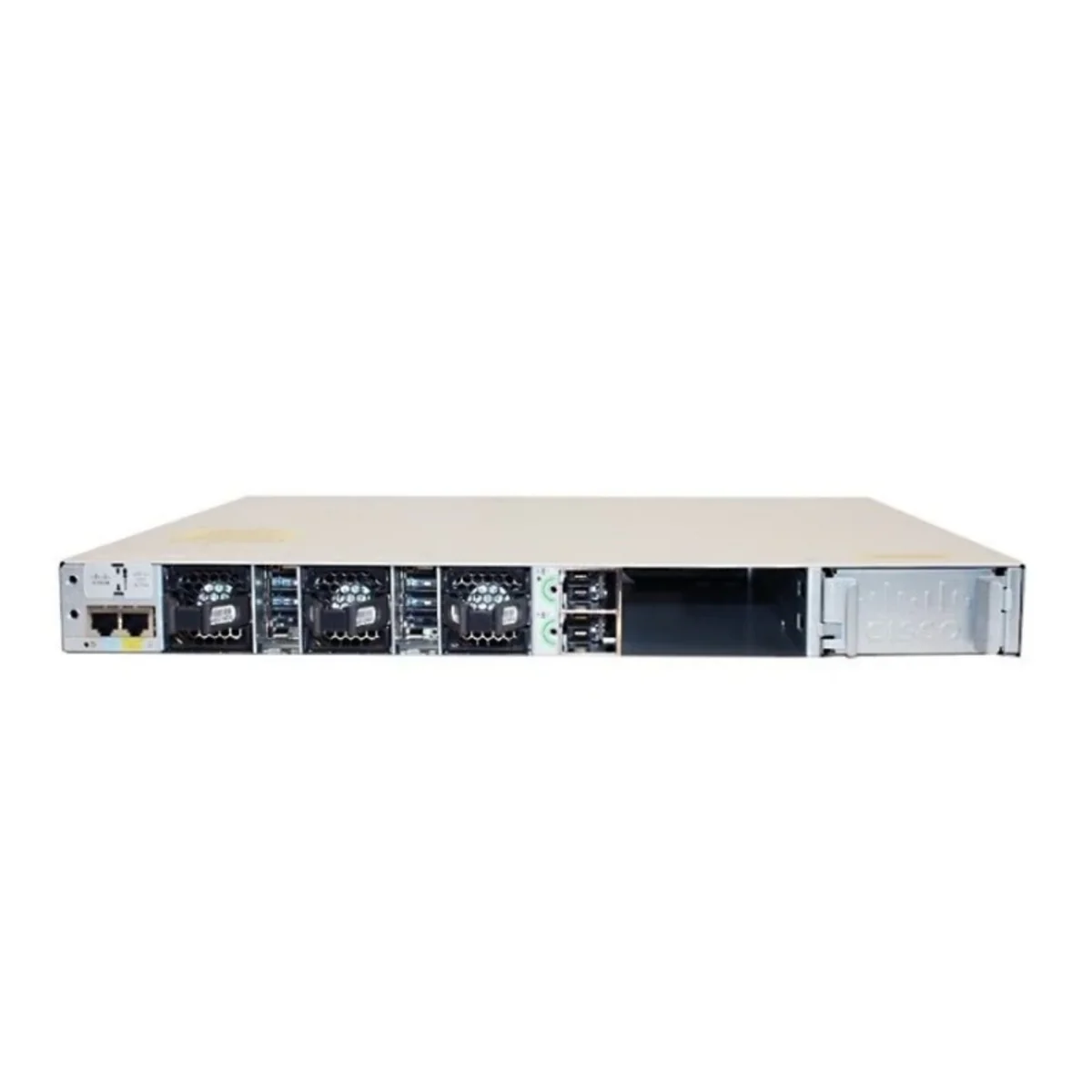

C9300-24UX-E Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300-24UX-E | Product type | Stackable access switch with modular uplinks |
| Network license | Network Essentials | Downlink ports | 24 x 10G/5G/2.5G/1G/100M multigigabit Cisco UPOE copper ports |
| PoE class | Cisco UPOE up to 60W per port | Uplink architecture | Optional hot-swappable C9300 network modules |
| Supported C9300 network modules | C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y | Default power supply | PWR-C1-1100WAC-P |
| Default PoE budget | 560W | PoE with 715W secondary supply | 1275W |
| PoE with 1100W secondary supply | 1440W maximum by port rating | Power supply design | Dual redundant power supplies supported; one supply ships by default |
| Fan modules | 3 field-replaceable fans | Stacking architecture | StackWise-480 |
| Stack bandwidth | 480 Gbps | StackPower | Supported on C9300 modular uplink SKUs |
| Minimum software release | Cisco IOS XE Everest 16.6.1 | Switching capacity | 640 Gbps standalone |
| Switching capacity with stacking | 1,120 Gbps | Forwarding rate | 476.19 Mpps standalone |
| Forwarding rate with stacking | 833.33 Mpps | Packet buffer | 32 MB for Catalyst 9300 24- and 48-port Multigigabit models |
| DRAM | 8 GB | Flash | 16 GB |
| VLAN IDs | 4094 | Jumbo frames | 9198 bytes |
| Dimensions | 1.73 x 17.5 x 20.2 in. (4.4 x 44.5 x 51.3 cm) | Weight | 8.25 kg (18.18 lb) |
| Power supply input | PWR-C1-1100WAC-P supports 115 to 240 VAC autoranging |
