C9300L-48P-4G-E Description
The C9300L-48P-4G-E is a Cisco Catalyst 9300L stackable access switch on the Network Essentials license, built to power phones and access points from Gigabit wiring closets. All 48 10/100/1000 Mbps ports deliver PoE+ from a 505W budget on the default 715W supply, and traffic leaves the 104 Gbps chassis through four fixed 1G SFP uplinks. Network Essentials stops OSPF at 1,000 routes and does not include BGP, VRF or VXLAN, and the uplink speed is set by the chassis because there is no network module slot.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-48P-4G-E |
|
Network license |
Network Essentials |
|
Downlink ports |
48 x 10/100/1000 Mbps PoE+ RJ-45 |
|
Uplinks |
4 x 1G SFP, fixed |
|
Default power supply |
PWR-C1-715WAC-P (715W AC) |
|
Default PoE budget |
505W |
|
PoE budget with 1100W second supply |
1440W |
|
Switching capacity |
104 Gbps (424 Gbps with stacking) |
|
Forwarding rate |
77.38 Mpps (315.48 Mpps with stacking) |
|
Stacking |
StackWise-320 at 320 Gbps, up to 8 members |
|
Minimum software release |
Cisco IOS XE Gibraltar 16.11.1c |
Product Performance
Key Features
The switch can be the first-hop router for its own VLANs. Network Essentials includes RIP, EIGRP Stub and OSPF up to 1,000 routes, together with policy-based routing, VRRP gateway redundancy and PIM Stub multicast.
Each port can hold a device off the network until it passes 802.1X, and links between switches can be encrypted with MACsec-128. Private VLANs, first-hop security and control-plane policing are part of the same license, while model-driven telemetry, sampled NetFlow, SPAN and RSPAN work on either tier.
There is no module slot, so the four SFP ports are the only uplinks and they run at 1G. Forty-eight access ports at line rate can offer 48 Gbps against 4 Gbps of uplink, which is 12:1 when every port is busy.
StackWise-320 joins up to eight Catalyst 9300L or 9300LM switches at 320 Gbps, and every member has to run the same license level. A stack built from this model therefore stays on Network Essentials, and modular-uplink Catalyst 9300 and 9300X switches cannot be members.
Phones and access points stay powered while the switch reloads, through Perpetual PoE. After a power outage, Fast PoE switches port power back on before Cisco IOS XE has finished booting.
Three FAN-T2= modules cool the chassis from front and side to rear, and one can fail without stopping the switch. The second of the two supply bays ships with a blank, which has to stay in place unless a second supply is fitted.
Application Scenarios
In a campus where the distribution pair does all the routing, the switch trunks phone, access point and desktop VLANs upstream over its 1G SFP uplinks and leaves the gateway role to the layer above.
A school with a handful of buildings can route at each closet as an OSPF area member while classroom phones and access points draw PoE+, provided the routing table stays under 1,000 routes.
On clinic and office floors, IP phones, badge readers and shared workstations authenticate through 802.1X before they reach their VLAN, and the powered devices take PoE+ from the same switch.
Product Comparison
|
Parameter |
C9300L-48P-4G-E | |||
|---|---|---|---|---|
|
Total 10/100/1000, Multigigabit copper or SFP fiber |
48 ports PoE+ |
48 ports PoE+ |
48 ports PoE+ |
48 ports data |
|
Power over Ethernet |
PoE+ |
PoE+ |
PoE+ |
Not applicable |
|
Available PoE (default supply) |
505W |
505W |
505W |
Not applicable |
|
Available PoE with 1100W secondary PS |
1440W |
1440W |
1440W |
Not applicable |
|
Uplink configuration |
4x 1G fixed uplinks |
4x 1G fixed uplinks |
4x 10G/1G fixed uplinks |
4x 1G fixed uplinks |
|
Network stack |
Network Essentials |
Network Advantage |
Network Essentials |
Network Essentials |
|
Stacking bandwidth support |
StackWise-320 |
StackWise-320 |
StackWise-320 |
StackWise-320 |
|
Switching capacity |
104 Gbps |
104 Gbps |
176 Gbps |
104 Gbps |
C9300L-48P-4G-E and C9300L-48P-4G-A are the same 48-port PoE+ switch with four fixed 1G SFP uplinks, and only the license separates them: Network Essentials stops OSPF at 1,000 routes and leaves out BGP, IS-IS, VRF, VXLAN and MACsec-256. A closet that needs any of those from the first day should be ordered as C9300L-48P-4G-A. An installed Essentials switch moves up later through C9300L-LIC= with a C9300L-48-E-A-3, -5 or -7 term, which cannot be bought with the switch. Where the access layer hands off at 10G, C9300L-48P-4X-E keeps the 505W PoE+ ports and adds four 10G/1G uplinks with 176 Gbps of switching capacity. C9300L-48T-4G-E fits closets with no powered endpoints, on a 350W supply without PoE.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Port power class |
PoE+ up to 30W on each of the 48 ports |
|
Default PoE budget |
505W from one PWR-C1-715WAC-P |
|
Second supply of 350W |
855W total budget |
|
Second supply of 715W |
1220W total budget |
|
Second supply of 1100W |
1440W, capped by 48 ports at 30W |
|
Endpoints at a full 30W on the default budget |
16 ports, using 480W |
|
PoE at 15.4W on every port |
739W: one PWR-C1-1100WAC-P, or two PWR-C1-715WAC-P |
|
PoE+ at 30W on every port |
1440W: two PWR-C1-1100WAC-P, or one PWR-C1-1100WAC-P plus one PWR-C1-715WAC-P or PWR-C1-715WDC |
|
Average per port with all 48 drawing |
About 10.5W at 505W; 30W at 1440W |
|
Second bay without a supply |
Keeps the factory blank fitted |
|
Endpoint check |
Total the maximum class draw of the planned phones, access points and cameras before picking the supply pair |
Ordering Checklist
- Subscription tier: Order a 48-port Essentials term of 3, 5 or 7 years, such as C9300L-DNA-E-48-5Y for Cisco DNA or C9300L-DNX-E-48-5Y for Cisco Catalyst. New orders need the subscription at the same tier as the Network Essentials license.
- Second power supply: The configurator adds a second PWR-C1-715WAC-P by default, and C9300L-SPS-NONE removes it. With that supply the PoE budget is 1220W; without it, 505W.
- Stack kit: C9300L-STACK-KIT with a 50 cm STACK-T3 cable is included by default, and 1 m or 3 m cables can be selected. Stacks that include Catalyst 9300LM switches need C9300L-STACK-KIT2.
- Power cords: Choose the cord type for the destination country; the configurator defaults to North America and ships two cords with the default configuration.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Spare 1100W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 1440W | |
|
Spare 715W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 1220W | |
|
Spare 350W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 855W | |
|
PWR-C1-715WDC= |
Spare 715W DC power supply |
|
StackWise-320 kit with two stack adapters and a 50 cm STACK-T3 cable | |
|
C9300L-STACK-KIT2 |
StackWise-320 kit with two stack adapters and a 50 cm STACK-T3A cable; used when Catalyst 9300LM switches join the stack |
|
1 m Type 3 stacking cable for the C9300L stack kit | |
|
STACK-T3-3M |
3 m Type 3 stacking cable for the C9300L stack kit |
|
FAN-T2= |
Spare fan module |
|
SSD-120G |
Pluggable USB 3.0 120 GB SSD for the rear SSD port |
|
Pluggable USB 3.0 240 GB SSD for the rear SSD port |

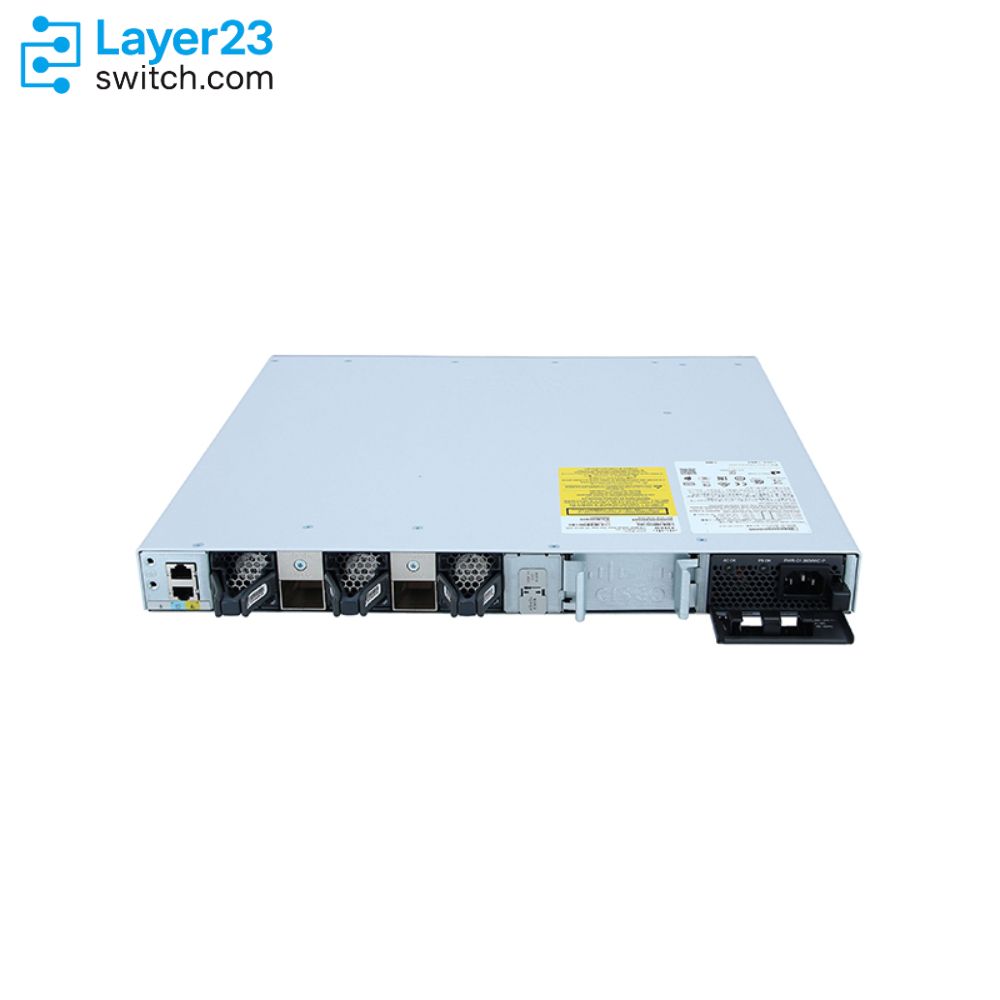

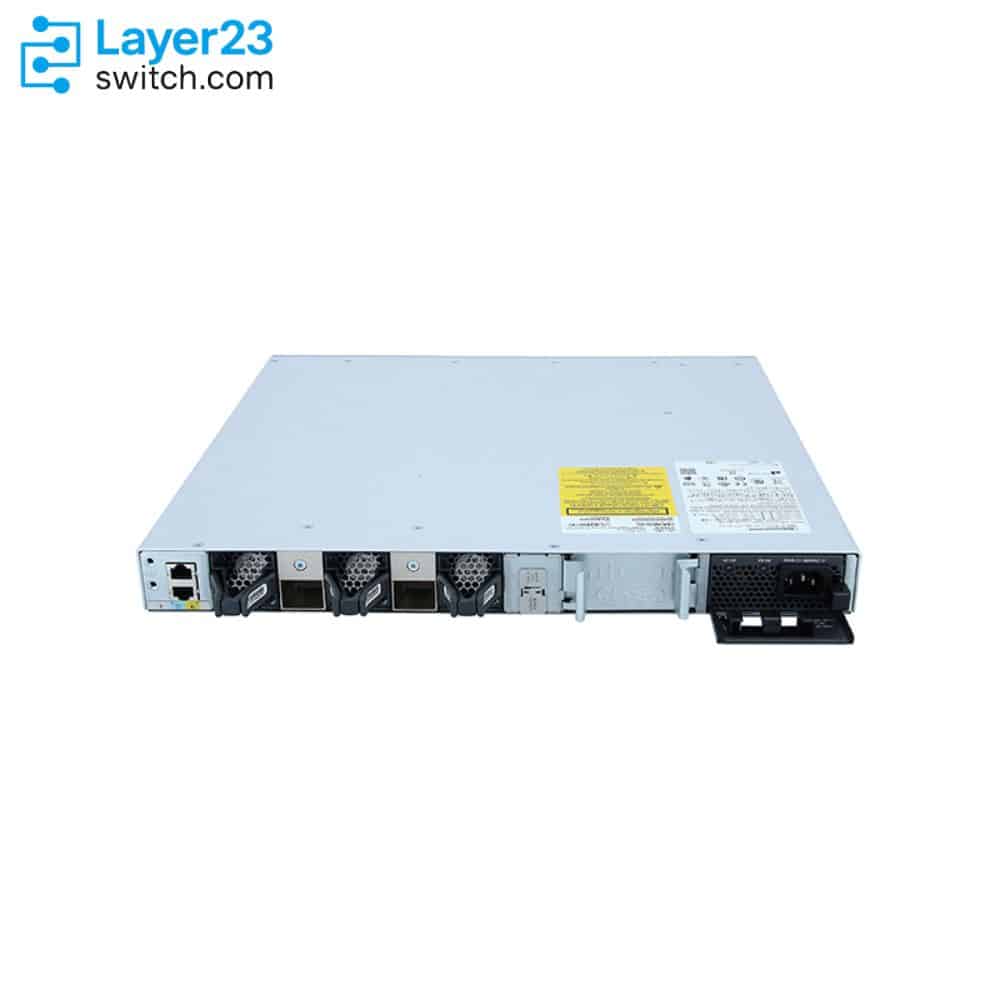

C9300L-48P-4G-E Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-48P-4G-E | Network license | Network Essentials, perpetual and included with the hardware |
| Network Essentials feature set | Layer 2; routed access with RIP, EIGRP Stub and OSPF up to 1,000 routes; PBR; PIM Stub multicast up to 1,000 routes; PVLAN; VRRP; CDP; QoS; FHS; 802.1X; MACsec-128; CoPP; SXP; IP SLA Responder; SSO; model-driven telemetry, sampled NetFlow, SPAN and RSPAN | Downlink ports | 48 x 10/100/1000 Mbps PoE+ RJ-45 |
| PoE | PoE+ up to 30W per port; PoE at 15.4W; Perpetual PoE and Fast PoE | Uplinks | 4 x 1G SFP, fixed; no network module slot |
| Default power supply | PWR-C1-715WAC-P (715W AC, Platinum-rated) | Default PoE budget | 505W |
| PoE budget with 350W second supply | 855W | PoE budget with 715W second supply | 1220W |
| PoE budget with 1100W second supply | 1440W (limited by port number and port rating) | Power supply slots | 2; one supply installed, blank in the second bay |
| All-port PoE supply requirement | 1 x PWR-C1-1100WAC-P or 2 x PWR-C1-715WAC-P | All-port PoE+ supply requirement | 2 x PWR-C1-1100WAC-P, or 1 x PWR-C1-1100WAC-P and 1 x PWR-C1-715WAC-P or PWR-C1-715WDC |
| Power supply input | 100-240 VAC, 50-60 Hz, 10-5 A (PWR-C1-715WAC-P) | Power supply heat dissipation | 2,440 BTU/hr output; 2,723 BTU/hr total input (PWR-C1-715WAC-P) |
| Measured power, full port traffic | 90.01W (715W supply, 115 VAC) | Measured power, weighted average | 85.41W (715W supply, 115 VAC) |
| Measured power, no link | 68.42W (715W supply, 115 VAC) | Measured power, 100% PoE load | 632.46W (715W supply, 115 VAC) |
| Switching capacity | 104 Gbps | Switching capacity with stacking | 424 Gbps |
| Forwarding rate | 77.38 Mpps (64-byte IPv4 packets) | Forwarding rate with stacking | 315.48 Mpps |
| DRAM | 8 GB | Flash | 16 GB |
| Packet buffer | 16 MB | Total number of Flexible NetFlow (FNF) entries | 64,000 flows |
| MAC addresses | 32,000 | IPv4 routes | 32,000 (24,000 direct routes, 8,000 indirect routes) |
| IPv6 routes | 16,000 | Multicast routes | 8,000 |
| QoS entries | 5,120 | ACL entries | 5,120 |
| VLAN IDs | 4094 | PVST instances | 300 |
| STP virtual ports for PVST | 13,000 | STP virtual ports for MST | 13,000 |
| Switched virtual interfaces | 1,000 | Jumbo frames | 9198 bytes |
| Total routed ports per stack | 416 | Stacking | StackWise-320, 320 Gbps, up to 8 members |
| Stack membership | Catalyst 9300L and 9300LM switches at the same license level; no stacking with modular-uplink Catalyst 9300 or 9300X | Stacking hardware | Optional C9300L-STACK-KIT or C9300L-STACK-KIT2: two stack adapters and one cable (0.5 m default; 1 m and 3 m options) |
| StackPower | Not supported on Catalyst 9300L | Management port | 10/100/1000 RJ-45 |
| Console port | RJ-45 console port and USB mini-Type B console port | USB port | USB Type A, USB 3.0, 900 mA at 5 V; 128 MB to 8 GB flash drives |
| SSD storage | Rear USB 3.0 SSD port for a 120 GB or 240 GB SSD module | Copper port cabling | RJ-45, 4-pair Cat 5E UTP (1000BASE-T) |
| SFP connectors | LC fiber connectors on SFP transceivers | Fan modules | 3 hot-swappable FAN-T2= fan modules with N+1 redundancy |
| Airflow | Front-to-rear and side-to-rear | Fan module airflow | 20 cfm |
| Operating temperature | -5°C to +45°C up to 5000 ft (1500 m); -5°C to +40°C up to 10,000 ft (3000 m) | Storage temperature | -40°C to +70°C |
| Operating humidity | 5% to 90%, noncondensing | Operating altitude | Up to 10,000 ft (3000 m) |
| Storage altitude | Up to 15,000 ft (4500 m) | Acoustic noise | LpA 44 dB typical, 47 dB max; LwA 5.5B typical, 5.8B max (C9300L, AC supply, half the PoE+ ports loaded, 25°C) |
| Dimensions, chassis only (H x W x D) | 1.73 x 17.5 x 16.1 in (4.4 x 44.5 x 40.9 cm) | Dimensions with default power supply (H x W x D) | 1.73 x 17.5 x 17.7 in (4.4 x 44.5 x 44.9 cm) |
| Dimensions with 1100W power supply (H x W x D) | 1.73 x 17.5 x 19.2 in (4.4 x 44.5 x 48.8 cm) | Weight | 7.03 kg (15.46 lb) with default power supply |
| MTBF | 314,140 hours | RFID | Passive UHF RFID tag, GS1 EPC Gen 2, ISO 18000-6C, 860-960 MHz |
| Safety certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1 | EMC certifications | 47 CFR Part 15, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, EN 300 386, ICES-003 Class A, VCCI-CISPR 32 Class A, KN32, KN35, CNS13438, QCVN 118:2018/BTTTT |
| Environmental compliance | RoHS 5 | IEEE standards | 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3ae, 802.3af, 802.3at |
| Management standards | SNMPv1, SNMPv2c, SNMPv3, RMON I and II | Minimum software release | Cisco IOS XE Gibraltar 16.11.1c |
Quality Certifications
Customer Reviews
Questions & Answers
-
Can C9300L-48P-4G-E be stacked?
-
What does Network Essentials on C9300L-48P-4G-E include?
-
Does C9300L-48P-4G-E support SD-Access?
-
Which Essentials subscription PID covers a 3-year term for C9300L-48P-4G-E?
-
Which IP services does C9300L-48P-4G-E lack on Network Essentials?
-
What are the input requirements of the PWR-C1-715WAC-P in C9300L-48P-4G-E?
-
What stack bandwidth does C9300L-48P-4G-E report in a stack with C9300LM members?
