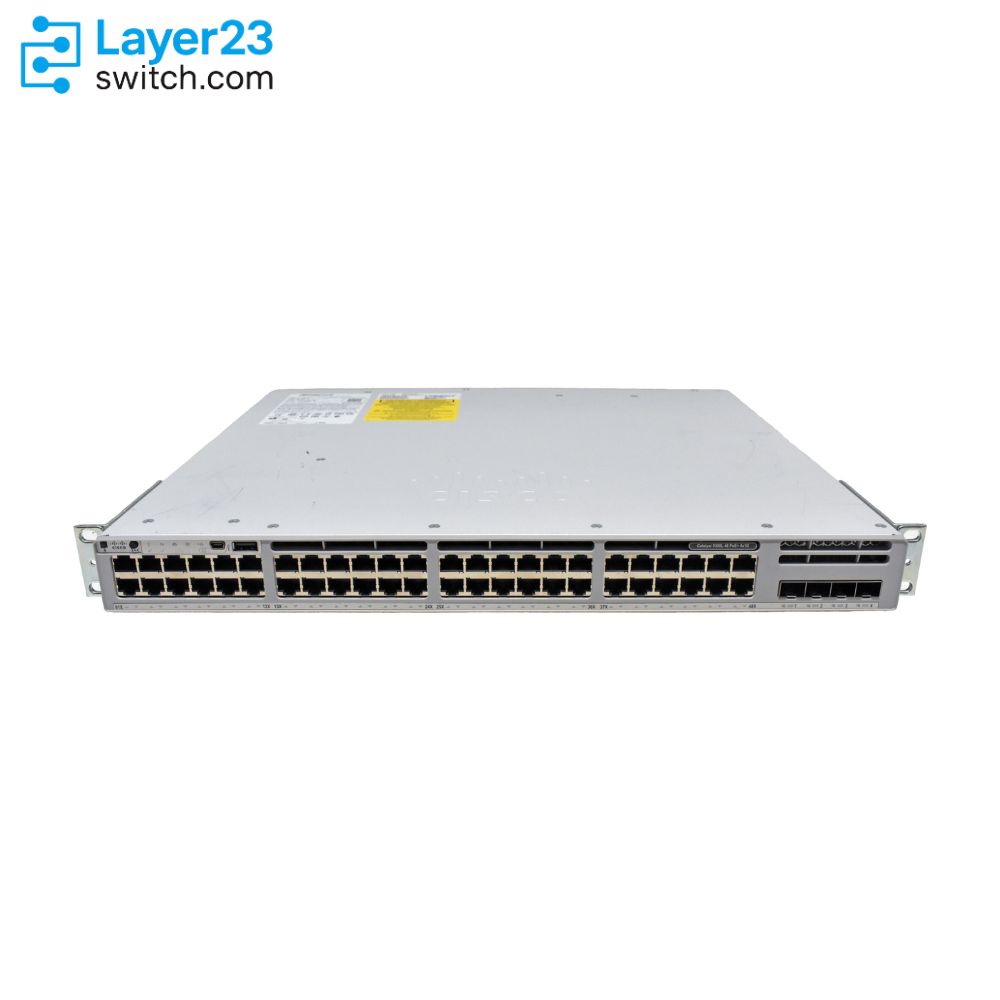

C9300L-48PF-4X-A – 48x1G PoE+ Ports – Fixed 4x10G Uplinks – 890W PoE Budget
4/mo Solds
Cisco C9300L-48PF-4X-A Compatible Accessories, Modules & Spare Parts
Find compatible network modules, power supplies, fans, optics, cables and spare parts for the Cisco C9300L-48PF-4X-A. These accessories support fiber connectivity, hardware replacement, spare inventory and network maintenance projects.
Optics & Cables Compatible with Cisco C9300L-48PF-4X-A
-
SFP-10G-SR-S
10GBASE-SR SFP+ - S-Class - 400m OM4 MMFOriginal price was: $1,870.01.$50.00Current price is: $50.00. Condition: New Factory Sealed -
SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4Original price was: $2,658.11.$71.68Current price is: $71.68. Condition: New Factory Sealed -
SFP-10G-SR-X
10GBASE-SR SFP+ - Extended Temp - 400m OM4 MMFOriginal price was: $3,785.89.$1,020.00Current price is: $1,020.00. Condition: New Factory Sealed -
SFP-10G-LR-S
10GBASE-LR SFP+ - S-Class - 10km SMFOriginal price was: $5,342.92.$128.00Current price is: $128.00. Condition: New Factory Sealed -
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km ReachOriginal price was: $10,672.47.$170.00Current price is: $170.00. Condition: New Factory Sealed -
SFP-10G-LR-X
10GBASE-LR SFP+ - Extended Temp - 10km SMFOriginal price was: $11,206.77.$306.00Current price is: $306.00. Condition: New Factory Sealed -
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOMOriginal price was: $2,658.11.$95.80Current price is: $95.80. Condition: New Factory Sealed -
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m ReachOriginal price was: $1,202.16.$62.50Current price is: $62.50. Condition: New Factory Sealed -
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOMOriginal price was: $1,335.73.$57.00Current price is: $57.00. Condition: New Factory Sealed -
GLC-EX-SMD
1000BASE-EX SFP - 40km SMF - DOMOriginal price was: $5,329.57.$205.00Current price is: $205.00. Condition: New Factory Sealed
Power Supplies & Fans Compatible with Cisco C9300L-48PF-4X-A
-
PWR-C1-1100WAC-P
1100W AC PSU - Catalyst 9300 C1 - Platinum RatedOriginal price was: $2,317.88.$635.40Current price is: $635.40. Condition: New Factory Sealed
Established Global IT Distributor
With over a decade of industry experience, we are a certified Cisco Partner delivering genuine enterprise networking hardware and trusted services to system integrators, ISPs, and enterprises worldwide.
C9300L-48PF-4X-A Description
The C9300L-48PF-4X-A is a Cisco Catalyst 9300L Series fixed-uplink access switch built on the full-PoE+ hardware line, carrying a PWR-C1-1100WAC-P default power supply that Cisco confirms delivers an 890W PoE budget across 48 10/100/1000 Mbps PoE+ copper ports. Four fixed 10G/1G SFP+ uplinks handle the aggregation path to distribution instead of a modular network-module bay, and the switch stacks at 320 Gbps through StackWise-320 using the C9300L-STACK-KIT or C9300L-STACK-KIT2 cabling shared with other fixed-uplink Catalyst 9300L and 9300LM hardware. The -A suffix carries the Network Advantage license tier, which adds VRF, VXLAN, unlimited-route OSPF, NETCONF/RESTCONF automation, and MACsec-256 on top of the Network Essentials baseline available on the same hardware. Cisco positions this PoE profile for wiring closets where a large share of the 48 ports run higher-draw PoE+ endpoints and the standard 505W PoE+ tier on the C9300L-48P-4X line would not leave enough headroom without adding a second supply.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-48PF-4X-A |
|
Port Count |
48x 10/100/1000 Mbps PoE+ copper ports |
|
Fixed Uplinks |
4x 10G/1G SFP+ |
|
Network License |
Network Advantage |
|
Default Power Supply |
PWR-C1-1100WAC-P (1100W AC) |
|
Default PoE Budget |
890W |
|
Expanded PoE Budget |
Up to 1440W with a supported second 1100W AC supply, port-count limited |
|
Switching Capacity |
176 Gbps standalone / 496 Gbps stacked |
|
Forwarding Rate |
130.95 Mpps standalone / 369.05 Mpps stacked |
|
Stacking |
StackWise-320 via C9300L-STACK-KIT / C9300L-STACK-KIT2, up to 8 units |
|
Minimum Software Release |
Cisco IOS XE Release 16.11.1b |
|
Fan Modules |
3x field-replaceable, N+1 redundant |
Product Performance
Key Features
The default PWR-C1-1100WAC-P supply delivers an 890W PoE budget out of the box, letting a 48-port closet run a heavier mix of PoE+ cameras, Wi-Fi 6/6E access points, and phones without needing a second power supply installed at initial deployment.
Four fixed 10G/1G SFP+ uplinks give the switch a defined aggregation path to distribution without a modular network-module bay, which removes an uplink-module SKU from the bill of materials and from field service planning.
StackWise-320 joins up to 8 units into one management and forwarding domain, but only with other Catalyst 9300L or 9300LM fixed-uplink switches on a matching license tier, not with modular-uplink Catalyst 9300 or 9300X hardware.
Network Advantage on this hardware adds VRF, VXLAN, unlimited-route OSPF, NETCONF/RESTCONF/YANG automation, and MACsec-256 over the Network Essentials baseline, which matters for access closets that plan segmentation or programmatic configuration beyond basic Layer 2/routed access.
Two internal power supply bays let the 890W default budget grow to 1440W by adding a second 1100W supply later, so a closet can size PoE capacity to its current endpoint mix without committing to a second supply on day one.
Three field-replaceable fan modules ship standard with N+1 redundancy, so a single fan failure does not require immediately powering down this switch to stay within its rated thermal envelope, independent of which power-supply configuration is installed.
Application Scenarios
Deployed as the access layer in wiring closets where most of the 48 ports carry PoE+ endpoints such as pan-tilt-zoom cameras, Wi-Fi 6/6E access points, or multi-line phones that draw closer to the PoE+ ceiling per port.
Installed where the access layer needs VRF-based segmentation, unlimited-route OSPF, or NETCONF/RESTCONF-driven automation reaching down to the wiring closet, relying on the Network Advantage entitlement built into this PID.
Used as part of a StackWise-320 stack where the design standardizes on the higher 890W PoE tier across member switches instead of mixing in lower-budget fixed-uplink models within the same closet.
Product Comparison
|
Parameter |
C9300L-48PF-4X-A | |||
|---|---|---|---|---|
|
Port Count |
48x PoE+ copper |
48x PoE+ copper |
12x mGig + 36x 1G UPOE |
48x PoE+ copper |
|
Fixed Uplinks |
4x 10G/1G SFP+ |
4x 10G/1G SFP+ |
4x 10G/1G SFP+ |
4x 10G/1G SFP+ |
|
Network License |
Network Advantage |
Network Advantage |
Network Essentials |
Network Advantage (hardware) |
|
Management Mode |
Cisco Catalyst/DNA subscription, IOS XE CLI |
Cisco Catalyst/DNA subscription, IOS XE CLI |
Cisco Catalyst/DNA subscription, IOS XE CLI |
Meraki dashboard cloud management |
|
Default Power Supply |
PWR-C1-1100WAC-P (1100W) |
PWR-C1-715WAC-P (715W) |
PWR-C1-1100WAC-P (1100W) |
PWR-C1-1100WAC-P (1100W) |
|
Default PoE Budget |
890W |
505W |
675W |
890W |
|
Expanded PoE Budget |
Up to 1440W with second supply |
Up to 1440W with second supply |
Up to 1775W with second supply |
Up to 1440W with second supply |
|
Switching Capacity |
176 Gbps |
176 Gbps |
392 Gbps |
176 Gbps |
|
Stacking |
StackWise-320 |
StackWise-320 |
StackWise-320 |
StackWise-320 |
- The C9300L-48PF-4X-A and C9300L-48P-4X-A share identical port count, uplink layout, license tier, and switching capacity; the only difference is the power supply and PoE ceiling, since the current SKU’s default PWR-C1-1100WAC-P gives an 890W budget against the 505W available from the C9300L-48P-4X-A’s default 715W supply, which matters once a closet plans PoE+ endpoints across most of its 48 ports rather than a handful of low-draw devices.
- Moving to C9300L-48UXG-4X-E trades PoE budget and license tier for port mix and switching capacity: its 12 Multigigabit plus 36 Gigabit UPOE layout and 392 Gbps switching capacity outscale this SKU, but its default 675W budget sits below the 890W here and it ships on Network Essentials, so it fits a Multigigabit-driven closet more than a straight 48-port PoE+ Advantage deployment.
- C9300L-48PF-4X-M keeps identical hardware and the same 890W default PoE budget as this SKU; the difference is entirely the management plane, since the -M PID moves configuration and monitoring into the Meraki dashboard under a separate Meraki term license instead of the Cisco Catalyst or Cisco DNA subscription and IOS XE CLI management this -A PID uses.
- For deciding which SKU to order in this group, start with management mode (Meraki dashboard versus Cisco Catalyst/DNA CLI management, which separates C9300L-48PF-4X-M from the other three), then size the PoE draw against the 505W/675W/890W tiers, and only then confirm whether Network Advantage features are required over Network Essentials; uplink layout and stacking architecture are identical across the whole group and do not need separate comparison.
Selection Guide
1. Downgrading When The 505W Tier Still Covers The Closet
This SKU’s 890W default PoE budget comes from the PWR-C1-1100WAC-P supply; a closet where PoE+ endpoint load stays well under 505W per switch can move to C9300L-48P-4X-A instead, keeping the identical Network Advantage tier, port count, and uplink layout while ordering the lower-cost 715W supply tier.
2. Network Essentials Covers Access Without Segmentation
This PID carries Network Advantage, adding VRF, VXLAN, unlimited-route OSPF, and MACsec-256 over Network Essentials on the same hardware; an access closet that will not use segmentation, advanced routing, or NETCONF/RESTCONF automation can drop to the Essentials-tier C9300L-48PF-4X-E and keep the same 890W PoE profile and port layout.
3. Multigigabit Endpoint Mix Points To The C9300L-48UXG-4X Line
If the closet’s endpoint mix includes Multigigabit-capable access points or uplinks needing more than Gigabit per port, C9300L-48UXG-4X-E carries 12 Multigigabit UPOE ports that this all-Gigabit PoE+ chassis does not offer, even though its default PoE budget sits lower at 675W than the 890W available here.
4. License Upgrade Path Through A Separate PID
Cisco’s DNA upgrade license (C9300L-LIC=) moves this hardware from DNA Essentials to DNA Advantage, with Network Essentials synchronized to Network Advantage as part of that upgrade; a closet ordered on this Advantage-tier PID has no equivalent downgrade PID and would need to reorder as C9300L-48PF-4X-E to move to Network Essentials pricing.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
PoE access profile |
48x 10/100/1000 Mbps PoE+ ports, full-PoE+ C9300L-48PF-4X hardware line |
|
Default PoE budget |
890W with the default PWR-C1-1100WAC-P power supply |
|
Expanded PoE budget |
Up to 1440W with a supported second 1100W AC power supply, bounded by port count and per-port power rating |
|
Power supply bays |
Two internal bays; ships with one supply installed and a blank module in the unused bay |
|
PoE standard supported |
PoE+ (IEEE 802.3at) |
|
Confirm before order |
Total planned PoE device count and per-device power class against the 890W default budget, and whether a second supply is needed to reach 1440W |
Ordering Checklist
|
Check Item |
What to Confirm |
Why It Matters |
|---|---|---|
|
Second power supply slot |
Confirm whether a second PWR-C1-1100WAC-P is needed at time of order to reach the 1440W PoE ceiling, or whether a blank module is sufficient. |
The chassis ships with one supply installed; an empty second bay without a blank module is not a supported operating configuration. |
|
Software subscription pairing |
Confirm a Cisco Catalyst or Cisco DNA Advantage term subscription (3/5/7-year) is ordered alongside this Network Advantage hardware PID. |
The subscription is a mandatory ordering component separate from the built-in Network Advantage hardware license. |
|
Smart Account binding |
Confirm the target Smart Account before the order is placed. |
Cisco requires a Smart Account for Catalyst 9300 Series orders, and a mismatched account can stall license activation. |
|
Stacking kit selection |
Confirm whether C9300L-STACK-KIT or C9300L-STACK-KIT2 and the matching cable length are included if this unit joins a stack. |
StackWise-320 on fixed-uplink hardware requires the stack kit and cable to be ordered separately from the switch. |
|
Minimum software release |
Confirm the target image is Cisco IOS XE Release 16.11.1b or later. |
Catalyst 9300L fixed-uplink models have a higher minimum release than the general Catalyst 9300 Series baseline. |
|
Hardware suffix match |
Confirm the -A suffix is intended rather than -E or -M. |
All three suffixes share identical hardware; an order mismatch on license tier or management mode only surfaces at license activation. |
Optional Add-ons
|
Model |
Description |
|---|---|
|
StackWise-320 stack kit (two stack adapters plus one stack cable, STACK-T3-50CM/1M/3M options) for stacking the C9300L-48PF-4X with other C9300L units. | |
|
C9300L-STACK-KIT2 |
Alternate StackWise-320 stack kit (STACK-T3A-50CM/1M/3M cable options) for stacking the C9300L-48PF-4X with other C9300L or C9300LM units. |
|
Second AC power supply, matching the default supply, for 1+1 AC redundancy in the C9300L-48PF-4X power bay. | |
|
FAN-T2= |
Field-replaceable fan module spare for the standard three-fan N+1 redundant fan tray. |
C9300L-48PF-4X-A Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-48PF-4X-A | Network License | Network Advantage |
| Port Count | 48x 10/100/1000 Mbps PoE+ copper | Fixed Uplinks | 4x 10G/1G SFP+ |
| Default Power Supply | PWR-C1-1100WAC-P, 1100W, 3754-3793 BTU/hr output | Power Supply Bays | Two internal bays; one supply installed by default with a blank module in the unused bay |
| Default PoE Budget | 890W on default 1100W AC supply | Expanded PoE Budget | Up to 1440W with added second 1100W supply, port/rating limited |
| Power Input | 115-240VAC 47-63Hz | Peak Power Consumption | 1079.44W at 100% PoE load, 115VAC |
| Switching Capacity | 176 Gbps standalone / 496 Gbps stacked | Forwarding Rate | 130.95 Mpps standalone / 369.05 Mpps stacked |
| MAC Address Table | 32,000 entries | IPv4 Routes | 32,000 (24,000 direct + 8,000 indirect) |
| IPv6 Routes | 16,000 entries | Multicast Routes | 8,000 entries |
| QoS Entries | 5,120 | ACL Entries | 5,120 |
| DRAM / Flash | 8 GB / 16 GB | VLAN IDs | 4094 |
| Jumbo Frames | 9198 bytes | Routed Ports Per Stack | 416 |
| Stacking | StackWise-320, 320 Gbps, up to 8 units via C9300L-STACK-KIT/KIT2 | Fan Modules | 3x field-replaceable, N+1 redundant, FAN-T2= |
| Minimum Software Release | Cisco IOS XE Release 16.11.1b | MTBF | 298,880 hours |
| Dimensions | 1.73 x 17.5 x 19.2 in (4.4 x 44.5 x 48.8 cm) | Weight | 15.48 lb (7.03 kg) |
| Management Ports | 10/100/1000 Ethernet mgmt, RJ-45 console, USB mini-Type B console | USB Storage | USB Type A (128 MB-8 GB) and Type C (128 MB-256 GB), USB 3.0 |
| Connectors | RJ-45 (1000BASE-T), LC (SFP/SFP+) | Operating Temperature | -5C to 45C |
| Storage Temperature | -40C to 70C | Humidity | 5%-90% non-condensing |
| Operating Altitude | Up to 10,000 ft | Acoustic Noise | 44 dB LpA typical / 47 dB LpA max at half PoE+ port load |
| Safety Certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN/IEC 60950-1, AS/NZS 60950.1 | EMC Certifications | FCC Part 15, EN 55032 Class A, CISPR 32 Class A, plus QCVN 118:2018/BTTTT and VCCI-CISPR 32 Class A |
| Environmental Compliance | RoHS 5 | Warranty | Cisco Enhanced Limited Lifetime Hardware Warranty |
Get More Information
Need pricing, stock, or shipping details for the C9300L-48PF-4X-A ? Layer23-Switch can help you check current availability, lead time, and delivery options for this. Send us the part number, quantity, and destination country via live chat or email sales@layer23-switch.com for a fast quotation.
Quality Certifications
Customer Reviews
Questions & Answers
-
What is Cisco C9300L-48PF-4X-A designed for?
-
How is C9300L-48PF-4X-A different from C9300L-48PF-4X-E?
-
How is C9300L-48PF-4X-A different from C9300L-48P-4X-A?
-
Can C9300L-48PF-4X-A power many cameras or phones?
-
Does C9300L-48PF-4X-A have fixed or modular uplinks?
-
Can C9300L-48PF-4X-A be stacked?
-
When should I move from C9300L-48PF-4X-A to C9300L-48UXG-4X-A?
-
When is C9300L-48PF-4X-A more than the site needs?
