Name:

C9300L-48PF-4G-A

Detail:

48-port Gigabit PoE+ switch with 4×1 Gbps SFP uplinks, 890 W PoE budget, Network Advantage license, and StackWise-320 stacking.

Brand:

 Cisco

Questions

0/mo Solds

Condition:

New Factory Sealed

Availability:

In Stock at Global Warehouses.

Warranty:

3-Year Warranty

Related:

Price:

Original price was: $11,030.00.Current price is: $3,150.00.

Quantity:

Shipping:

Express Shipping 2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

48-port Gigabit PoE+ switch with 4×1 Gbps SFP uplinks, 890 W PoE budget, Network Advantage license, and StackWise-320 stacking.

C9300L-48PF-4G-A Description

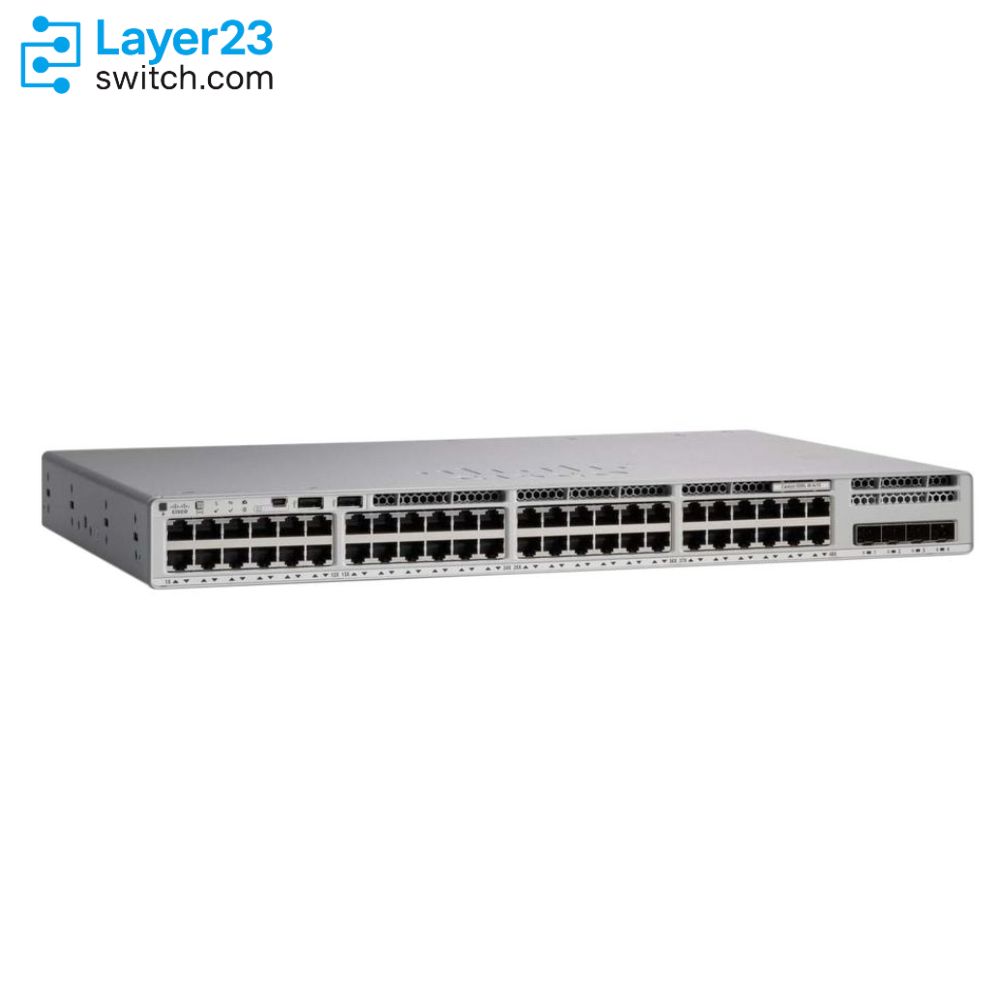

  The Cisco Catalyst 9300L-48PF-4G-A is engineered for enterprise access deployments demanding the highest PoE capacity alongside advanced Layer 3 features. It provides 48 × 1 Gbps RJ-45 PoE+ ports, each capable of delivering up to 30 W, powered by a default 1 100 W AC power supply that yields 890 W of available PoE by design (expandable to 1 240 W with a secondary 1 100 W AC PSU). Four fixed 1 Gbps SFP uplinks connect to distribution or core switches.Running Cisco IOS XE with the Network Advantage license, the switch supports full Layer 3 routing protocols (OSPF, EIGRP, BGP), VRF-Lite, MPLS, and PIM-SM multicast, along with hardware ACLs and QoS. StackWise-320 technology enables up to 320 Gbps of stacking bandwidth across eight switches, simplifying management by presenting the entire stack as a single logical device. Security features include MACsec-128 encryption, 802.1X authentication, TrustSec, DHCP snooping, and Dynamic ARP Inspection. Management can be performed via on-box CLI/WebUI or centralized through Cisco DNA Center. This model is ideal for PoE-intensive environments—such as IP-camera infrastructures, wireless AP aggregations, and digital signage deployments—where advanced routing and high PoE capacity are critical.

Product Performance

Ethernet Ports
Switching Capacity
Forwarding Rate

Model Meaning: Cisco C9300L-48PF-4G-A Switch

Field

Description

C9300L

Cisco Catalyst 9300 fixed-uplink (non-modular) series

48PF

48 × 1 Gbps RJ-45 PoE+ ports (full PoE budget)

4G

4 × 1 Gbps SFP fixed uplink ports

A

Network Advantage license (advanced Layer 3 feature set)

Key Features

Full PoE+ Power

48 × 30 W PoE+ ports with 890 W default budget (expandable to 1 240 W/1 440 W), accommodating high-power devices.

StackWise-320

Up to 320 Gbps stacking bandwidth across eight switches for simplified management as one logical unit.

Advanced Layer 3 Routing

Network Advantage license enables OSPF, EIGRP, BGP, VRF-Lite, MPLS, and PIM-SM multicast.

Cisco IOS XE Programmability

Supports model-driven APIs (RESTCONF, NETCONF, gNMI), on-box Python, and app hosting for automation.

Comprehensive Security

MACsec-128, 802.1X, TrustSec, DHCP Snooping, and Dynamic ARP Inspection for robust access control.

High Availability

Hot-swappable 1 100 W PSU, field-replaceable fans, and StackWise redundancy ensure continuous operation.

Applications Scenarios

High-Density IP Camera Deployments

Provide reliable 30 W/port PoE+ to 48 IP cameras, aggregating video traffic over four 1 Gbps SFP uplinks to NVRs or core switches.

Wireless LAN Aggregation

Power and uplink 48 Wi-Fi 6 access points, leveraging 890 W PoE budget and advanced Layer 3 features for seamless campus roaming.

Digital Signage & IoT Edge

Support PoE+-powered digital signage, point-of-sale terminals, and IoT sensors, with hardware ACLs and QoS to prioritize mission-critical traffic.

Model Comparison

Feature

C9300L-48PF-4G-A

C9300L-48P-4G-A

C9300L-48PF-4X-A

License

Network Advantage

Network Advantage

Network Advantage

Switching Capacity

104 Gbps (424 Gbps stack)

104 Gbps (424 Gbps stack)

176 Gbps (496 Gbps stack)

Forwarding Rate

77.38 Mpps (315.48 Mpps stk)

77.38 Mpps (315.48 Mpps stk)

130.95 Mpps (369.05 Mpps stk)

Downlink Ports

48 × 1 Gbps PoE+ (30 W each)

48 × 1 Gbps PoE+ (30 W each)

48 × 1 Gbps PoE+ (30 W each)

PoE Budget (Default)

890 W

505 W

890 W

Uplink Ports

4 × 1 Gbps SFP

4 × 1 Gbps SFP

4 × 10 Gbps SFP+

Stacking Bandwidth

320 Gbps

320 Gbps

320 Gbps

Primary PSU

1 100 W AC

715 W AC

1 100 W AC

Accessories

Accessory Category

Part Number

Description

Power Supply (AC)

PWR-C1-1100WAC-P

1 100 W AC PSU (default; supports 890 W PoE).

PWR-C1-715WAC-P

715 W AC PSU (upgrade; supports 505 W PoE).

PWR-C1-350WAC-P

350 W AC PSU (no PoE support).

Stacking Kit

C9300L-STACK-KIT

StackWise-320 kit: two adapters + 0.5 m stacking cable.

STACK-T3-50CM/1M/3M

Optional StackWise-320 cables (0.5 m, 1 m, 3 m).

Network Modules

— (fixed-uplink SKU)

Not applicable; uplinks are fixed 1 Gbps SFP.

Transceivers (SFP)

GLC-SX-SMD / GLC-LX-SMD

1 Gbps SFP SX/LX optics for uplinks.

C9300L-48PF-4G-A Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1

Ground connectors

7

StackPower connectors

2

USB3.0–SSD port

8

AC OK (input) status LED

3

BEACON LED

9

PS OK (output) status LED

4

CONSOLE (RJ-45 console port)

10

StackWise-480 port connectors

5

MGMT (RJ-45 10/100/1000 management port)

11

Power supply modules

6

Fan modules

–

–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1

Cisco Catalyst 9300 Series switch with optional network module1 (power supply and fan modules not shown)

9

Eight number-8 Phillips flat-head screws

2

AC power cord

10

Cable guide

3

Product documentation and compliance document

11

M4.0 x 20mm Phillips pan-head screw

4

Four rubber mounting feet

12

(Optional) RJ-45 console cable

5

Ground lug screw and ring terminal

13

(Optional) USB console cable

6

Two 19-inch mounting brackets

14

(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)

7

Four number-12 pan-head screws

15

(Optional) StackPower cable (0.3-meter or 1.5-meter)

8

Four number-10 pan-head screws

16

(Optional) StackWise-320 cable

cisco-catalyst-9300-switch-shipping-box

Get More Information

Discover unbeatable prices and fast shipping for the C9300L-48PF-4G-A Access the detailed C9300L-48PF-4G-A datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via Live chat or email us at [email protected]

Quality Certifications

C9300L-48PF-4G-A Specifications

Parameter Specification
Model C9300L-48PF-4G-A
Chassis 1RU fixed form factor
CPU Quad-core x86, 2.4 GHz
DRAM 8 GB
Flash Memory 16 GB
Switching Capacity 104 Gbps (standalone); 424 Gbps with StackWise-320
Forwarding Rate 77.38 Mpps (standalone); 315.48 Mpps (stacked)
MAC Addresses 32 000
IPv4 Routes 32 000 (24 000 direct + 8 000 indirect)
IPv6 Routes 16 000
Multicast Scale 8 000 entries
ACL Scale 5 120 entries
QoS Scale 5 120 entries
Packet Buffer 16 MB (Gigabit Ethernet models)
VLAN IDs 4 094
SVIs 1 000
Downlink Ports 48 × 1 Gbps RJ-45 PoE+ (up to 30 W/port)
Uplink Ports 4 × 1 Gbps SFP (fixed)
PoE Budget (Default) 890 W (with PWR-C1-1100WAC-P)
PoE Upgrade Budget 1 240 W (with secondary 1 100 W PSU); 1 440 W*
Stacking Bandwidth 320 Gbps (StackWise-320)
StackPower (Aggregate) Not supported (Power pooling not available on C9300L SKUs)
Primary Power Supply PWR-C1-1100WAC-P (default)
Fans 3 × field-replaceable (N+1 redundant)
Operating Temperature –5 °C to +45 °C
Dimensions (H × W × D) 4.4 × 44.5 × 40.9 cm (chassis only); 44.9 cm w/ PSU; 48.8 cm max
Weight (w/ PSU) 15.48 lb (7.03 kg)
MTBF 303 660 hrs
Software Cisco IOS XE 16.11.1b or later (Network Advantage)
Security MACsec-128, 802.1X, TrustSec, DHCP Snooping, Dynamic ARP Inspection
Stacking Bandwidth 320 Gbps (StackWise-320)
Management CLI, WebUI, Cisco DNA Center
IPv6 Support Wire-rate hardware forwarding (16 000 routes)
Energy Efficiency IEEE 802.3az EEE; per-port power limits
FNF Scale 64 000 flows (48-port Gigabit)
Jumbo Frames 9 198 bytes
PVST Instances 300
* PoE power limited by port count and port rating;

Customer Reviews

Write A Review
0.0
(0 reviews)
5 Stars
0
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Questions & Answers

  • How does C9300L-48PF-4G-A secure network access?

    It supports 802.1X, MACsec 256‑bit encryption, TrustSec, and policy‑based segmentation to enforce identity‑driven access control and data privacy.

  • What SD‑Access features does C9300L-48PF-4G-A enable?

    Integrated hardware support for VXLAN, LISP, and TrustSec lets the C9300L-48PF-4G-A function as an SD‑Access fabric edge or border node.

  • Does the C9300L-48PF-4G-A support redundant supervisors?

    No. Catalyst 9300 switches employ a single CPU architecture; resiliency is achieved through StackWise and dual power supplies.

  • Which uplink modules are compatible with C9300L-48PF-4G-A?

    The C9300L-48PF-4G-A uses a modular network module slot supporting 1G/10G options. Cisco network modules such as C9300-NM-2Y, C9300-NM-4G, or C9300X-NM-2C can be selected based on required bandwidth.

  • How does C9300L-48PF-4G-A perform in high‑density Wi‑Fi 6 deployments?

    Combined 10/25 Gbps uplinks, mGig access ports on certain variants, and advanced QoS make the C9300L-48PF-4G-A ideal for aggregating Wi‑Fi 6/6E access‑point traffic.

  • Can I use the C9300L-48PF-4G-A in a distribution‑layer role?

    While primarily an access switch, the C9300L-48PF-4G-A's high stacking bandwidth and optional 10/25G uplinks allow it to serve small campus distribution layers where moderate aggregation throughput is sufficient.

  • How much PoE power budget does C9300L-48PF-4G-A provide?

    The available power budget depends on installed supplies; with dual 715 W supplies the C9300L-48PF-4G-A can deliver up to 437 W PoE+ or 384 W UPOE, enough for most access‑point and IP‑phone deployments.

  • Can C9300L-48PF-4G-A terminate network‑level encryption like MACsec?

    Yes. Line‑rate 256‑bit MACsec encryption is available on all downlink and uplink ports of the C9300L-48PF-4G-A with the appropriate license.

  • What is the warranty coverage for C9300L-48PF-4G-A?

    Cisco provides the C9300L-48PF-4G-A with a Limited Lifetime Hardware Warranty, next‑business‑day hardware replacement, and 90‑day Cisco TAC support.

  • Does the C9300L-48PF-4G-A require a DNA subscription to operate?

    No. The switch operates with its perpetual Network Advantage or Essentials image, but adding a Cisco DNA subscription unlocks advanced automation, assurance, and analytics features.

  • Can I stack the C9300L-48PF-4G-A with other Catalyst 9300 models?

    Yes. The C9300L-48PF-4G-A supports Cisco StackWise technology, letting you combine up to eight Catalyst 9300 family switches into a single logical unit for higher throughput and simplified management.

  • Does C9300L-48PF-4G-A include field‑replaceable stacking cables?

    Stacking cables are ordered separately to match your desired stack topology and distance. Choose 50 cm, 1 m, or 3 m StackWise cables for the C9300L-48PF-4G-A.

  • How do I license additional features on C9300L-48PF-4G-A?

    Use Cisco Smart Licensing to activate DNA Advantage or Premier subscriptions; the C9300L-48PF-4G-A registers with Cisco Smart Account over the internet or through an on‑premises satellite.

  • What is the typical boot time for C9300L-48PF-4G-A?

    From cold start to forwarding state, the C9300L-48PF-4G-A takes roughly 2 ½ minutes, depending on installed modules and PoE negotiation.
