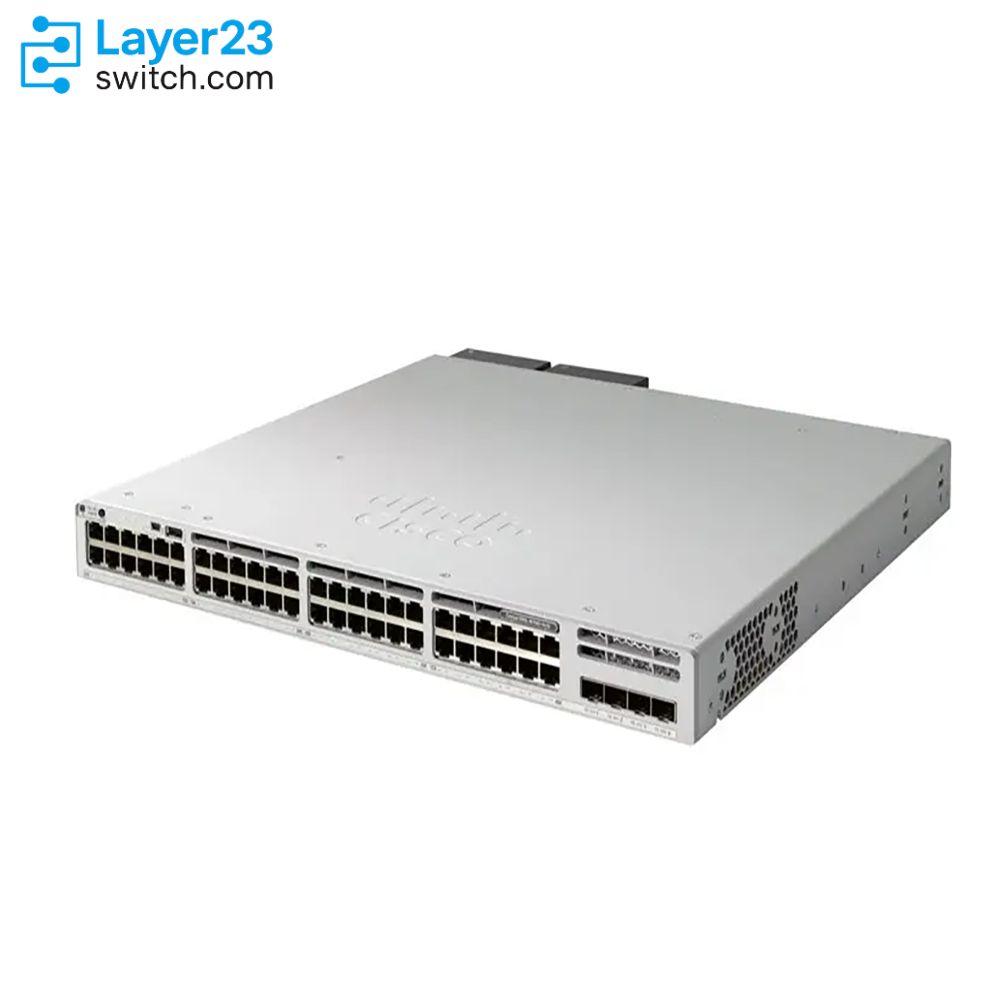

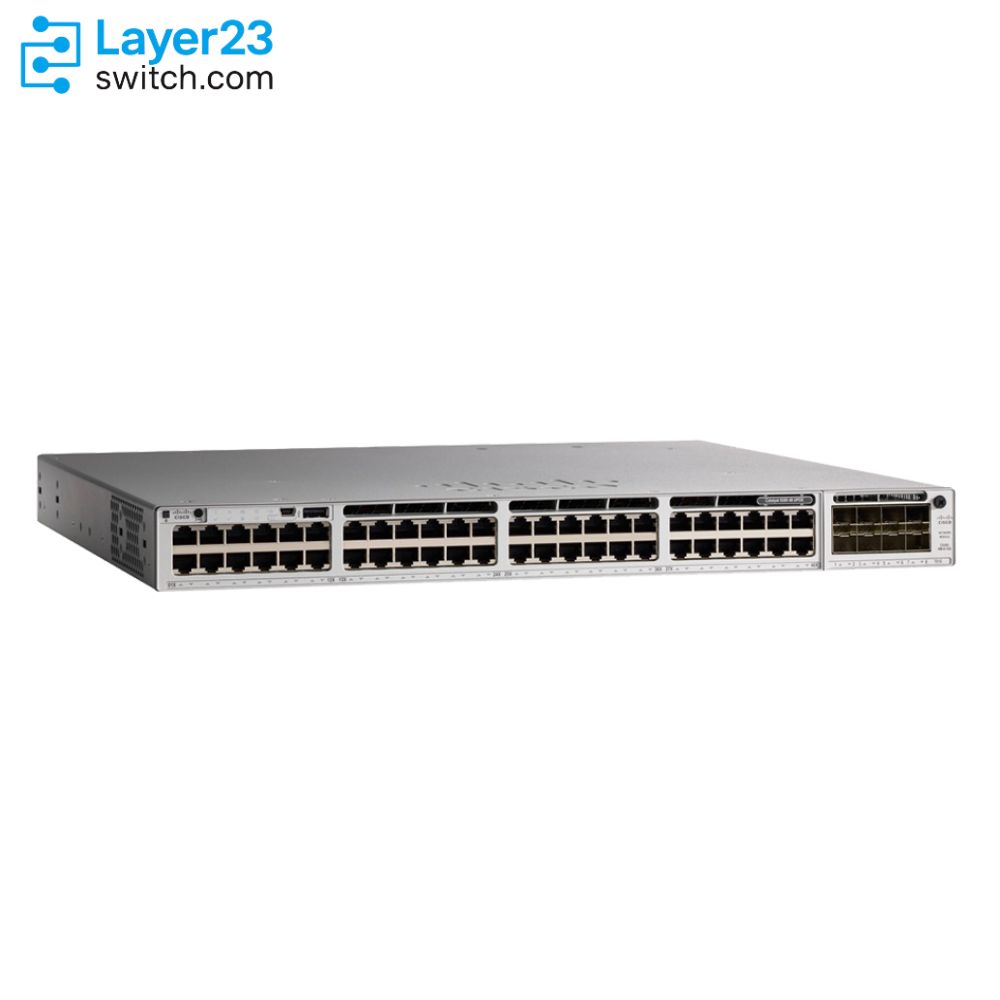

C9300L-48P-4G-A Description
The C9300L-48P-4G-A is a Cisco Catalyst 9300L fixed-uplink access switch with Network Advantage, built for wiring closets that power phones, access points and cameras. The switch has 48 10/100/1000 Mbps PoE+ ports sharing a 505W budget on the default 715W supply, four fixed 1G SFP uplinks and 104 Gbps of switching capacity. The uplinks stay at 1G because the chassis has no network module slot, and StackWise-320 stacking needs an optional stack kit of two adapters and a cable.
Quick Specs
|
Parameter |
Specification |
|---|---|
|
Product ID |
C9300L-48P-4G-A |
|
Network license |
Network Advantage |
|
Downlink ports |
48 x 10/100/1000 Mbps PoE+ RJ-45 |
|
Uplinks |
4 x 1G SFP, fixed |
|
Default power supply |
PWR-C1-715WAC-P (715W AC) |
|
Default PoE budget |
505W |
|
PoE budget with 1100W second supply |
1440W |
|
Switching capacity |
104 Gbps (424 Gbps with stacking) |
|
Forwarding rate |
77.38 Mpps (315.48 Mpps with stacking) |
|
Stacking |
StackWise-320 at 320 Gbps, up to 8 members |
|
Minimum software release |
Cisco IOS XE Gibraltar 16.11.1c |
Product Performance
Key Features
Network Advantage lifts the 1,000-route OSPF ceiling of Network Essentials and adds BGP, IS-IS, HSRP and full EIGRP. VRF, VXLAN, LISP and Cisco TrustSec with SGT come with it, and links can run MACsec-256 where Essentials stops at MACsec-128.
The four uplink ports take 1G SFP optics and are part of the chassis, so their speed cannot be raised later with a module. With all 48 access ports at line rate, 48 Gbps of traffic meets 4 Gbps of uplink, a 12:1 ratio.
Up to eight Catalyst 9300L or 9300LM switches join at 320 Gbps, and this model counts 424 Gbps of switching capacity when stacked. Every member needs a stack kit and the same license level; modular-uplink Catalyst 9300 and 9300X switches cannot join.
Perpetual PoE keeps powered devices running while the switch reloads, which matters for PoE lighting and other IoT endpoints. Fast PoE restores power to endpoints as soon as the switch gets power back, before the operating system finishes loading.
The matching Cisco DNA or Cisco Catalyst Advantage subscription is what enables SD-Access fabric roles, AVC with NBAR2 and application hosting. Each 3-, 5- or 7-year Advantage term also carries a ThousandEyes synthetics license and a Cisco Spaces Extend license.
Two internal bays hold one supply and a blank from the factory, and the switch must not run with the second bay open. Three hot-swappable FAN-T2= modules cool the chassis front-to-rear and side-to-rear, and the switch keeps running if one fails.
Application Scenarios
In an SD-Access campus, the switch serves as the fabric edge on office floors, powering IP phones and access points over PoE+ while Cisco TrustSec group tags keep user and device groups apart.
Facilities teams can connect PoE+ cameras, badge readers and door controllers to the same closet switch as staff desks, with a dedicated VRF holding their routes away from the corporate network.
A branch office joins its closet switches into one StackWise-320 stack that exchanges routes with the WAN edge over BGP, while phones and access points draw power from the PoE+ ports.
Product Comparison
|
Parameter |
C9300L-48P-4G-A | |||
|---|---|---|---|---|
|
Total 10/100/1000, Multigigabit copper or SFP fiber |
48 ports PoE+ |
48 ports PoE+ |
48 ports PoE+ |
48 ports data |
|
Power over Ethernet |
PoE+ |
PoE+ |
PoE+ |
Not applicable |
|
Available PoE (default supply) |
505W |
505W |
505W |
Not applicable |
|
Available PoE with 1100W secondary PS |
1440W |
1440W |
1440W |
Not applicable |
|
Uplink configuration |
4x 1G fixed uplinks |
4x 1G fixed uplinks |
4x 10G/1G fixed uplinks |
4x 1G fixed uplinks |
|
Network stack |
Network Advantage |
Network Essentials |
Network Advantage |
Network Advantage |
|
Stacking bandwidth support |
StackWise-320 |
StackWise-320 |
StackWise-320 |
StackWise-320 |
|
Switching capacity |
104 Gbps |
104 Gbps |
176 Gbps |
104 Gbps |
C9300L-48P-4G-A and C9300L-48P-4X-A share 48 PoE+ ports, a 505W default budget and Network Advantage, but C9300L-48P-4G-A has four fixed 1G SFP uplinks and 104 Gbps of switching capacity against four 10G/1G uplinks and 176 Gbps, so any 10G uplink needs C9300L-48P-4X-A. Closets with no powered endpoints can use C9300L-48T-4G-A, which keeps the 48 copper ports and 1G uplinks without PoE. A closet that stays within Layer 2 and OSPF up to 1,000 routes, with no BGP, VRF or VXLAN, can drop to C9300L-48P-4G-E. The Essentials model moves up later only through a C9300L-LIC= term such as C9300L-48-E-A-5, which cannot sit on the original order.
PoE Power Planning
|
Planning Item |
Value or Check |
|---|---|
|
Port power class |
PoE+ up to 30W per port on all 48 ports |
|
Default PoE budget |
505W on the PWR-C1-715WAC-P supply |
|
Budget with a 350W second supply |
855W |
|
Budget with a 715W second supply |
1220W |
|
Budget with an 1100W second supply |
1440W, the limit set by 48 ports at 30W |
|
Full 30W endpoints on the default budget |
16 ports (480W) |
|
15.4W PoE on all 48 ports |
739W needed: one PWR-C1-1100WAC-P, or two PWR-C1-715WAC-P |
|
30W PoE+ on all 48 ports |
1440W needed: two PWR-C1-1100WAC-P, or one PWR-C1-1100WAC-P with one PWR-C1-715WAC-P or PWR-C1-715WDC |
|
Average per port with all 48 drawing |
About 10.5W at 505W, 30W at 1440W |
|
Empty second bay |
A blank module fills the bay whenever no second supply is installed |
|
Endpoint check |
Add the maximum class draw of the planned phones, access points and cameras before choosing the supply pair |
Ordering Checklist
- Subscription tier: The order needs a 48-port C9300L Advantage term: C9300L-DNA-A-48-3Y, -5Y or -7Y for Cisco DNA, or C9300L-DNX-A-48-3Y, -5Y or -7Y for Cisco Catalyst. An Essentials term does not match the Network Advantage license on a new order.
- Second power supply: A second PWR-C1-715WAC-P is selected by default and C9300L-SPS-NONE removes it. Keeping it raises the PoE budget from 505W to 1220W, while an 1100W second supply gives 1440W.
- Stack kit: C9300L-STACK-KIT with a 50 cm STACK-T3 cable is added by default, with 1 m or 3 m cables selectable. A stack that includes Catalyst 9300LM switches needs C9300L-STACK-KIT2 instead.
- Power cords: Select the cord type for the destination country; the configurator defaults to North America and ships two cords with the default configuration.
- All-port PoE supplies: PoE on all ports needs 1 x PWR-C1-1100WAC-P or 2 x PWR-C1-715WAC-P. PoE+ on all ports needs 2 x PWR-C1-1100WAC-P, or 1 x PWR-C1-1100WAC-P with 1 x PWR-C1-715WAC-P or PWR-C1-715WDC.
Optional Add-ons
|
Model |
Description |
|---|---|
|
Spare 1100W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 1440W | |
|
Spare 715W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 1220W | |
|
Spare 350W AC Platinum-rated power supply; as the second supply it raises the PoE budget to 855W | |
|
PWR-C1-715WDC= |
Spare 715W DC power supply |
|
StackWise-320 kit with two stack adapters and a 50 cm STACK-T3 cable | |
|
C9300L-STACK-KIT2 |
StackWise-320 kit with two stack adapters and a 50 cm STACK-T3A cable; used when Catalyst 9300LM switches join the stack |
|
1 m Type 3 stacking cable for the C9300L stack kit | |
|
STACK-T3-3M |
3 m Type 3 stacking cable for the C9300L stack kit |
|
FAN-T2= |
Spare fan module |
|
SSD-120G |
Pluggable USB 3.0 120 GB SSD for the rear SSD port |
|
Pluggable USB 3.0 240 GB SSD for the rear SSD port |
Components Delivered in the Shipping Box
The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

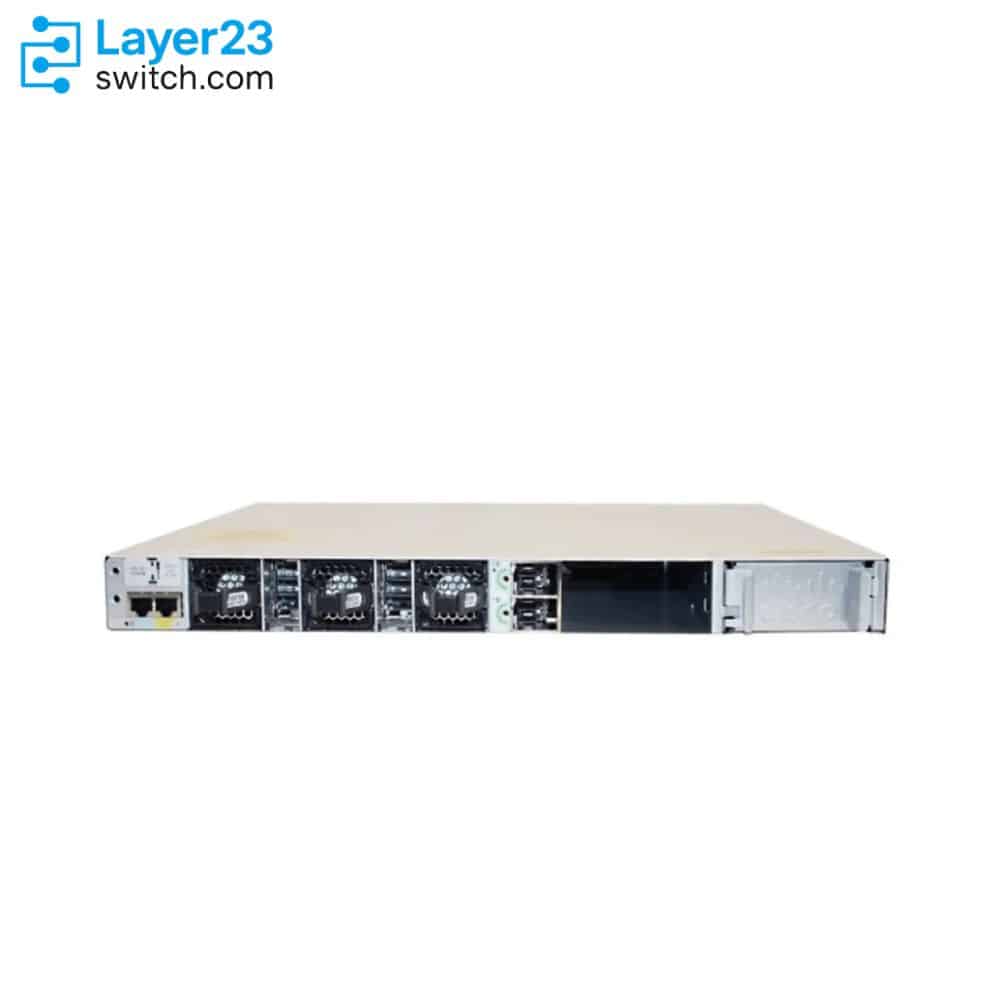

C9300L-48P-4G-A Switch Rear Panel
The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product ID | C9300L-48P-4G-A | Network license | Network Advantage, perpetual and included with the hardware |
| Minimum software release | Cisco IOS XE Gibraltar 16.11.1c | Downlink ports | 48 x 10/100/1000 Mbps PoE+ RJ-45 |
| Uplink ports | 4 x 1G SFP, fixed | Connector types | LC fiber connectors on SFP transceivers |
| Copper cabling | RJ-45, 4-pair Cat 5E UTP (1000BASE-T) | Console port | RJ-45 console port and USB mini-Type B console port |
| Management port | 10/100/1000 RJ-45 | USB port | USB Type A, USB 3.0, 900 mA at 5 V; 128 MB to 8 GB flash drives |
| Switching capacity | 104 Gbps | Forwarding rate | 77.38 Mpps (64-byte IPv4 packets) |
| Switching capacity with stacking | 424 Gbps | Forwarding rate with stacking | 315.48 Mpps |
| Packet buffer | 16 MB | DRAM | 8 GB |
| Flash | 16 GB | SSD storage | Rear USB 3.0 SSD port for a 120 GB or 240 GB SSD module |
| MAC addresses | 32,000 | VLAN IDs | 4,094 |
| Switched virtual interfaces | 1,000 | PVST instances | 300 |
| STP virtual ports | 13,000 (PVST); 13,000 (MST) | IPv4 routes | 32,000 (24,000 direct routes, 8,000 indirect routes) |
| IPv6 routes | 16,000 | Multicast routes | 8,000 |
| ACL entries | 5,120 | QoS entries | 5,120 |
| Flexible NetFlow entries | 64,000 flows | Jumbo frames | 9,198 bytes |
| Stacking | StackWise-320, 320 Gbps, up to 8 members | Stack mixing | Catalyst 9300L and 9300LM switches at the same license level; no stacking with modular-uplink Catalyst 9300 or 9300X |
| Stacking kit | Optional C9300L-STACK-KIT or C9300L-STACK-KIT2: two stack adapters and one cable (0.5 m default; 1 m and 3 m options) | Routed ports per stack | 416 |
| StackPower | Not supported | Management features | SNMPv1, SNMPv2c, SNMPv3, RMON I and II |
| Standards supported | 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3ae, 802.3af, 802.3at | Default power supply | PWR-C1-715WAC-P (715W AC, Platinum-rated) |
| Power supply slots | 2; one supply installed, blank in the second bay | AC input voltage | 100 to 240 VAC (PWR-C1-715WAC-P) |
| AC input frequency | 50 to 60 Hz | Power consumption | 90.01W full port traffic; 85.41W weighted average; 68.42W no link (715W supply, 115 VAC) |
| Power consumption with PoE | 632.46W at 100% PoE load (715W supply, 115 VAC) | Default PoE budget | 505W |
| PoE budget with other supplies | 855W with second 350W supply; 1220W with second 715W supply; 1440W with second 1100W supply (limited by port number and port rating) | PoE standards | PoE+ up to 30W per port; PoE at 15.4W |
| PoE features | Perpetual PoE and Fast PoE | Fan modules | 3 hot-swappable FAN-T2= fan modules with N+1 redundancy |
| Airflow | Front-to-rear and side-to-rear | Airflow rate | 20 cfm per fan module |
| Acoustic noise | LpA 44 dB typical, 47 dB max; LwA 5.5B typical, 5.8B max (C9300L, AC supply, half the PoE+ ports loaded, 25°C) | Dimensions (H x W x D) | 1.73 x 17.5 x 17.7 in. (4.4 x 44.5 x 44.9 cm) with default power supply |
| Operating temperature | -5°C to 45°C up to 5,000 ft (1,500 m); -5°C to 40°C up to 10,000 ft (3,000 m) | Storage temperature | -40°C to 70°C |
| Operating humidity | 5% to 90%, noncondensing | Operating altitude | Up to 10,000 ft (3,000 m) |
| Storage altitude | Up to 15,000 ft (4,500 m) | MTBF | 314,140 hours |
| Safety certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1 | EMC certifications | 47 CFR Part 15, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, EN 300 386, ICES-003 Class A, VCCI-CISPR 32 Class A, KN32, KN35, CNS13438, QCVN 118:2018/BTTTT |
| Environmental compliance | RoHS 5 |
