Can C9300X-48HXN-A be stacked?

Yes. C9300X-48HXN-A stacks up to 8 members over StackWise-1T at 1 Tbps when every member is a Catalyst 9300X switch on the same license level. A standard non-X Catalyst 9300 member slows the whole stack to StackWise-480 speeds, and StackPower+ shares supply capacity across up to four members per ring.

What does Network Advantage on C9300X-48HXN-A include?

Network Advantage on C9300X-48HXN-A includes BGP, IS-IS, HSRP, VRF, VXLAN, LISP, TrustSec and MPLS, with OSPF free of the 1,000-route limit. The license is perpetual and included with the hardware, and a subscription at the same Advantage tier is required on new orders.

How much PoE does C9300X-48HXN-A reach with a PWR-C1-1900WAC-P as primary supply?

With PWR-C1-1900WAC-P or PWR-C1-1900WHV-T as primary supply, C9300X-48HXN-A delivers 1490W of PoE alone. A 350W secondary supply gives 1840W, and a 1100W secondary gives 2590W, per the Catalyst 9300 data sheet. Use this ladder when the closet needs a PoE budget above what the configurator default provides.

How many IPsec tunnels and what throughput does C9300X-48HXN-A support?

C9300X-48HXN-A supports 128 IPsec tunnels at first release, with 25 new tunnels per second, per the Catalyst 9300 data sheet. Throughput is up to 100 Gbps with esp-gcm-128 or esp-gcm-256, and up to 15G with esp-aes plus esp-sha-hmac. The tunnels also need the HSECK9 authorization code.

Is the HSECK9 code on C9300X-48HXN-A lost on a reload?

No. HSECK9 is a one-time install that persists across reloads and config erase. It is a Smart Licensing authorization code (SLAC) obtained in CSSM, and it is available for the Catalyst 9300X, 9500X and 9600X. Without it IPsec cannot be turned on, even though C9300X-48HXN-A already runs Network Advantage.

Does C9300X-48HXN-A support 256-bit MACsec?

Yes. 256-bit MACsec requires Network Advantage, which C9300X-48HXN-A carries. The 128-bit mode needs only Network Essentials, so on this model the license tier decides the key length. IPsec is a separate feature on the same hardware and needs the HSECK9 authorization code.

What input voltage and power cord does the default PWR-C1-1100WAC-P on C9300X-48HXN-A use?

The PWR-C1-1100WAC-P accepts 115-240 VAC at 47-63 Hz and 12-6A through an IEC 320-C16 inlet with a 15A cord. It is rated at 3754 BTU/hr of heat output, per the Catalyst 9300 hardware installation guide technical specifications. Choose the cord type at order time, because the configurator defaults to North American cords.

What app hosting resources does C9300X-48HXN-A provide?

C9300X-48HXN-A provides 8 GB of RAM and 4 vCPU (2 cores) for hosted applications, plus two 10G AppGig ports and a QAT crypto accelerator. Local storage is a USB 3.0 SSD of up to 240 GB, ordered as SSD-120G or SSD-240G. Size hosted applications against these limits before ordering the SSD.

How many SVIs, PVST instances and routed ports does C9300X-48HXN-A support?

C9300X-48HXN-A supports 1000 SVIs and 300 PVST instances, with 13,000 STP virtual ports. A stack of these switches holds 448 routed ports in total. These limits come from the Catalyst 9300 data sheet scale table for the Catalyst 9300X group, so plan the VLAN design and spanning-tree load against them.

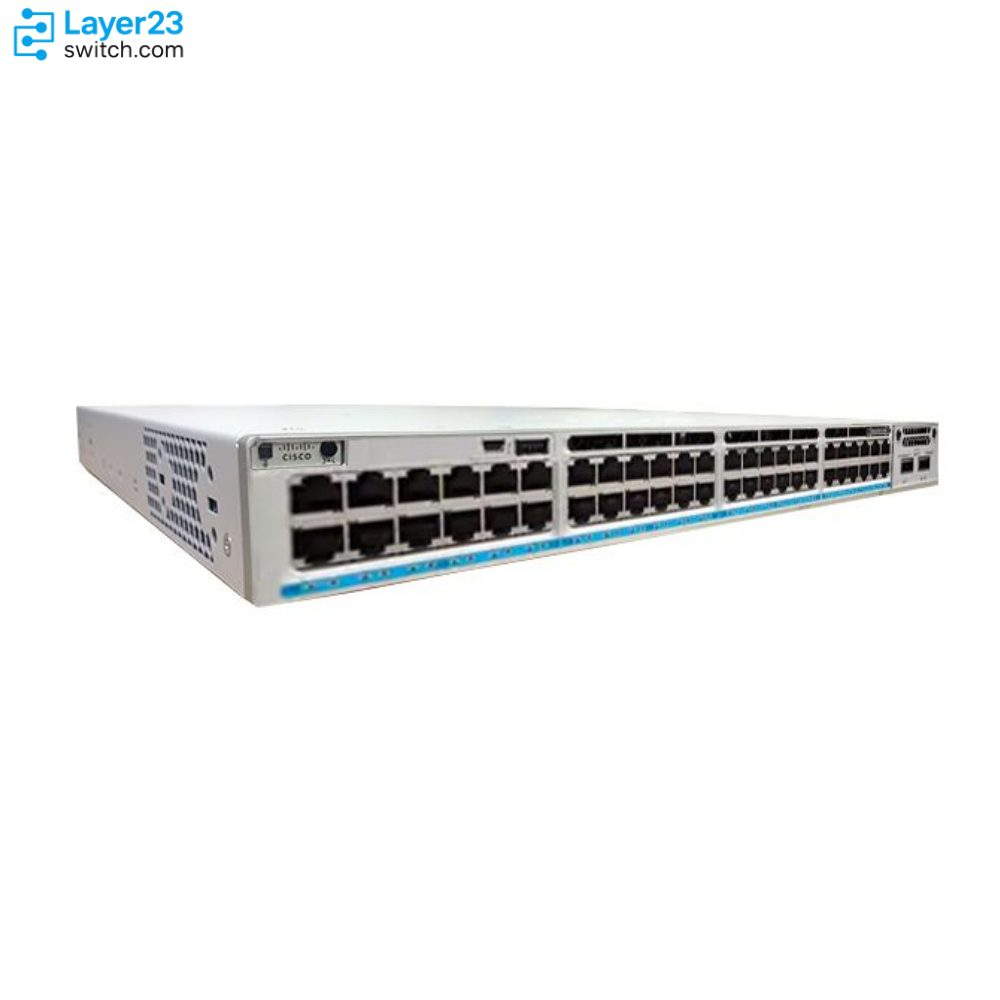

C9300X-48HXN-A – 8x10G + 40x5G mGig UPOE+ Ports – Modular Uplink – 690W PoE Budget

Name: C9300X-48HXN-A - Cisco Catalyst 9300X 48-Port 5G mGig UPoE+ Switch
Brand: Cisco
SKU: C9300X-48HXN-A
Price: 6745.42 USD
Availability: BackOrder
Rating: 5 (10 reviews)

Brand: Cisco Category: Catalyst 9300 Switches Availability:

Available on Backorder

Model: C9300X-48HXN-A

Cisco SN CheckSN verification before shipment.Verify authenticity3-Year WarrantyExtended, enterprise-gradeWarranty terms14-Day ReturnsStraightforward RMA processReturn policy

Rated 5 out of 5 based on 10 customer ratings

5.010 reviews9 Questions

List Price: ~~$21,861.49~~ 69% OFF

$6,745.42

Condition

Related

Quantity

Shipping Express Shipping 2-6 Business Days, via UPS, FedEx, DHL and more

Trusted & Secure Payments

Shop Expert-Recommended Accessories for the C9300X-48HXN-A

Explore optics, stacking accessories, modules, and power supplies—all verified by our engineers for use with this model.

SFP-10G-SR
10GBASE-SR SFP+ - 850nm MMF - 400m OM4
Original price was: $1,213.85.Current price is: $91.68.
SFP-10G-LR
10GBASE-LR SFP+ - 1310nm SMF - 10km Reach
Original price was: $4,873.66.Current price is: $149.00.
SFP-25G-SR-S
25GBASE-SR SFP28 - 850nm MMF - 100m OM4
Original price was: $1,213.85.Current price is: $258.00.
SFP-10/25G-LR-S
10/25GBASE-LR SFP28 - 10 km G.652 SMF - 0 to 70°C Commercial Temperature
Original price was: $2,787.19.Current price is: $431.00.
QSFP-40G-SR4
40G SR4 QSFP - MPO-12 MMF - 4x10G Breakout
Original price was: $3,653.72.Current price is: $126.00.
QSFP-40G-SR-BD
40G SR-BiDi QSFP - LC MMF - 150m OM4
Original price was: $2,925.26.Current price is: $120.00.
GLC-LH-SMD
1000BASE-LX/LH SFP - 10km SMF / 550m MMF - DOM
Original price was: $1,260.58.Current price is: $95.80.
GLC-TE
1000BASE-T SFP - RJ-45 Cat5 Copper - 100m Reach
Original price was: $570.10.Current price is: $70.00.
GLC-SX-MMD
1000BASE-SX SFP - MMF 850nm - DOM
Original price was: $633.46.Current price is: $59.00.
STACK-T1-50CM
50cm Type 1 StackWise Cable - C9300/C9300X Data Stack - 480G/1T
Original price was: $121.99.Current price is: $70.00.
STACK-T1-1M
1m Type 1 StackWise Cable - C9300/C9300X Data Stack - 480G/1T
Original price was: $252.03.Current price is: $140.00.
STACK-T1-3M
3m Type 1 StackWise Cable - C9300/C9300X Data Stack - 480G/1T
Original price was: $378.07.Current price is: $200.00.
C9300X-NM-8Y
8x25G/10G/1G SFP28 Module - Catalyst 9300X
Original price was: $7,400.00.Current price is: $925.00.
C9300X-NM-2C
2x100G/40G QSFP28 Module - Catalyst 9300X
Original price was: $7,480.00.Current price is: $935.00.
C9300X-NM-8M
8x10G/mGig Copper Module - Catalyst 9300X
Original price was: $10,280.00.Current price is: $1,143.00.
PWR-C1-1100WAC-P
1100W AC PSU - Catalyst 9300 C1 - Platinum Rated
Original price was: $2,317.88.Current price is: $689.00.
PWR-C1-1900WAC-P
1900W AC PSU - Catalyst 9300 C1 - Platinum Rated
Original price was: $12,784.00.Current price is: $1,598.00.

Why Layer23-Switch

Stocked, Shipped and Supported by One Team

Founded

Customers

Units shipped

Countries

Inventory You Can See

Cisco stock on hand

Models ready to ship

Warehouse space

Ships in 1 Business Day

In-stock orders leave our Hong Kong or U.S. warehouse within 1 business day after payment, with tracking by email.

DHL FedEx UPS Duties included: US · CA · UK

LSCare Warranty

3years on enterprise equipment

Advance replacement for in-stock models
New unit for dead-on-arrival
14-day returns on sealed items

Free CCIE Support

Certified engineers help before and after you buy. Reply within 1 business day by email or live chat.

Part number check Configuration Troubleshooting

Verify Before You Pay

100%factory-sealed

Get label and serial photos before shipment, and check every serial number with Cisco.

C9300X-48HXN-A Description

The C9300X-48HXN-A is a Cisco Catalyst 9300X Series stackable access switch for wiring closets that power multigigabit endpoints and need Network Advantage routing and segmentation. The switch has 8 10G and 40 5G Multigigabit UPOE+ ports, a 690W PoE budget on the default 1100W supply, a modular uplink slot and 960 Gbps of switching capacity. Hardware IPsec at up to 100G also runs on the switch, but only after an HSEC key is installed alongside the Advantage subscription.

Quick Specs

Parameter	Specification
Product ID	C9300X-48HXN-A
Downlink ports	8 x 10G Multigigabit (10G/5G/2.5G/1G/100M) + 40 x 5G Multigigabit (5G/2.5G/1G/100M)
PoE standards	Cisco UPOE+ on all 48 ports, up to 90W per port
Default power supply	PWR-C1-1100WAC-P (1100W AC)
Default PoE budget	690W
Maximum PoE budget	3390W with 1900W primary and 1900W secondary supplies
Uplinks	Modular slot for C9300X-NM-8M, C9300X-NM-8Y and C9300X-NM-2C; C9300X-NM-4C not supported
Network license	Network Advantage
Switching capacity	960 Gbps (1,960 Gbps with stacking)
Forwarding rate	714.24 Mpps (1,458.24 Mpps with stacking)
Stacking	StackWise-1T at 1 Tbps, up to 8 members
Hardware-based IPsec	Up to 100G with an HSEC key
Minimum software release	Cisco IOS XE Cupertino 17.9.3

Product Performance

Switching Capacity

Forwarding Rate

Default PoE Budget

Key Features

Two Port Speeds On One Switch

Eight ports negotiate up to 10G, and the other forty top out at 5G; every port also runs 2.5G, 1G and 100M. A 10G run needs Cat6 for up to 55 m or Cat6A for 100 m, and Cat6A is the recommended cable for 5G because Cat5e is not guaranteed to 100 m above 2.5G.

PoE Budget Grows With The Supplies

The default 1100W supply leaves 690W for PoE, enough for seven ports at a full 90W. A second 1100W supply lifts the budget to 1790W, and a pair of 1900W supplies on 230V input reaches 3390W, which covers 37 ports at 90W or all 48 at 60W.

Reduced Port Counts On Uplink Modules

On this chassis the eight-port C9300X-NM-8M and C9300X-NM-8Y modules run ports 1 to 6, with ports 7 and 8 permanently disabled. C9300X-NM-2C keeps both 100G ports but supports a breakout cable only on port 1, and C9300X-NM-4C does not fit.

What Network Advantage Adds

Network Advantage lifts the 1,000-route OSPF ceiling and adds BGP, IS-IS and HSRP. It also brings VRF, VXLAN, LISP, Cisco TrustSec and MPLS for segmentation, MACsec-256 on the links, and NETCONF, RESTCONF and gRPC for automation.

100G IPsec Terminated On The Switch

The UADP 2.0sec ASIC encrypts at up to 100G with AES-256. Tunnels can end on the access switch itself once two pieces are in place: a separately ordered HSEC key and the Advantage tier of the Cisco Catalyst or Cisco DNA subscription.

StackWise-1T And StackPower+

Up to eight Catalyst 9300X switches stack at 1 Tbps, provided every member runs the same license level. A non-X Catalyst 9300 member drops the stack to StackWise-480 speed. StackPower+ shares supply capacity across up to four switches per ring, or eight with an XPS-2200.

Application Scenarios

SD-Access Fabric Edge For Wi-Fi Floors

On an SD-Access campus, the switch acts as the fabric edge for a floor of access points on its 5G and 10G ports, and the Advantage tier supplies the policy-based segmentation the fabric depends on.

Building Systems On Separate Segments

Cameras and other UPOE+ powered building devices draw power from the same closet as office users, while VRF or VXLAN keeps their traffic in its own segment on one switch.

Regional Office Encrypting Its Own Links

A regional office can end IPsec tunnels to headquarters or a cloud security gateway directly on this access switch once the HSEC key is installed.

Product Comparison

Parameter	C9300X-48HXN-A	C9300X-48HXN-E	C9300X-48HX-A	C9300X-24HX-A
Total 10/100/1000, Multigigabit copper or SFP fiber	8x 10G Multigigabit + 40x 5G Multigigabit	8x 10G Multigigabit + 40x 5G Multigigabit	48x 10G Multigigabit	24x 10G Multigigabit
PoE type	Cisco UPOE+	Cisco UPOE+	Cisco UPOE+	Cisco UPOE+
Available PoE with default power supply	690W	690W	590W	735W
Maximum available PoE	3390W	3390W	3290W	2160W
Uplink configuration	Modular; C9300X-NM-8M and C9300X-NM-8Y limited to 6 ports; no C9300X-NM-4C	Modular; C9300X-NM-8M and C9300X-NM-8Y limited to 6 ports; no C9300X-NM-4C	Modular; C9300X-NM modules including C9300X-NM-4C	Modular; C9300X-NM modules except C9300X-NM-4C
Network license	Network Advantage	Network Essentials	Network Advantage	Network Advantage
Stacking bandwidth support	StackWise-1T, 1 Tbps	StackWise-1T, 1 Tbps	StackWise-1T, 1 Tbps	StackWise-1T, 1 Tbps
Switching capacity	960 Gbps	960 Gbps	1,760 Gbps	800 Gbps

C9300X-48HXN-A and C9300X-48HX-A both carry 48 UPOE+ ports, but the C9300X-48HXN-A runs only eight of them at 10G and the other 40 at up to 5G, with 960 Gbps of switching against 1,760 Gbps. Floors that need 10G on every port, or the four-port C9300X-NM-4C uplink, belong on C9300X-48HX-A. A closet that runs Layer 2 and OSPF within 1,000 routes can drop to C9300X-48HXN-E and give up BGP, VXLAN, MPLS, MACsec-256 and hardware IPsec. Moving back up later takes a C9300-LIC= term such as C9300-48-E-A-5, which cannot be added to the original order. Where 24 ports are enough, C9300X-24HX-A runs all of them at 10G with a 735W default budget.

PoE Power Planning

Planning Item	Value or Check
Default power supply	PWR-C1-1100WAC-P (1100W AC)
Default PoE budget	690W
With a second 1100W supply (configurator default)	1790W
With a 1900W secondary supply	2590W
With 1900W primary and 1900W secondary supplies	3390W
1900W supply at 115V input	Output limited to 1500W; 1900W needs 230V nominal input
Full 90W on all 48 ports	4320W, above the 3390W maximum; 37 ports fit at 90W
Full 60W on all 48 ports	2880W, within the 3390W budget of two 1900W supplies only
PoE standards	IEEE 802.3af, 802.3at, 802.3bt Type 3 and Type 4, Cisco UPOE and UPOE+

Ordering Checklist

Subscription tier: Order a 48-port Advantage term of 3, 5 or 7 years, such as C9300-DNA-A-48-5Y for Cisco DNA or C9300-DNX-A-48-5Y for Cisco Catalyst. New orders need a subscription at the same tier as the network license.
HSEC key: Add the HSEC key when IPsec tunnels will end on the switch. Hardware IPsec stays unavailable without it, even on Network Advantage.
Uplink module: The configurator adds C9300X-NM-2C; keep it, change it to C9300X-NM-8M or C9300X-NM-8Y, or select C9300X-NM-NONE. C9300X-NM-4C does not fit this switch, and a slot left empty needs a blank.
Second power supply: A second PWR-C1-1100WAC-P is selected by default and C9300-SPS-NONE removes it. Without it the PoE budget stays at 690W instead of 1790W.
Stack cables: A 3 m StackWise cable and a 150 cm StackPower cable come with each switch unless C9300X-STACK-NONE and C9300-SPWR-NONE are selected. Unstacked switches otherwise arrive with cables they do not use.
Power cords: Select the cord type for the destination country, because the configurator defaults to North American cords and two ship with each switch.

Optional Add-ons

Model	Description
C9300X-NM-2C	Catalyst 9300X network module with 2 x 100G/40G QSFP ports; on this switch both ports work, with breakout only on port 1
C9300X-NM-8Y	Catalyst 9300X network module with 8 x 25G/10G/1G SFP ports; ports 1 to 6 usable on this switch
C9300X-NM-8M	Catalyst 9300X network module with 8 x 10G/1G Multigigabit copper ports; ports 1 to 6 usable on this switch
PWR-C1-1100WAC-P=	Spare 1100W AC Platinum-rated power supply, matching the default supply
PWR-C1-1900WAC=	Spare 1900W AC power supply for the larger PoE budgets
PWR-C1-1900WHV-T=	Spare 1900W HVAC/HVDC Titanium-certified power supply
STACK-T1-50CM=	StackWise-480/1T stacking cable, 50 cm
STACK-T1-1M=	StackWise-480/1T stacking cable, 1 m
STACK-T1-3M=	StackWise-480/1T stacking cable, 3 m
CAB-SPWR-30CM=	StackPower cable, 30 cm
CAB-SPWR-150CM=	StackPower cable, 150 cm
SSD-120G	Pluggable USB 3.0 SSD storage, 120 GB
SSD-240G	Pluggable USB 3.0 SSD storage, 240 GB
FAN-T2=	Spare fan module

C9300X-48HXN-A Switch Rear Panel

The switch rear panel includes StackWise connectors, StackPower or XPS connectors, ports, fan modules, and power supply modules.

1	Ground connectors	7	StackPower connectors
2	USB3.0–SSD port	8	AC OK (input) status LED
3	BEACON LED	9	PS OK (output) status LED
4	CONSOLE (RJ-45 console port)	10	StackWise-480 port connectors
5	MGMT (RJ-45 10/100/1000 management port)	11	Power supply modules
6	Fan modules	–	–

Rear Panel of a Cisco Catalyst 9300 Series Switch

Components Delivered in the Shipping Box

The shipping box contains the model of the switch you ordered and other components needed for installation. Some components are optional, depending on your order.

1	Cisco Catalyst 9300 Series switch with optional network module¹ (power supply and fan modules not shown)	9	Eight number-8 Phillips flat-head screws
2	AC power cord	10	Cable guide
3	Product documentation and compliance document	11	M4.0 x 20mm Phillips pan-head screw
4	Four rubber mounting feet	12	(Optional) RJ-45 console cable
5	Ground lug screw and ring terminal	13	(Optional) USB console cable
6	Two 19-inch mounting brackets	14	(Optional) StackWise-480/1T cable (0.5-meter, 1-meter, or 3-meter)
7	Four number-12 pan-head screws	15	(Optional) StackPower cable (0.3-meter or 1.5-meter)
8	Four number-10 pan-head screws	16	(Optional) StackWise-320 cable

Specifications

Parameter	Specification	Parameter	Specification
Product ID	C9300X-48HXN-A	Network license	Network Advantage, perpetual and included with the hardware
Downlink ports	8 x 10G Multigigabit (10G/5G/2.5G/1G/100M) + 40 x 5G Multigigabit (5G/2.5G/1G/100M)	PoE standards	Cisco UPOE+ on all 48 ports, up to 90W per port; IEEE 802.3af, 802.3at and 802.3bt Type 3 and Type 4 devices
Multigigabit cabling	10G: Cat6 up to 55 m or Cat6A up to 100 m; Cat6A recommended for 5G; full duplex only	Uplink slot	Modular slot for C9300X-NM network modules; no module in the default hardware configuration
Supported network modules	C9300X-NM-8M and C9300X-NM-8Y (ports 1 to 6 usable), C9300X-NM-2C (breakout on port 1 only); C9300X-NM-4C not supported	Network module slot rule	Operate with a network module or a blank module installed
Management port	10/100/1000 RJ-45	Console port	RJ-45 console port and USB mini-Type B console port
USB port	USB Type A and USB Type C, USB 3.0, 900 mA at 5 V	SSD storage	Pluggable 120 GB or 240 GB USB 3.0 SSD module
Switching capacity	960 Gbps	Switching capacity with stacking	1,960 Gbps
Forwarding rate	714.24 Mpps	Forwarding rate with stacking	1,458.24 Mpps
Packet buffer	16 MB	Flexible NetFlow entries	64,000 flows
DRAM	16 GB	Flash	16 GB
Hardware-based IPsec	Up to 100G, AES-256; requires an HSEC key and the Cisco Catalyst or Cisco DNA Advantage tier	App hosting capacity	2x the hosting resources of Catalyst 9300 models, Intel QuickAssist Technology, 2 x 10G AppGig ports
MAC addresses	32,000	IPv4 routes	39,000 (24,000 direct routes, 15,000 indirect routes)
IPv6 routes	19,500	Multicast routes	8,000
QoS entries	4,000	ACL entries	8,000
VLAN IDs	4094	PVST instances	300
STP virtual ports (PVST/MST)	13,000	Switched virtual interfaces	1,000
Jumbo frames	9198 bytes	Total routed ports per stack	448
Stacking	StackWise-1T, 1 Tbps, up to 8 members	Mixed stacking	StackWise-480 speeds with standard Catalyst 9300 (non-X) members; not supported with higher-scale C9300-24UB, C9300-24UXB or C9300-48UB; all members share one license level
StackPower	StackPower+; up to 4 switches per ring, 8 with XPS-2200	Network Advantage feature set	BGP, EIGRP, HSRP, IS-IS, OSPF; VRF, VXLAN, LISP, Cisco TrustSec, SGT, MPLS, mVPN; NETCONF, RESTCONF, gRPC, YANG; NSF, GIR, xFSU; AVB, PTP; MACsec-256
Default power supply	PWR-C1-1100WAC-P (1100W AC, Platinum-rated)	Power supply slots	2; dual redundant power supplies supported
Available PoE with default power supply	690W	Available PoE with second 1100W supply	1790W
Available PoE with 1900W secondary supply	2590W	Available PoE with two 1900W supplies	3390W
Available PoE with 1900W primary alone	1490W	1900W supply output at 115V input	Limited to 1500W
Default supply input voltage	115 to 240 VAC, 47 to 63 Hz	Default supply input current	12-6A
Default supply inlet	IEC 320-C16	Default supply power cord rating	15A
Default supply total output BTU	3,754 BTU/hr	Measured power at full traffic, no network module (115 VAC)	171.8W
Weighted average power, no network module (115 VAC)	161.3W	Measured power with no link, no network module (115 VAC)	130.2W
Measured power at 100% PoE test load, no network module (115 VAC)	956.4W	Measured power at full traffic with C9300X-NM-8M (115 VAC)	191.4W
Measured power at full traffic with C9300X-NM-2C (115 VAC)	204.3W	Measured power at full traffic with C9300X-NM-8Y (115 VAC)	231W
Fan modules	Three field-replaceable fans with N+1 redundancy	Fan module	FAN-T2=
Fan module airflow	20 cfm	Airflow	Front-to-rear and side-to-rear
Operating temperature	-5°C to 45°C (23°F to 113°F)	Minimum cold-start temperature	0°C (32°F)
Storage temperature	-40°C to 70°C (-40°F to 158°F)	Operating humidity	5% to 90%, noncondensing
Operating altitude	Up to 10,000 ft (3000 m)	Storage altitude	Up to 15,000 ft (4500 m)
Dimensions, chassis only (H x W x D)	1.73 x 17.5 x 17.57 in (4.4 x 44.5 x 44.6 cm)	Dimensions with default power supply (H x W x D)	1.73 x 17.5 x 20.63 in (4.4 x 44.5 x 52.4 cm)
Weight with default power supply	6.44 kg (14.2 lb)	MTBF	188,200 hours
Safety certifications	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1	EMC certifications	47 CFR Part 15, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, EN 300 386, EN 61000-3-2, EN 61000-3-3, ICES-003 Class A, CNS13438, KN32, KN35, TCVN 7189 Class A, TCVN 7317
Environmental compliance	RoHS 5	IEEE standards	802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3ae, 802.3an, 802.3bz, 802.3af, 802.3at
Management standards	SNMPv1, SNMPv2c, SNMPv3, RMON I and II	Minimum software release	Cisco IOS XE Cupertino 17.9.3

Quality Certifications

Customer Reviews

Write A Review

5.0

Rated 5 out of 5

(10 reviews)

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Ryan Hicks

Posted on 03/02/2026

Verified Buyer

Rated 5 out of 5

5.0

Quality marks, certifications, and labeling all consistent with genuine product.

Olga Collins

Posted on 07/01/2026

Verified Buyer

Rated 5 out of 5

5.0

Fast shipping and proper documentation. Everything our purchasing department requires.

Donna Powell

Posted on 13/12/2025

Verified Buyer

Rated 5 out of 5

5.0

Pre-sales conversations were efficient — no wasted time, just clear information.

Erik Lehnsherr

Posted on 12/07/2025

Verified Buyer

Rated 5 out of 5

5.0

The package arrived intact. The metal box is secure.

Remy LeBeau

Posted on 12/05/2025

Verified Buyer

Rated 5 out of 5

5.0

Good deal. Fast shipping. No tricks.

Questions & Answers

Can C9300X-48HXN-A be stacked?
Yes. C9300X-48HXN-A stacks up to 8 members over StackWise-1T at 1 Tbps when every member is a Catalyst 9300X switch on the same license level. A standard non-X Catalyst 9300 member slows the whole stack to StackWise-480 speeds, and StackPower+ shares supply capacity across up to four members per ring.
What does Network Advantage on C9300X-48HXN-A include?
Network Advantage on C9300X-48HXN-A includes BGP, IS-IS, HSRP, VRF, VXLAN, LISP, TrustSec and MPLS, with OSPF free of the 1,000-route limit. The license is perpetual and included with the hardware, and a subscription at the same Advantage tier is required on new orders.
How much PoE does C9300X-48HXN-A reach with a PWR-C1-1900WAC-P as primary supply?
With PWR-C1-1900WAC-P or PWR-C1-1900WHV-T as primary supply, C9300X-48HXN-A delivers 1490W of PoE alone. A 350W secondary supply gives 1840W, and a 1100W secondary gives 2590W, per the Catalyst 9300 data sheet. Use this ladder when the closet needs a PoE budget above what the configurator default provides.
How many IPsec tunnels and what throughput does C9300X-48HXN-A support?
C9300X-48HXN-A supports 128 IPsec tunnels at first release, with 25 new tunnels per second, per the Catalyst 9300 data sheet. Throughput is up to 100 Gbps with esp-gcm-128 or esp-gcm-256, and up to 15G with esp-aes plus esp-sha-hmac. The tunnels also need the HSECK9 authorization code.
Is the HSECK9 code on C9300X-48HXN-A lost on a reload?
No. HSECK9 is a one-time install that persists across reloads and config erase. It is a Smart Licensing authorization code (SLAC) obtained in CSSM, and it is available for the Catalyst 9300X, 9500X and 9600X. Without it IPsec cannot be turned on, even though C9300X-48HXN-A already runs Network Advantage.
Does C9300X-48HXN-A support 256-bit MACsec?
Yes. 256-bit MACsec requires Network Advantage, which C9300X-48HXN-A carries. The 128-bit mode needs only Network Essentials, so on this model the license tier decides the key length. IPsec is a separate feature on the same hardware and needs the HSECK9 authorization code.
What input voltage and power cord does the default PWR-C1-1100WAC-P on C9300X-48HXN-A use?
The PWR-C1-1100WAC-P accepts 115-240 VAC at 47-63 Hz and 12-6A through an IEC 320-C16 inlet with a 15A cord. It is rated at 3754 BTU/hr of heat output, per the Catalyst 9300 hardware installation guide technical specifications. Choose the cord type at order time, because the configurator defaults to North American cords.
What app hosting resources does C9300X-48HXN-A provide?
C9300X-48HXN-A provides 8 GB of RAM and 4 vCPU (2 cores) for hosted applications, plus two 10G AppGig ports and a QAT crypto accelerator. Local storage is a USB 3.0 SSD of up to 240 GB, ordered as SSD-120G or SSD-240G. Size hosted applications against these limits before ordering the SSD.
How many SVIs, PVST instances and routed ports does C9300X-48HXN-A support?
C9300X-48HXN-A supports 1000 SVIs and 300 PVST instances, with 13,000 STP virtual ports. A stack of these switches holds 448 routed ports in total. These limits come from the Catalyst 9300 data sheet scale table for the Catalyst 9300X group, so plan the VLAN design and spanning-tree load against them.

Warranty

100% Low Price Guarantee:

Layer23-Switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.

100% Quality Assurance:

All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Cisco CCIE-certified engineer to ensure perfect working condition before shipment.

Free CCIE Technical Support:

Our Cisco CCIE-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.

100% Money Back Guarantee:

If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly. Visit Return Policy page for more information.

Flexible & Secure Payment and Shipping:

We support multiple secure payment and logistics options, backed by industry-leading verification:

Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage Factory New Sealed Enterprise Hardware:
· 3 Years Factory New Sealed
Visit Warranty Policy page for more information

FREE NETWORK TOOLS

Verify, plan, and comparewith confidence

Use practical tools to check device details, review lifecyclemilestones, and compare hardware before you buy.

Check lifecycle dates

Cisco Switch Selector Tool

Filter Cisco switches by ports, uplinks, PoE, performance, features, license, and budget.

Find matching switches >

Cisco Serial Number Lookup

Verify authenticity and identify exactmodel, coverage, and lifecycle detailsusing a Cisco serial number.

Verify a serial number >

Product Comparison

Compare specifications, capabilitiesand form factors side-by-side tochoose the right hardware.

Cisco Compare products >

C9300X-48HXN-A – 8x10G + 40x5G mGig UPOE+ Ports – Modular Uplink – 690W PoE Budget

Shop Expert-Recommended Accessories for the C9300X-48HXN-A

Stocked, Shipped and Supported by One Team

Inventory You Can See

Ships in 1 Business Day

LSCare Warranty

Free CCIE Support

Verify Before You Pay

C9300X-48HXN-A Description

Quick Specs

Product Performance

Key Features

Application Scenarios

Product Comparison

PoE Power Planning

Ordering Checklist

Optional Add-ons

C9300X-48HXN-A Switch Rear Panel

Components Delivered in the Shipping Box

Specifications

Quality Certifications

Customer Reviews

Questions & Answers

Can C9300X-48HXN-A be stacked?

What does Network Advantage on C9300X-48HXN-A include?

How much PoE does C9300X-48HXN-A reach with a PWR-C1-1900WAC-P as primary supply?

How many IPsec tunnels and what throughput does C9300X-48HXN-A support?

Is the HSECK9 code on C9300X-48HXN-A lost on a reload?

Does C9300X-48HXN-A support 256-bit MACsec?

What input voltage and power cord does the default PWR-C1-1100WAC-P on C9300X-48HXN-A use?

What app hosting resources does C9300X-48HXN-A provide?

How many SVIs, PVST instances and routed ports does C9300X-48HXN-A support?

Warranty

Verify, plan, and comparewith confidence

Cisco Switch Selector Tool

Cisco Serial Number Lookup

Product Comparison

DataSheet Downloads

Related Searches of Catalyst 9300 Switches
